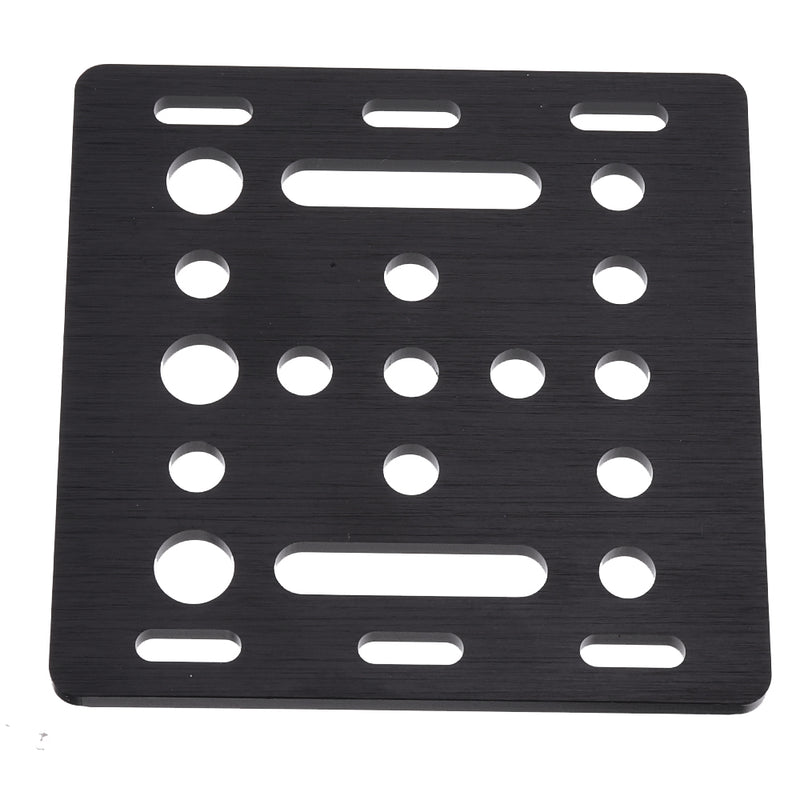

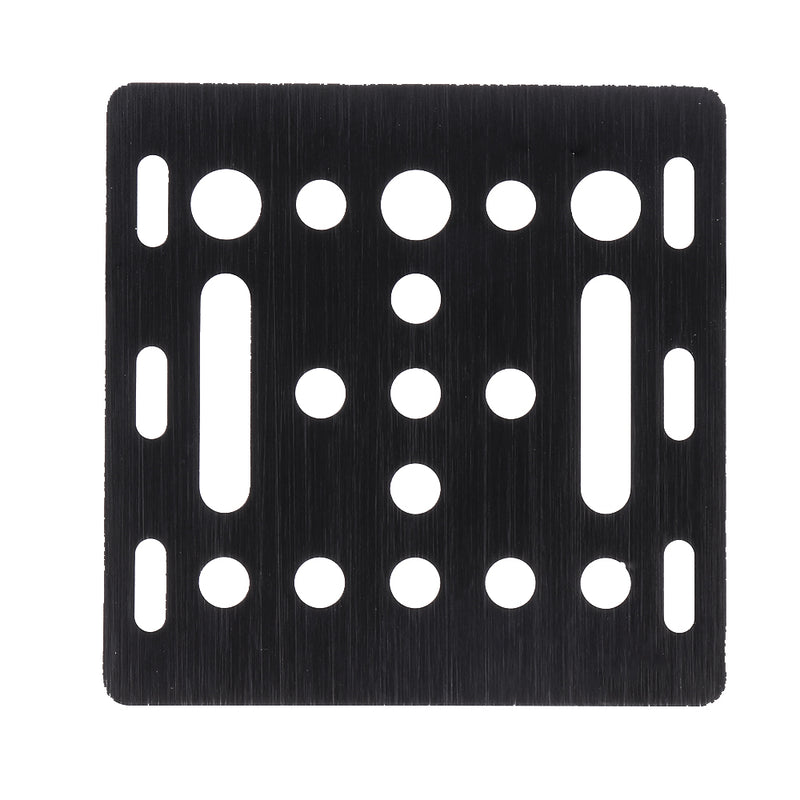

Features:Gantry plate specially designed for any 20mm side of V-Slot linear guide.Fast assembly of motion system, folding slot can easily carry out belt threading.
5 mm slot is suitable for gaskets. 90 degree belt can be installed on both sides of the plate.
Size: 65 x 65 mm (2.5 x 2.5 inches)
Thickness: 3 mm (1/8 inch)
Material: 6061 - T5 aluminium
Surface treatment: wire drawing and anodizing
Color: Black
Tensile strength is at least 190 MPa (28,000 psi)
Package included:
1 x 20mm V-slot Construction Board
