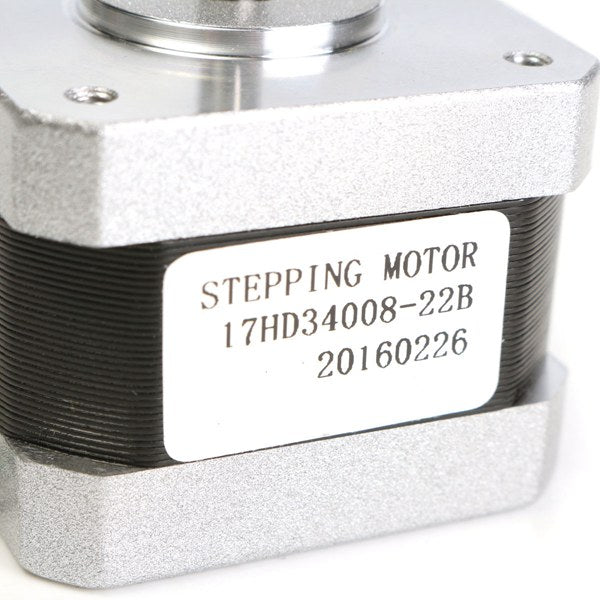

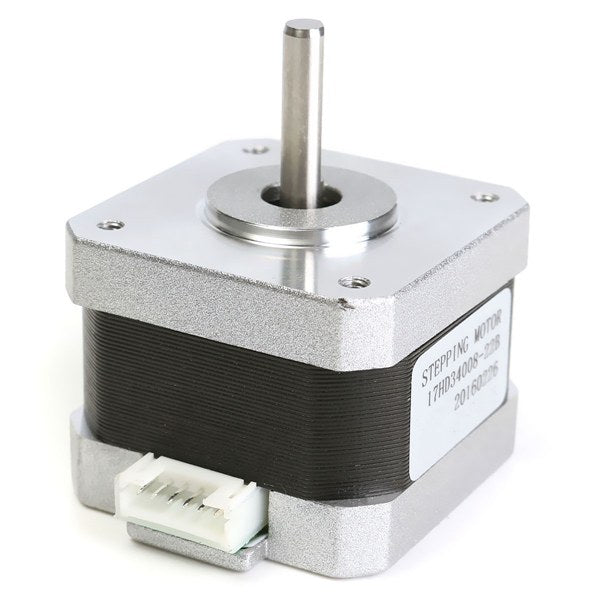

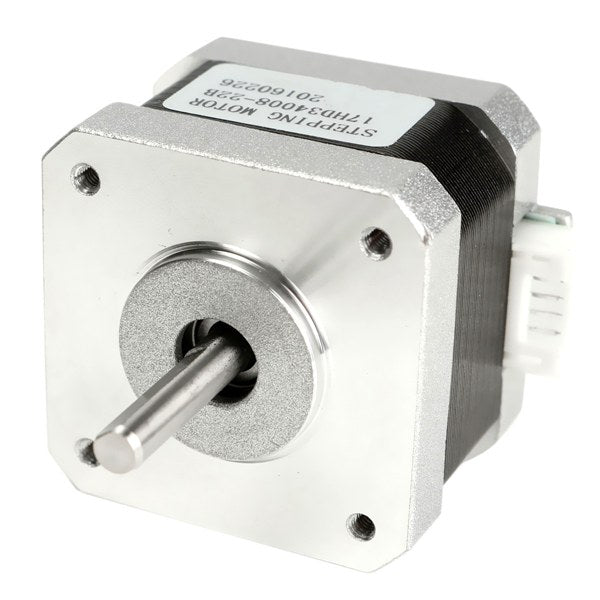

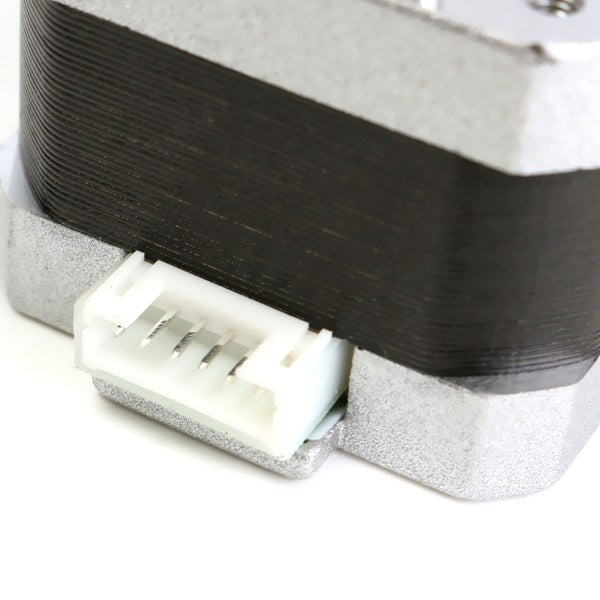

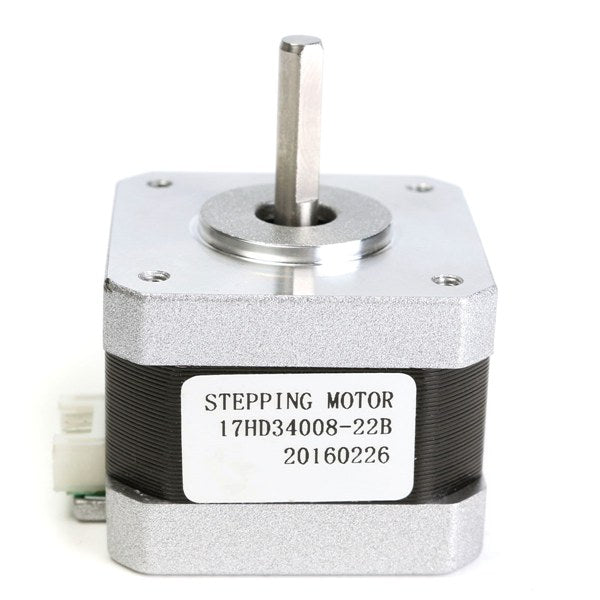

3D Printer High Torque 17 Stepper Motor 300mN 1.5A 2-phase 4-wire

3D Printer High Torque 17 Stepper Motor 300mN 1.5A 2-phase 4-wire

Specifications:

Dimensions: 42 x 42 x 34mm
Rated current (single-phase): 1.5A DC
Rated voltage: 4.8V
Power rating: 6.6W
Resistance: 3.2Ω
Step angle: 1.8 °
Static torque: 320mN.m (I = 1.5A)
Location moment: 12mN.m
Moment of inertia: 38g.cm2
The maximum load starting frequency: ≥1500pps
The maximum no-load operating frequency: ≥8000pps
Inductance: 3MH

Working conditions:

Ambient temperature: -20~50 °C
Relative humidity: 90% MAX
Mounting position: shaft horizontal or vertical mounting
Motor wiring: one meter

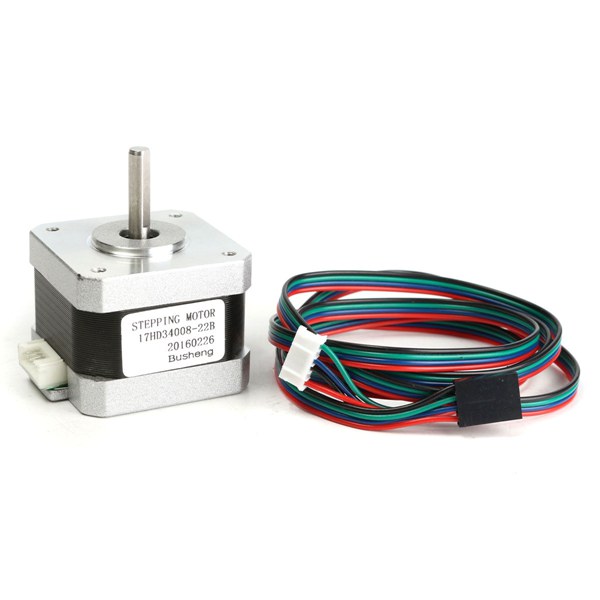

Package includes:

1 x Stepper motor

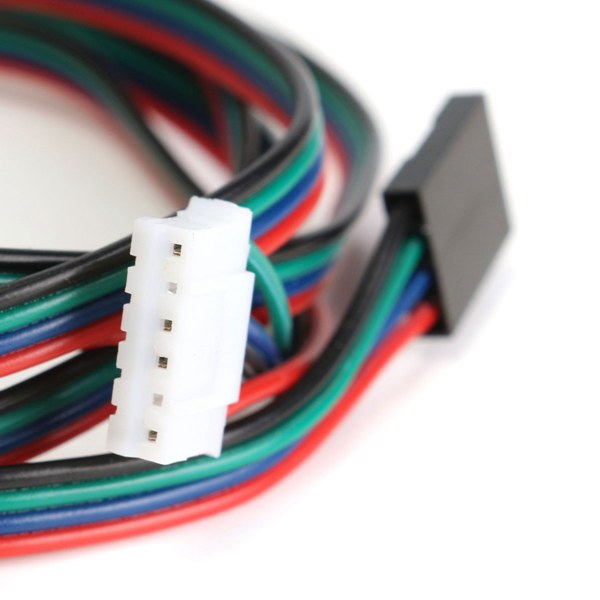

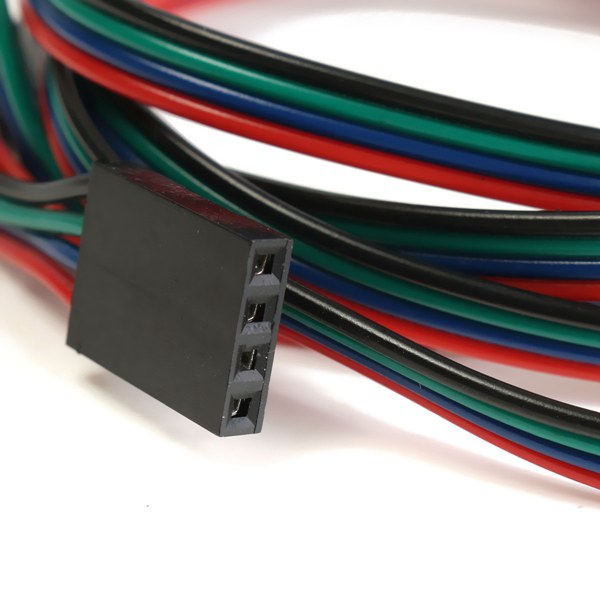

1 x Cable


,,,,
