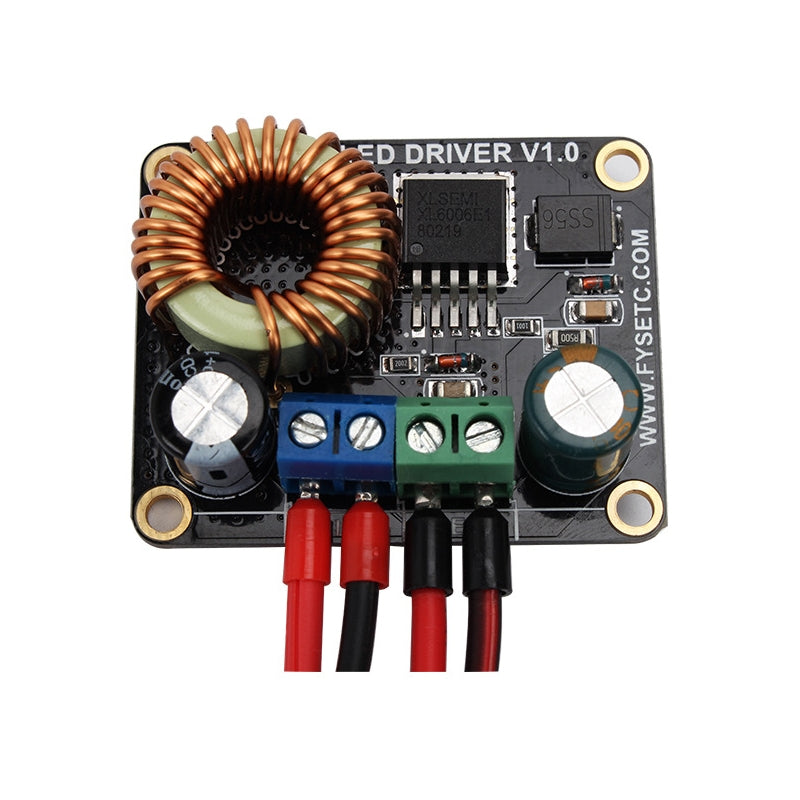

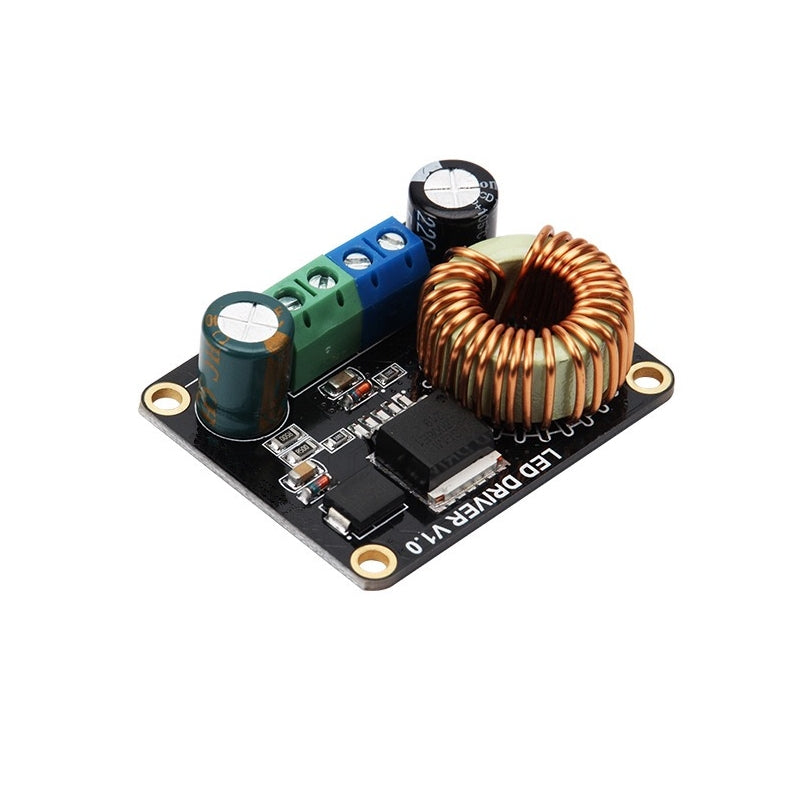

LED Boost Driver Board
Features:1. Application for LED Lighting, Boost constant current driver, TFT LED Backlighting.
2. Easy to use drive with up to 60V/5A output.
3. Over temperature protection, over current protection.
4. Excellent line and load regulation thermal shutdown function built in current limit function.
5. Easy to use. User Manual for ReferenceSpecifications:Type: LED Drive Board
Size: 48mm x 38.5mm x 18mm
Input voltage: DC 5V - 32V
Output voltage: 26V - 36V
Output current: 900mA ± 5%
Conversion efficiency: 93% max
Working temperature: -20~80 degree celsius
Quantity:1 PC
Applications: LED lighting / Improve constant current driver / TFT LED backlight
Notice:
1. The board will be fever during use (about 60 degree Celsius at 900 mA), which is normal and need not be worried.
2. Do not connect the positive and negative poles of the board input degree Celsiusand output, otherwise it will damage the board.

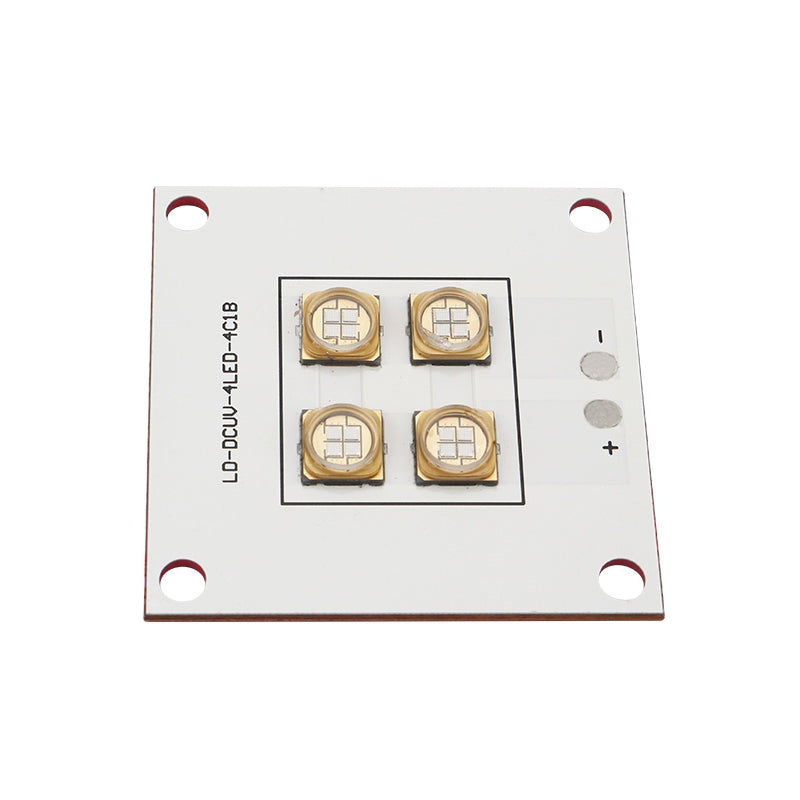

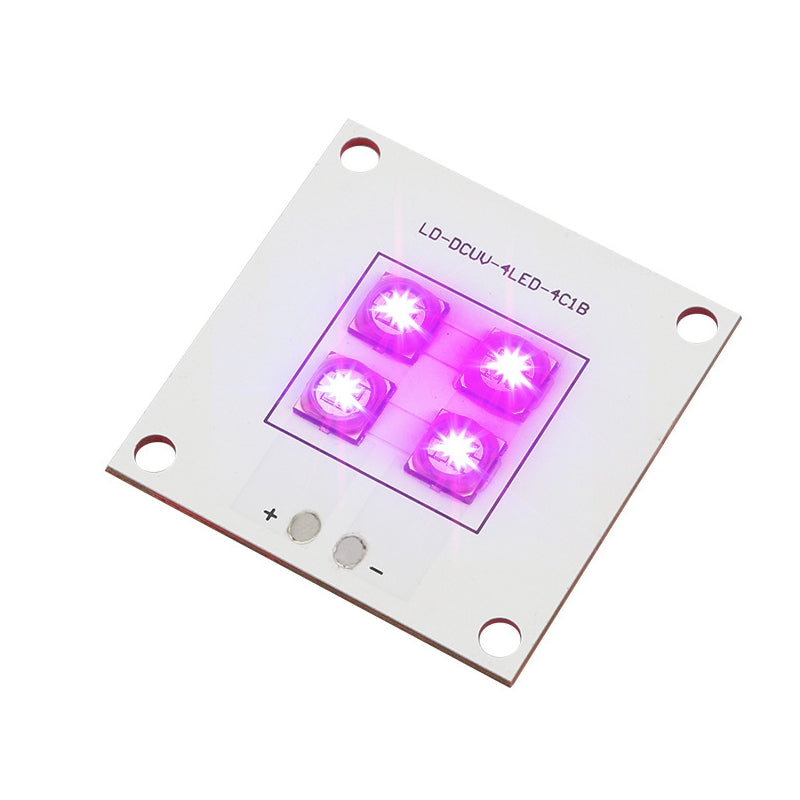

40W UV LED Panel
Features:
New type of LED light beads, sufficient light, good printing effect.
Specifcations:
Wavelength: 405nm
Power: 40W
Light: Violet
voltage: 24-28V
Current: 900-1500MA

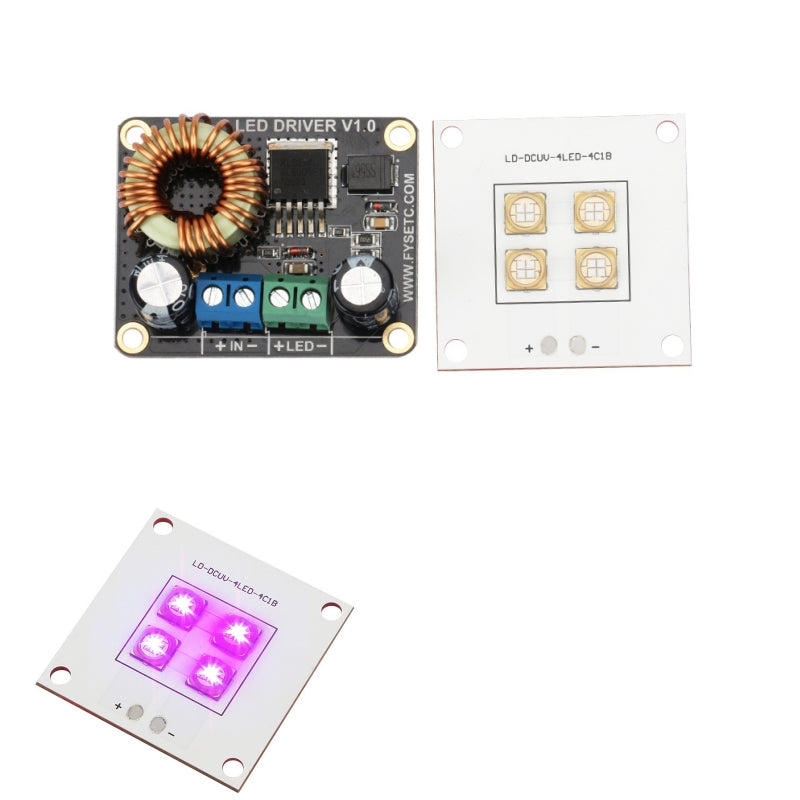

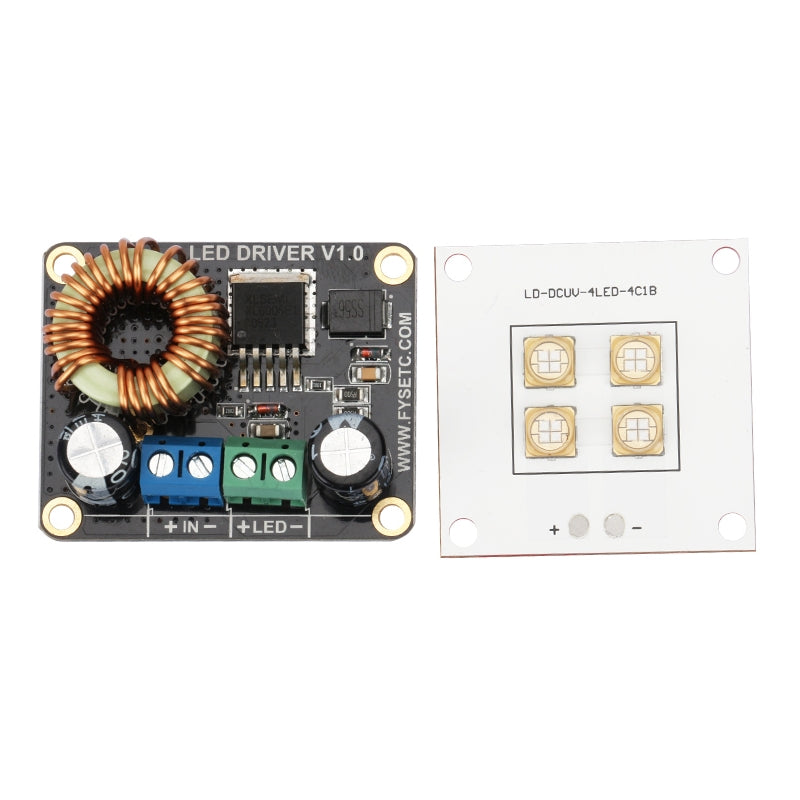

Package Included:
1x LED Drive Board
1x 40W UV LED Panel
