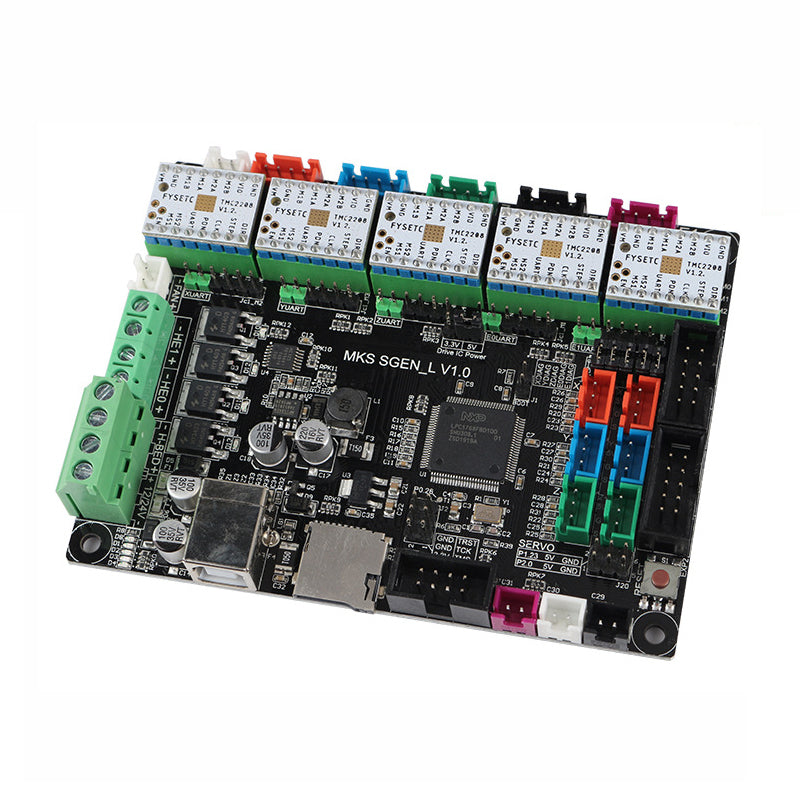

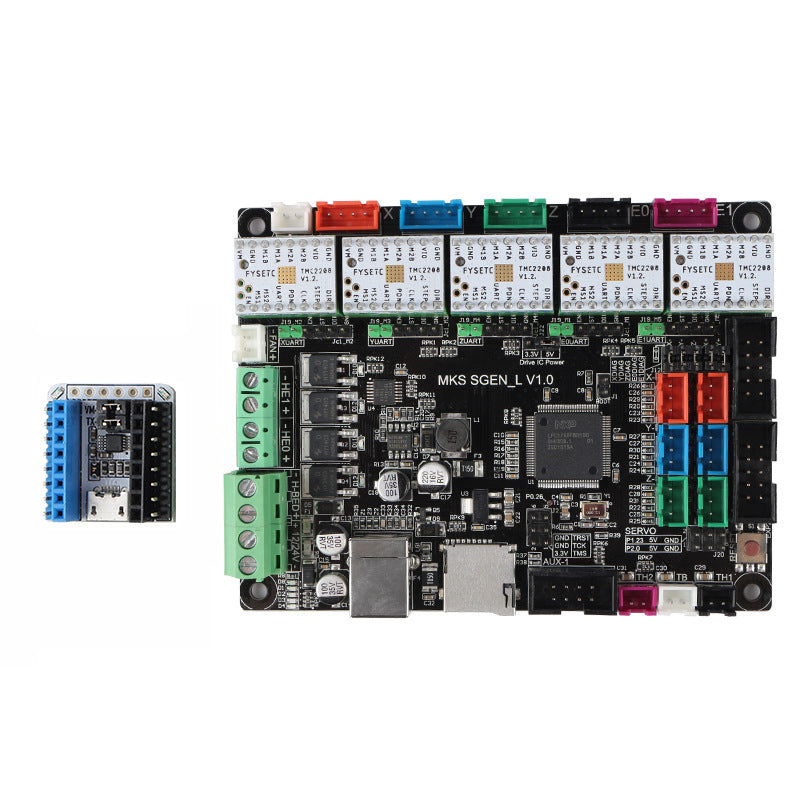

Introduction to MKS- SGen L:
MKS-SGen L is a very powerful 3D printer ARM motherboard, using a 32-bit Cortex-M3 LPC1768 processor, clocked at up to 100MHZ, and the processing power is very stable. It is a versatile and cost-effective motherboard.
Advantage:
1. Using 32-bit Cortex-M3 LPC 1768 main chip, 100MHZ frequency, strong computing power, performance greatly improved.
2. Both in-line drive socket and external drive port. In-line driver compatible with various modes of various drivers (uart, spi, etc.)
3. Compatible with a variety of drivers and special modes (the UART mode of the TMC2208, the SPI mode of the TMC2130, etc.) has a dedicated port reservation, and the wiring settings are more concise and convenient.
4. Support a variety of open-source firmware, powerful and powerful. Continuing the smoothieware firmware used in the original s series motherboards, SGen-L can also support the firmware of the marlin2.0 version.
5. High-quality circuit boards are used, and the corresponding pins of each interface are marked with silkscreen, which makes it easier to identify and modify. 6. Use dedicated power chip to support 12V-24V power input.
7. Support the MKS LCD12864, MKS MINI12864 and other control boards developed by the maker base for display control.
8. It can be used with all touch screens of MKSTFT.
9. Compatible with a variety of LCD screens and MKS series touch screen
Parameter:
Motherboard model: MKS-SGEN L
Mounting hole size: 102mmX 76mm
Appearance size: 110mm* 84mm
Microprocessor: 32-bit Cortex M3 (LPC 1768/100Mhz)
Input voltage: 12V~24V
Motor Driver: TMC2130/2208/2100/4988/8825 Temperature Sensor Interface: NTC100K/PT100
Display: Support MKSTFT series screen and LCD screen
Support for print file format: G-code
Recommended software Cura/Simplify3d/Pronterface/Repetier-Host
Firmware update: TF card update
Support machine structure: XYZ/Kossel/Ultimaker/Corey, ect 3D PrinterAbout TMC2208

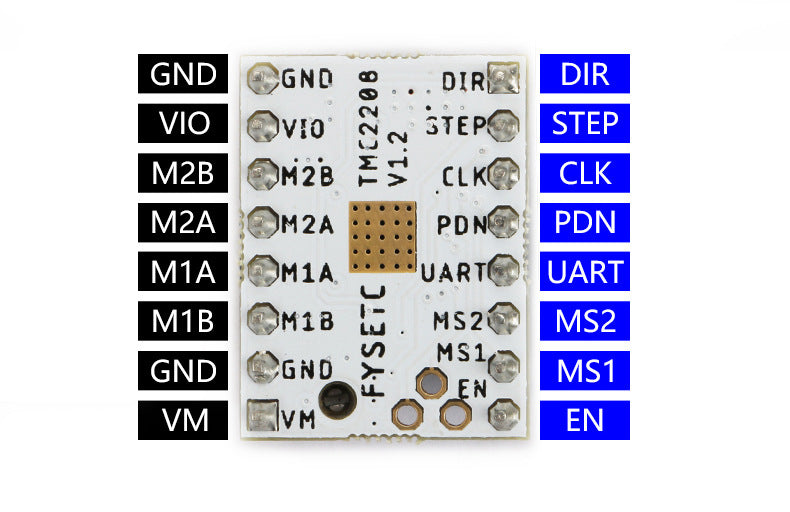

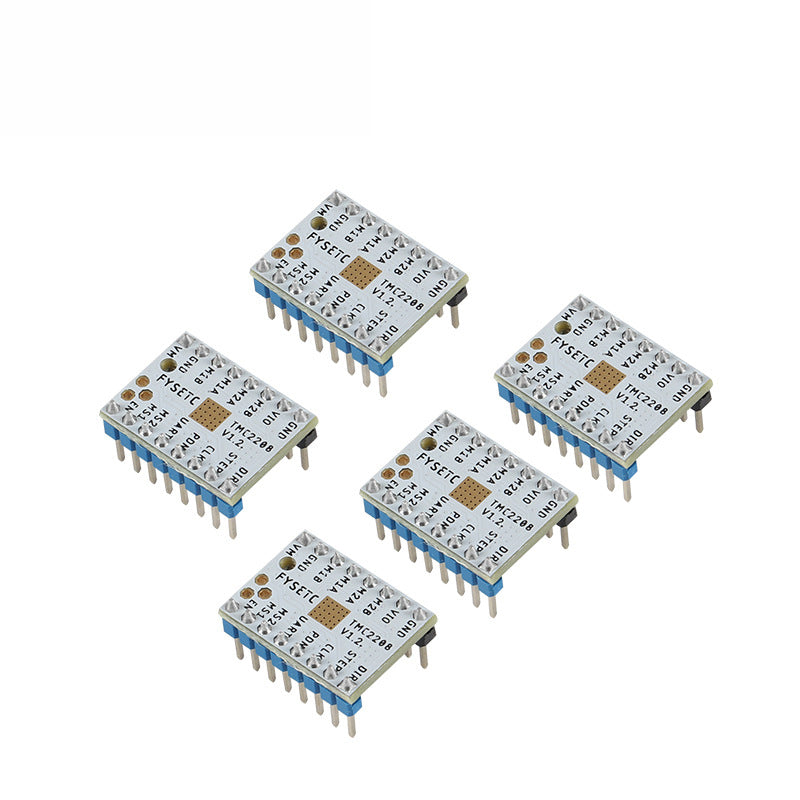

TMC2208 single a xis stepping motor driver chip, power tube built-in drive current 1.4A pe ak current 2a, voltage range 4.75v-36v, 256 subdivision
The Silent-Step-Stick is a Stepper Motor Driver Board for 2-Phase Motors based on a Trinamic TMC 2100, Trinamic TMC 2130or Trinamic TMC 2208.
Hardware compatible with StepStick and Pololu A4988
Components on bottom PCB side for better heat emission, further infos here
Trinamic stepper motor driver (chopper drive / constant current drive)
Automatic standby current reduction
microPlyer - microstep interpolator for increased smoothness of microstepping
stealthChop - for quiet operation and smooth motion
spreadCycle - highly dynamic motor control chopper
Extra features of TMC2130:
SPI configuration interface (up to 4MHz)
up to 256 native microsteps (without interpolation)
coolStep - current control for energy savings
stallGuard2 - sensorless motor load detection
dcStep - load dependent speed control
Automatic stealthChop and spreadCycle switchover depending on velo city
Extra features of TMC2208:
UART configuration interface (9600...500k Baud)
up to 256 native microsteps (without interpolation)
stealthChop2 - faster motor acceleration/deceleration than stealthChop
Automatic stealthChop and spreadCycle switchover depending on velo city

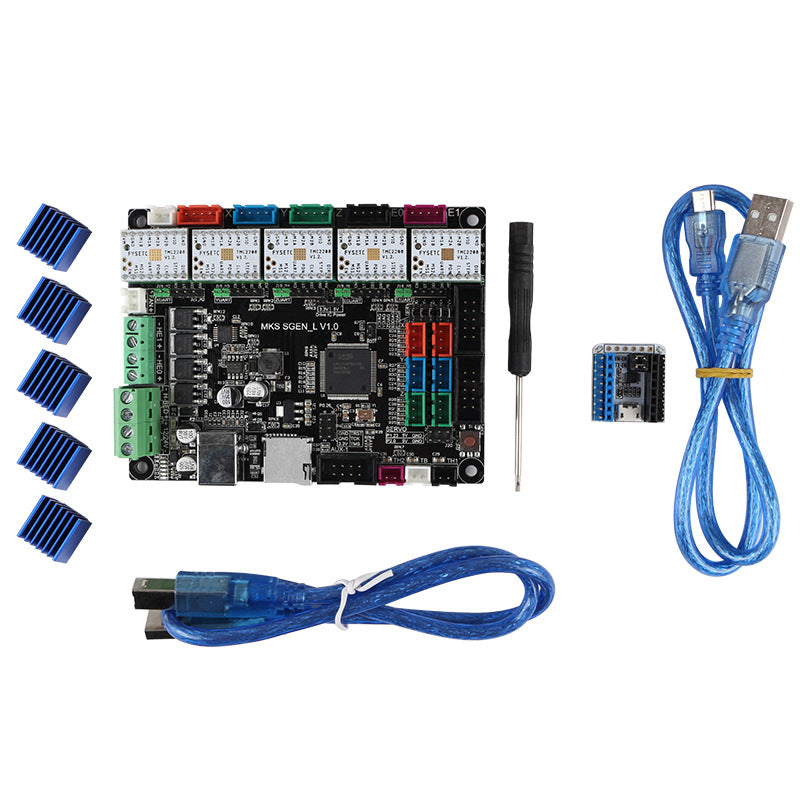

Package Included:
1 x MKS SGEN L Board
5 x TMC2208
5 x Heat Sink
1 x USB Cable
