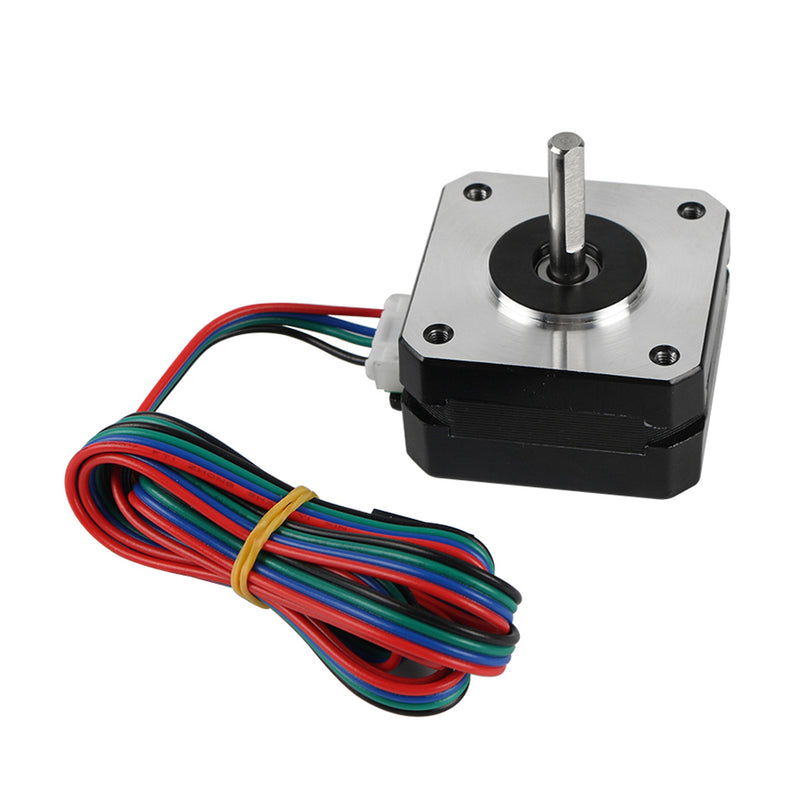

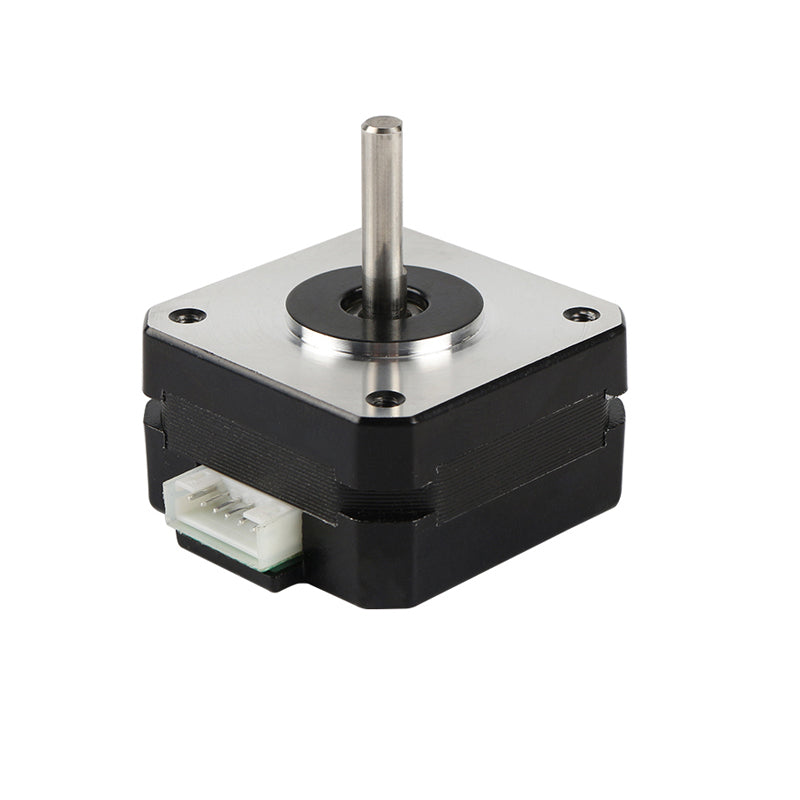

ParametersModel: 17HS4023
Size: 42 * 42 * 23mm
Phase number: 2 phase
Rated voltage: DC 4.1V
Rated current: DC 1.0A / phase
Phase resistance: 4.1X (±10%) Ω / phase
Phase inductance (1KHz): 4.1x (1±20%) mH / phase
Holding torque: ≥130m N.cm
Positioning torque: 20mN.m REF.
Steering (shaft extension): A-AB-B-clockwise
Maximum no-load starting frequency: ≥ 1400PPS
Maximum no-load operating frequency: ≥ 2500PPS
Insulation resistance: ≥100 MΩ (DC 500V)
Insulation class: B
Electrical strength DC600V/1mA/1S
Quality: 132 g REF.
Moment of inertia: 30.8 g.cm3

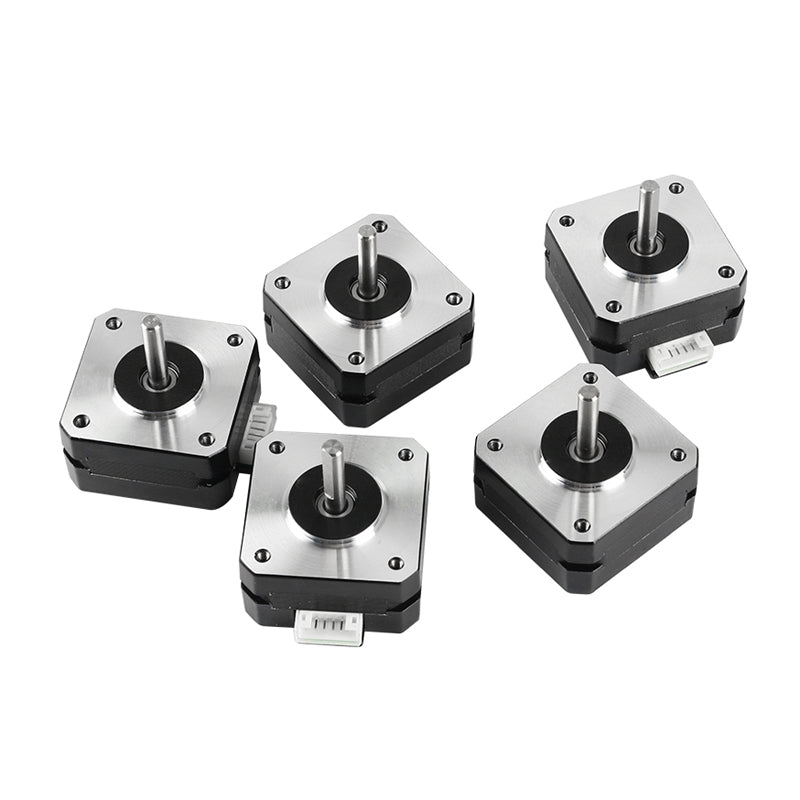

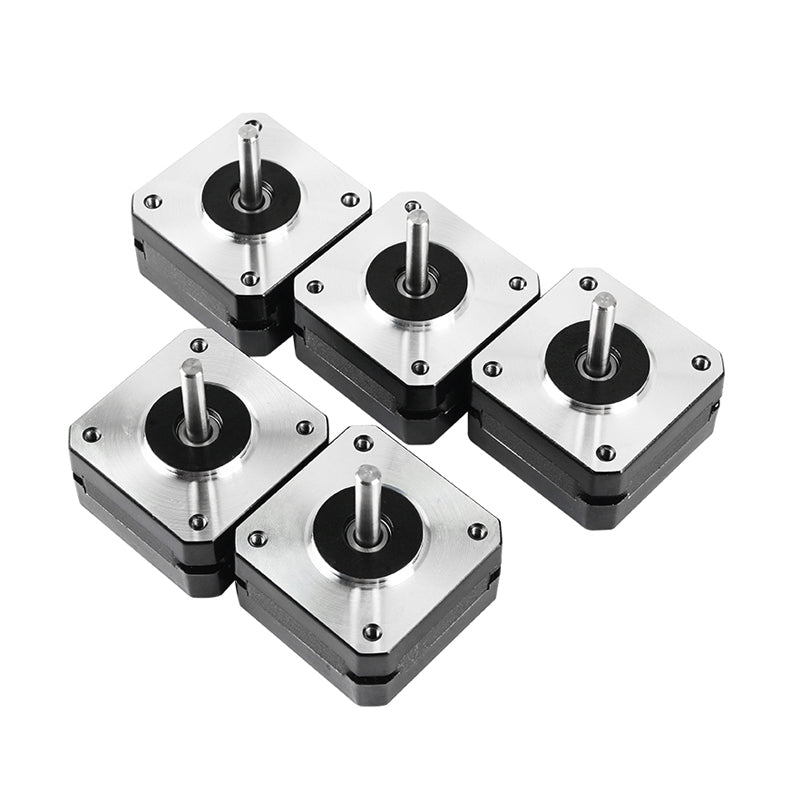

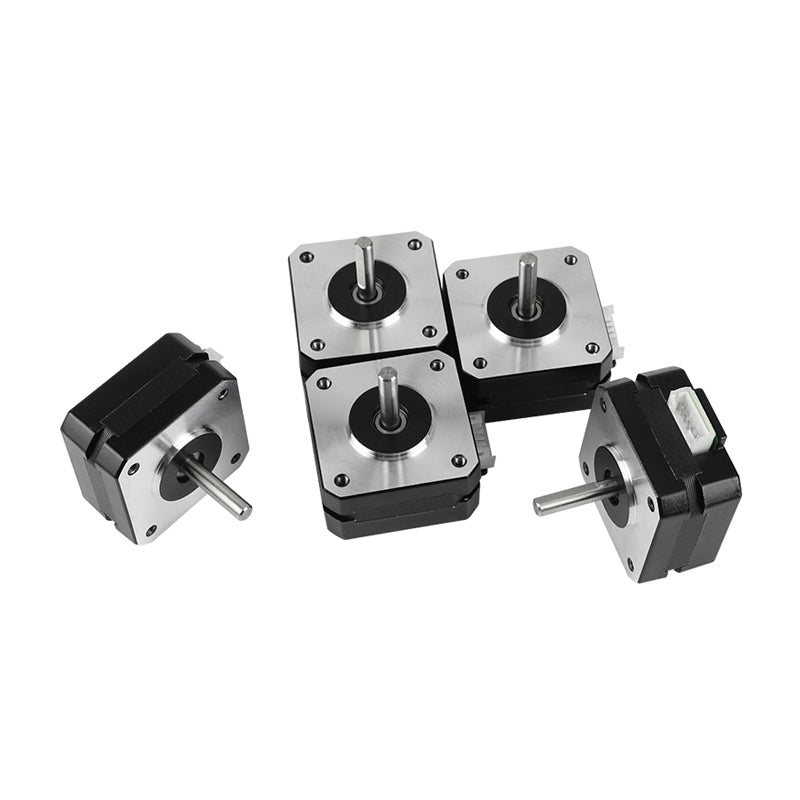

Package Included: 5 x 17HS4023 Motor
with Motor Cables
