Features:
- NTC thermistor, single-ended glass seal 100K ohms
- High sensitivity and rapid response
- Compact structure and easy installation
- Wide temperature range, good stability and high reliability
Parameters:
- High temperature resistance: 200 degrees
- Nominal resistance R25 (25 °C): 100k
- Resistance accuracy: ±1%
- B value R25/50: 3950k
- B value accuracy: ±1%
- Operating temperature range: -40 °C ~ +300 °C
- Dissipated power factor: ≥5 mW / °C (in static air)
- Thermal time constant: ≤ 7S (in static air)
- Maximum rated power: 45mW
- Probe: 1.8mm, lead length: 66mm
- Resistance: 100KΩ ± 1%
Package Included:

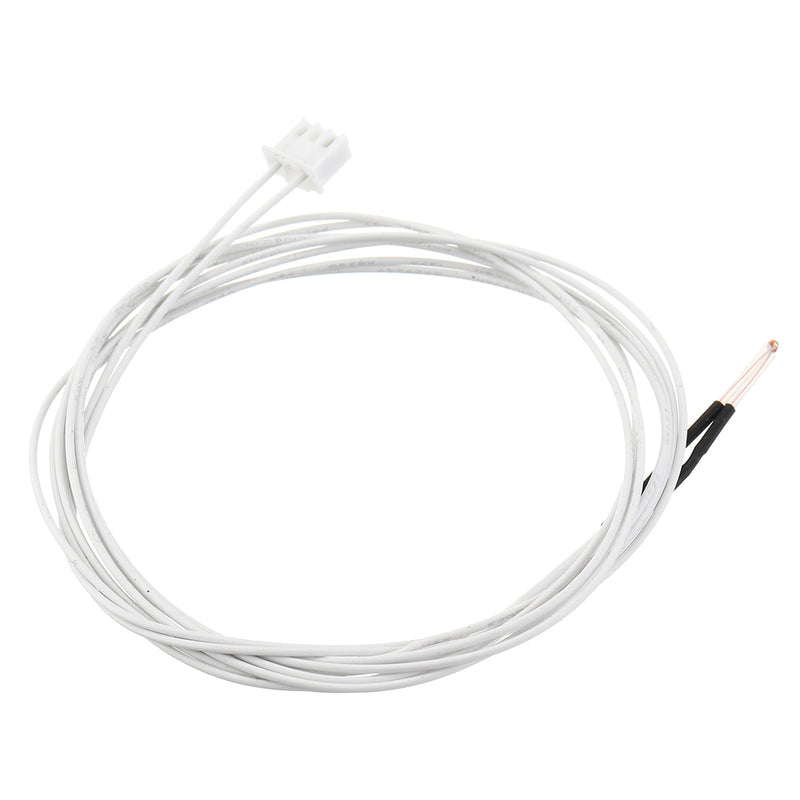

1 x Thermistor Temperature Sensor Cable
