Features:
1. Large torque, small vibration, low noise!
2. Low heat, smooth operation, good acceleration performance.
3. Excellent start / stop and reverse response.
4. The rated current is only 0.9A, the ambient temperature will lower than the normal 1.68A one.
| Specifications |
| Rated Power |
14W |
| Rated Voltage |
3.96V |
| Rated Current |
0.9A |
| Rated Speed |
1000rpm |
| Rated Torque |
0.34NM |
| Holding Torque |
0.4N.M |
| Step Angle |
1.8° |
| Step Angle Accuracy |
±5% |
| Phase |
2 |
| Resistance |
4.4Ω±10% |
| Temperature Rise |
80K Max |
| Ambient Temperature |
-20℃~+50℃ |
| Ambient Humidity |
90% Max |
| Insulation Resistance |
100 MΩ Min. ,500VDC |
| Size |
42*42*40(mm)
|
| Weight |
280g |
| Applicable Scope |
Industrial automation, medical equipment. |

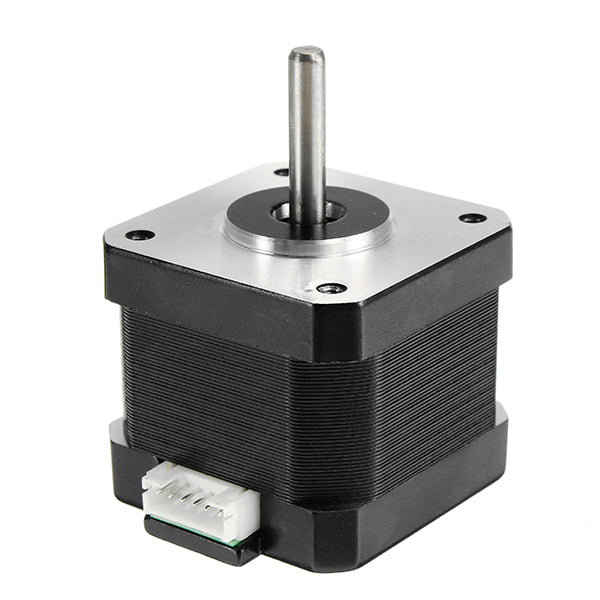

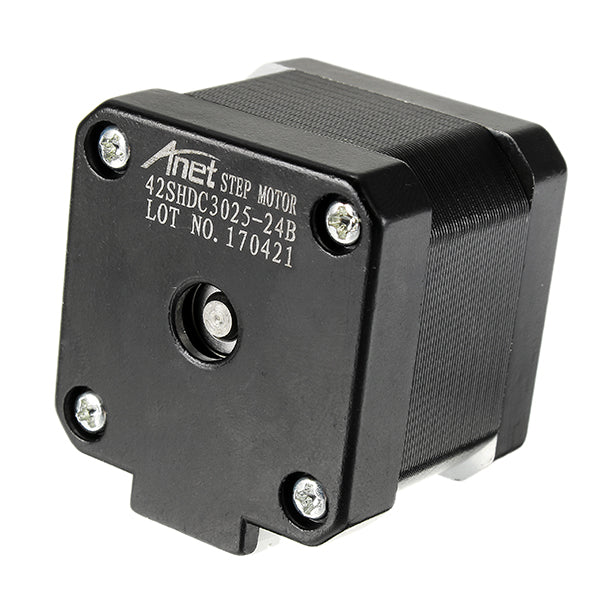

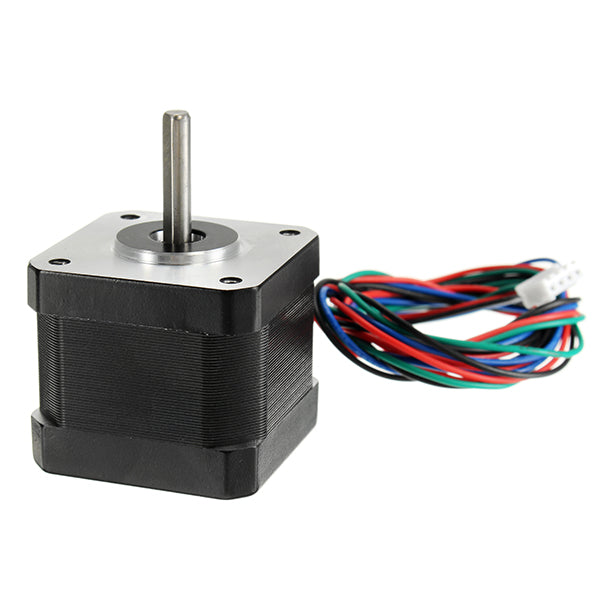

Package Included:1x Anet® Stepper Motor
,,,
