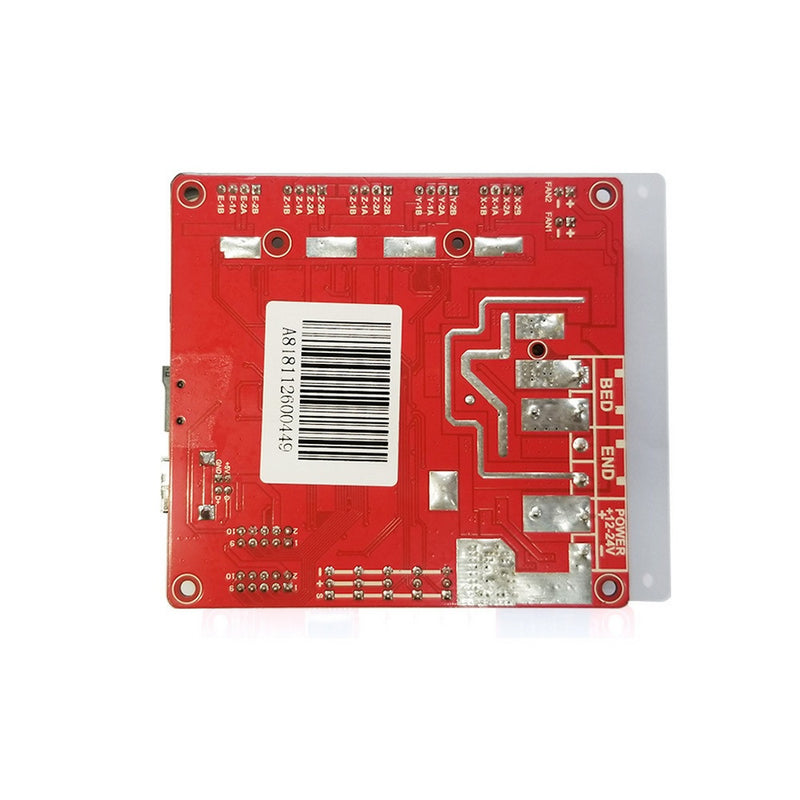

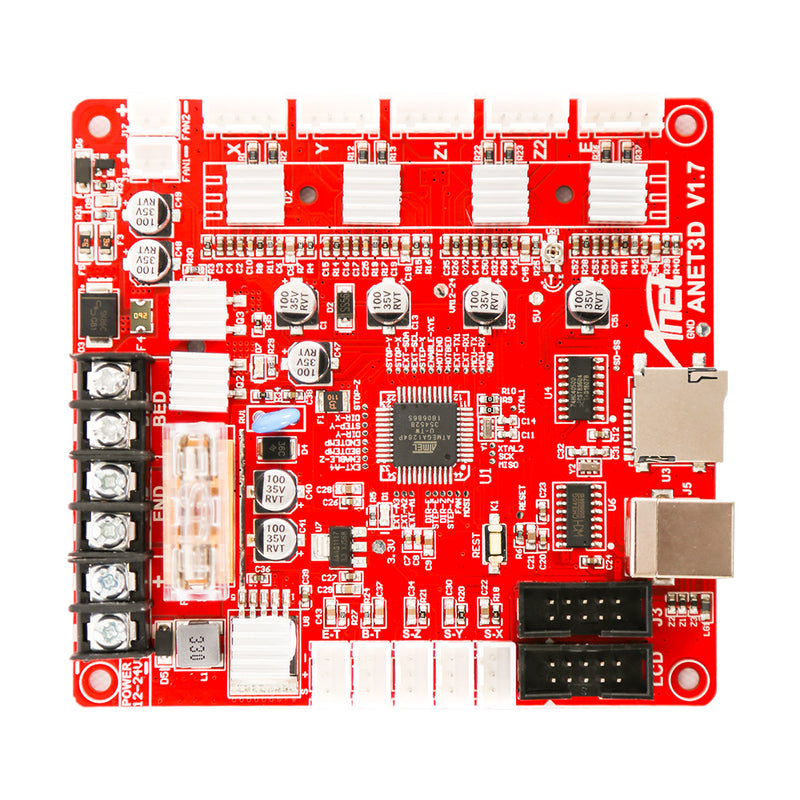

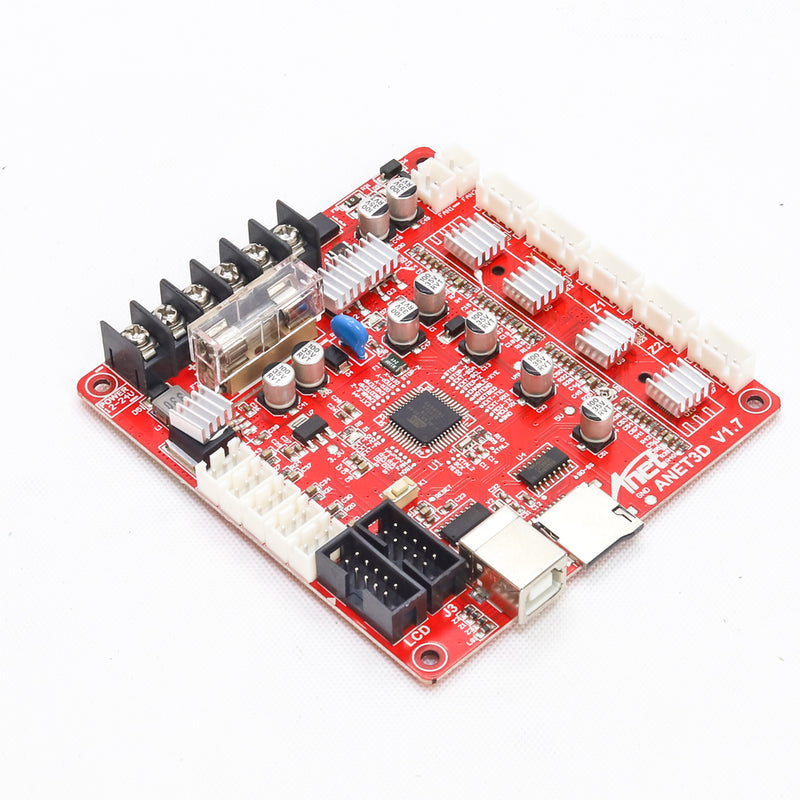

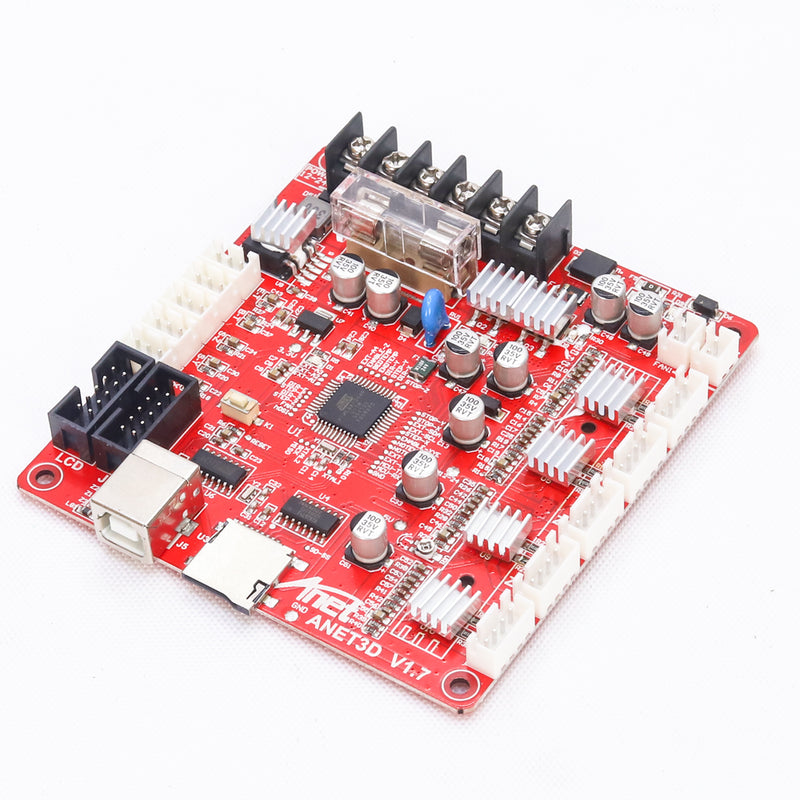

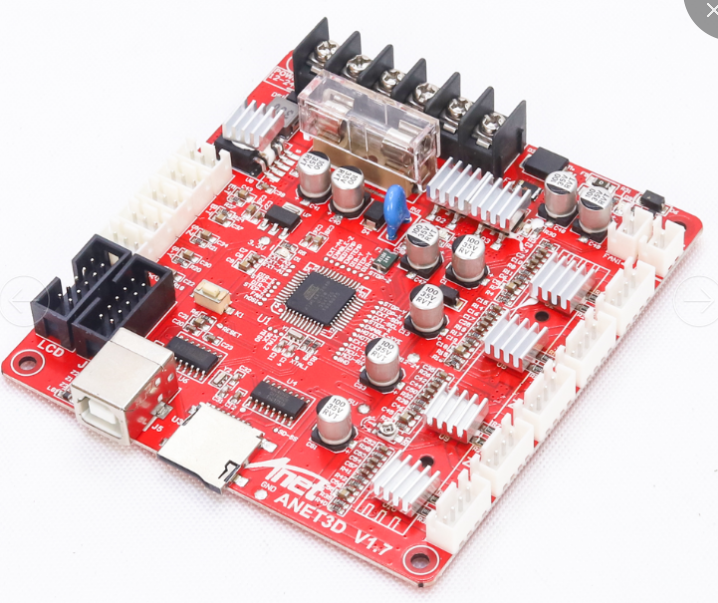

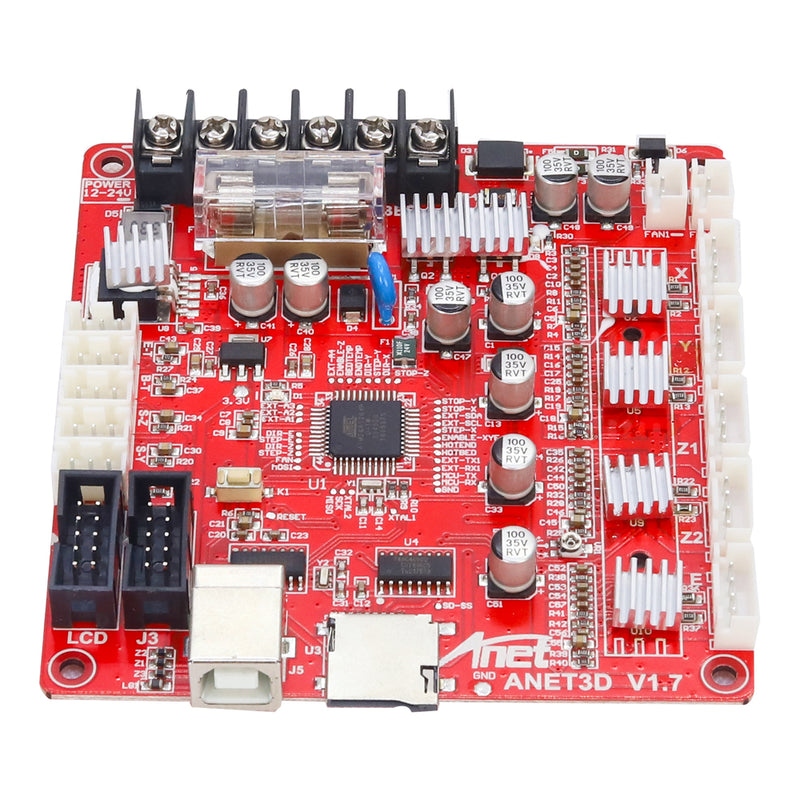

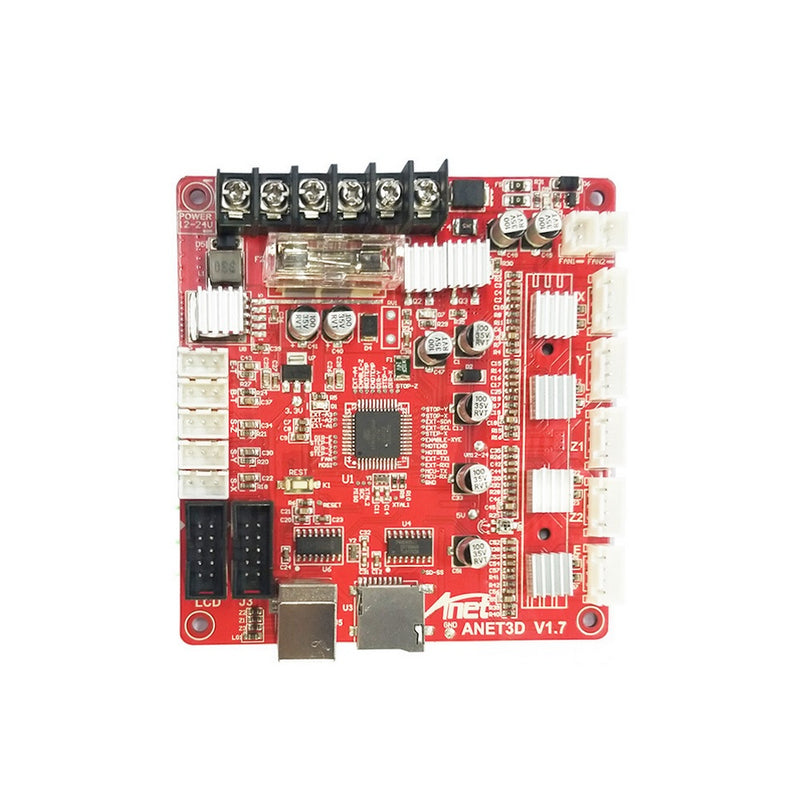

Anet Upgraded E16 A8 MainBoard MotherBoard Support RepRap Ramps1.4 A8 Main Control Board DIY for 3D Printer
Save 0
SKU: U2I-BG-1595239
Share this product
Description
Features:
-Upgraded Outlooking, more stable performance -Highly integrated integrated board solves the cumbersome and troublesome problem of the Ramps1.4 combo interface -Optimized layout routing and thermal design to make the board performance more stable -Support Auto Leveling Touch Sensor -Large USB Port,more stable connection, simpler interface, more convenient wiring, more stable work and longer life -On-board 4-way A4988 16 subdivision stepper drive board motor drive (Z-axis two motor interfaces) -PWM DC 3 output (1 high current, 3 middle current, 2 low current) -Driven with a high-performance, low-conductance Mos tube for better heat dissipation -With ST original power chip, support 12V-24V power input, solve the problem of heating of Ramps voltage conversion chip -Support 24V Input,could reduce the hot bed current to 1/4, effectively solve the hot bed MOS tube heating problem -Support Marlin Firmware, could replace other Ramps 1.4 Board directly -Can be directly connected to Ramps1.4, 2004LCD control board and 12864LCD control board (no L-type adapter board, integrated)
Package Included:
1 x Anet Mainboard
