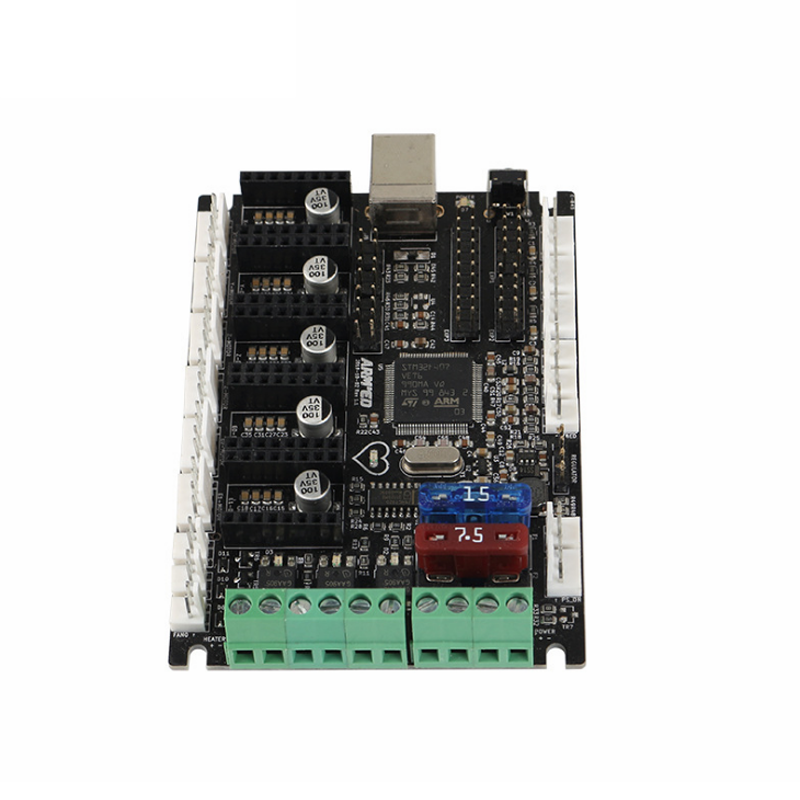

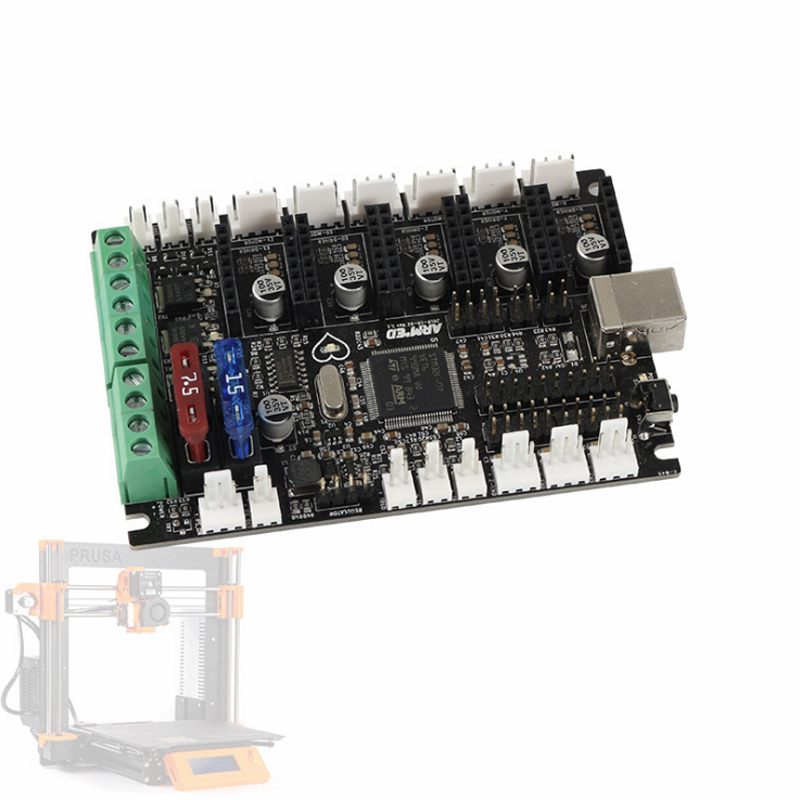

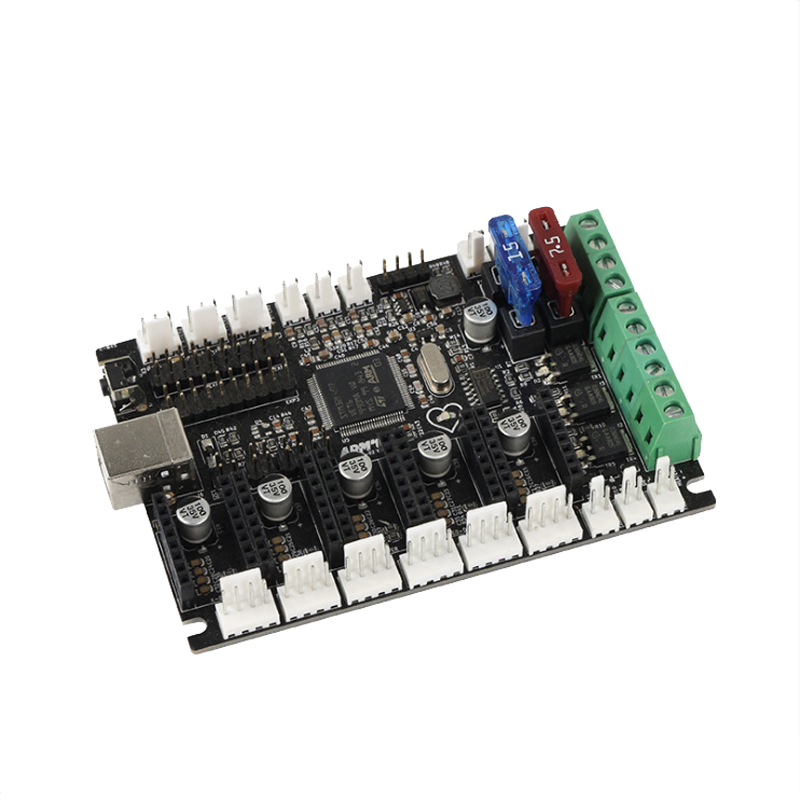

Armed STM 32Bit Marlin 2.0 Mainboard 32 Bit Mother Board for 3D Printer Replace Prusa i3

Armed STM 32Bit Marlin 2.0 Mainboard 32 Bit Mother Board for 3D Printer Replace Prusa i3

Name: Armed STM 32Bit Marlin 2.0 Mainboard 32 Bit Mother Board for 3D Printer Replace Prusa i3
Brand: Banggood
SKU: U2I-BG-1598944
Price: 11,188.00 INR
Availability: InStock

SKU: U2I-BG-1598944

Share this product

Description:

The , which uses Core STM32 and is compatible with Marlin 2.0 3D printer firmware, can directly replace the PRUSA I3 motherboard.

More Info: click to know and help

Specifications:

168 MHz
512kB flash
192kB memory
12-24V power supply
Dual power input with separate fuse
One for high current output and the other for the rest
Up to 5 stepper 3 high current outputs
Dual output of one stepper is used with dual stepper Z axis
3 fan outputs
3 temperature sensor inputs
3 block inputs
Filament detection
LCD display connector
USB support
10 extension pins
Support TMC2130 SPI
12-24V power supply
I2C, SPI and UART expansion ports
SWD header
Stepper configuration using solder jumpers
Einsy Rambo size specification (100x71mm)

Package Included:

1 x Armed STM 32Bit Marlin 2.0 Mainboard
