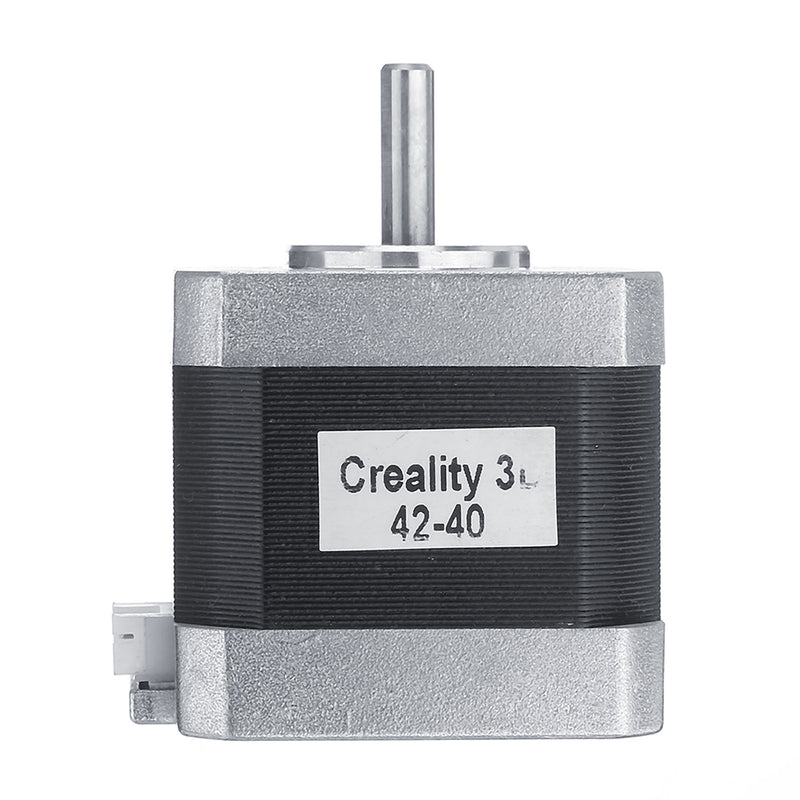

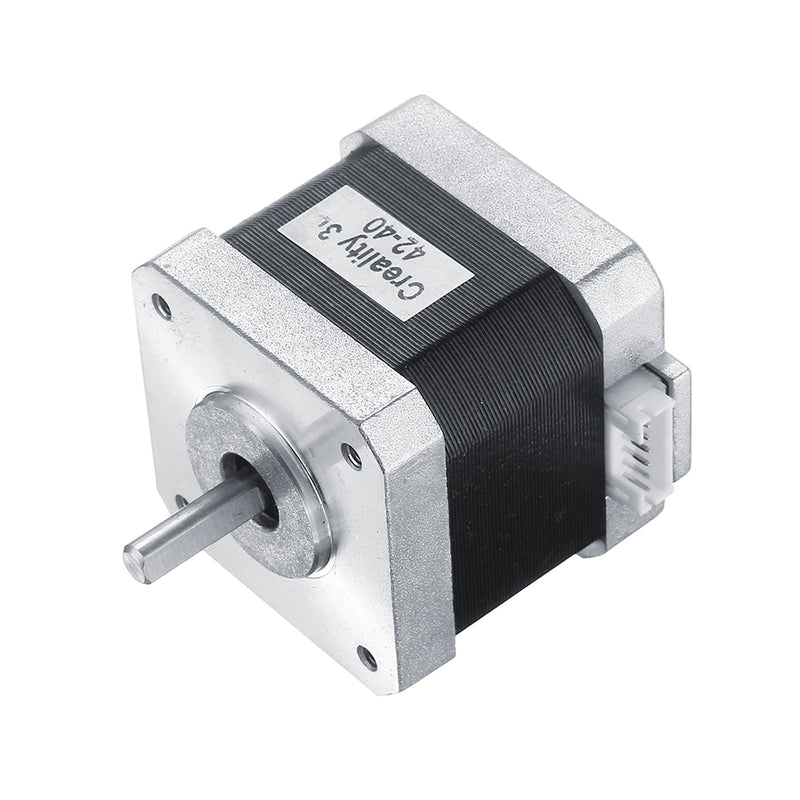

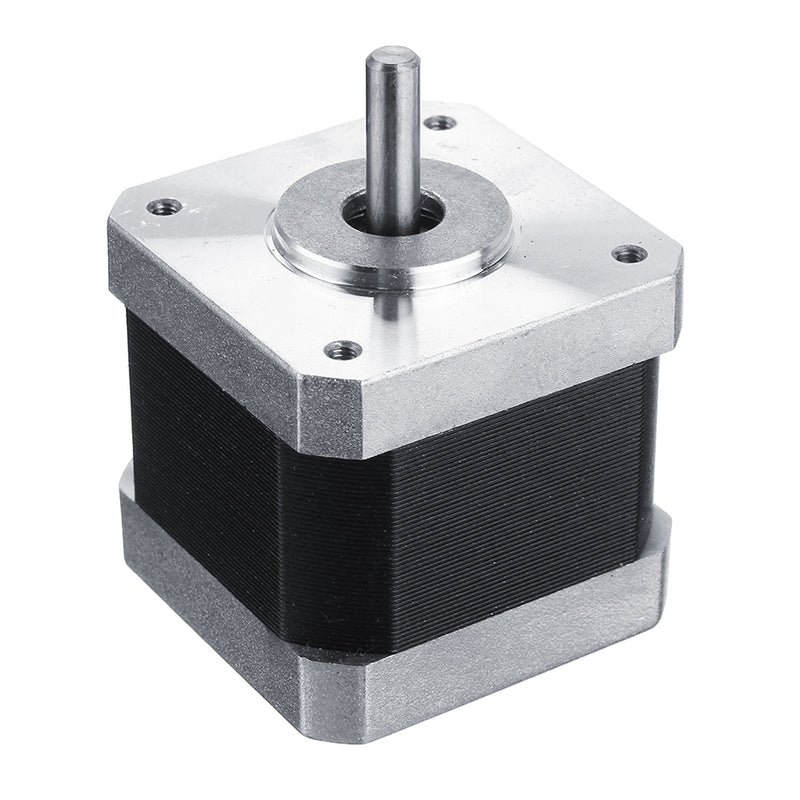

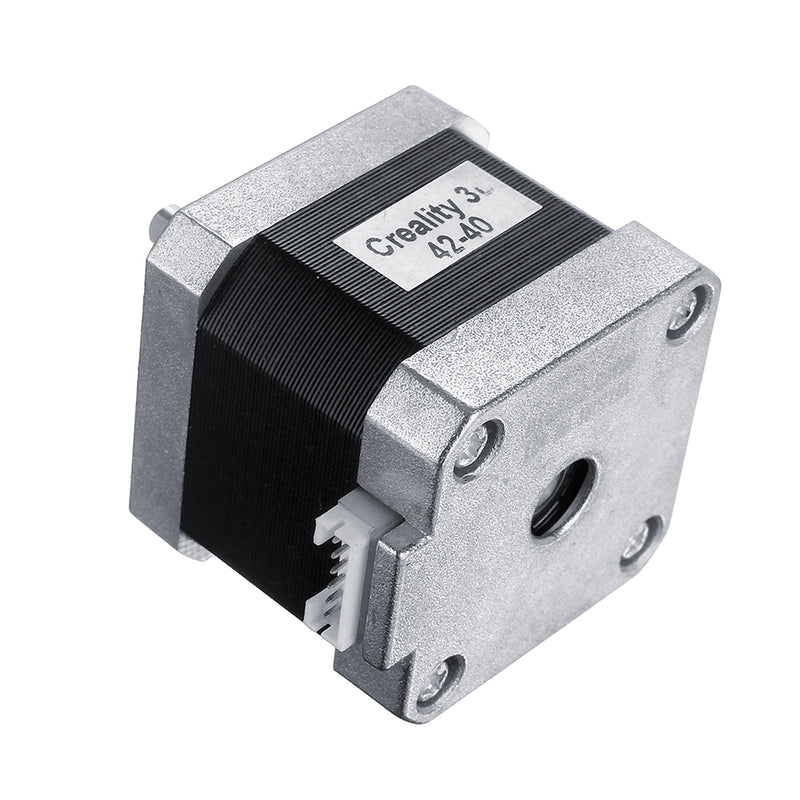

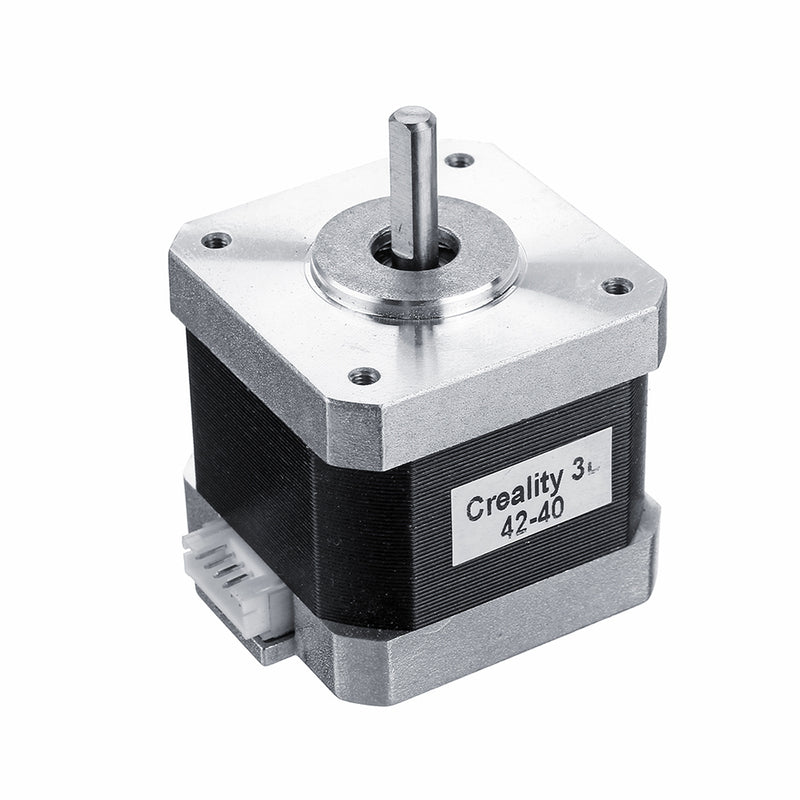

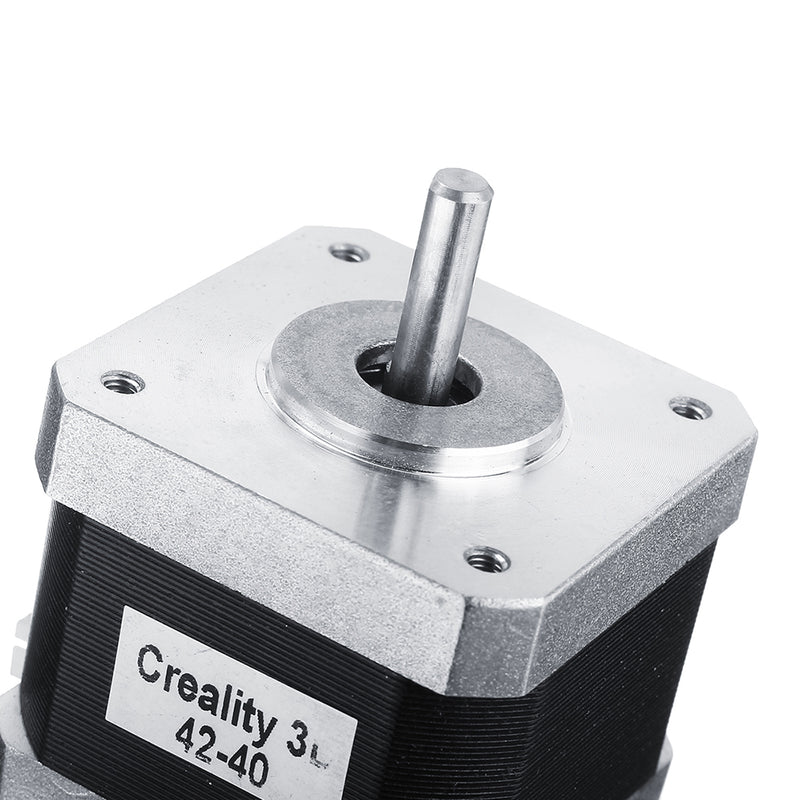

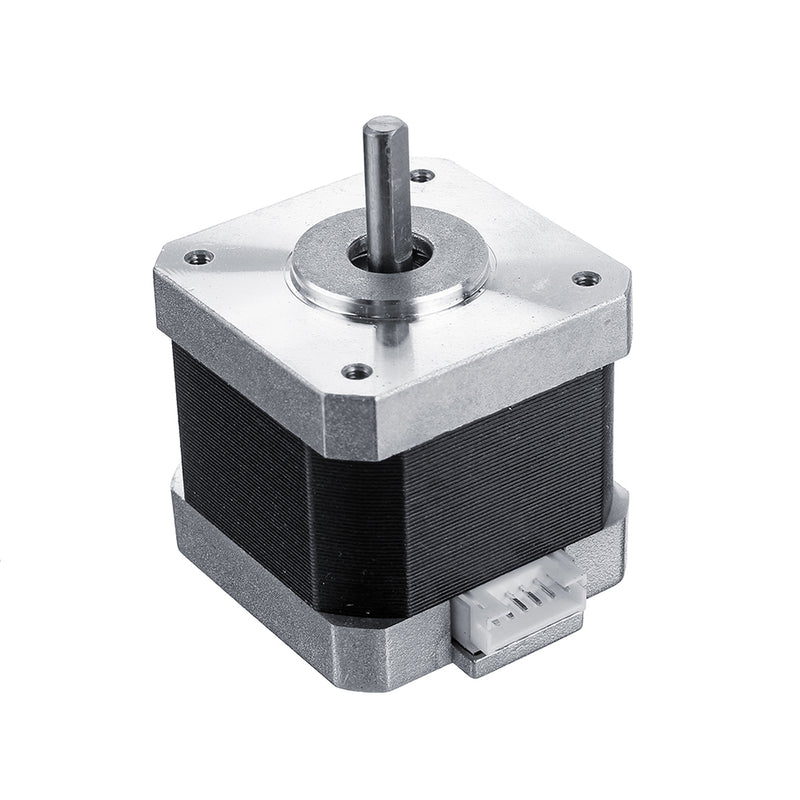

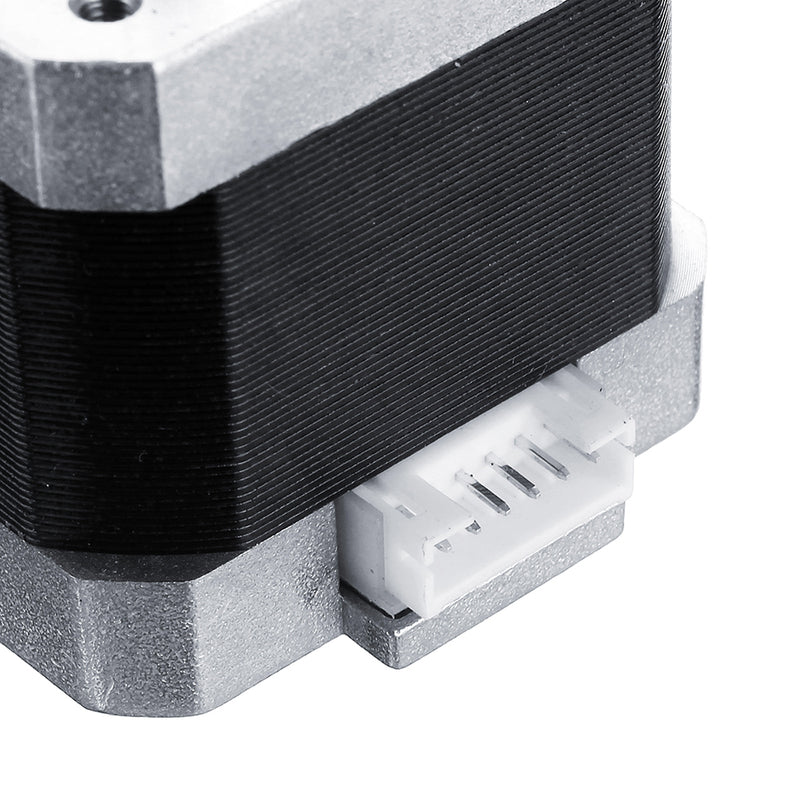

Specification:

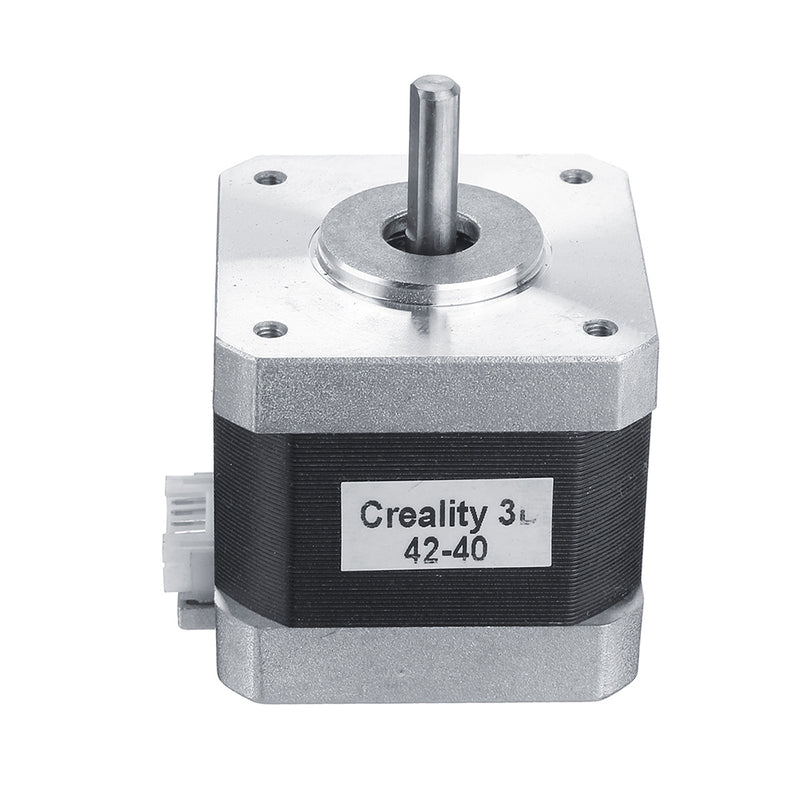

Brand: Creality 3D®
Model Number: JK42HS40-1004AC-01F
Motor length: 40mm
Boundary Dimension:42*42mm
Size: 42mm x 42mm x 40mm
Holding Torque:3.3Kg.cm
Certification: CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Genaral Specification:
| Item |
Specifications |
| Step Angle |
1.8 degrees |
| Temperature Rise |
80℃max |
| Ambient Temperature |
-20℃~+50℃ |
| Insulation Resistance |
100 MΩ Min. ,500VDC |
| Dielectric Strength |
500VAC for 1minute |
| Shaft Radial Play |
0.02Max. (450g-load) |
| Shaft Axial Play |
0.08Max. (450g-load) |
| Max. radial force |
28N (20mm from the flange) |
| Max. axial force |
10N |
Electrical Specification:
| Model No. |
Step Angle |
Motor Length |
Rate
Voltage |
Current
/Phase |
Resistance
/Phase |
Inductance
/Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
|
| ( °) |
(L)mm |
V |
A |
Ω |
mH |
kg.cm |
No. |
g.cm |
g.cm |
Kg |
| JK42HS40-1004AC-01F |
1.8 |
40 |
2.8 |
1.68 |
1.65 |
3.2 |
3.3 |
4 |
220 |
54 |
0.28
|
Package Included:
1x Stepper Motor
Reference size:
