Features:
1. Short press to start the power, long press to force the shutdown. Programmable software shutdown.
2. Power failure detection. On-board EMI circuit hardware filtering, effectively preventing false triggering power-off signals caused by power supply fluctuations.
3. Comes with 5V UPS power supply, 2200mAh, integrated UPS backup battery management system.
4. Programmable calling self-start function.
5. The module uses full optocoupler isolation technology. Provide a safe and stable UPS backup power supply.
6. Support more power switching power supply.
Dlion intelligent power management module can realize the functions of accidental power failure, print shutdown, software control power off, monitor power status, etc., realize the printing interaction, can effectively solve the accidental power outage during printing, go out, print overnight, printing failures that occur under unexpected conditions, it is considered to be a more useful feature of 3D printers.
About the UPS function description of this module: In case of accidental power failure, the Dlion intelligent power supply module provides the power-off signal to the 3D printing system and provides a stable 5V backup power supply to ensure that the 3D printing system can completely save the data of the power-off instant.

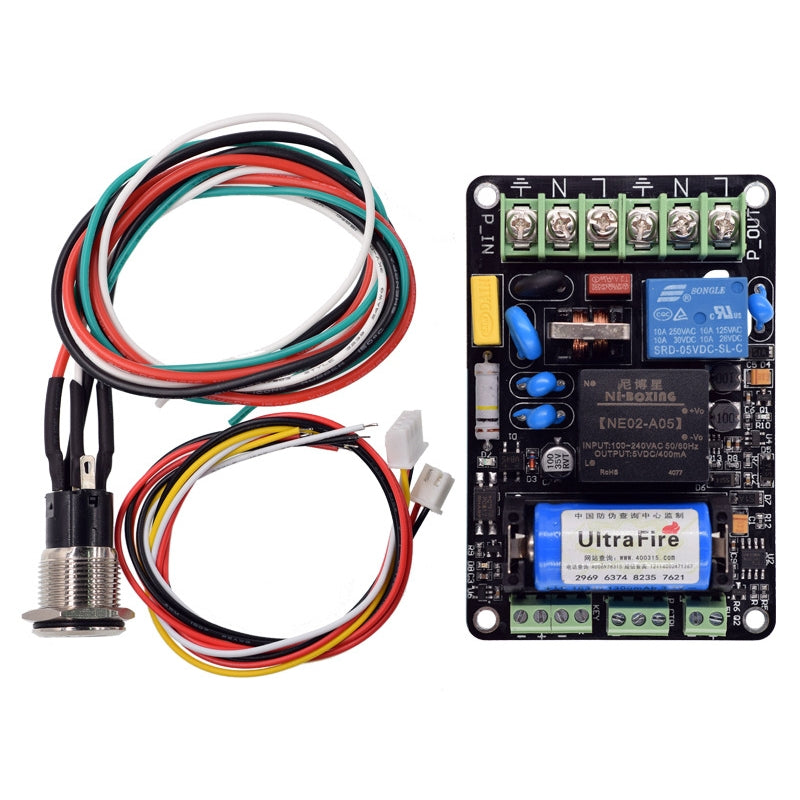

Package Included:1x Dlion Smart Power Management Module
1x Self-resetting metal push button switch (with 30cm cable)
1x 3pin output signal cable(300mm)
1x 2pin UPS power cable(300mm)
Notes:

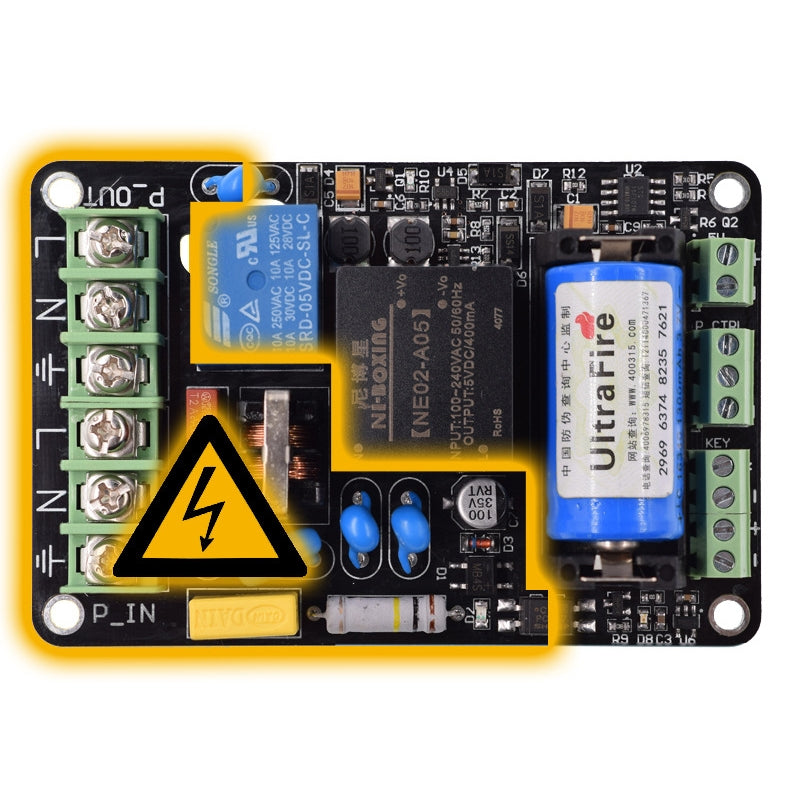

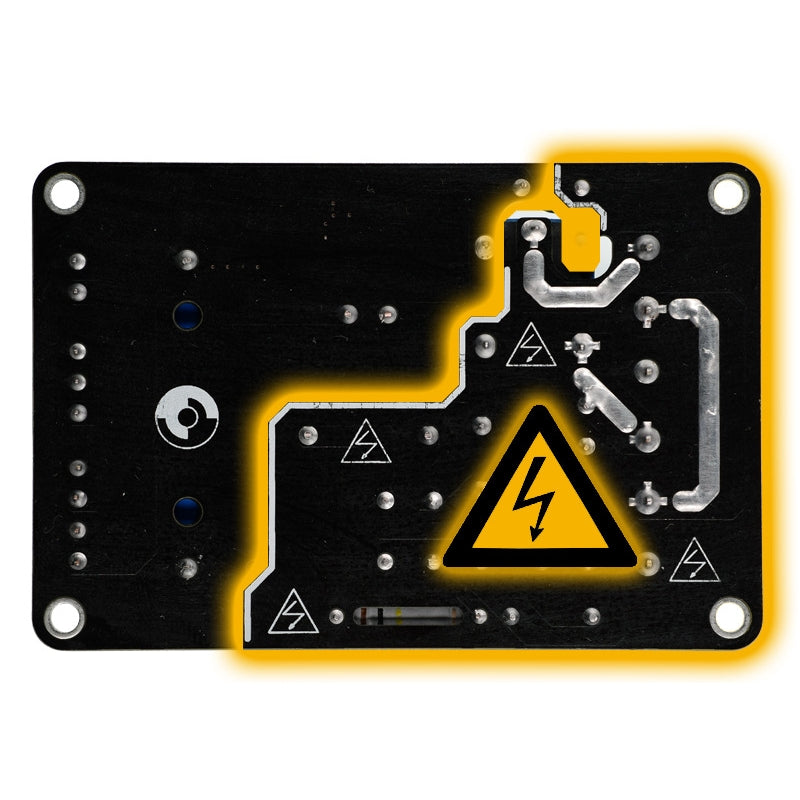

Under normal using situation, the following areas are with high voltage power supply, please do not touch them directly and do insulation isolation:
