Features:
● 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used
● The drive uses a discrete component structure that supports two-phase 4-wire, 6-wire, and 8-wire as long as there is no overvoltage and wiring.
● 20KHz chopping frequency
● Optical isolation signal input

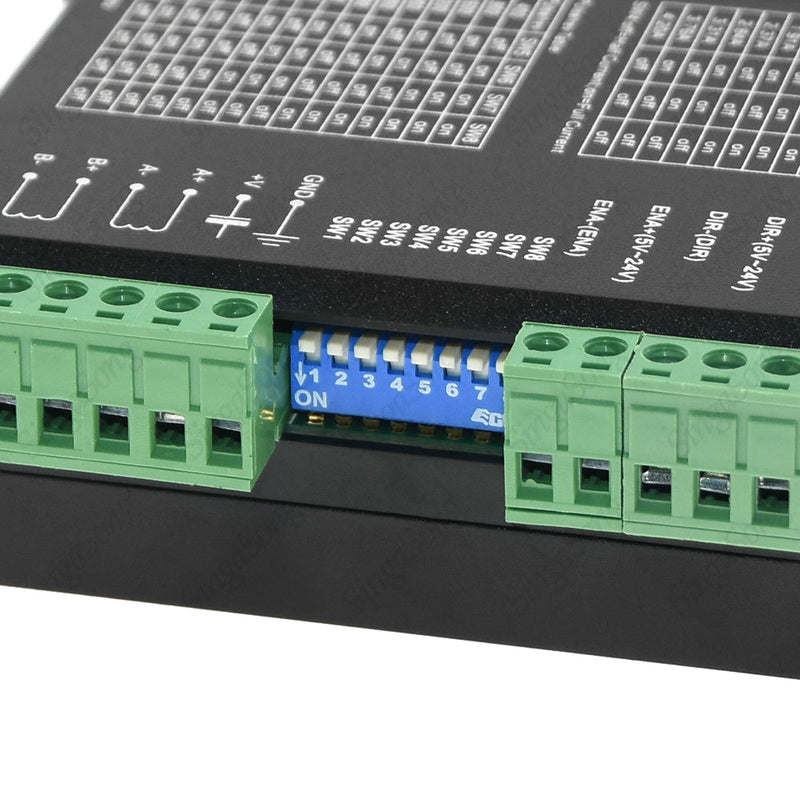

● Output current DIP switch is adjustable
● Bipolar constant current chopping method
● High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200
● TTL input signal compatible,while accepting differential signal input
Specifications:
● Power supply: DC 24-60 (V)
● Current maximum: 4.5A
● Output phase current:1 .5A-4.5A
● Logic input current: 1 0-20mA
● Operating temperature: -15°—+45°
● Size: 11.7*8.5cm/4.61*3.35inch
Package Included:

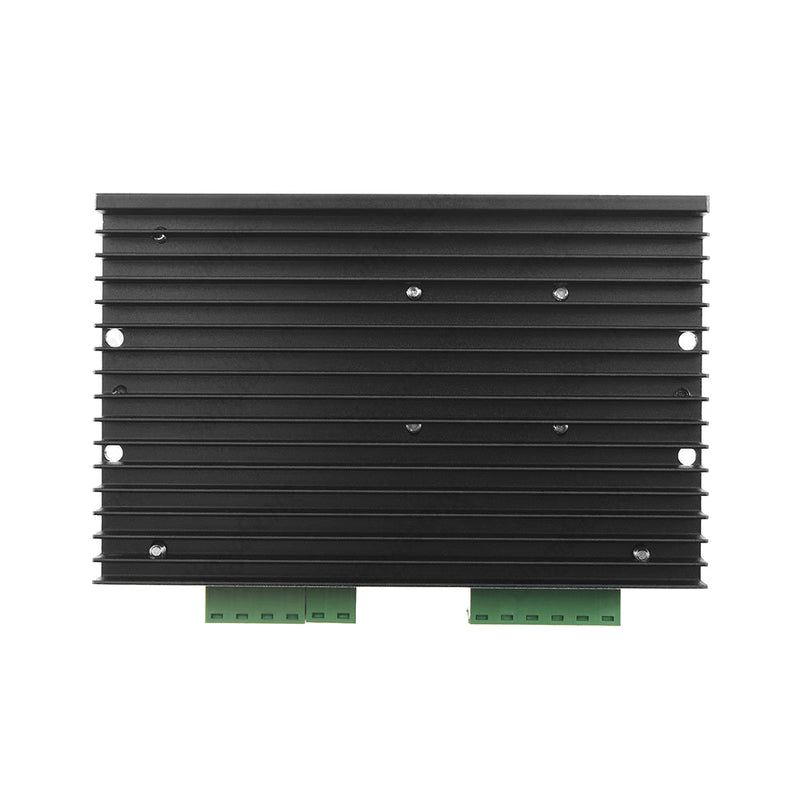

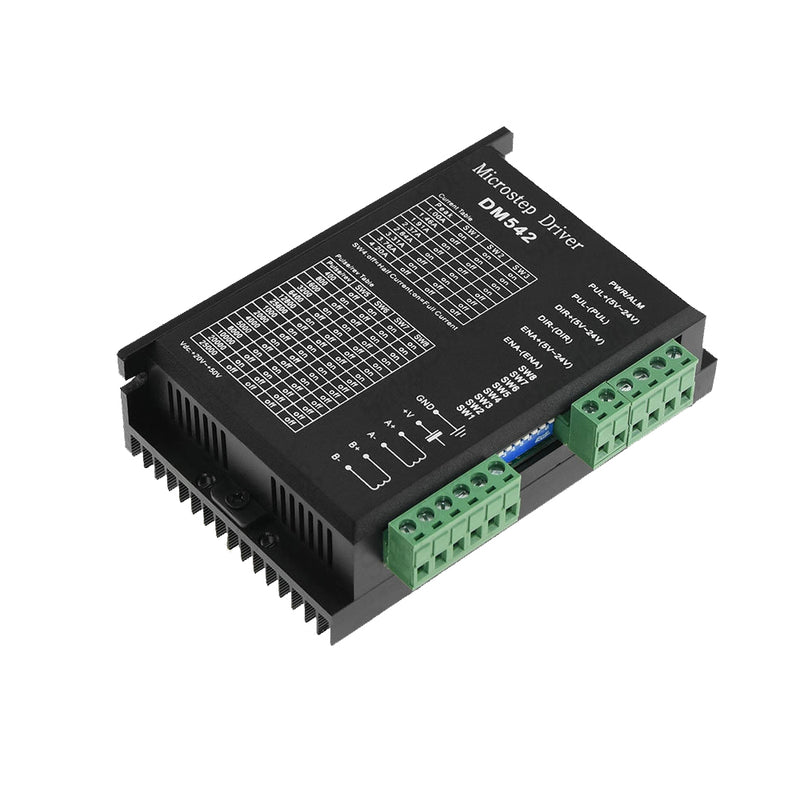

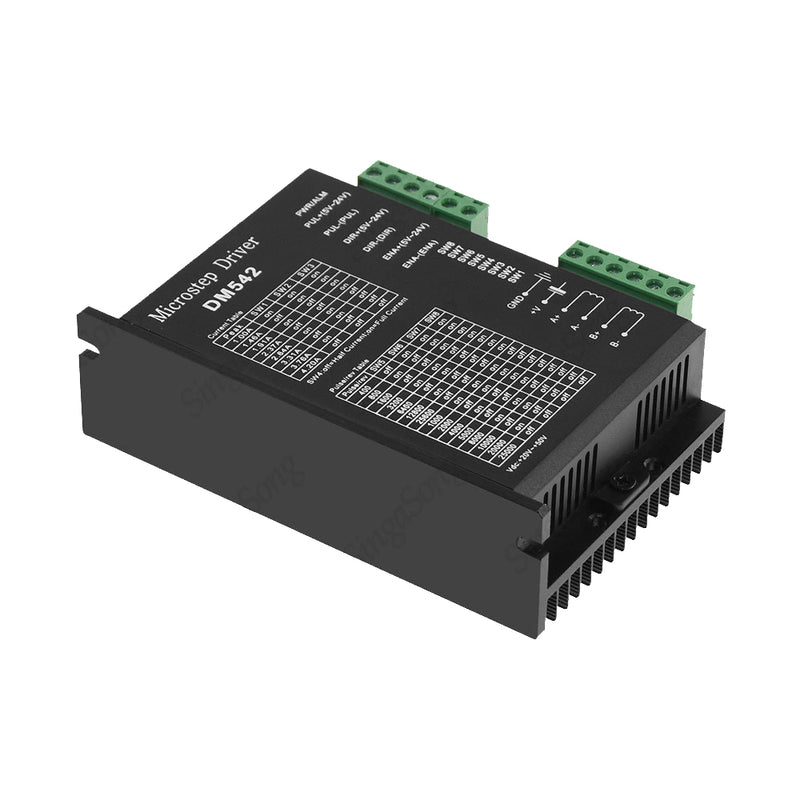

1 x DM542 Stepper Motor Driver
