Features:

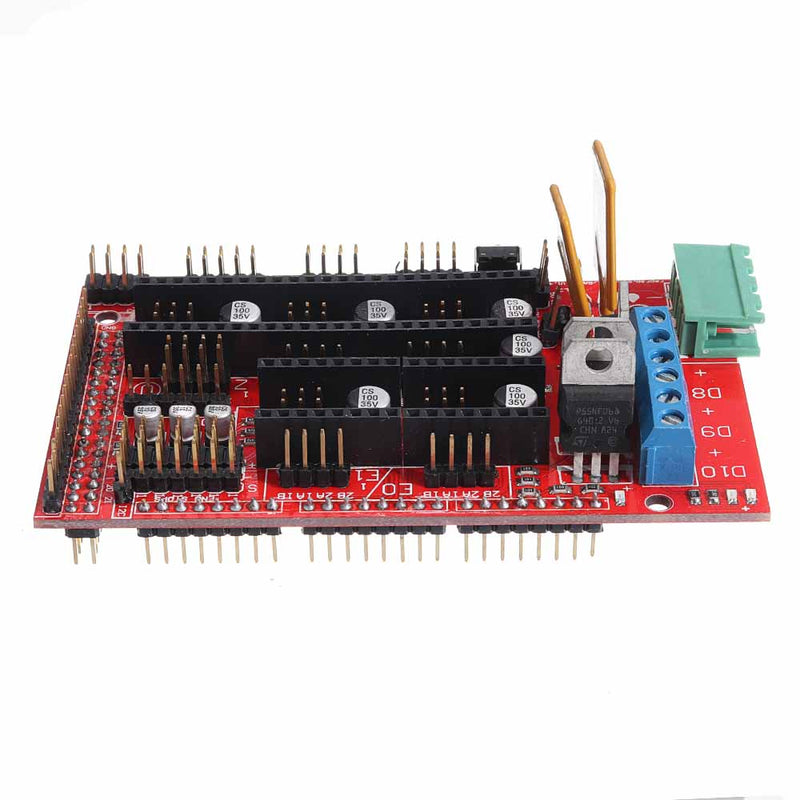

About RAMPS 1.4:

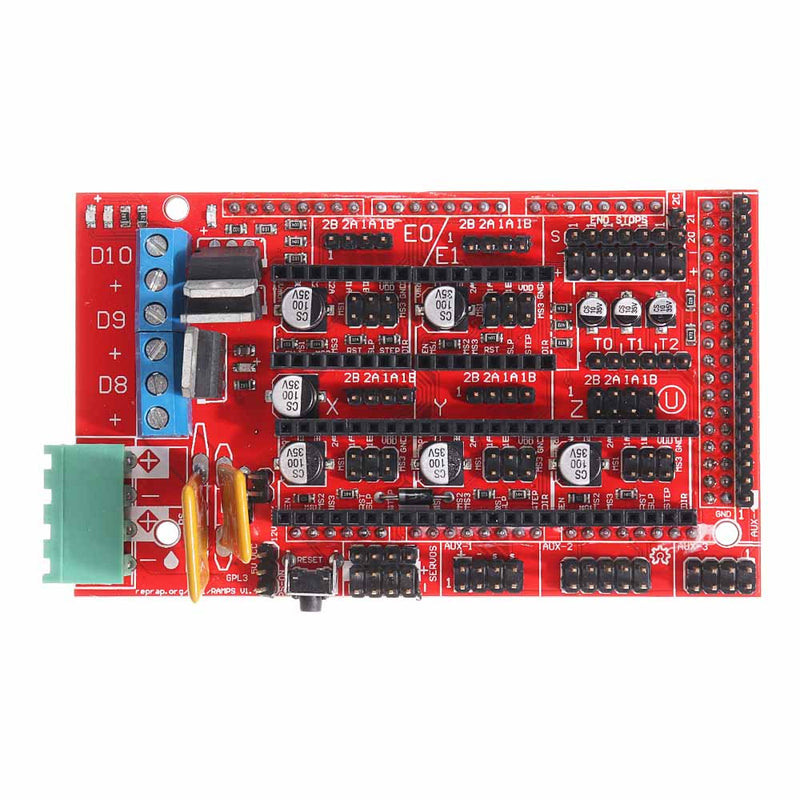

The RAMPS 1.4 board is designed to fit the entire electronics needed for a RepRap.
RAMPS interfaces an Mega with the powerful MEGA platform and has plenty room for expansion.
The modular design includes plug in stepper drivers and extruder control electronics on an MEGA shield for easy service, part replacement, upgrade-ability and expansion.
Additionally, a number of expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack

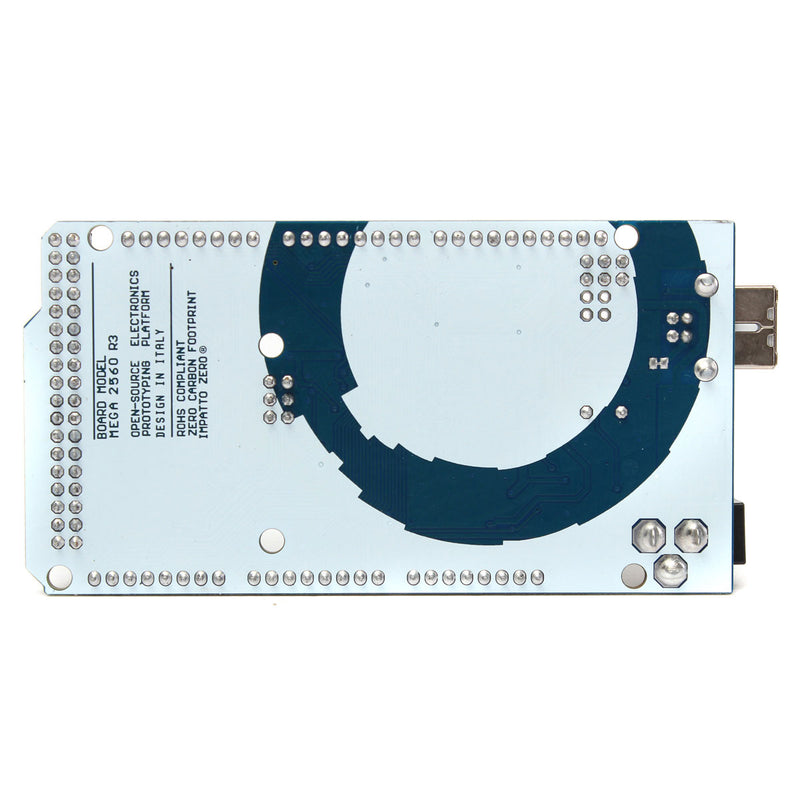

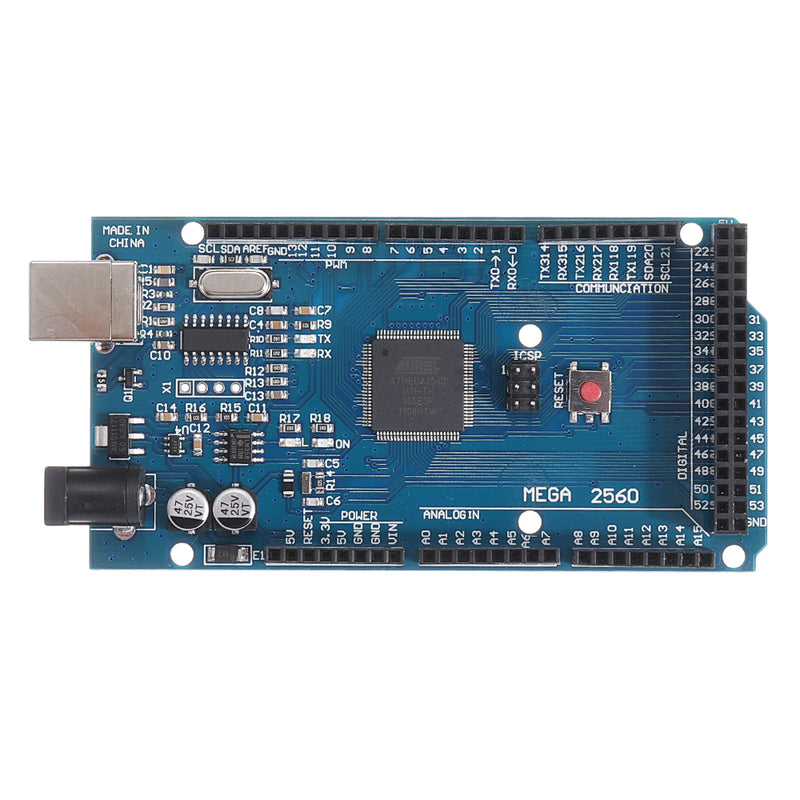

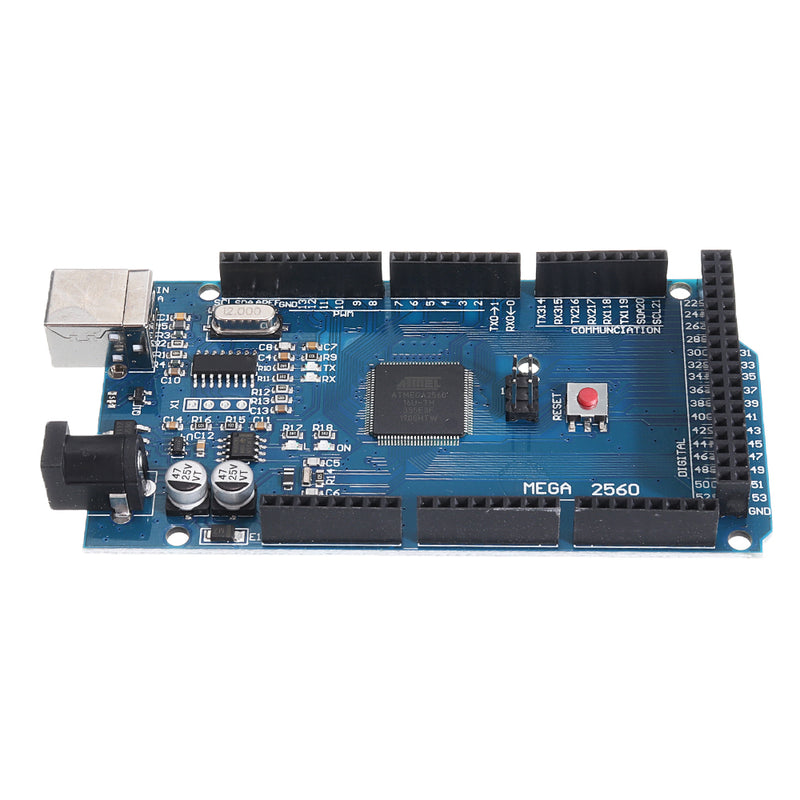

Mega 2560 R3 board
Mega is an ATmega2560 as core microcontroller development board itself has 54 groups digital I / O input / output terminal (14 groups do PWM outputs), 16 sets of simulation than the input side, group 4 UARTs (hardware serial ports), using the 16 MHz crystal oscillator.
With the bootloader, download the program directly via USB without having to go through other external writer.
Supply part of the optional USB power, or as an external power using the AC-to-DC adapter and battery.
development IDE interface is based on open-source principles, allows you to free download for use in project work, school teaching, motor control, interactive works

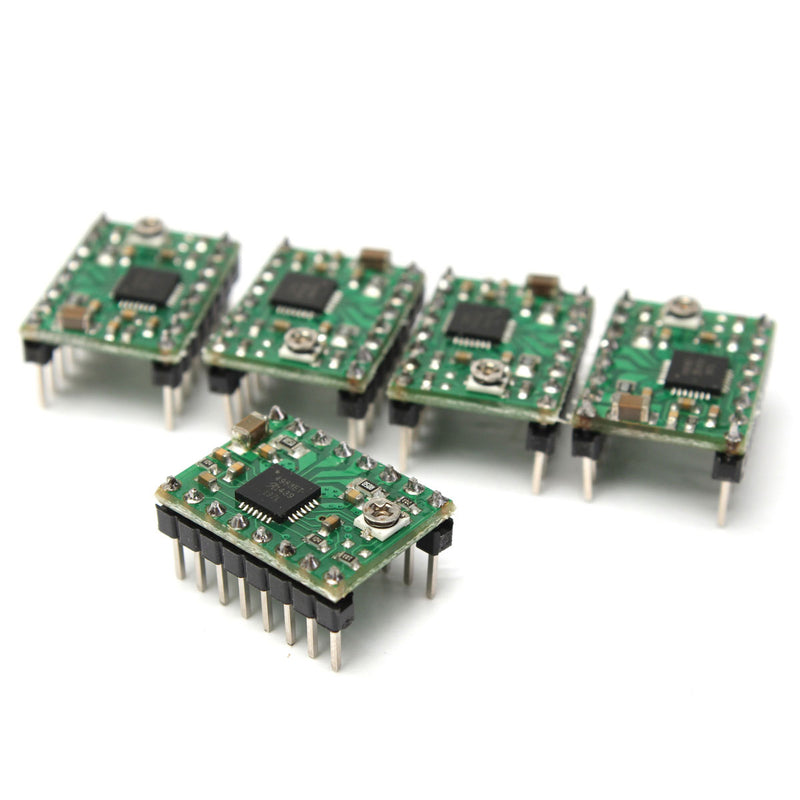

A4988 driver
This is a carrier board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection by Pololu.

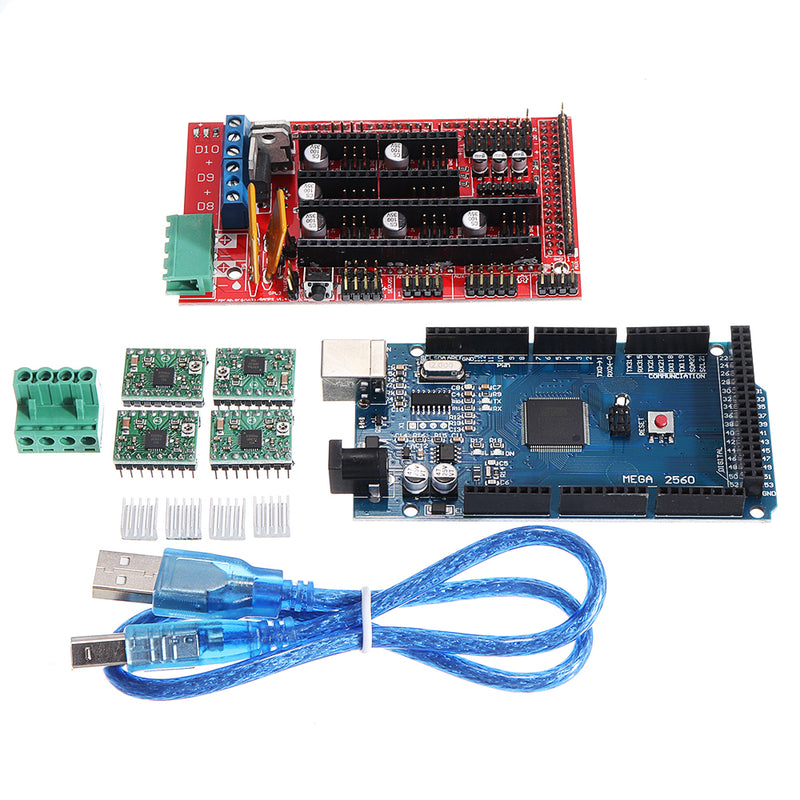

This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil Package included: 1 x RAMPS 1.4 Board
1 x Mega 2560 R3 Board
5 x Soldered A4988 driver

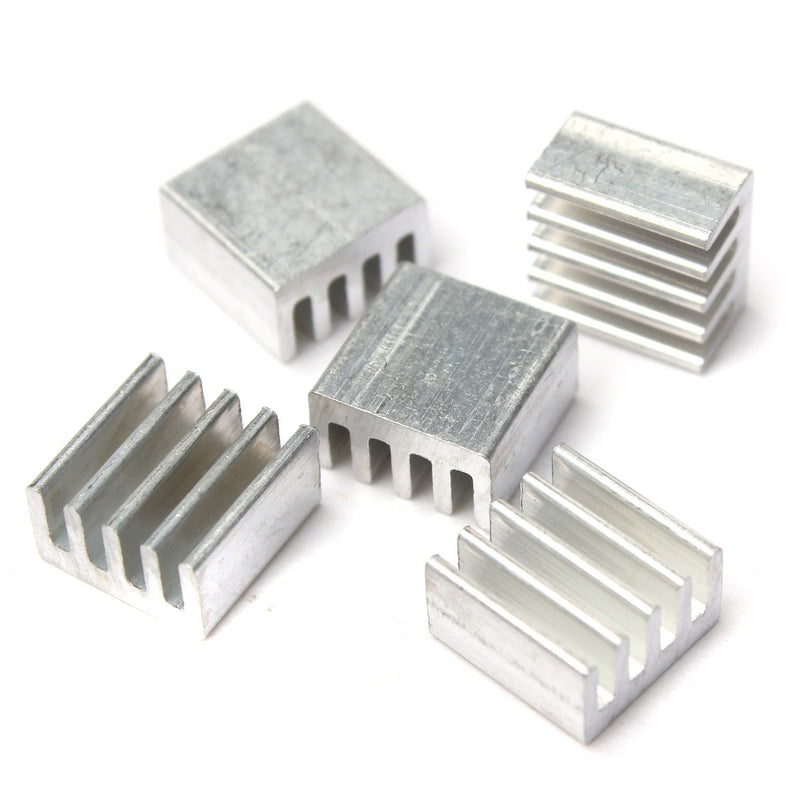

5 x Heatsink for A4988 driver

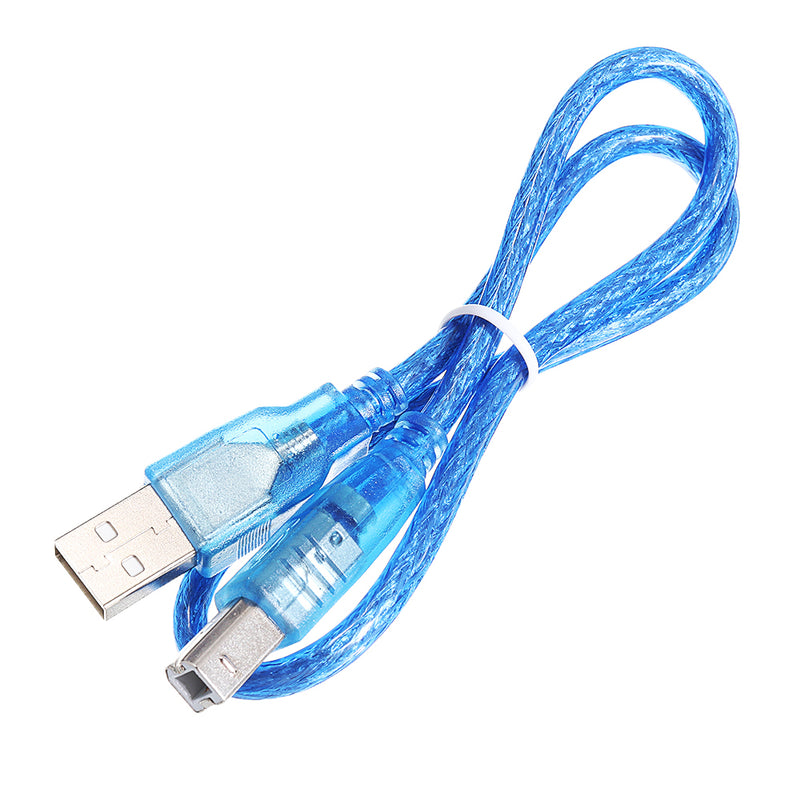

1 x USB cable
20 x Jumper Cap
