Advantages:
● Each one will be done functional test .
● Superior performance of MOSFET (Max 280A).
● Extra large heat sink , the maximum current can be up to 30A or more.
● Can use hot bed output signal of Ramp1.4 and MKS series to control .
● Can use digital signal of 5-24v to control .
Using Method:

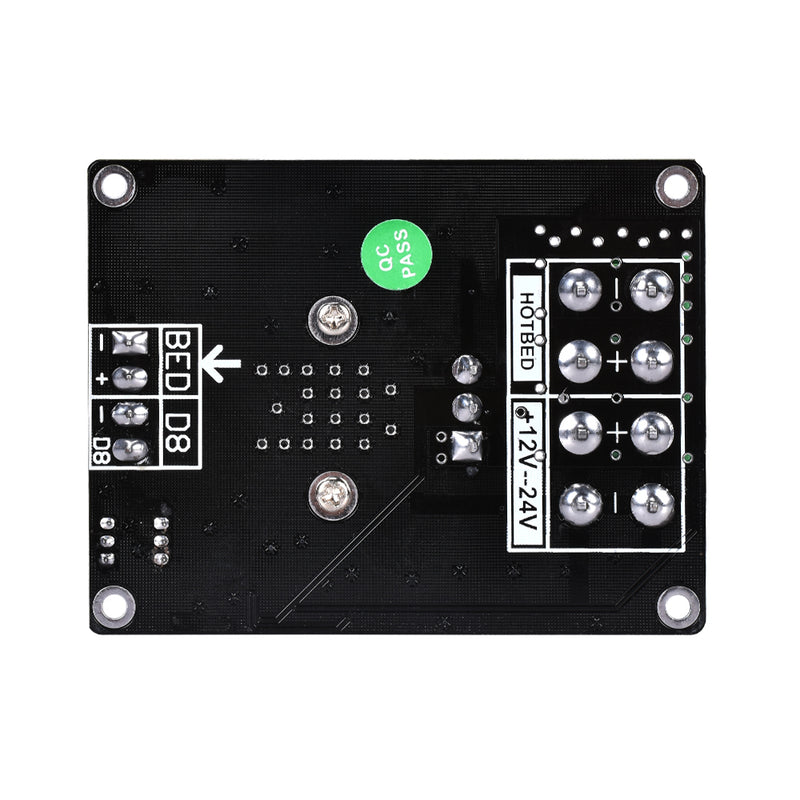

● Plug a power supply .
● Connect to heated bed .
● Connect digital control signal to GND,D8 of MKS MINI.
● Connect to the heated bed signal on Ramps1.4 or MKS series controller boards.
Note:
1)Only can choose 3 OR 4 signal group .
2)Pay attention to polarity.
Package Included:
1 x MOSFET MOS Module
