Melzi 2.0 Control Board 1284P Prusa I3 Controller Board Mainboard For 3D Printer
Save 0
SKU: U2I-BG-934985
Share this product
Description
Description:

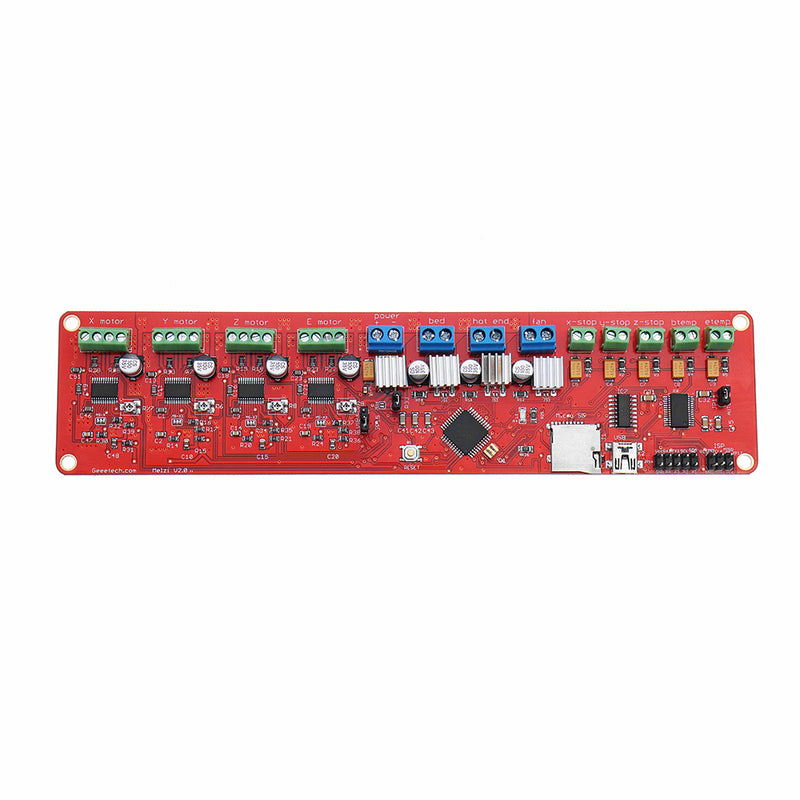

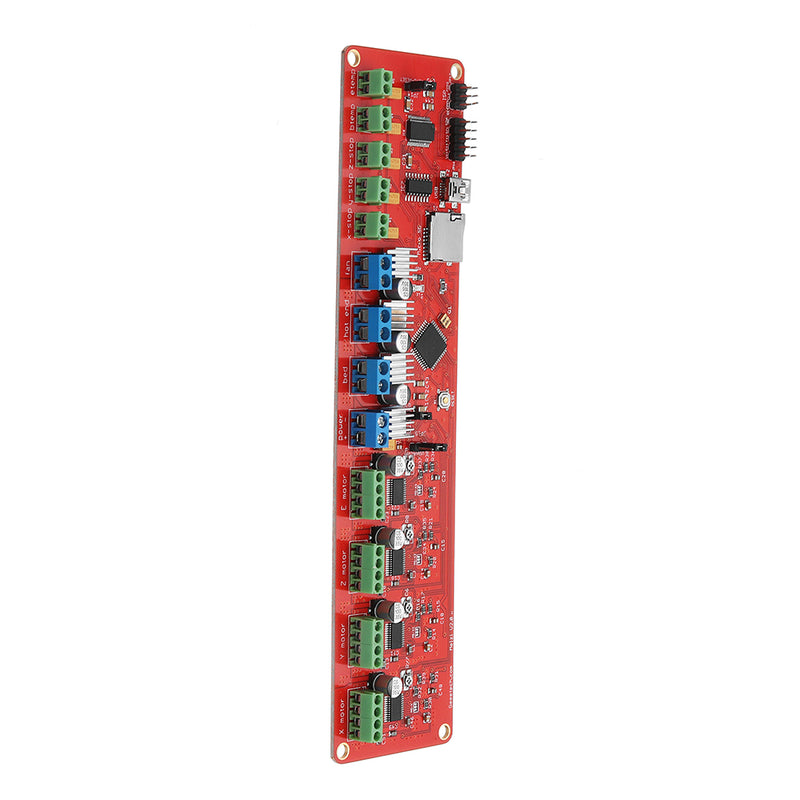

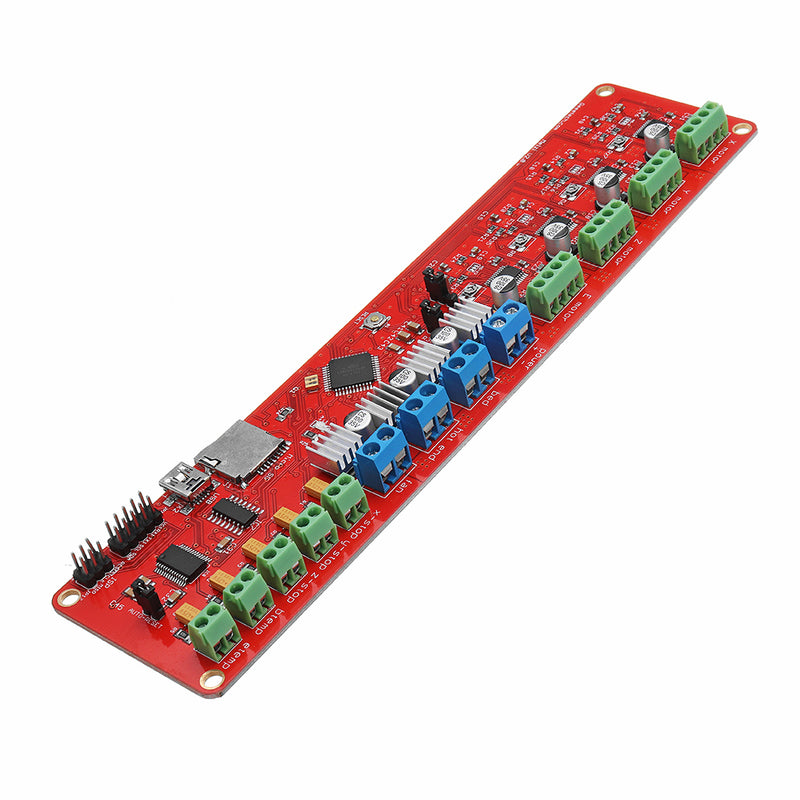

This is a Reprap Melzi Ardentissimo full featured board using the ATMEGA1284P 16MHZ chip. This is a Sanguinololu firmware compatible board, need not the extra fan, hashing micro SD on board as well. A full firmware is on board as well negating the need for external stepper motor drivers.
Feature:

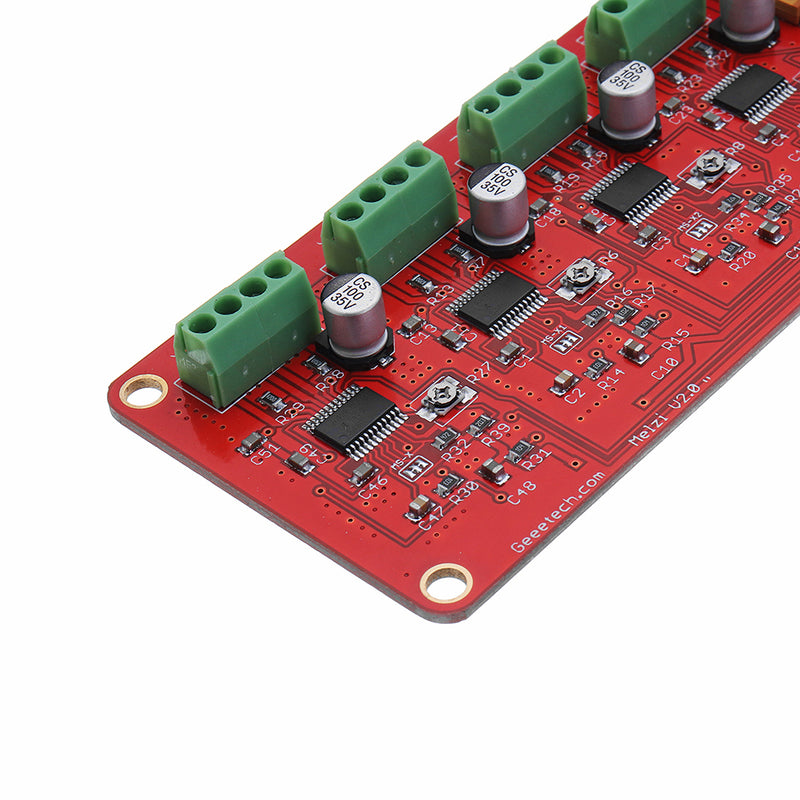

This is a complete set of 3D printers electronic control board The main chip is ATmega1284P-AU (TWICE the memory of the inferior 644P!) 4x Stepper Motor Driver integrated chips are Allegro A4988 (Pololu) Integrated USB chip FT232RL socket Can control heatbed MK1, MK2a, MK2b, MK3 Integrated 3 MOSFET driver hot end, heatbed and fan Integrated G code file micro SD card socket
Specification:

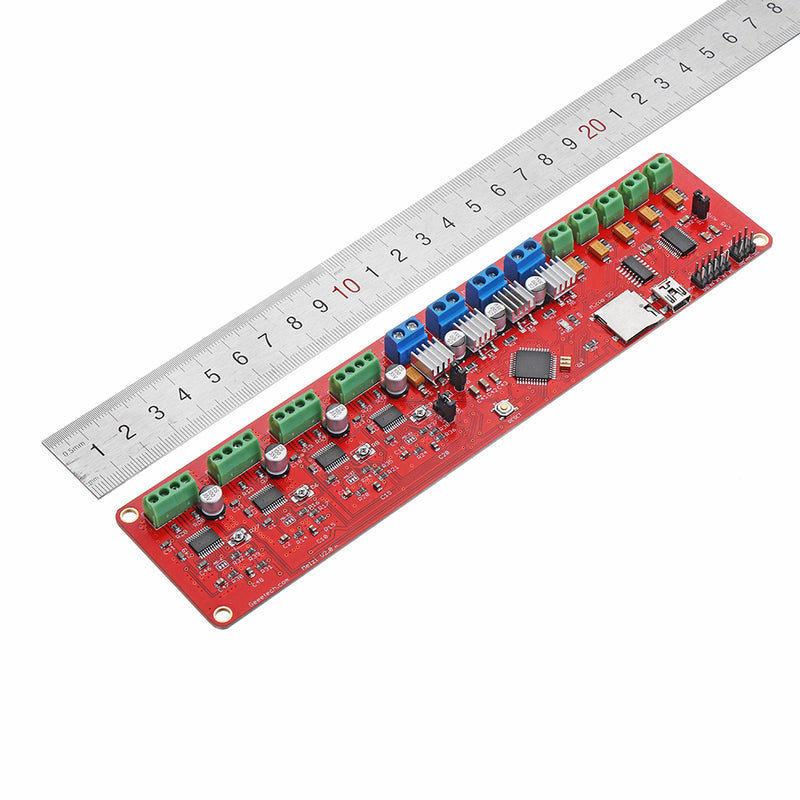

Working voltage: 12V Dimension: 210 x 50 x 17 mm Weight: 70g
Package included:
1 x Melzi 2.0 Main Control Board
