Warning:
1. The battery should be removed for storage if the instrument will be stored idle for a long period of time.
2. Since this product has only been related to two x axis measurements, the third axis (foot level front and back side) and including the horizontal angle was less than 45 °, the error message "Err" will appear on the LCD.
Descriptions:

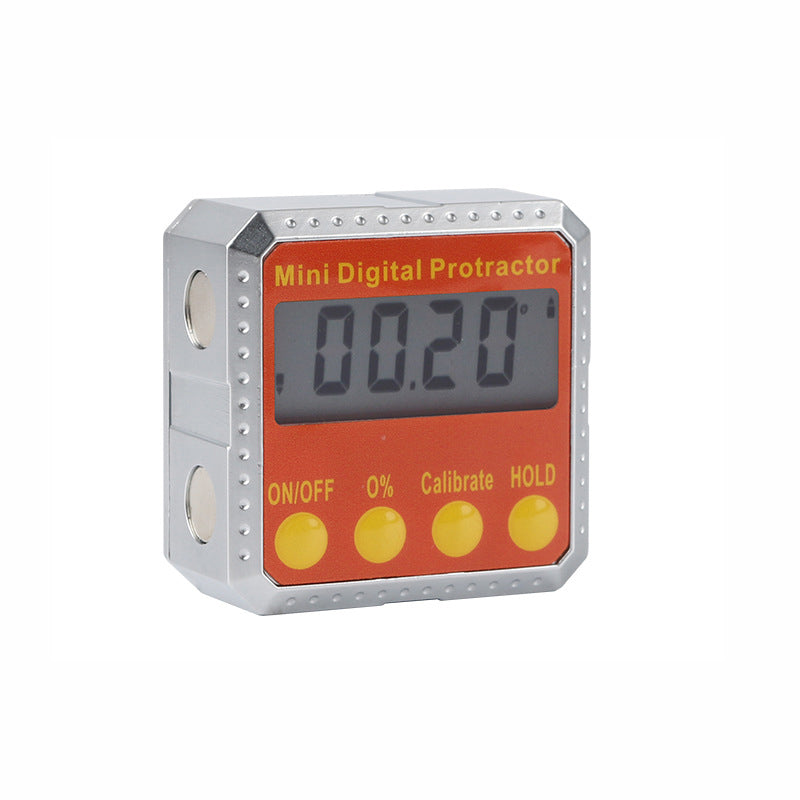

● Ultra-thin size, the whole frame adopts aluminum alloy structure.
● Portable design and easy operation.
● With magnetic adsorption. There are two powerful magnets on the side and bottom for easy horizontal and vertical measurement.
● Automatic screen rotation
● High precision and high resolution.
● Tilt test function.
● Slope and percentage during conversion.
● The angle and percentage units can be switched at will. Press 0% to switch units
● Measurement in two modes. Absolute mode measurement and relative mode measurement. Short press “Calibrate” key to switch the measurement mode
● Large clear LCD display.
● Keep measurement data.
● The calibration button calibrates the meter to any reference surface.
● The displayed reading remains upright for easy viewing from any angle.
Usage:
● Measurement of the drive line.
● Race car wing and chassis adjustment.
● Wheel settings.
● Angles and run-off drainage slopes.
● Tool setting on a lathe.
● Blade angle setting of circular saws / saws with torsional blade.
● Setting workpiece angle for milling.
● Monitoring platform.
● Check the table drill, table saw, milling table, band saw, fence milling machine or band saw table.
● You can even put it in a pocket for clothes for field work.
Technical data:
● All aluminum alloy frame structure
● Two strong magnets are built on the side and bottom surface
● Range: 0 ~ 90 ° x 4 squares (360 °)
● Resolution: 0.1 °
● Working temperature: 0 ~ 40 °
● Operating humidity: 40 ~ 80% relative humidity
● Power: 3x3V CR2032 batteries (not included)
● Dimensions: approx. 52x52x25mm / 2.04x2.04x0.98 cal
● Quantity: 1 pcs
