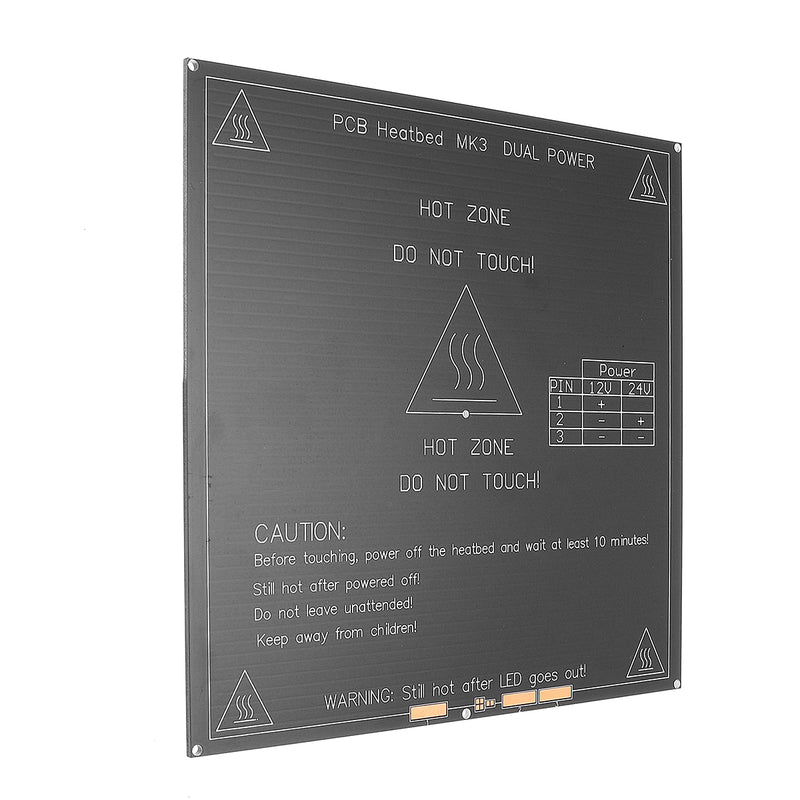

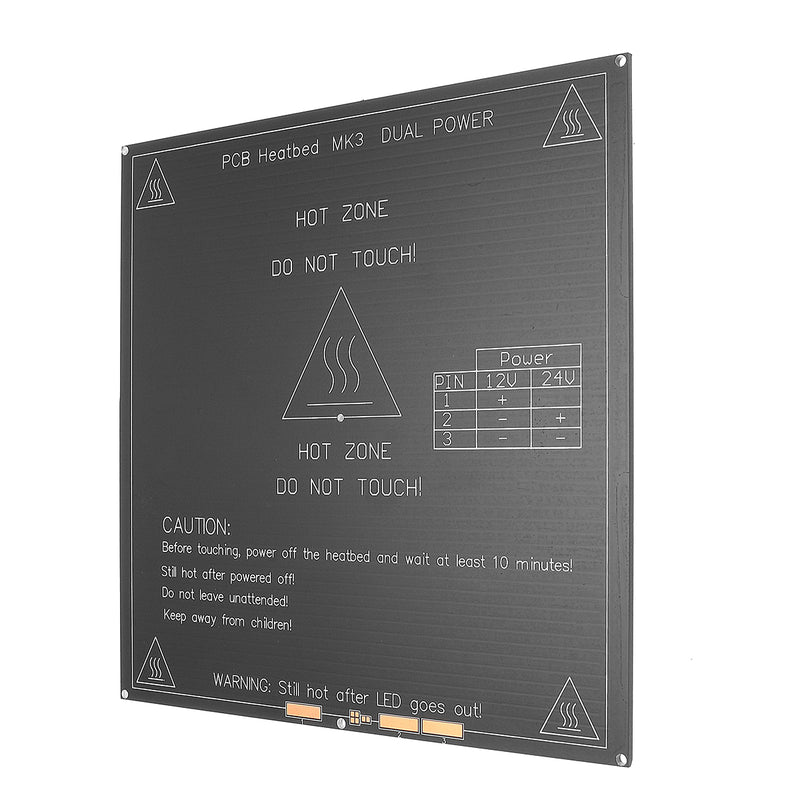

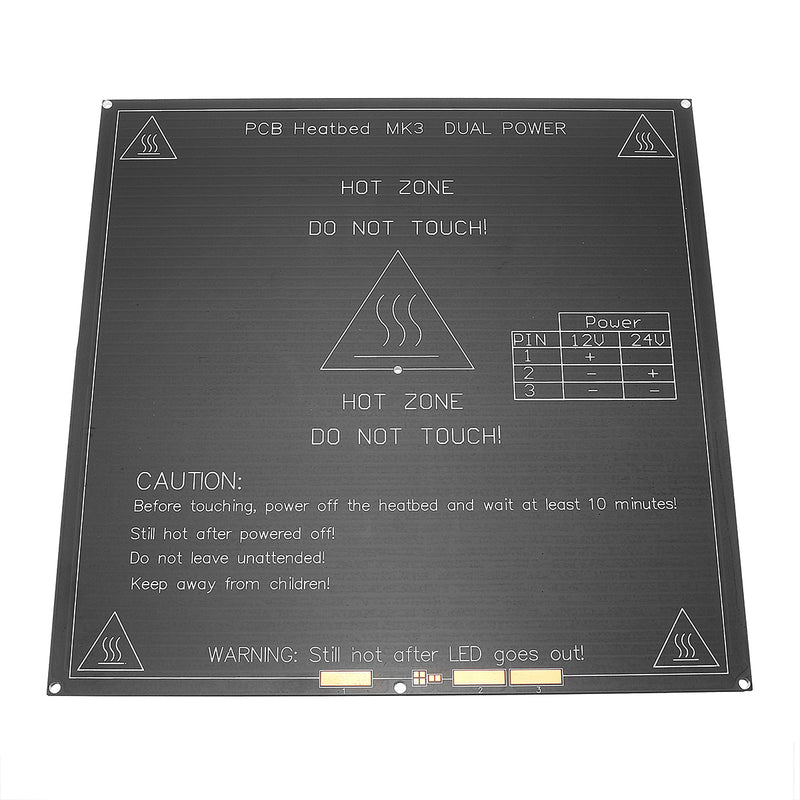

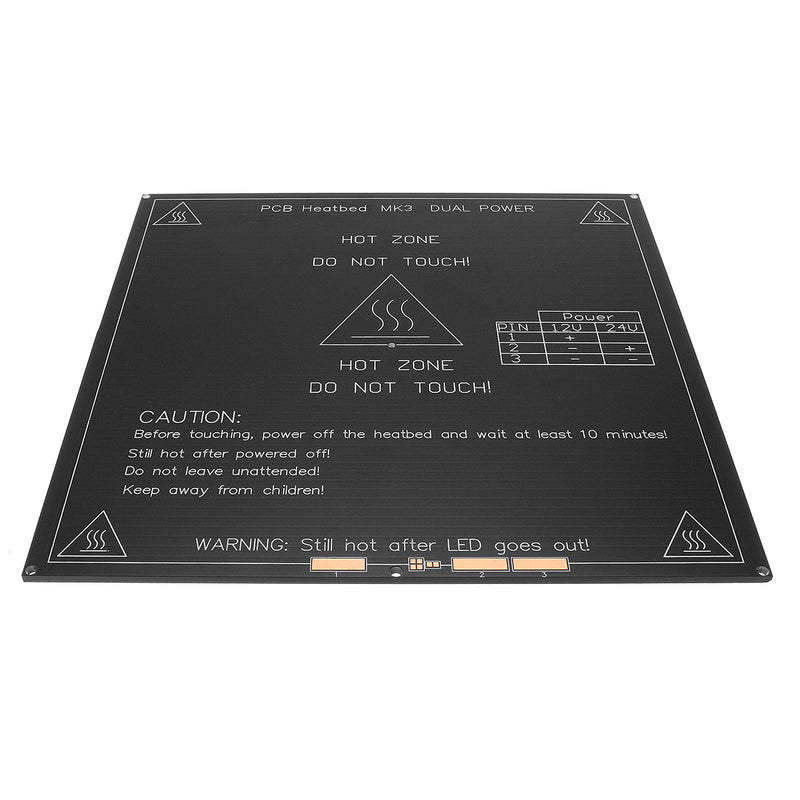

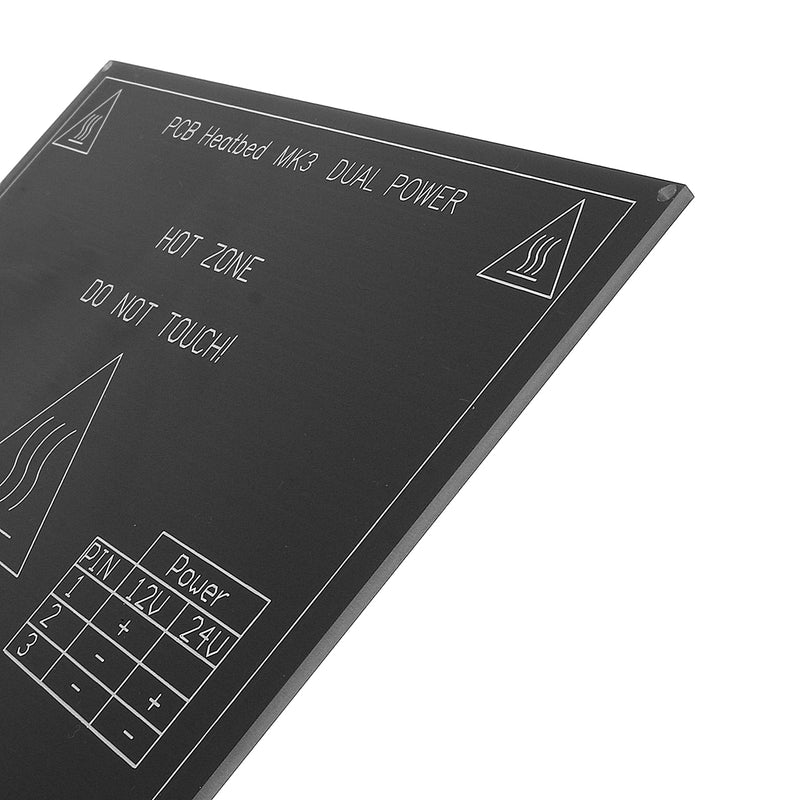

Descriptions:
● MK3 can choose between 12V and 24V working voltages, which is more practical.
● 1 layer 35μm (1oz base) copper
● Resistance between 1.4 and 1.6 ohm for the 12V
Resistance between 5.0 and 5.4 ohm for the 24V
● 100 degree Celsius possible for both 12V and 24V
● With 15V on the 12V terminals will maintain approx. 115 degree Celsius without regulation
● Running 24V on the 12V terminals will heatup the heatbed to 100 degree in only 2 minutes (Your printer controller will regulate the power to the heatbed in order to get your preset temperature.)
Specification: 1. Voltage: 12V / 24V

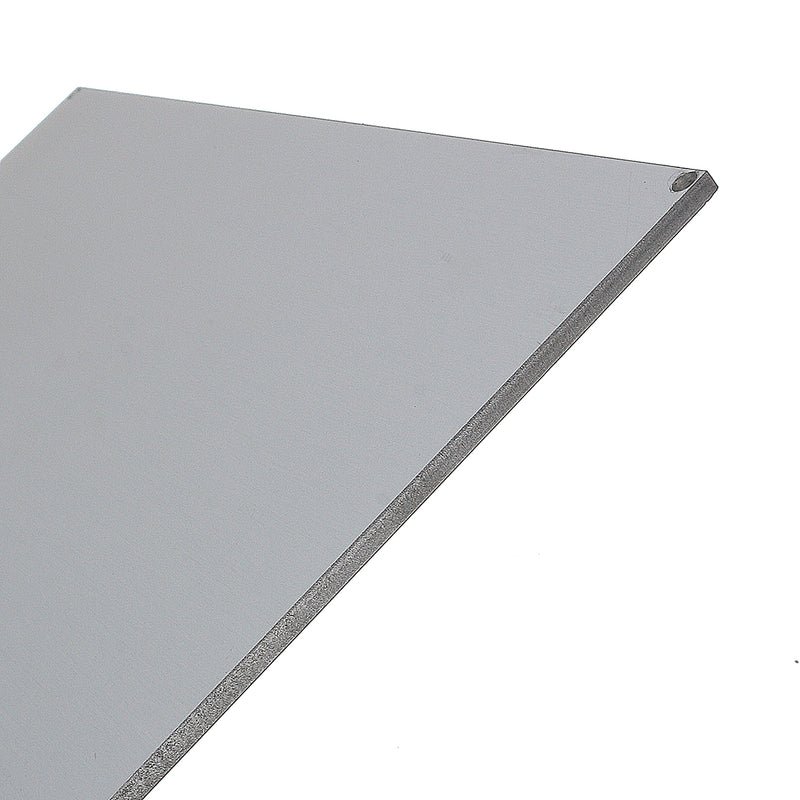

2. Process: aluminum substrate
3. Size: 21.5cm*21.5cm
4. Thickness: 3mm
5. Color: Black
6. Power: 120W
7. Max. temperature: 180℃

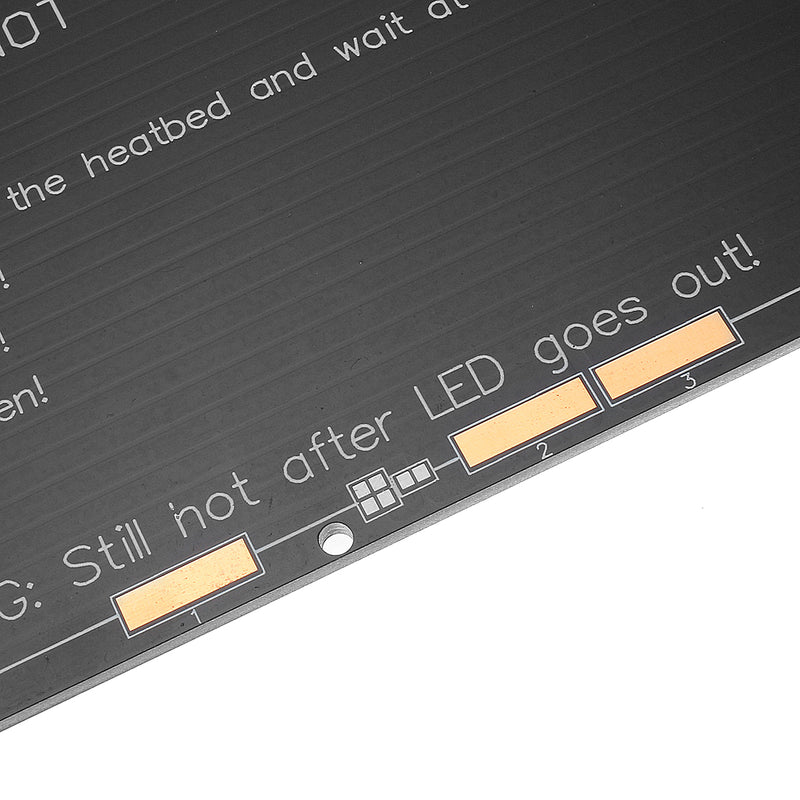

Wiring method:
- 12V connection: one line is connected to 1, and the other line is connected to 2 and 3.
- 24V connection: one wire is connected to 2, and the other wire is connected to 3 (1 is not connected)
Note:
**After the Heated Bed stops power supply, the residual heat of the Heated Bed still exists.
**Please pay attention to safety and be careful about scalding your hands.
Package included:
1 x 3D Printer Heated Bed
