Specifications:
- Material: Metal
- Dimensions: 42x42x48mm/1.65”x1.65”x1.88”
- Phase Number: 2
- Step Angle: 1.8°±5%
- Rated Voltage: 2.8V
- Holding Torque: ≧5 Kg-cm(70 Oz-in)
- Rated Current: 2.0A
- Resistance(20℃): 1.4±10%?/phase
- Max. Slewing PPS: 2500 PPS
- HI-POT: AC 600V/1mA/1S
- Rotor Inertia: 68g.cm2
- Inductance: 3.0±20%mH
- Detent Torque: 2.0Kg-cm
- Insulation Resistance: ≧100M?(DC 500V)

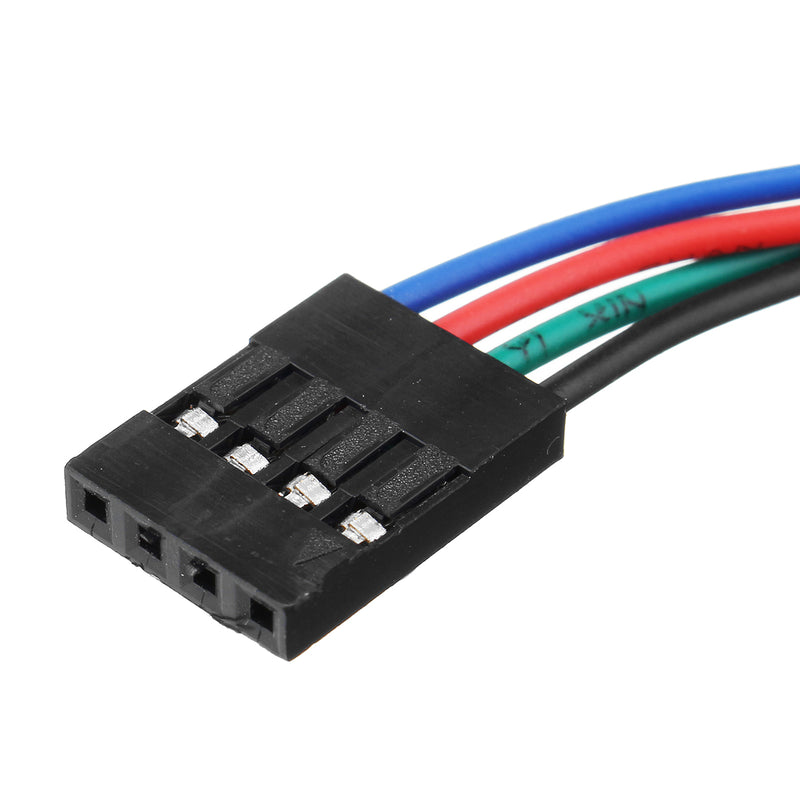

- Leads: 4
- Application: Use for3D printer, Linear actuators and CNC router for plastic&metal.
Note:
*Please allow a little difference due to manual measurement.
Package Included:

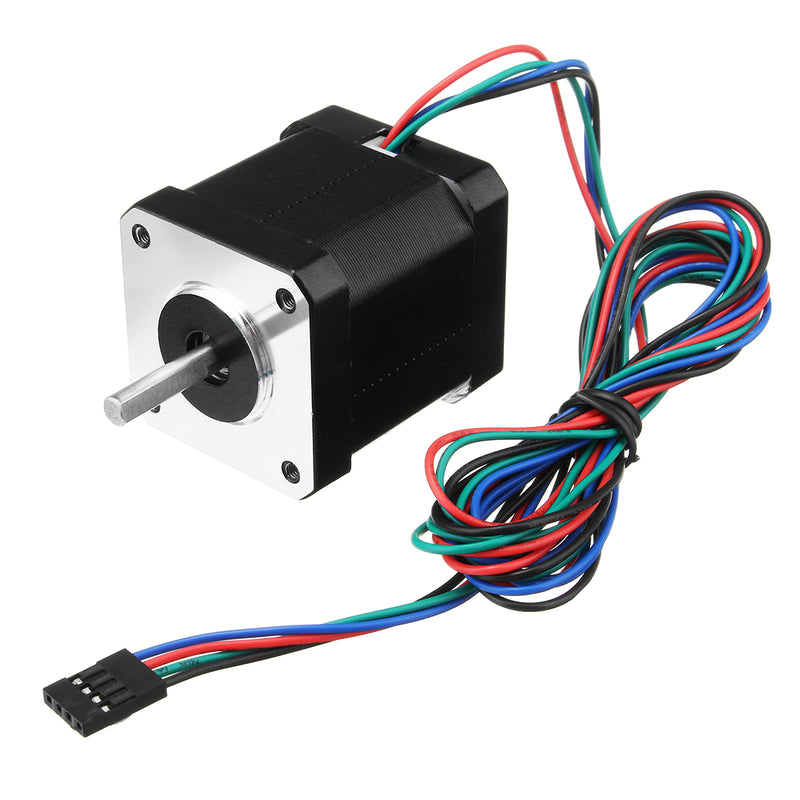

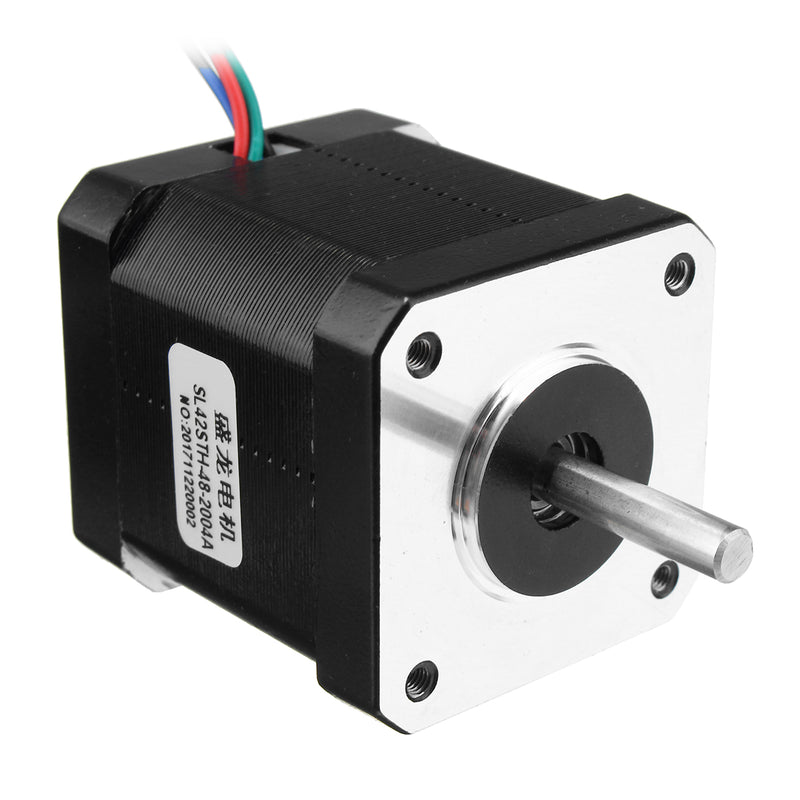

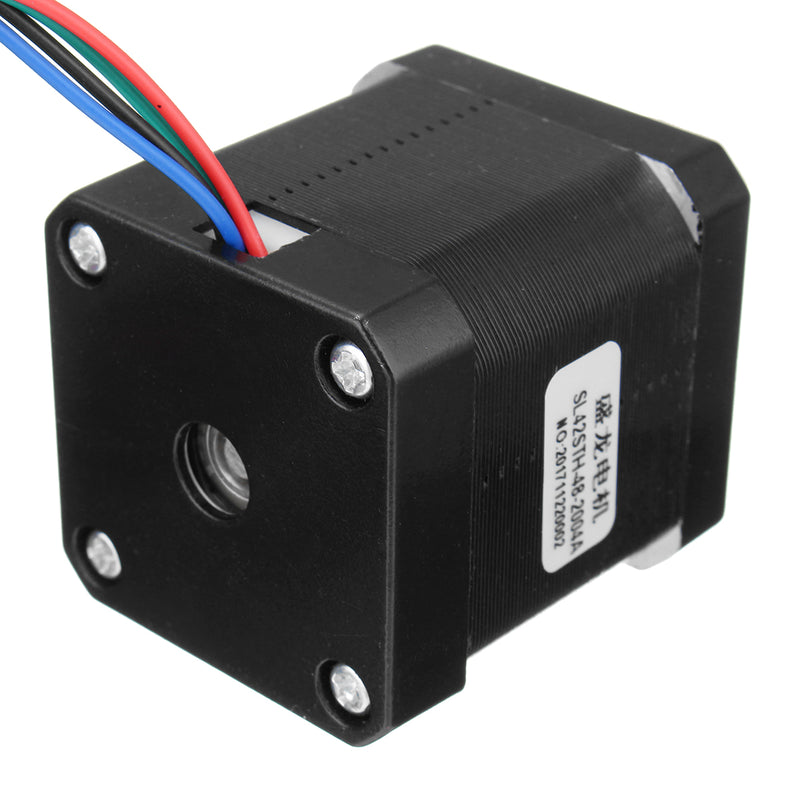

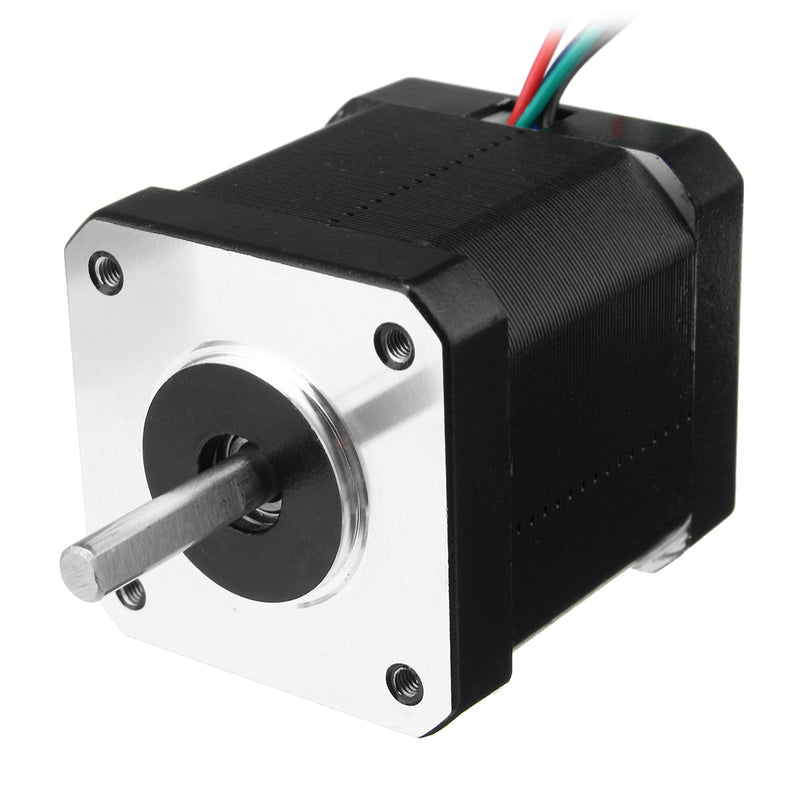

1 x Stepper Motor
,,,,,
