Features:
1.Two-phase stepper motor single-phase current 1.2A (peak 2.5A) motor operating current can be adjusted
2.SPI only
3.Subdivided into 256
4.Noiseless operation combined with maximum efficiency and optimal motor torque
5.High-precision sensorless motor load detection
6.Reduce energy consumption by 75%
7.High load drive is not out of step
Specifications:

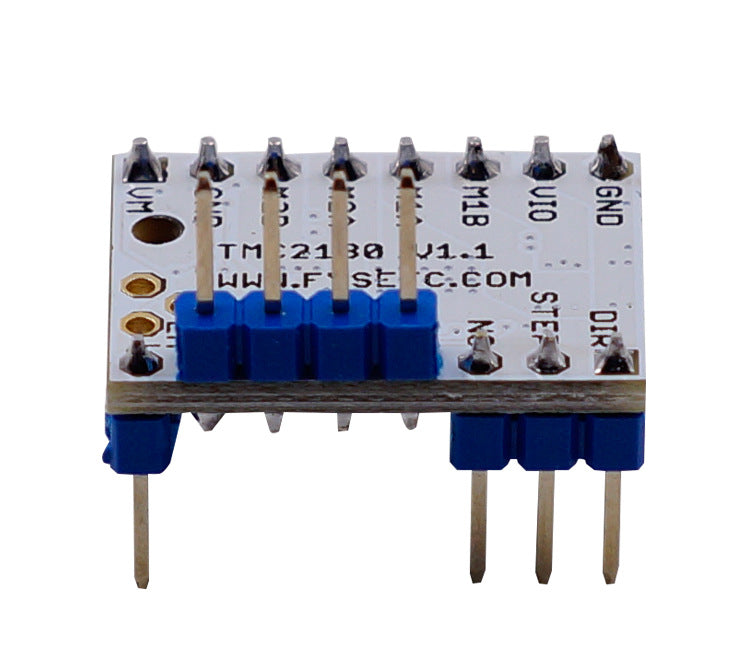

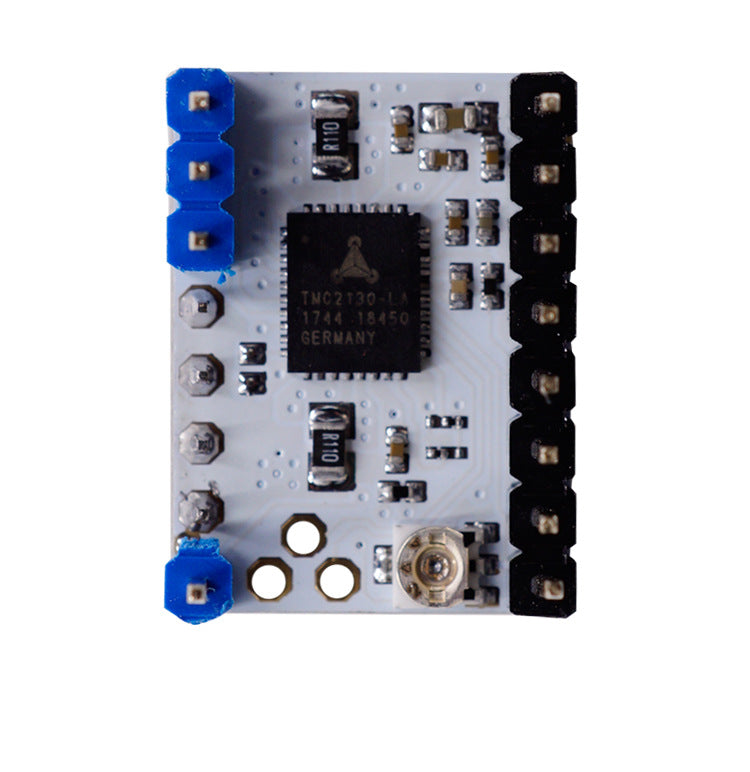

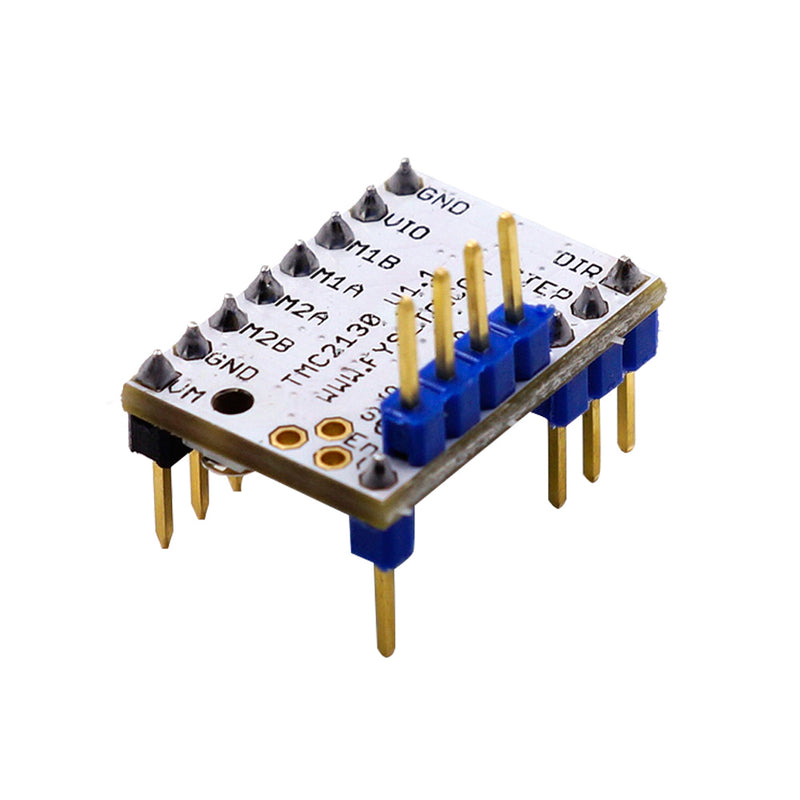

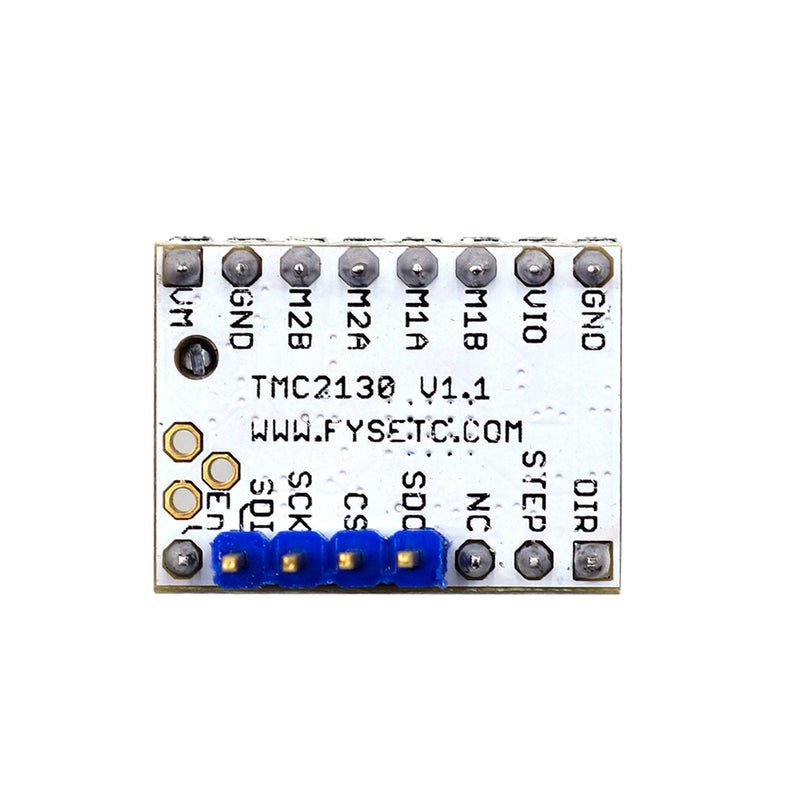

- Product Name: TMC2130 V1.1 Stepstick Stepper Motor Driver
- Motor input voltage range: 4.75~46V

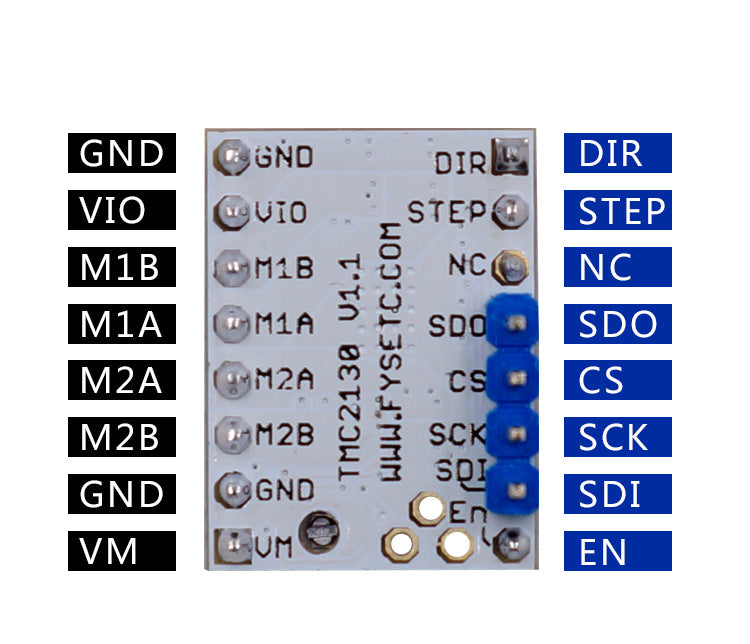

- Logic interface input voltage: 3 ~ 5V- Interface: Step/Dir or SPI
- Configuration: CFG Pins or SPI
- Native Microsteps*: up to 1/256
- MicroPlyer
- Microsteps: 1/256
- Logic Voltage VIO: 3-5V
- Motor Voltage VM: 5.5-46V
- Motor Phase Current: 1.2A RMS, 2.5A Peak
- VM always needed**: yes
- Internal V- Regulator**: enabled
- RDSon: >=0.5 Ohm
- StealthChop (quiet): yes
- SpreadCycle: yes
- CoolStep: yes
- StallGuard: yes
- DcStep: yes
Note:

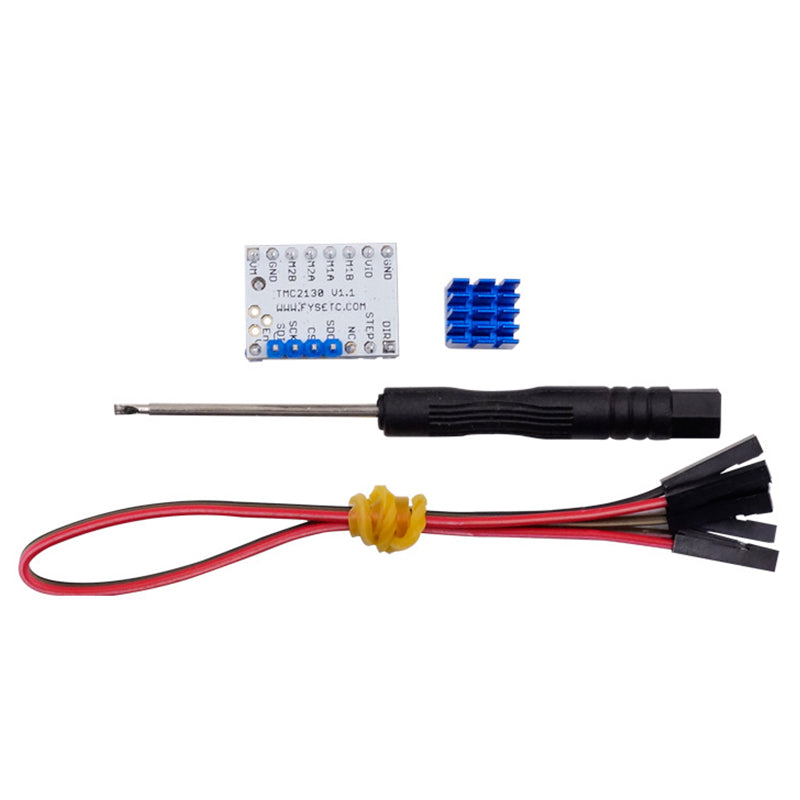

* Due to different producing batches, product details might be a little different. Thank you for understanding.Package Included:1 x TMC2130 V1.1 Stepstick Stepper Motor Driver 1 x With plastic heat sink
1 x Screwdriver
1 x 4pin connection cable
