Description:With the TMC2208 / TMC2209 Configurator you can change the settings and program the OTP (One-Time-Programmable) memory of a Trinamic TMC2208 via the UART interface.To run the program:
- Install ScriptCommunicator
- Download TMC2208.scez
- Start the TMC2208.scez file with the ScriptCommunicator: ScriptCommunicator TMC2208.scez
- Choose the right serial port and click Connect
- Modifications in the Configurator are directly transmitted
Notes:
The OTP bits can be programmed only one time.
If you enable spreadCycle then TOFF cannot be 0 (null).
Package Included:

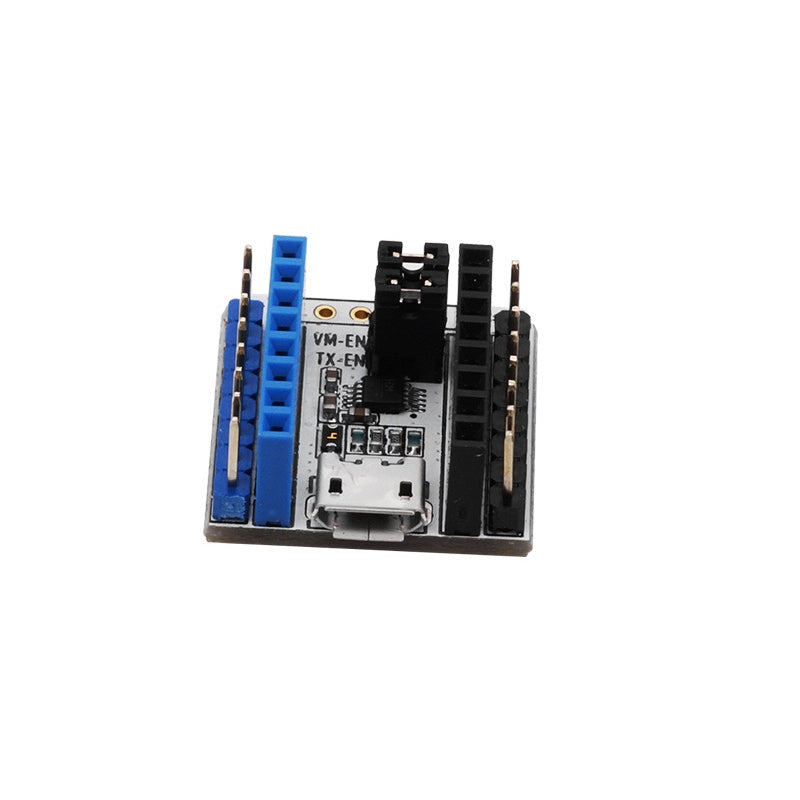

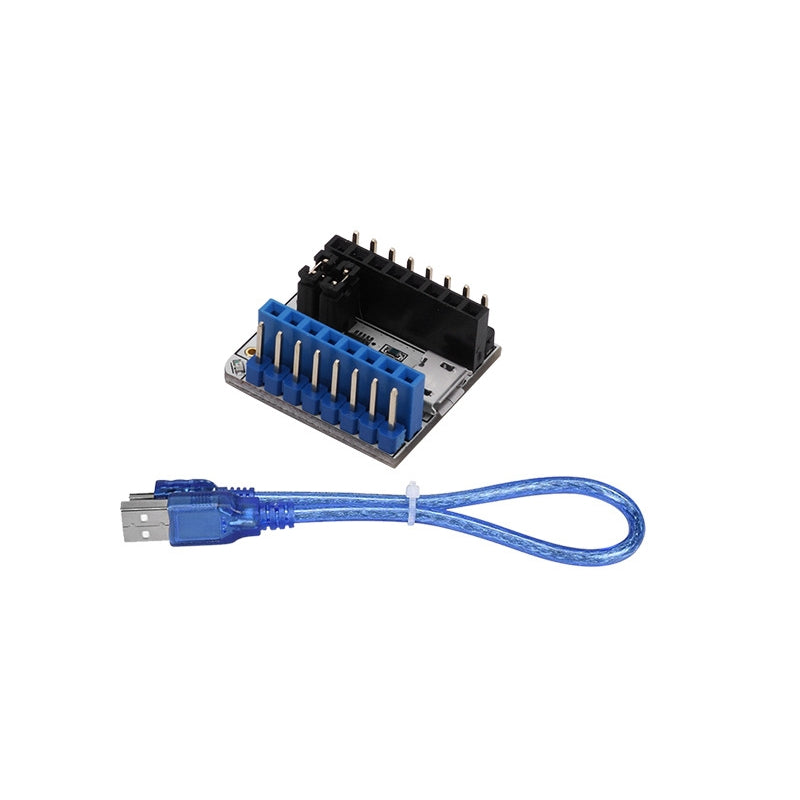

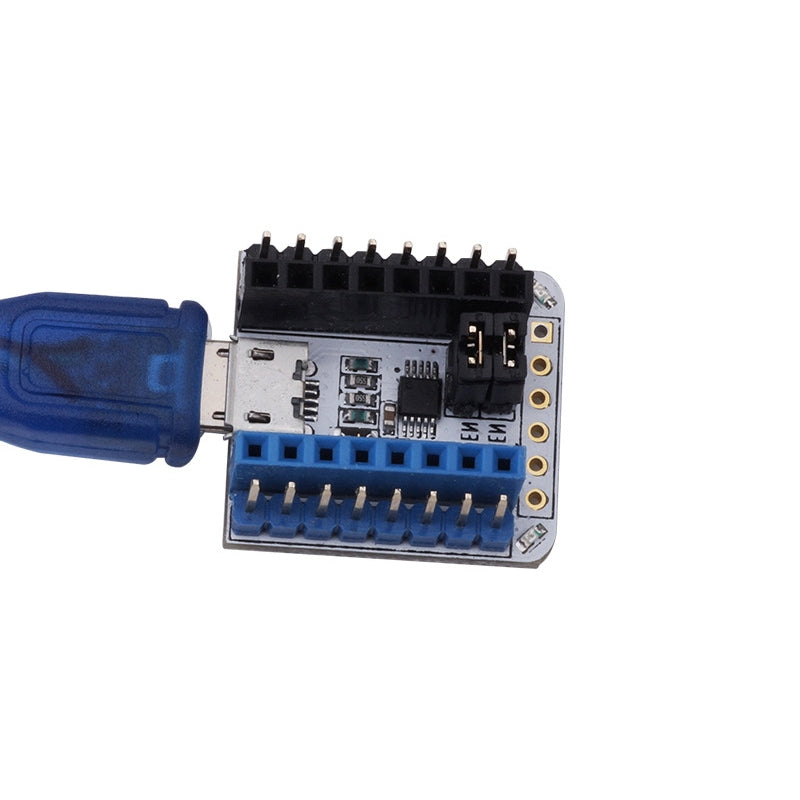

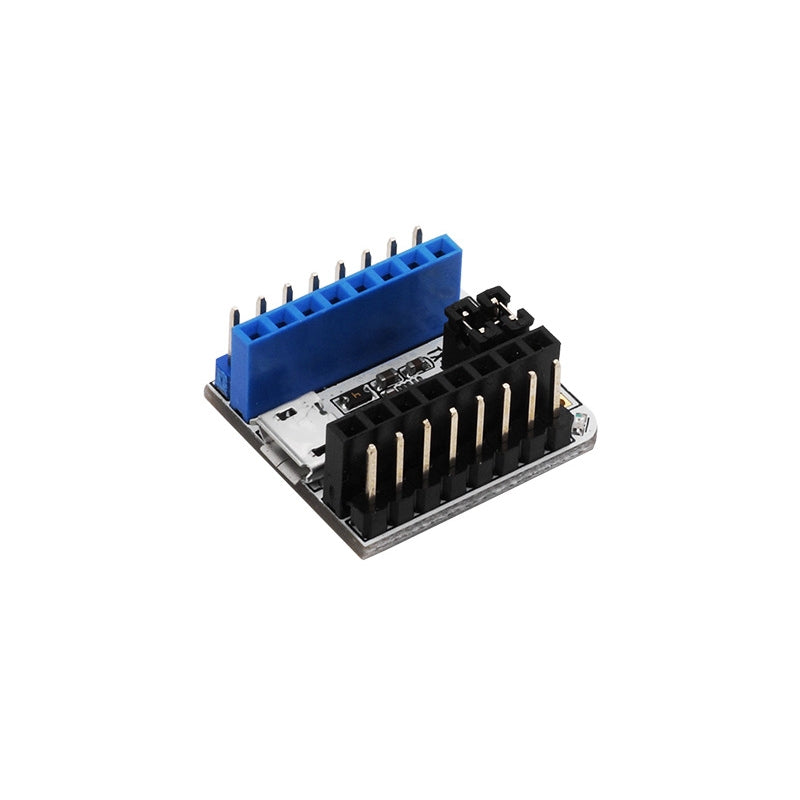

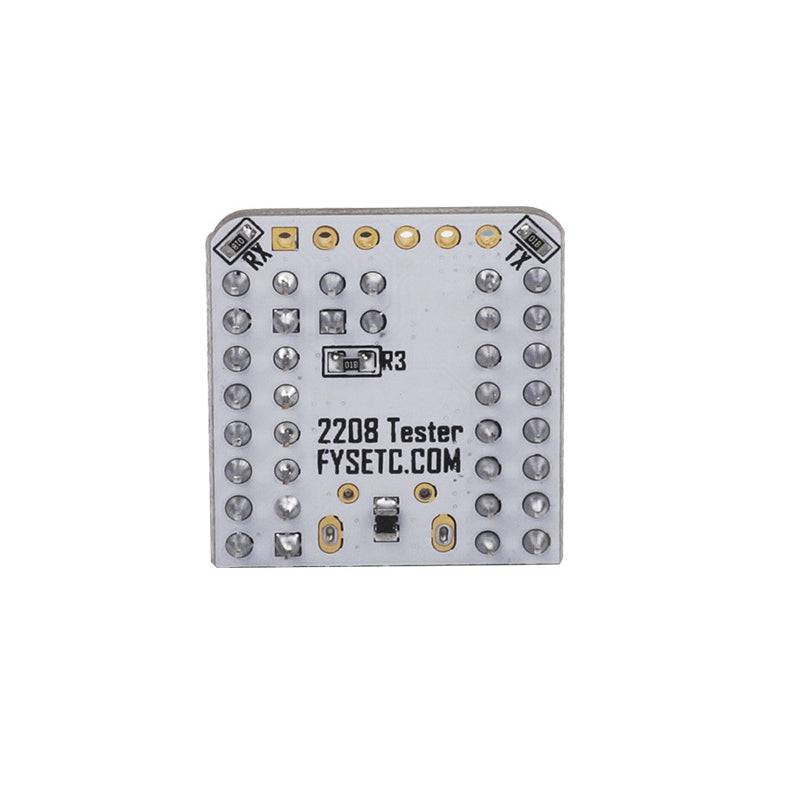

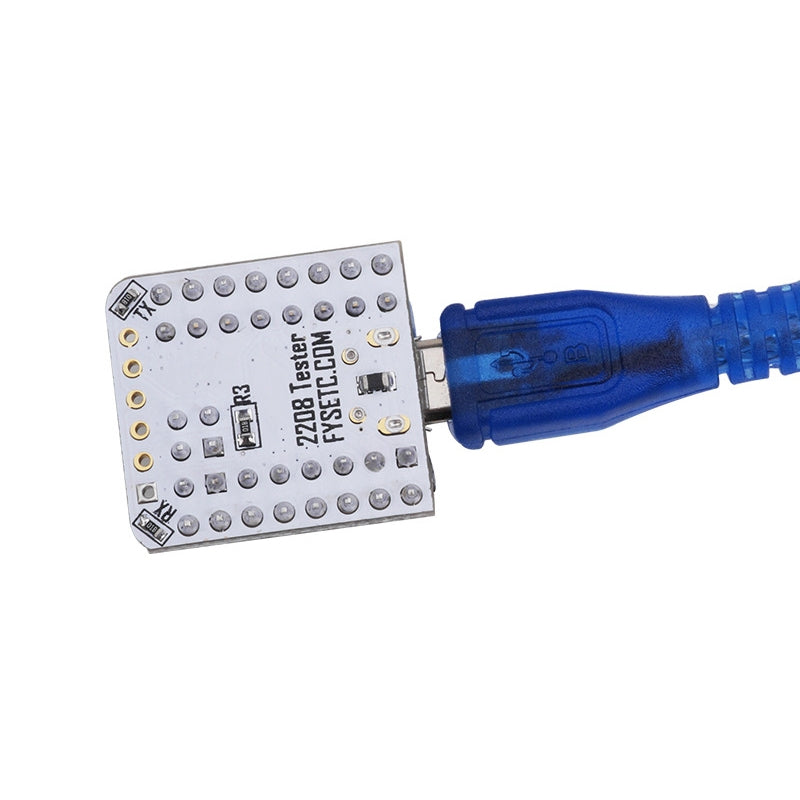

1x TMC2208 / TMC2209 Tester
1x USB Cable
Hardware Connection
You can use every RS232 serial adapter with 0-5V logic levels (e.g. FTDI-Breakout) and the SilentStepStick Tester/Programmer can be used as connection adapter.
Note: The jumper next to the PDN_UART pin has to be closed on the TMC2208 SilentStepStick to enable the pin access via the pin header.
Screenshot
