Drive current algorithm and regulation
1. Vref measures the voltage of GND and the middle end of the potentiometer.
2. Do not connect the motor when measuring voltage, otherwise, it will easily burn the drive.
3. Turn on the power when measuring voltage. Do not connect USB power only.
Please pay special attention to the direction, do not insert it.
Instructions for use:
1. When using on the printer control board, please keep the 3 jumper caps under the socket.

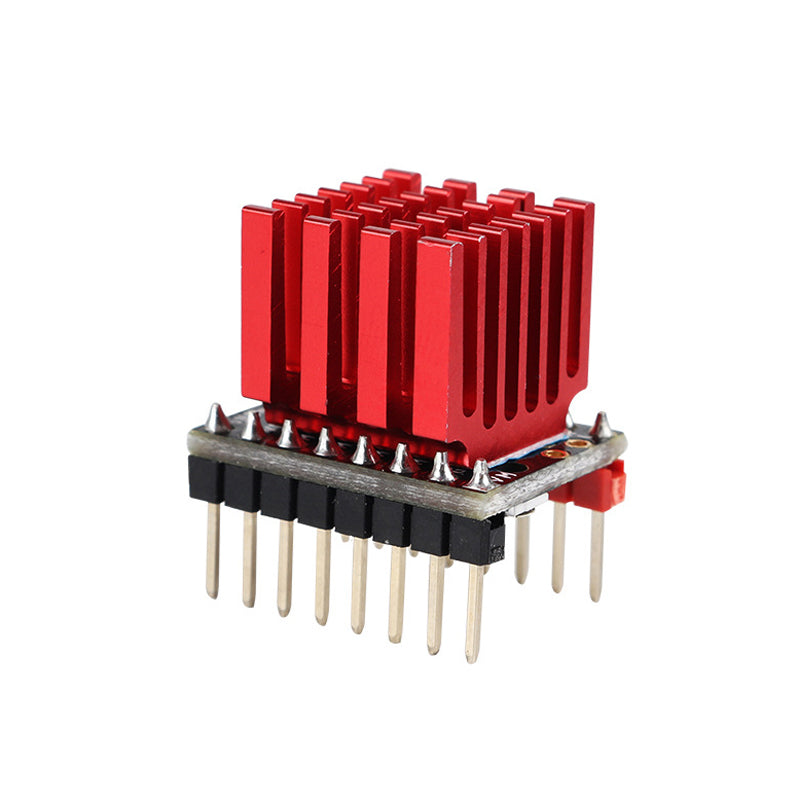

2. because of the chip characteristics, must do a good way to heat! The heat sink is directly attached to the PCB. Pay attention to the direction of the heat sink. Otherwise, the heat sink and each pin will be connected together to cause a short circuit. For details, refer to the following figure.
3. The motor direction is exactly the opposite of A4988 and DRV8825. If you want to replace the A4988 directly, please adjust the firmware or adjust the motor connection.
Package Inclued:

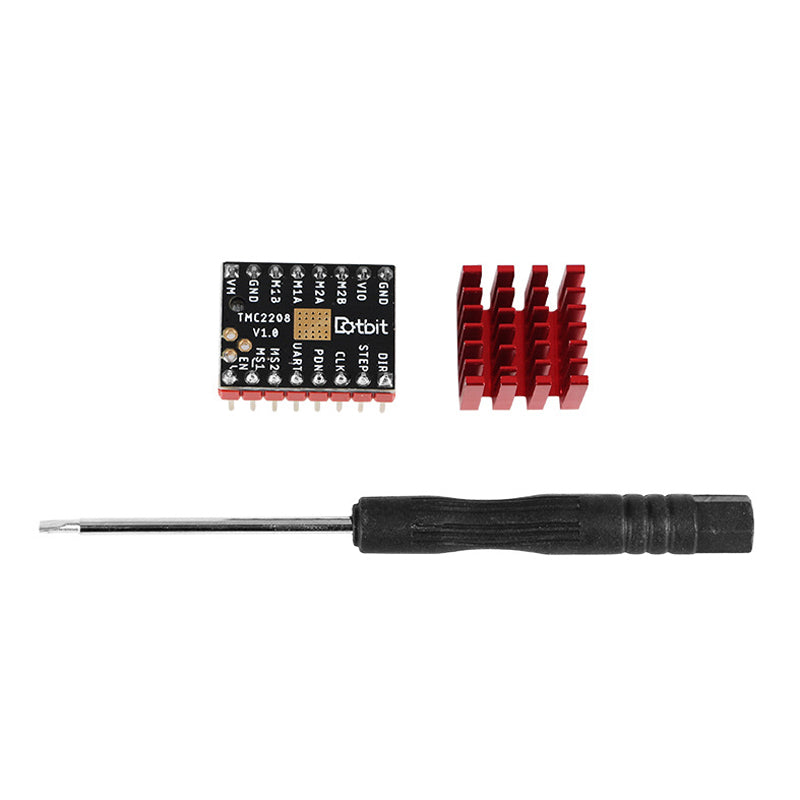

1 x TMC2208 V1.0 stepper motor driver
