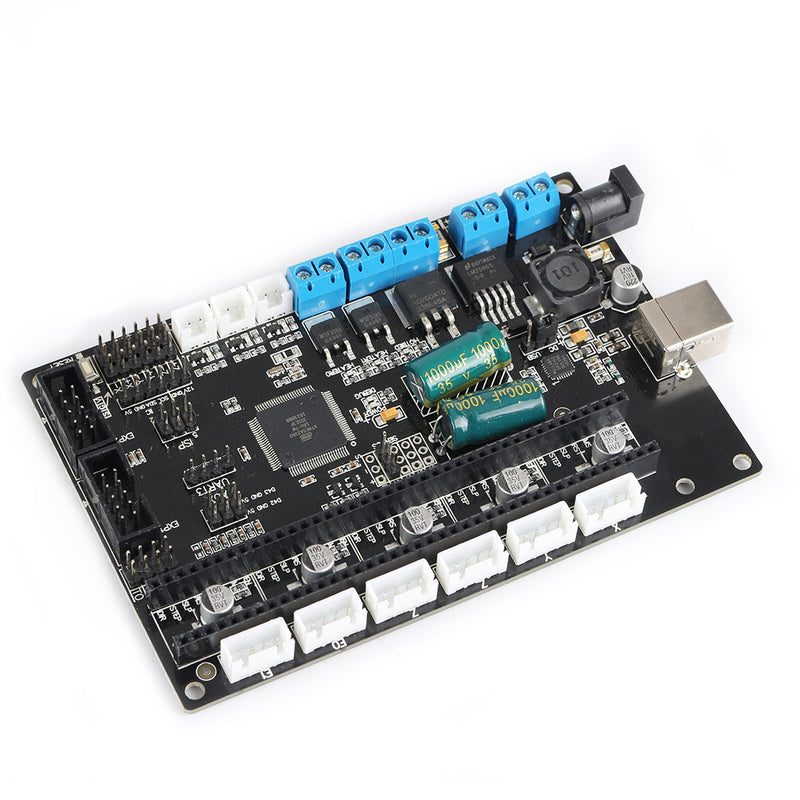

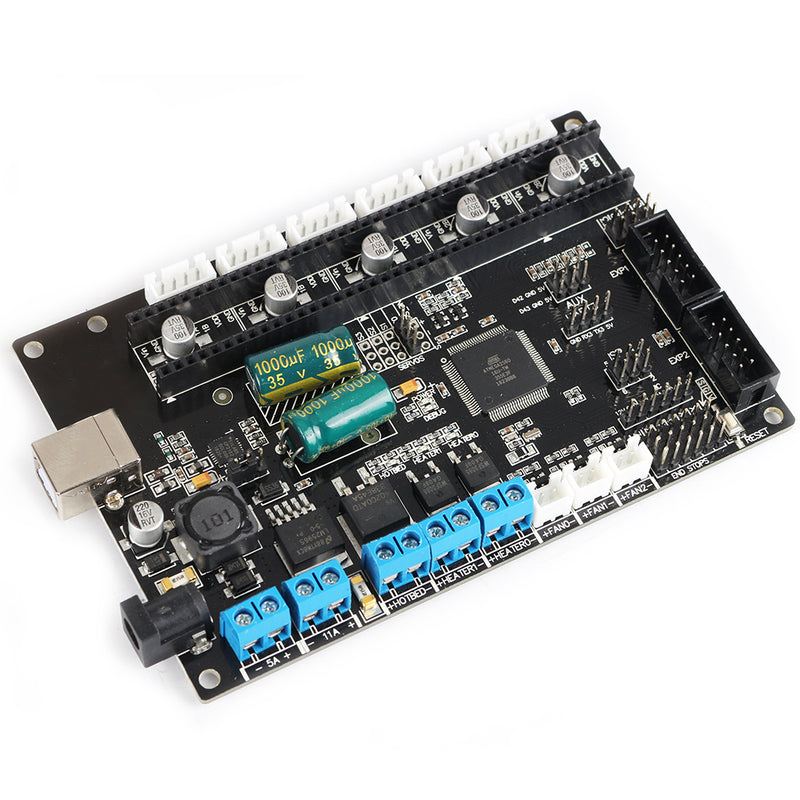

TriGorilla Mainboard Motherboard With USB Cable For Kossel Prusa i3 Corexy 3D Printer
Save 0
SKU: U2I-BG-1437986
Share this product
Description
Specification:
TriGorilla is a integrated main board that is integrated with the mighty function of the Mega2560+ramps 1.4 on respect of both software and hardware and has more premium features; the streamlined interfaces effectively avoid the unnecessary troubles and power than Ramps 1.4 + Mega2560, it is a feature rich all-in-one electronics solution for Reprap Mendel Prusa and other CNC devices.
Parameter:
Main Control Chip: ATMEGA256016AU Input Power: 10V ~ 30V Standby Current: 35mA±5mA Stepper Motor Drivers: 5 channel Max Hot bed Output Control: 1 channel Heated output control: 2 channel Under-current output control: 3 channel Dimensions: 125mm x 82mm
Feature:
1. Simple to install: Integrated with the mighty function of the Mega2560+ramps 1.4 kit, Great reduce the wiring problem, more convenient connection, and more stable.
2. Convenient to use: TriGorilla motherboard support LCD2004 and LCD12864 without using adapter, and there are two choices for main board power supply, you can choose DC power supply connection or directly from the terminal, it is convenient to use. TriGorilla use CP2102 chip as a serial port communication, communication not only stable, but also avoid the repeated to install the driver(There will be increased “COM” port when replacing the traditional 2560 board, so while those people who need to batch purchasing test, the “COM” increases to a certain value will lead to can’t upload the firmware problem.)
3. Excellent compatibility: Firmware can use the same configuration as ramps1.4, the marlin firmware which runs in Mega2560+ramps 1.4 kits can directly running in TriGorilla board.
4. Voltage input at super wide range, short-circuit protection: TriGorilla adopts DC - DC step-down scheme design and Recoverable fuse for short-circuit protection, improving the MEGA2560 board serious heating problem, Allowing any power supply from 10V-30V.
5. Support up to 5 motor drivers, support A4988/ DRV8825 /TMC2100 driver: Motor drive circuit doesn't integration on the circuit board. You can change any stepper motor driver you need, easier to operate. (Support A4988/ DRV8825 /TMC2100 driver)
6. Rich expansion port TriGorilla had reserved SERVO, UART, IIC expansion, so you can use it realize automatic leveling, control touch screen smart controller, control wireless module and the detection of break, etc
7. Wide applicability Widely used in 3D printers, e.g. Kossel, Prusa i3, corexy, etc
About power port:

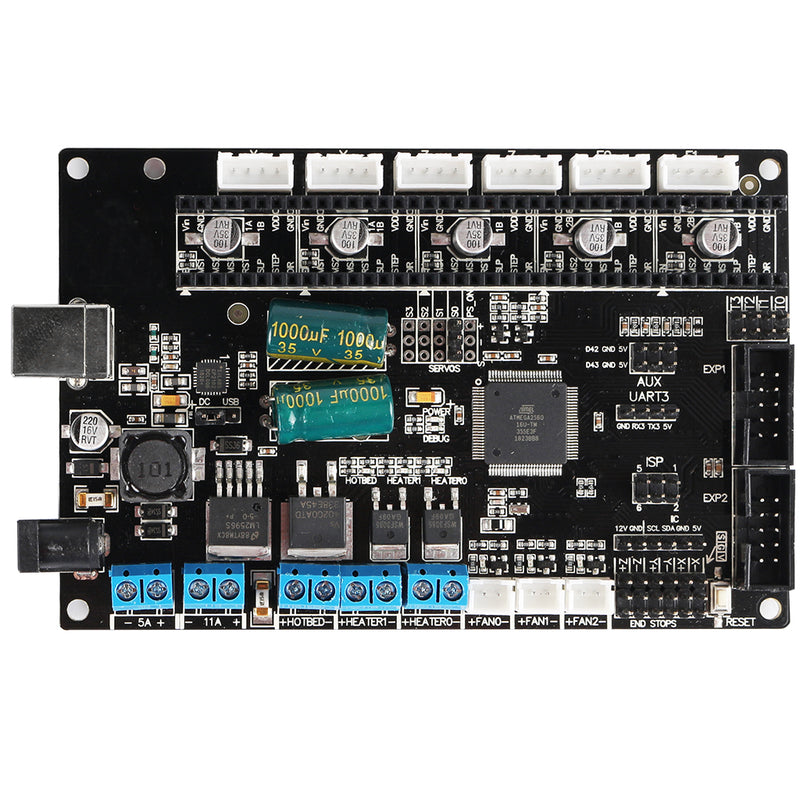

As picture below, there are two choices for motherboard power supply, choose one of them according to you need
Package included:

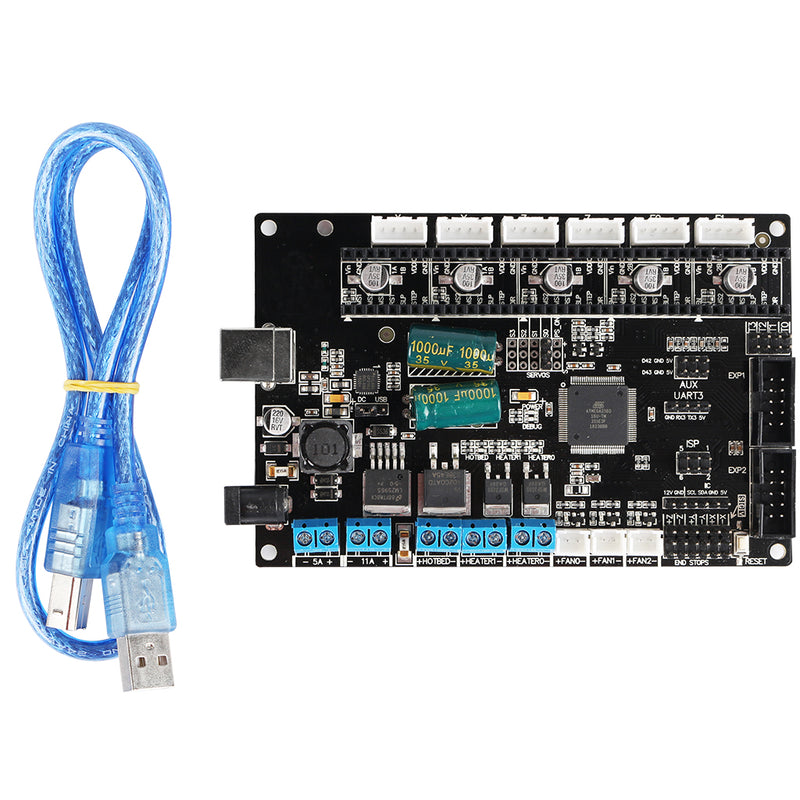

1 x TriGorilla Board 1 x USB Cable
