Parameters:

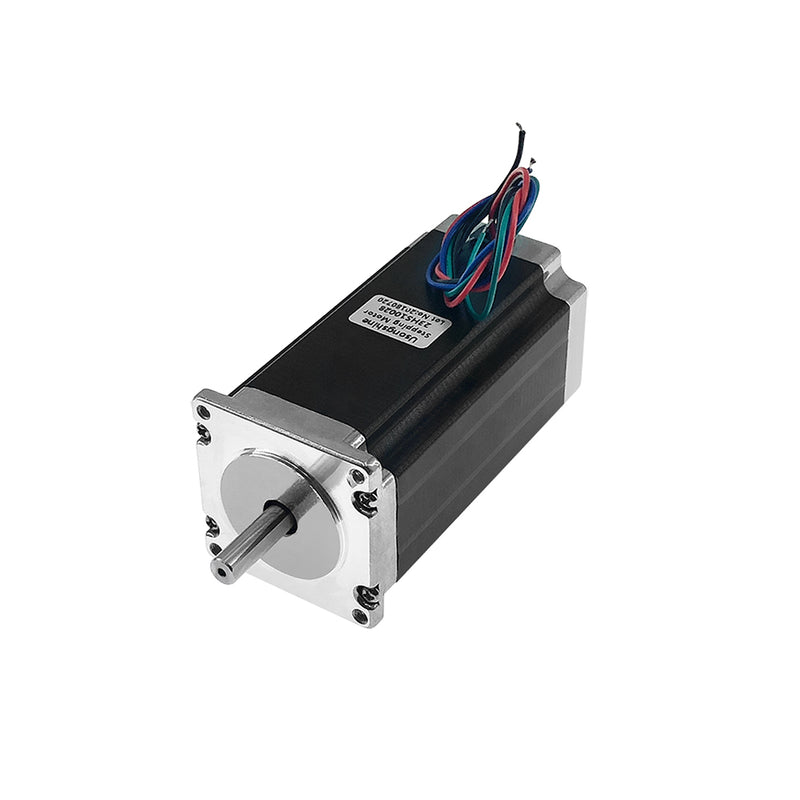

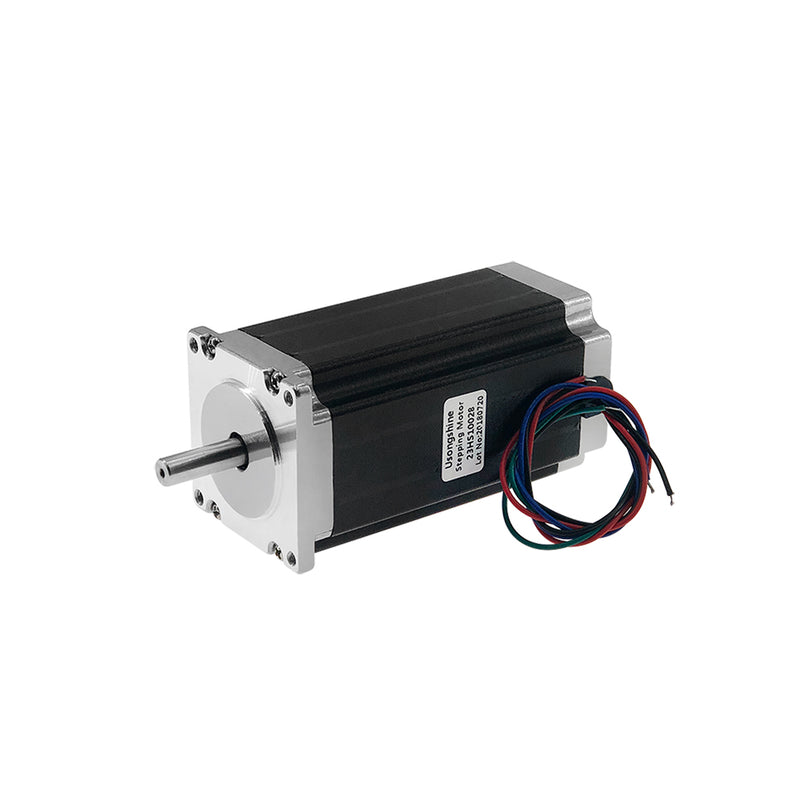

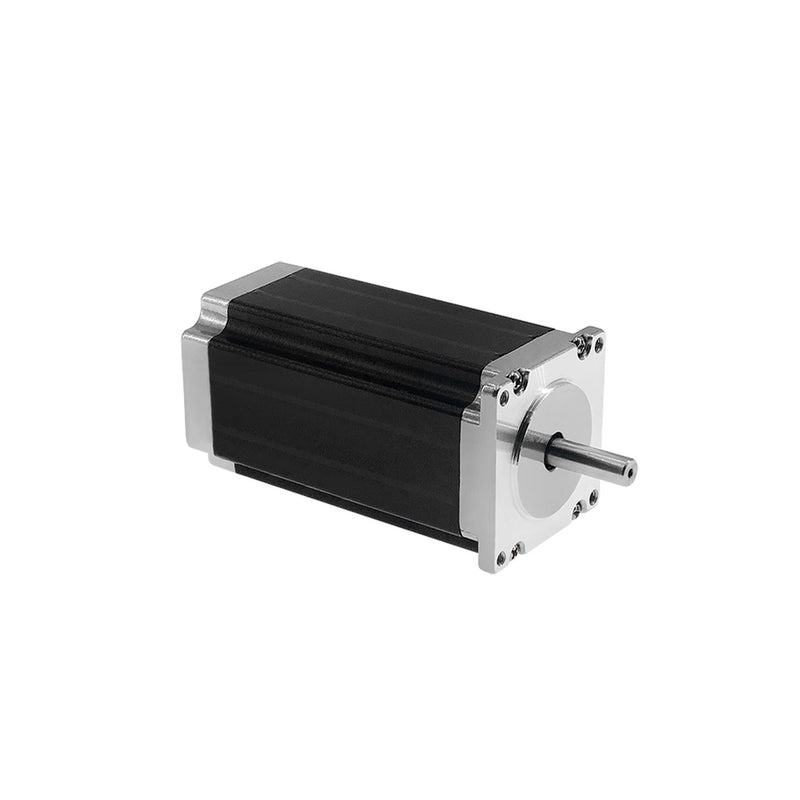

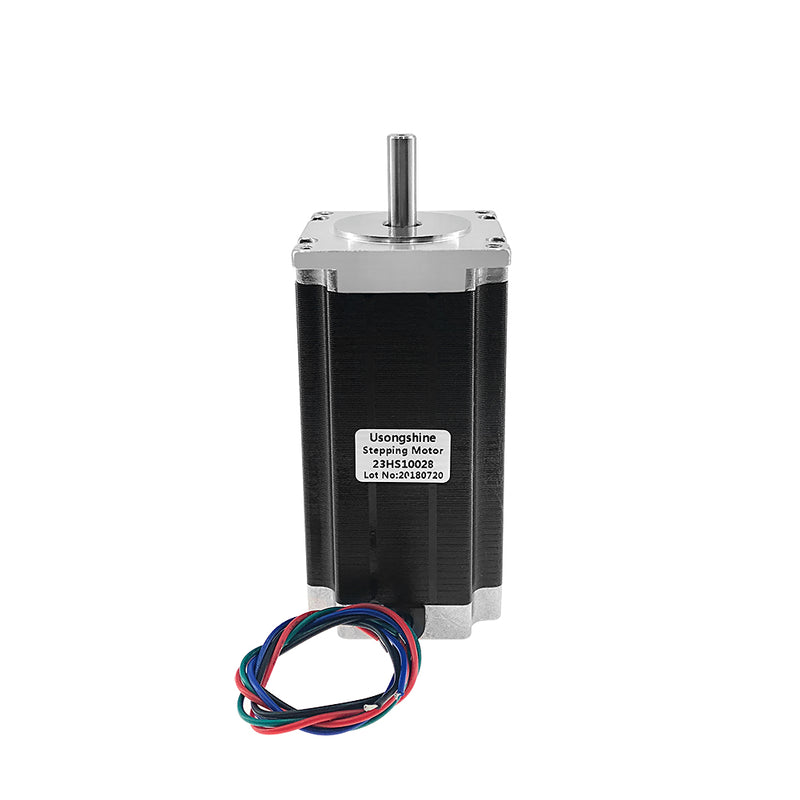

Type: 23HS10028-2.8AStep angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------—20deg ~+50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength--------500VAC for one minute
8mm diameter D shaft
| Model |
Step Angle |
Motor Length |
Rated voltage |
Rated Current |
Phase Resistance |
Phase
Inductance
|
Holding Torque |
Moment of inertia |
Lead Wire |
| (deg) |
(mm) |
(V) |
(A) |
(Ohm) |
(mH) |
(Kg.cm) |
(g.cm2) |
(No) |
| 23HS10028 |
1.8 |
115 |
5.88 |
2.8 |
2.1 |
10 |
30 |
650 |
4 |
Package Included:1 x motor
