Specification:

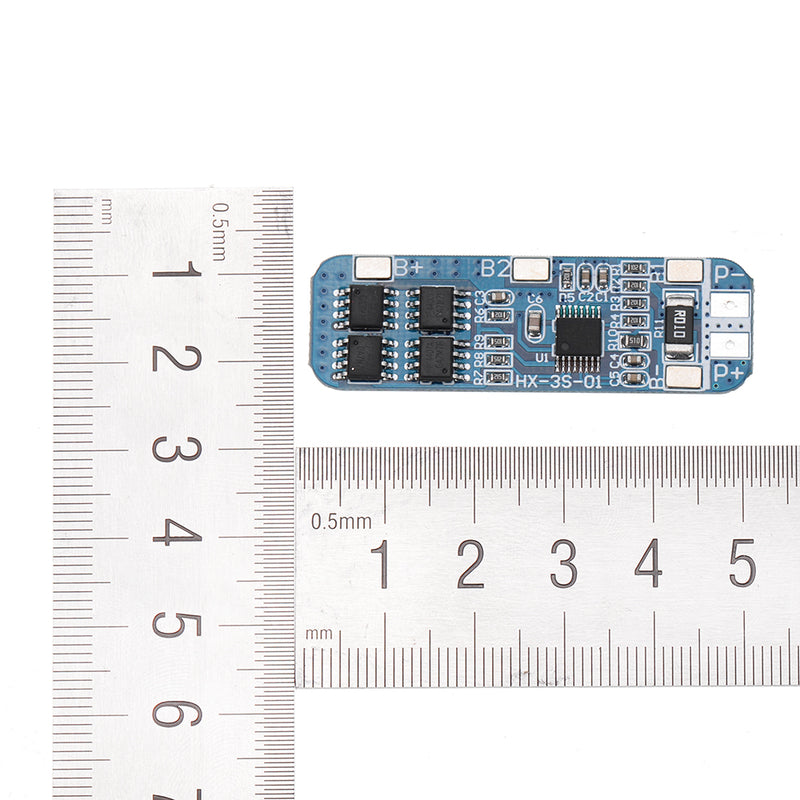

Size: approx.50x16x1mm
Maximum discharge current: 10A
Overcharge detection voltage: 4.25-4.35V±0.05V
Over-discharge detection voltage: 2.3-3.0V±0.05V
Maximum working current: 5A-8A
Transient current: 9A-10A
Operating temperature: -40~50℃
Storage temperature: -40~80℃
Quiescent current:<6uA
Internal resistance:< 60mΩ
Features:
Short circuit protection.
Overcharge protection.
Over-discharge protection.
Overcurrent protection.
Can be applied to various 3.7V lithium core.
Compact size and lightweight.
Fine workmanship and durable.
Ensure the security of battery pack.
Suitable for:
10.8V (Rated voltage of polymer battery)
11.1V (18650 or 3.7V lithium battery rated voltage)
12.6V (Lithium battery full charge voltage)
Package Included:

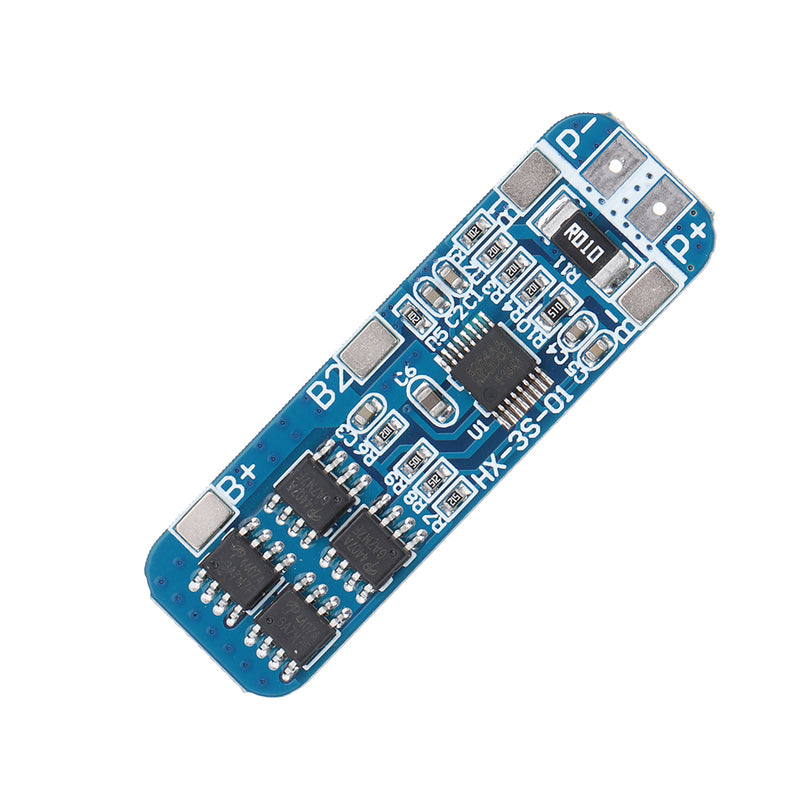

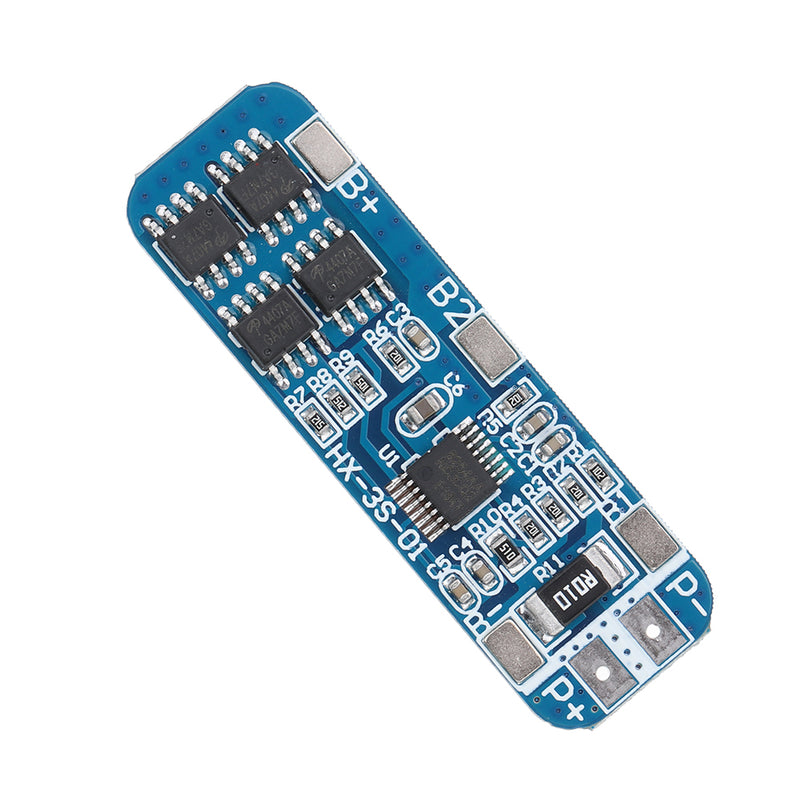

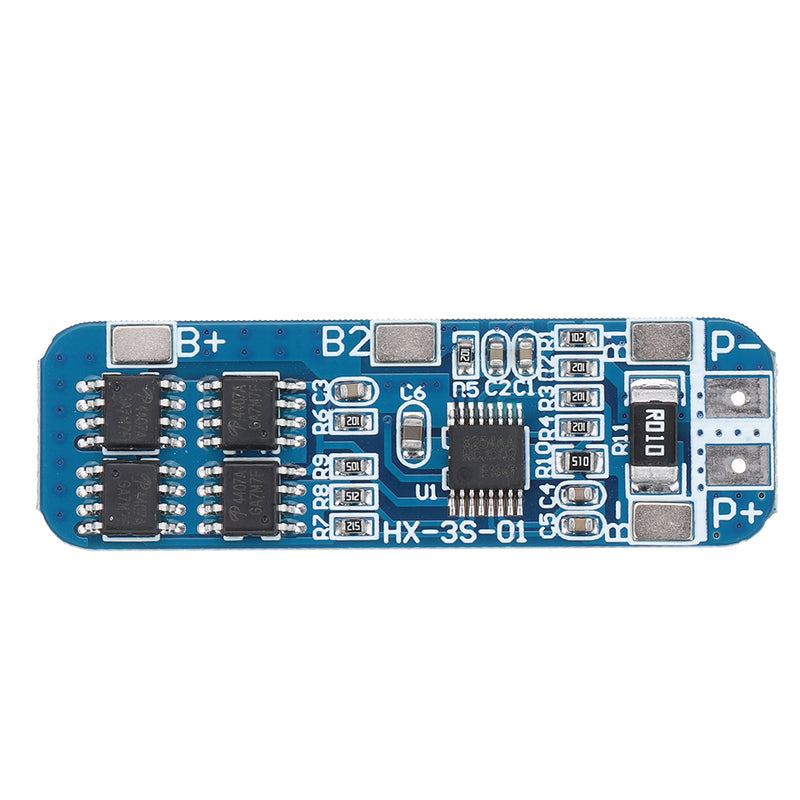

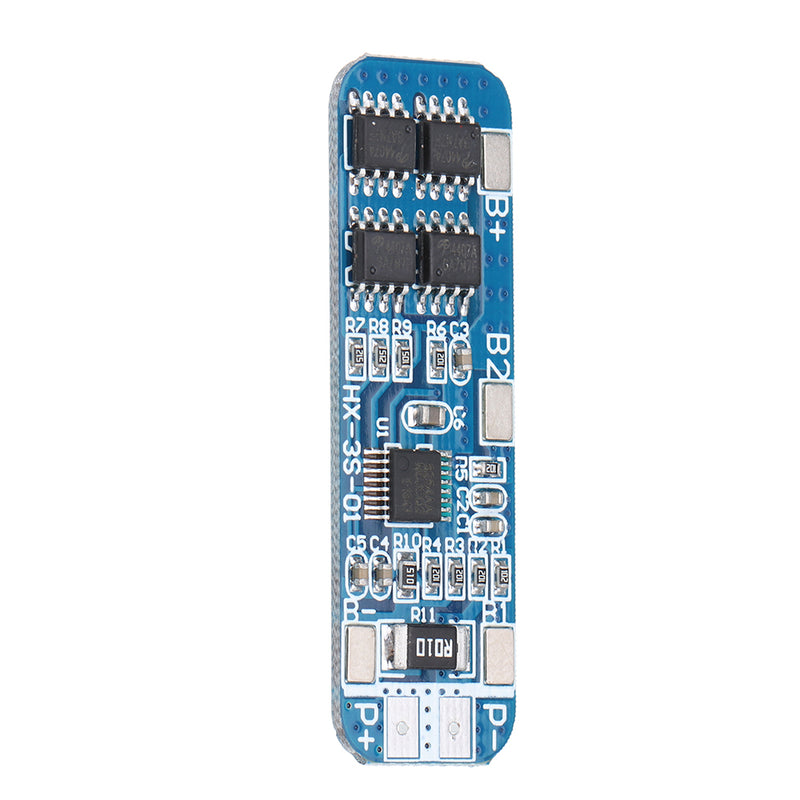

10 x 3S 12V 18650 10A BMS Charger Li-ion Lithium Battery Protection Board
