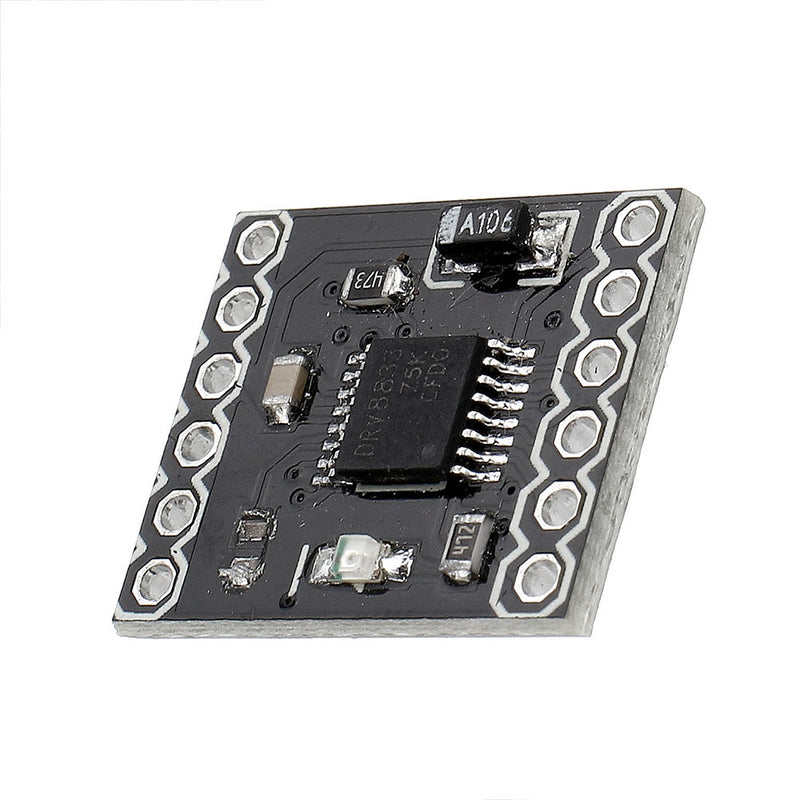

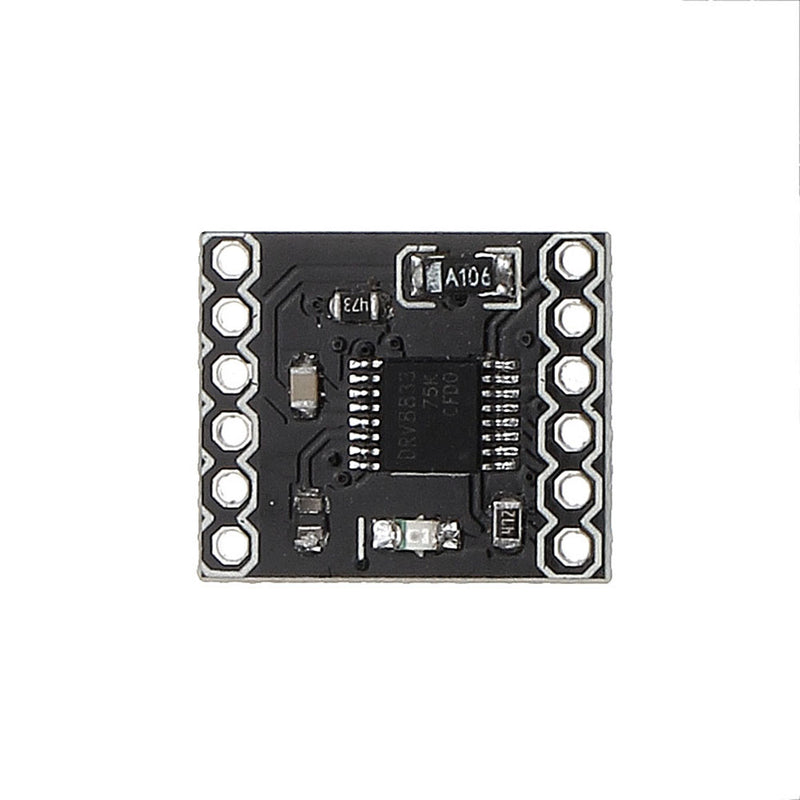

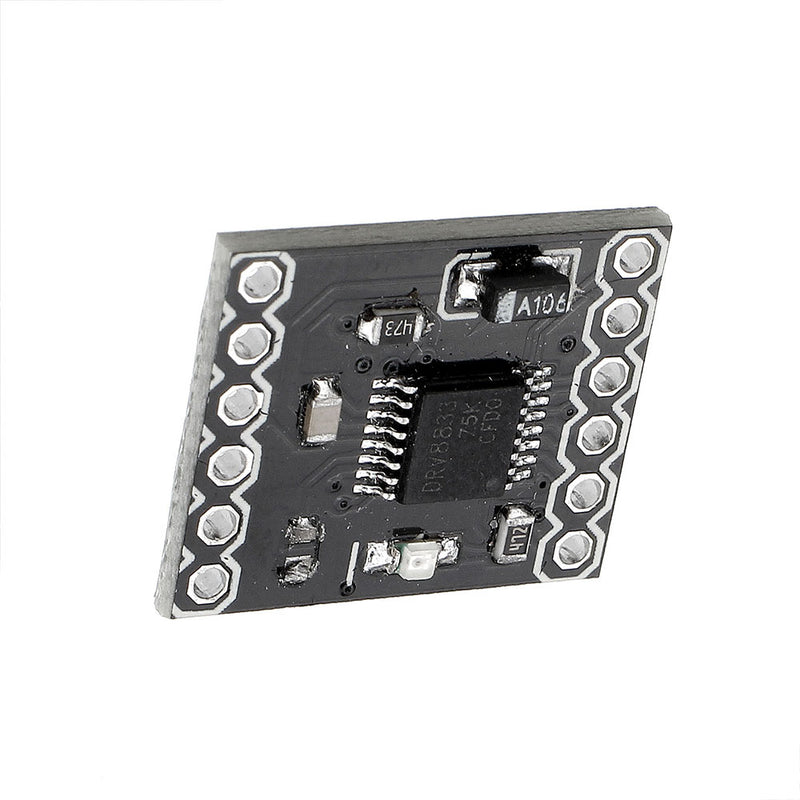

Specicications:
Input voltage: 3 - 10V
Size: 18.5*16mm
Single H bridge output current: 1.5A, can drive 2 DC geared motors.
Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode.
Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors.
Instructions for Use:
ULT low level is sleep mode (need to disconnect the J2 short solder joint behind the module)

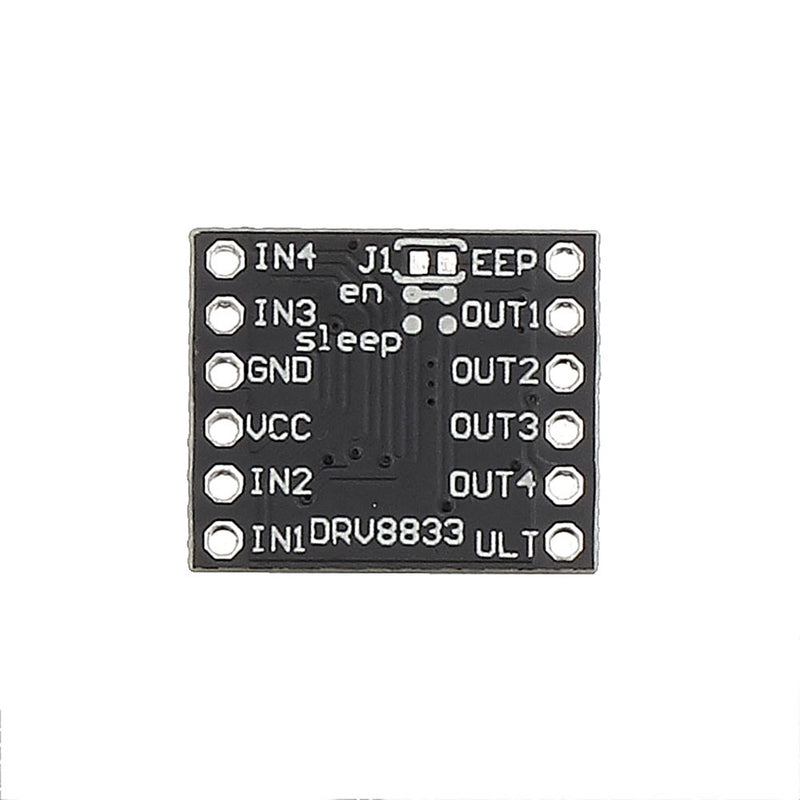

OUT1, 0UT2 is a 1-way H-bridge, and the corresponding control is IN1, IN2.
OUT3, 0UT4 is the second H-bridge, and the corresponding control is IN3, IN4.
EEP is the protection output and is not used by default.
VCC is a voltage input of 3 to 10V.
GND ground

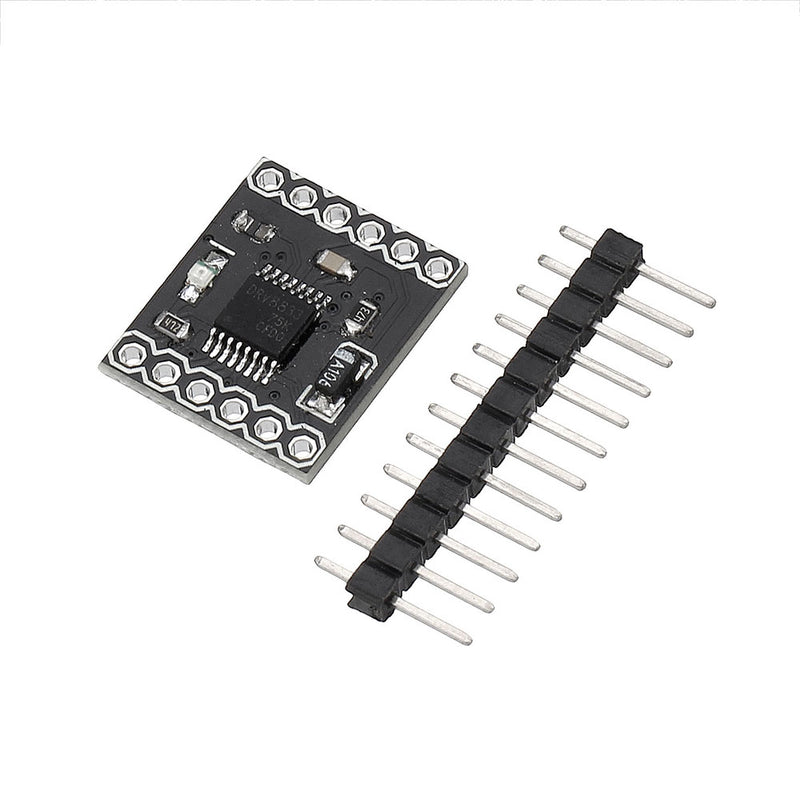

Package Included:
10 x DRV8833 2 Channel DC Motor Driver Module
