Feature:
Working voltage: DC5V-36V
Trigger signal source: digital high level (DC3.3V-20V), can be connected to the microcontroller IO port, PLC interface, DC power supply, etc., can connect PWM signal, support signal frequency 0-20khz
Output: DC5V-36V, continuous current at room temperature 15A, power 400W, assisted cooling conditions, the maximum current up to 30A.
Applications: Output can control high power equipment, motors, light bulbs, LED lights, DC motors, mini pumps, solenoid valves, etc., you can enter the PWM, control the motor speed, lamp brightness and so on.
Operating temperature: -40 to 85 ° C
Size: 3.4 x 1.7 x 1.2cm
Package includes:

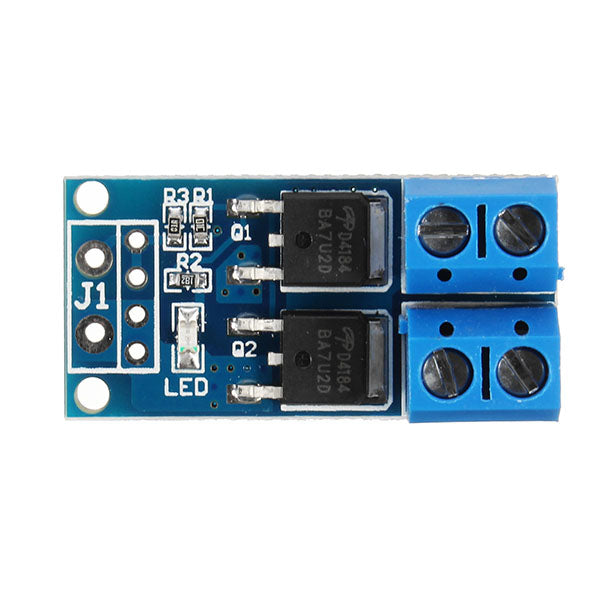

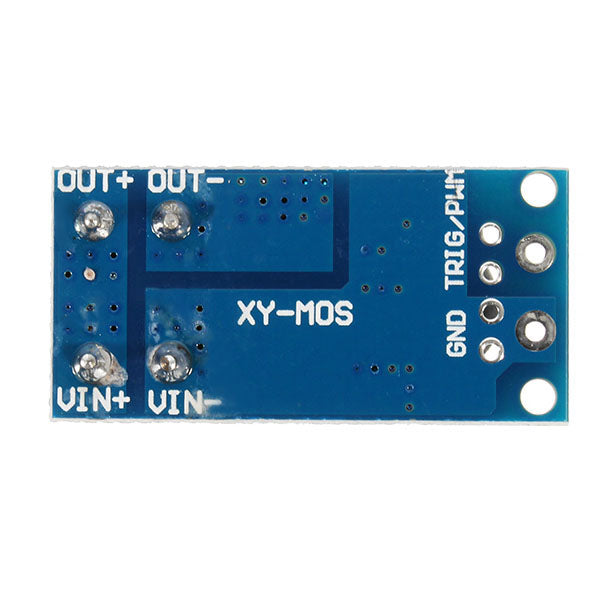

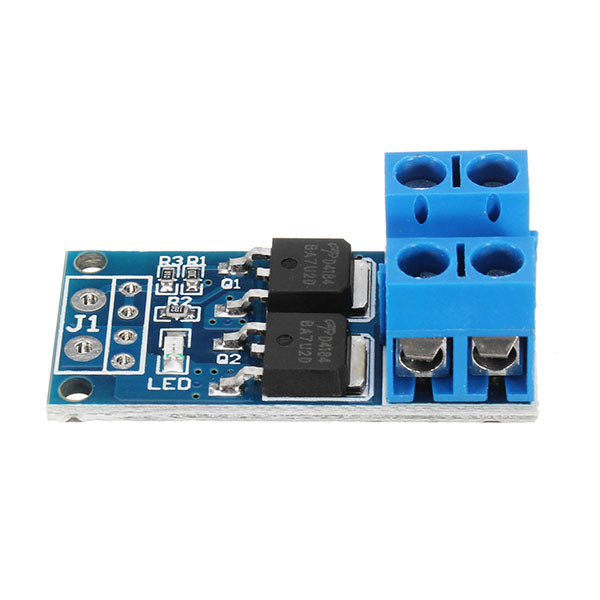

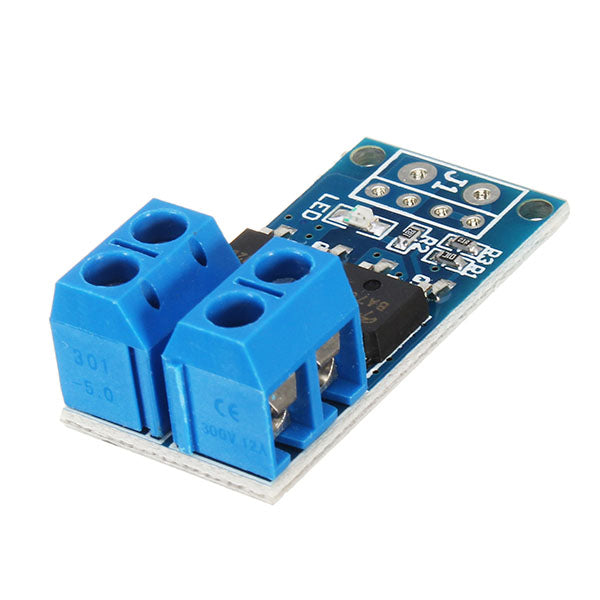

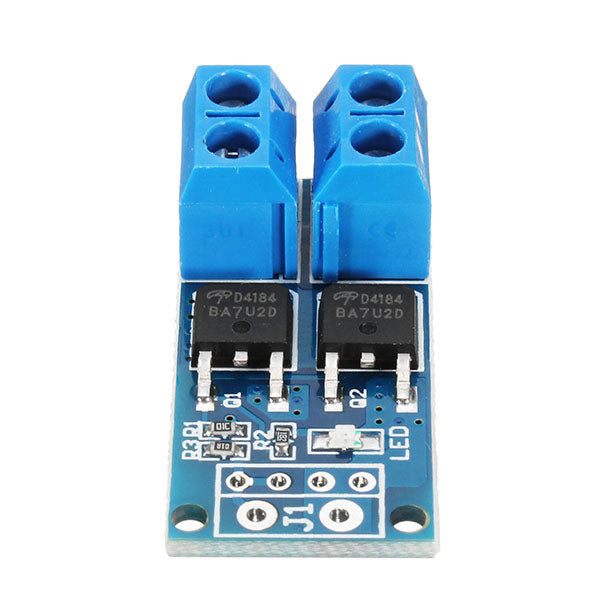

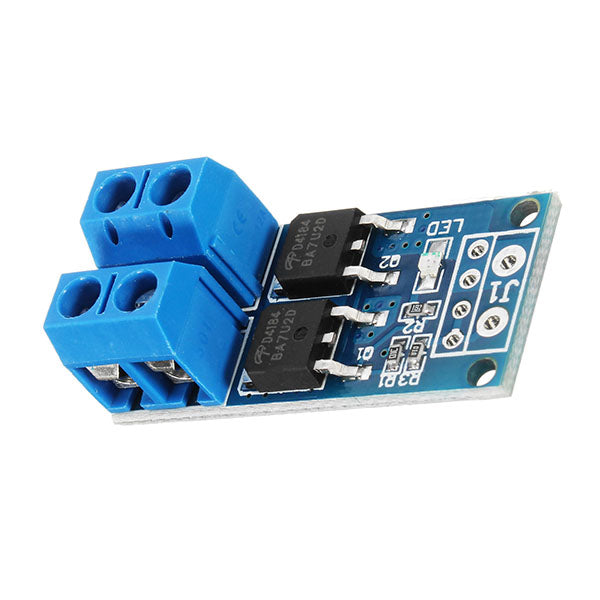

10 x MOS Trigger Switch Driver Module
