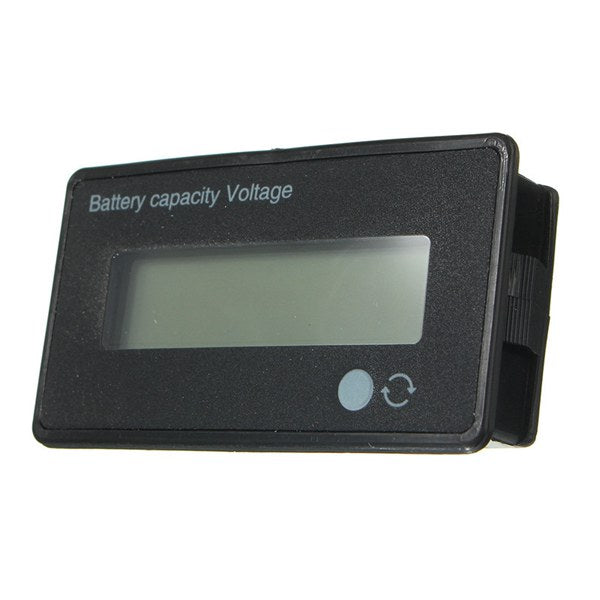

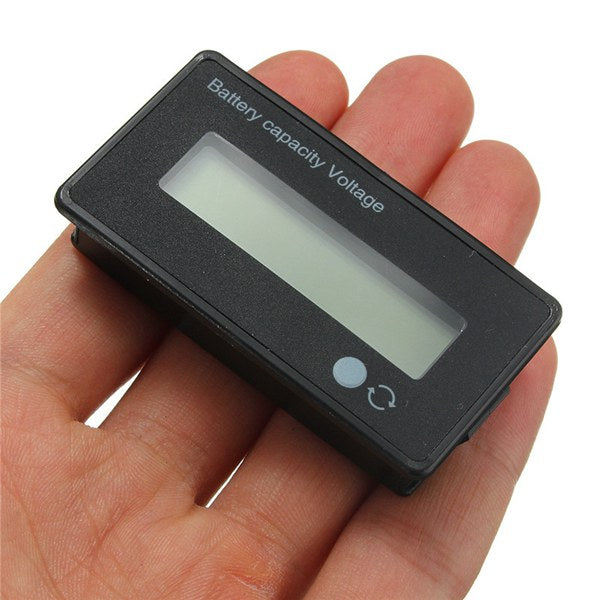

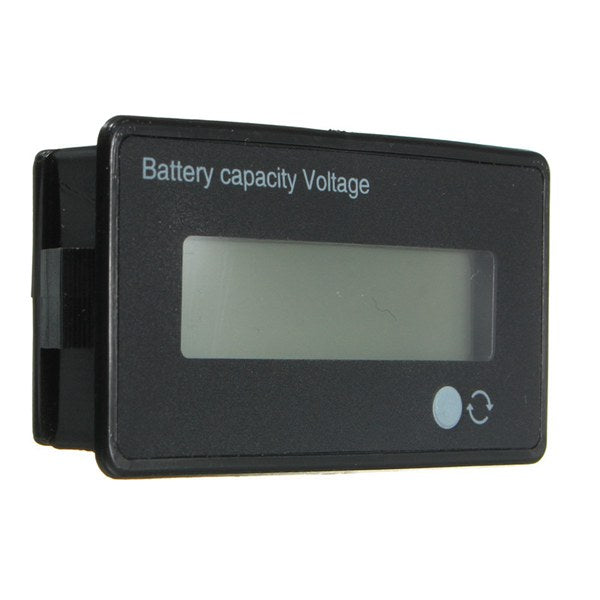

3Pcs 12V/24V/36V/48V 8-70V LCD Acid Lead Lithium Battery Capacity Indicator Digital Voltmeter
Save 0
SKU: U2I-BG-1229113
Share this product
Description
Specifications:

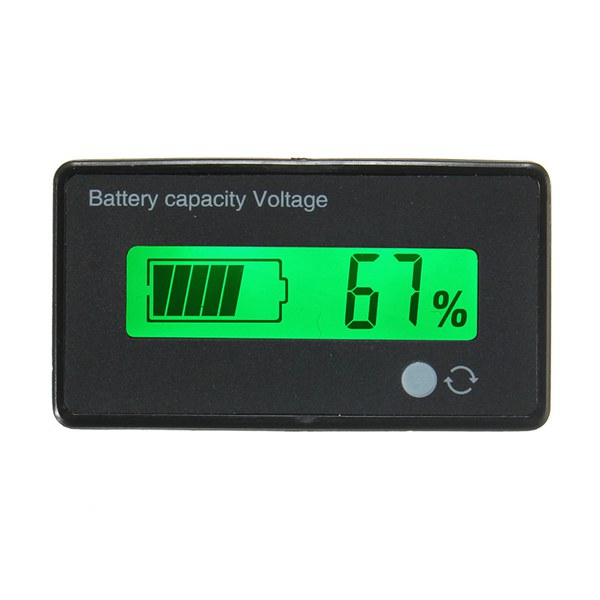

Display: Power, Voltage, Close, the key for cycle. Voltage range: 8-70V, products will display based on the voltage value, voltage fluctuations, power meter will be follow as the voltage fluctuation! (Comes with reverse polarity protection, can be guarantee use effectively ) The product is suitable for lead-acid 12V, 24V, 36V, 48V (can be changes via key, specific please see setup instructions as below) The product is suitable for 3.7V lithium series multi-platform, 3 string, 4 string, 5 string, 6 string, 7 string and 8 string 9 string 10 string 11 string 12 string 13 string 14 string 15 string (can be changes via key, detail information please see as below) Cable Length: 30cm
Instructions:
1. Press and hold switch on the product, power on, automatically select the interface ( please follow as the code corresponds blow) 2. Select your battery type after corresponding, for example 3 series lithium battery, you need to enter the selection screen, press the key point to L3 interface, then off, re-energized, choose success, such as the need to set 12V lead-acid batteries, the key point press to P12V interface, power, re-energized, both choose success 3. Instruments can be used if you Select successful . . Meter shows the power interface, tap switch, switch to voltage interface, click the switch, turn off the meter. cycle shown as the code corresponds
Special Function Setting (requires electric iron, you must power off setting, electric iron must be grounded) A point connection, the backlight will be automatically shut down if delay10 seconds , the voltage fluctuation will automatic wake-up exceeds 0.3V / 0.5 seconds. B point connection, lithium choose 3-4.1V curve (lithium professionals)
Package includes:

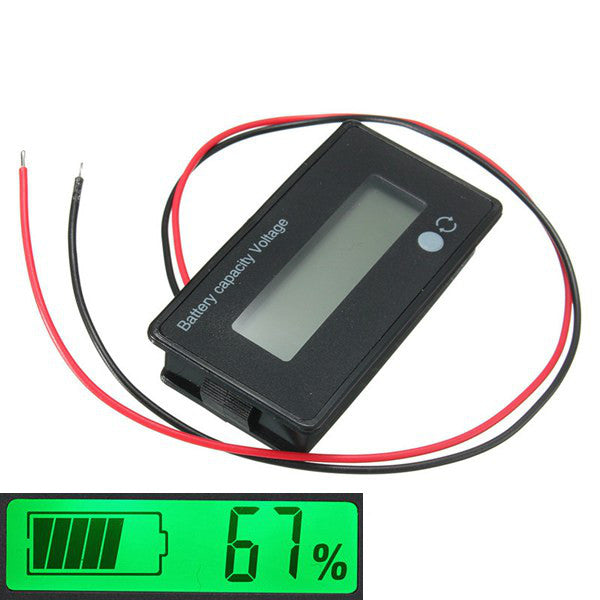

3 x Battery Capacity 3 x Cable
