Specifications:

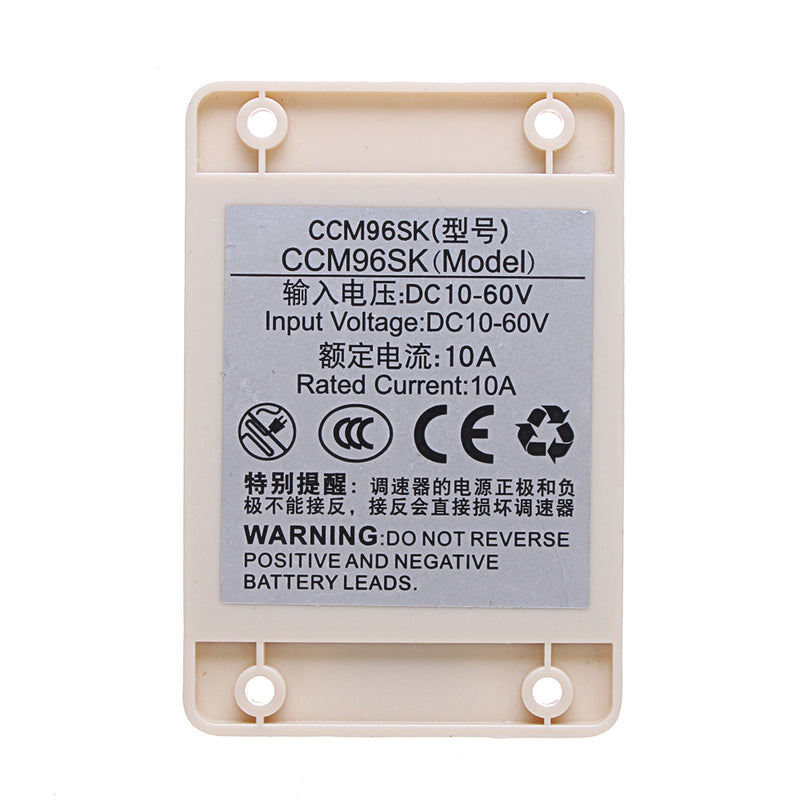

Model: CCM96SK
Potentiometer: resistance value B100K; opening 8mm;
Input voltage: DC10-60V output voltage is about 0-100% of the input voltage
Control power: 12V*10A=120W, 24V*10A=240W.....
Rated current: 10A
Maximum current: 20A
Speed range: 5%-100%

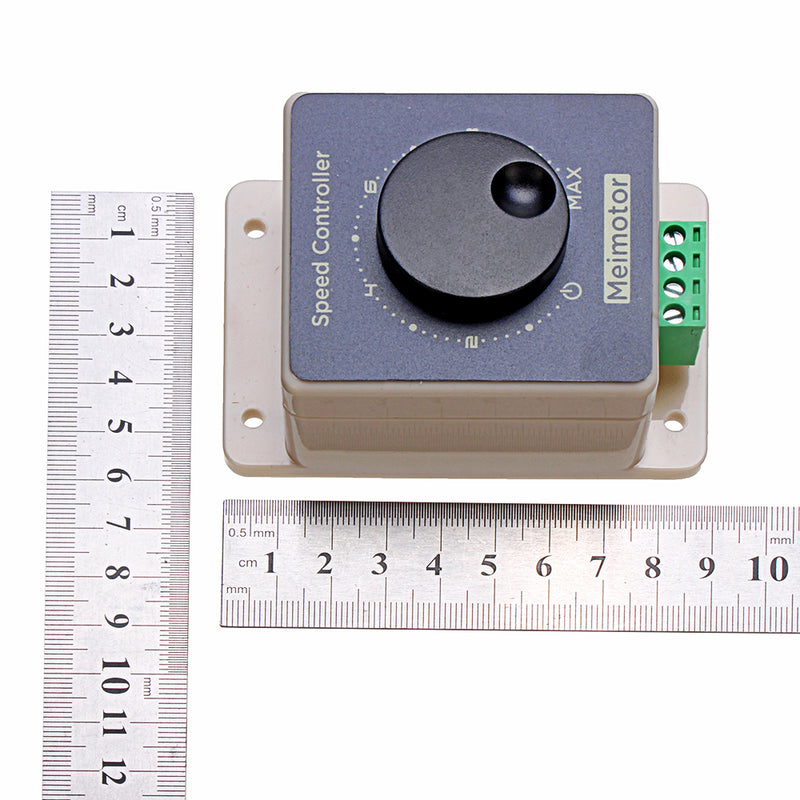

Size: 88mm*59mm*35mm
PWM frequency: 25KHz
Weight: 94g
Precautions and Instructions:
1. The DC motor governor input is DC, and it can't be directly connected to AC (such as: household 220V AC), otherwise it will burn out.
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.

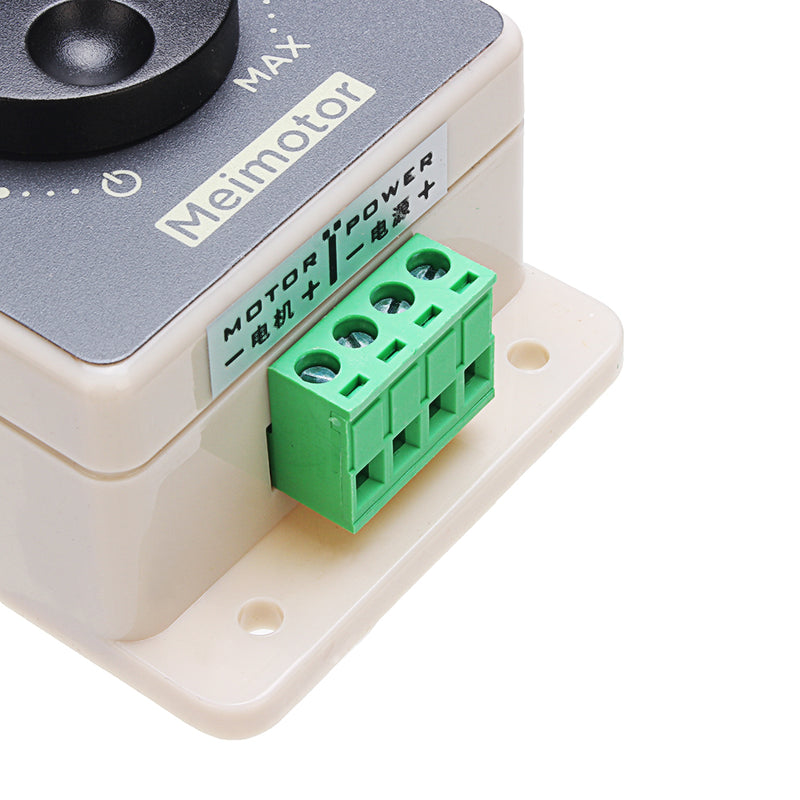

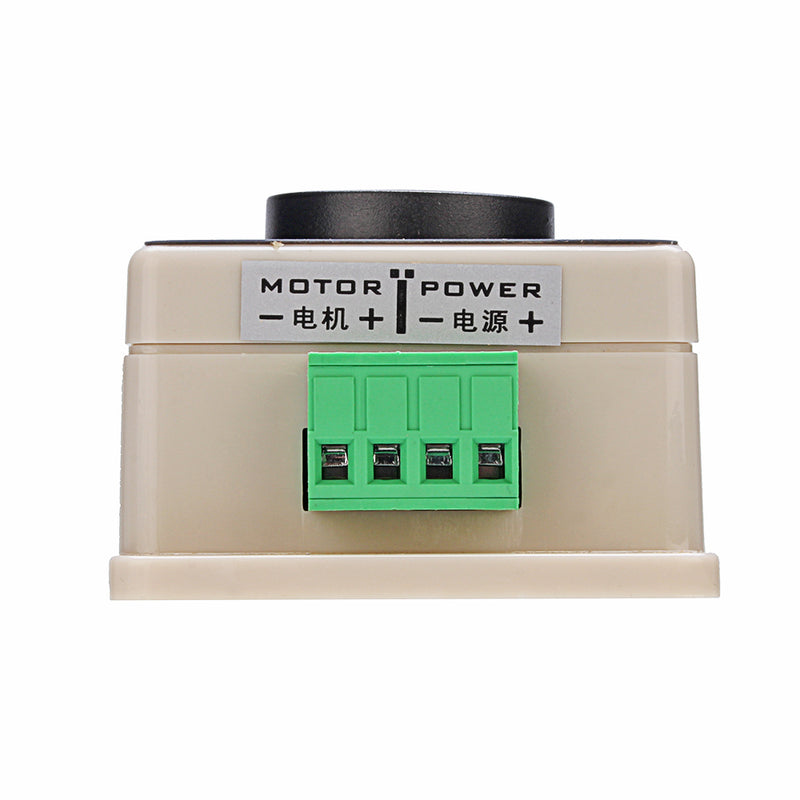

3. The motor can be positive or negative, when the running direction is inconsistent with the expectation. The direction can be changed by the line adjustment sequence.

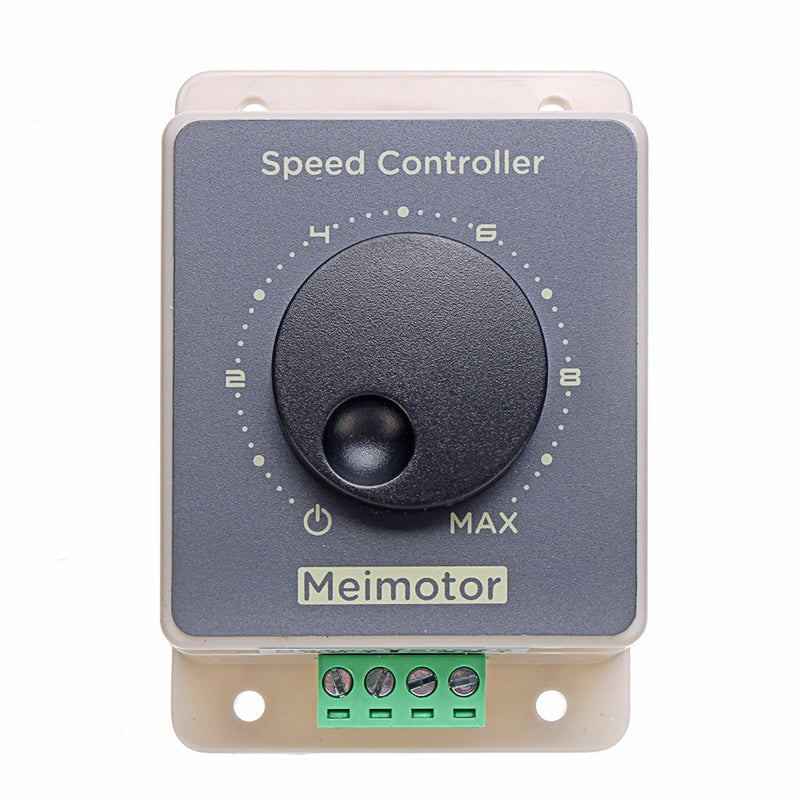

4. The potentiometer knob can change the governor output duty cycle to change the motor speed.
Package Included:

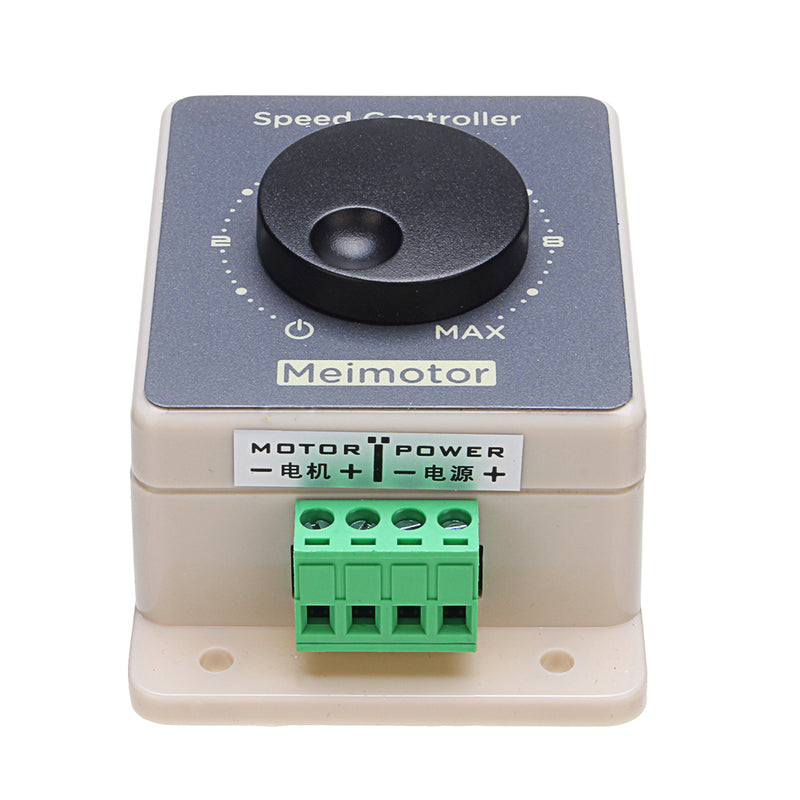

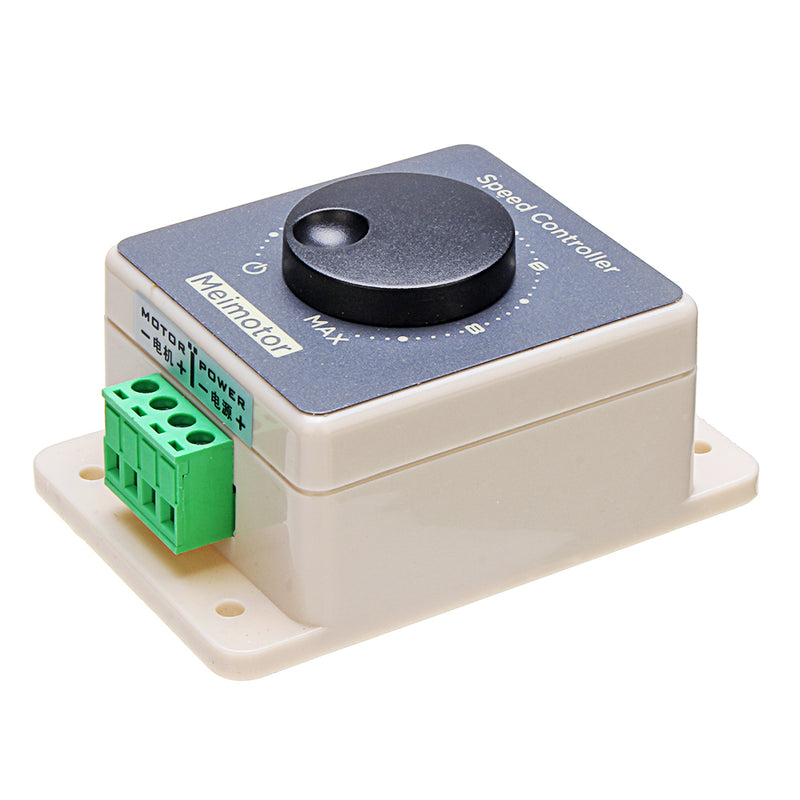

1 x Waterproof PWM DC Motor Speed Governor DC Controller
