Introduction:
Based on the OV5640 camera module, 5 million pixels, image resolution up to 2592x1944.
With auto focus support, you can automatically adjust the focus according to the distance of the object.
Support flash function, no longer worry about the light is too dark, can not shoot the picture.
Parameter:
Image: 5 million
Resolution: 2592x1944
Photosensitive chip: OV5640
High sensitivity, low crosstalk, low noise with 1.4um x 1.4um pixel OmniBSI technology
Supports automatic exposure, auto white balance, automatic elimination of light streaks, automatic black level calibration, and automatic bandpass filters
Support color saturation adjustment, tone adjustment, gamma correction, sharpness and lens calibration
Support for image scaling, panning, and window settings
Support auto focus
Flash support
Camera:
CCD size: 1/4 inch
Aperture (F): 2.8
Focal Length: 3.37mm (adjustable)
Diagonal angle: 67.4 degrees
Output format:
YUV(422/420)/YCbCr422
RGB565/555/444
CCIR656
RAW RGB
Compressed Data
Working voltage: 3.3V
Control interface: SCCB (compatible with I2C)
Data interface: DVP 8 bit
Size: 35.70mm × 23.90mm
Information includes:
Circuit schematic
Sample programs (STM32F4 and STM32F7)
User manual
Package includes:

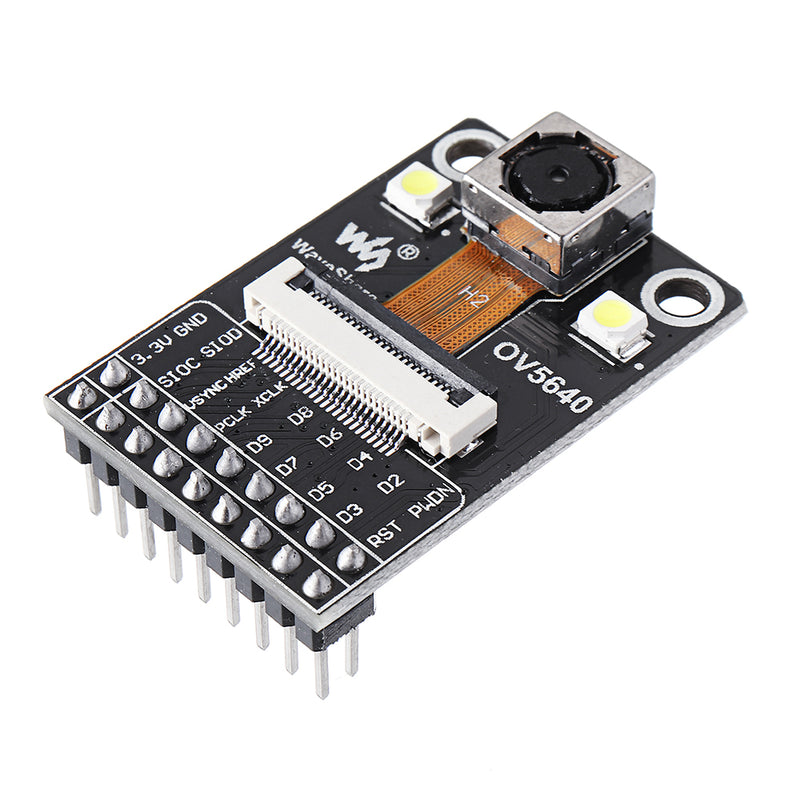

1 x OV5640 Camera Board (C)
