Description:

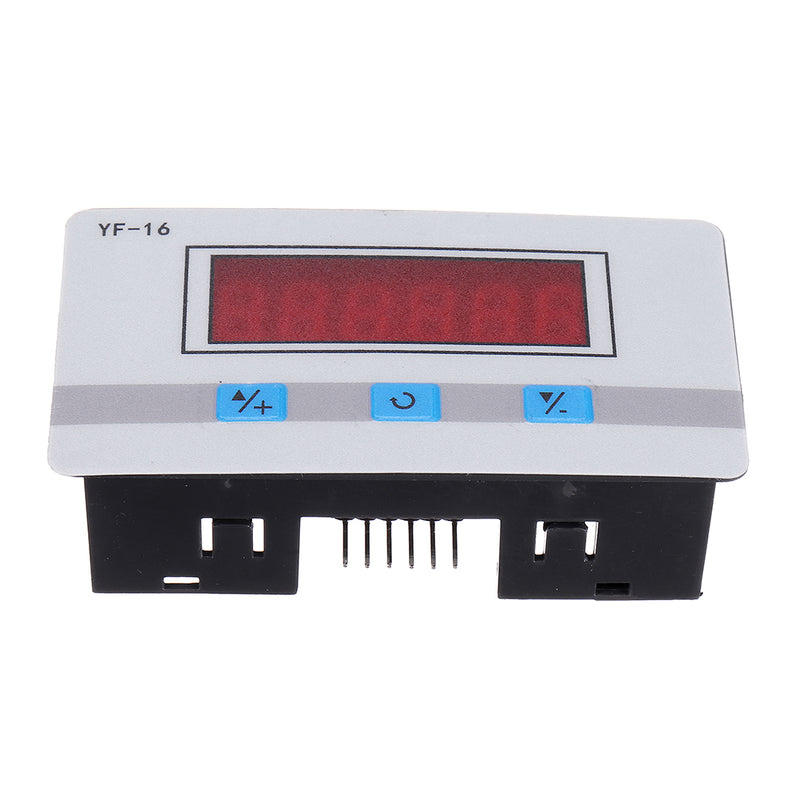

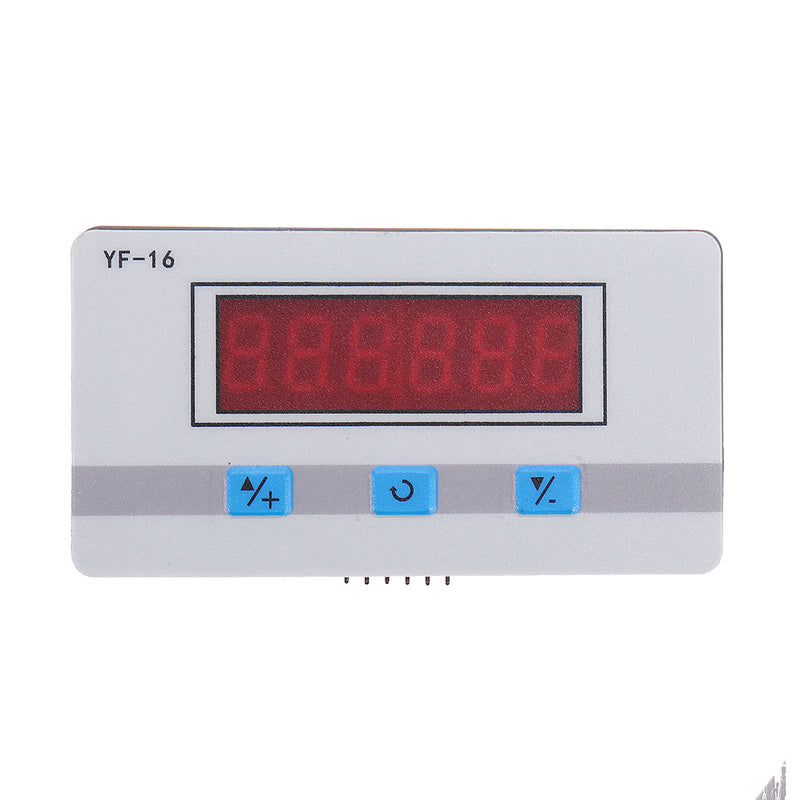

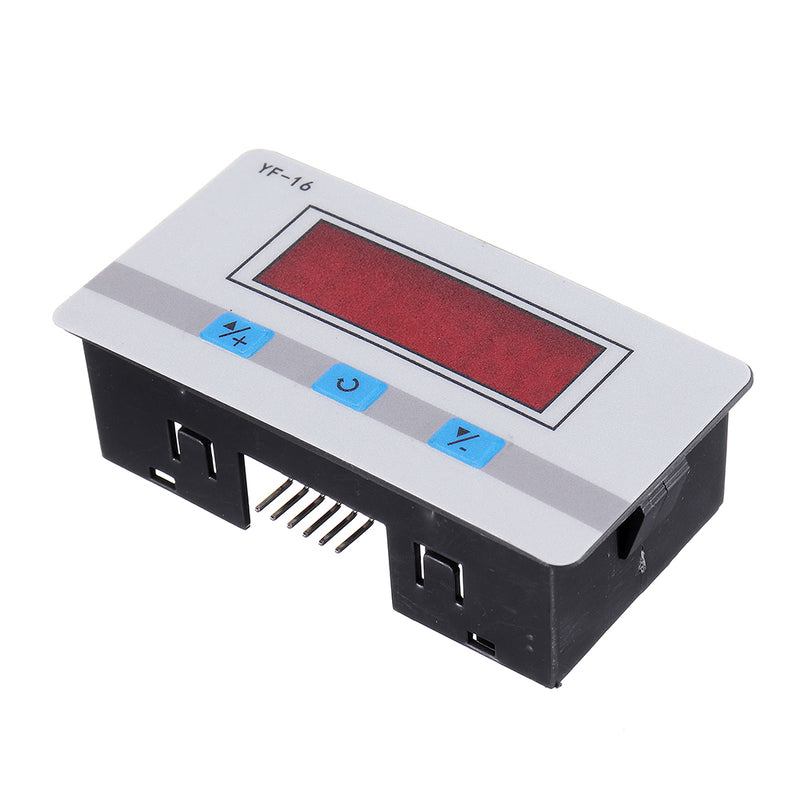

YF-16 is a trigger counter module.It has a digital display.It can count,measure signals and inspect quality.
Features:
- Digital display
- Long lasting
- High/Low level signal trigger
- Large counting range
- Relay output
Specifications:
Model:YF-16
Work Voltage:5V-24V DC/AC (Optional)
Counting Range:1~999999 times
Work Temperature:-25℃~85℃
Work Humidity:5%~95%RH
Size:79.5 x 42 x 27mm
Wiring Port Description:
NPN:NPN signal input(Negative voltage trigger)
PNP:PNP signal input(Positive voltage trigger)

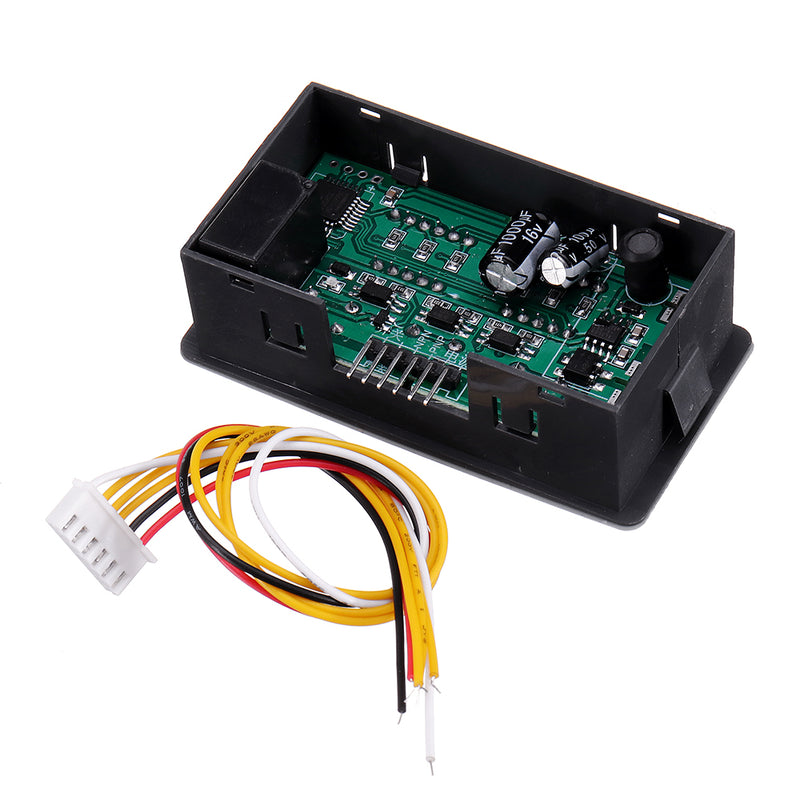

Package Included:
1 x YF-16 Trigger Frequency Counter Module

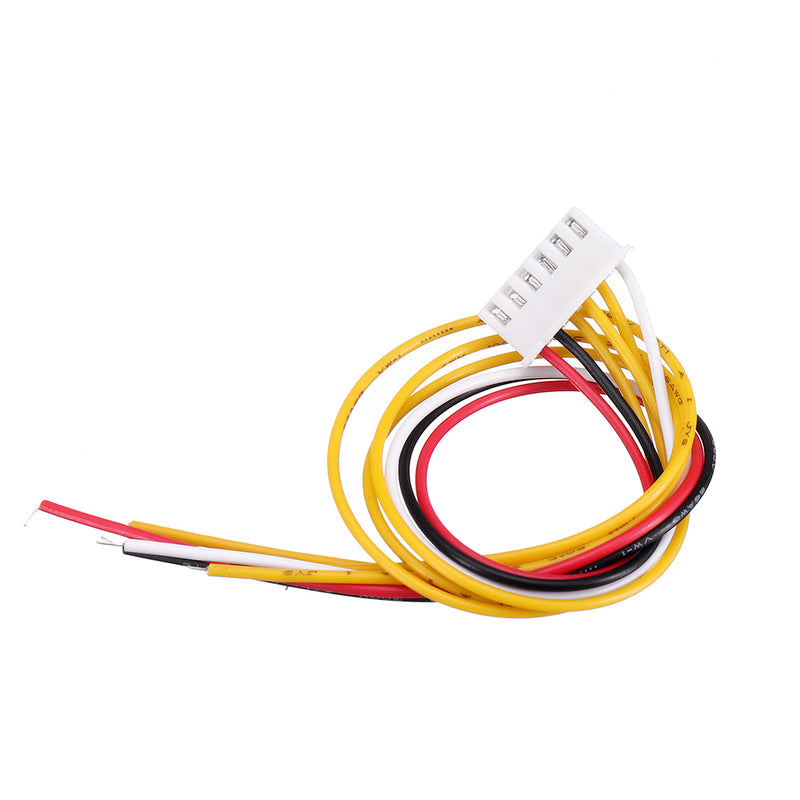

1 x XH2.54-2P 20cm Cable
