Specifications:
- Input voltage: DC / AC 7V ~ 27V
- Output power: can control DC load within 10A
- Time range: 0.01 seconds to 999 minutes adjustable at any time
- Usage: It can control 2 way solenoid valves, pumps, motors, lights, etc.

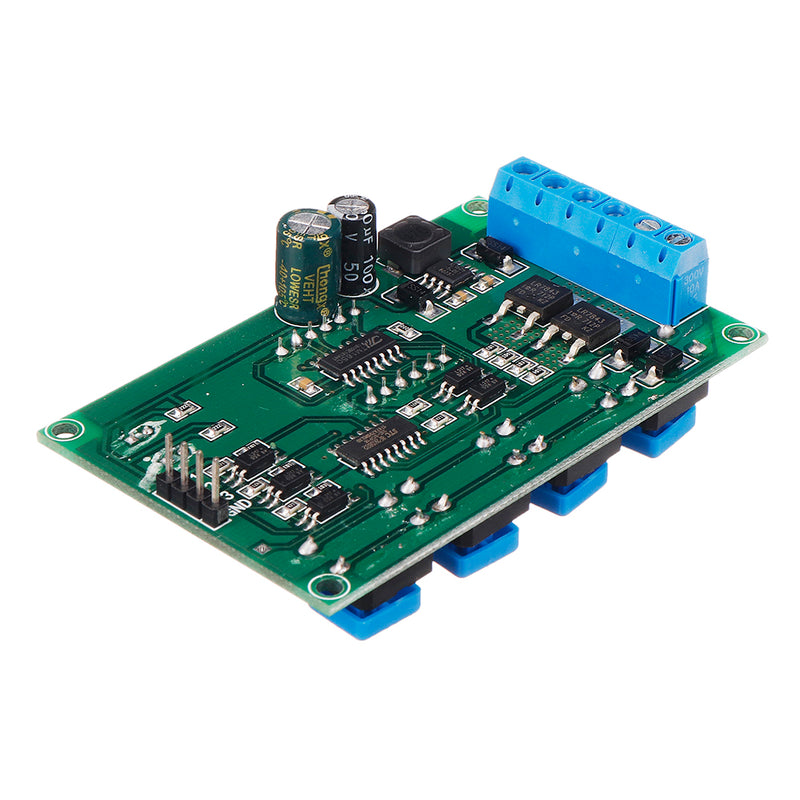

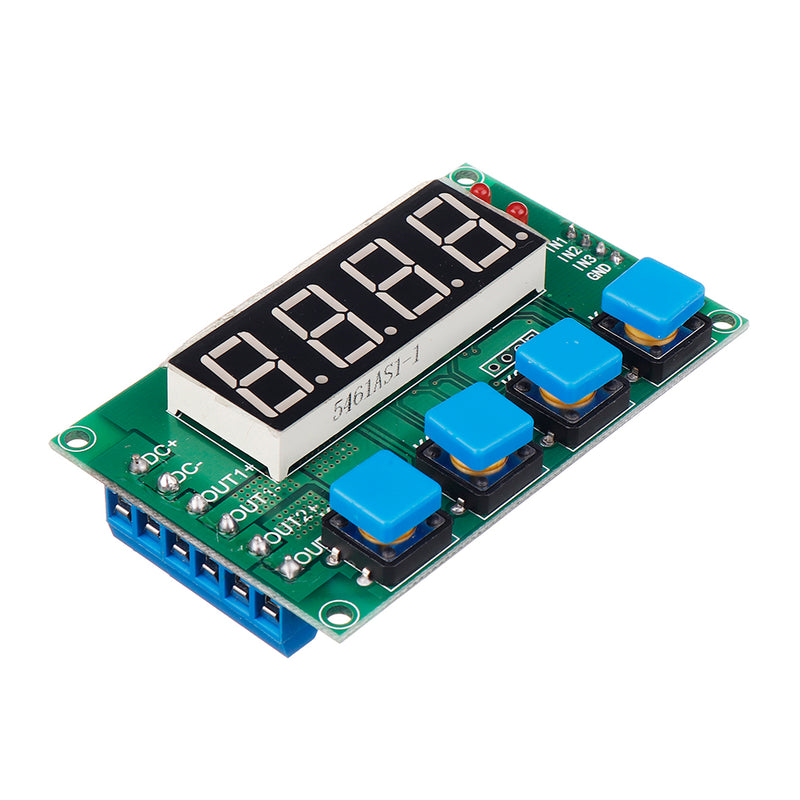

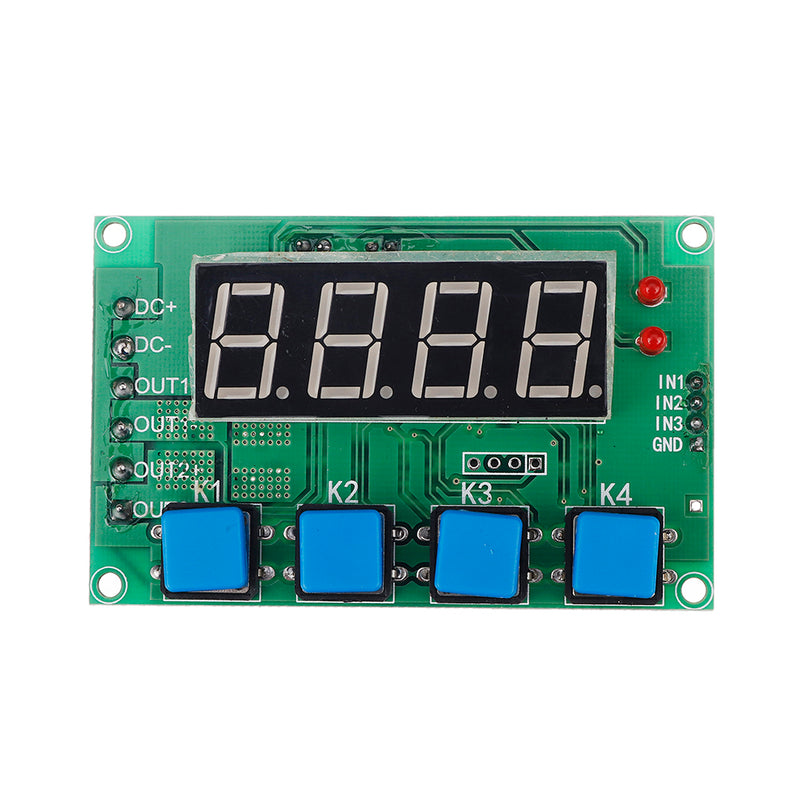

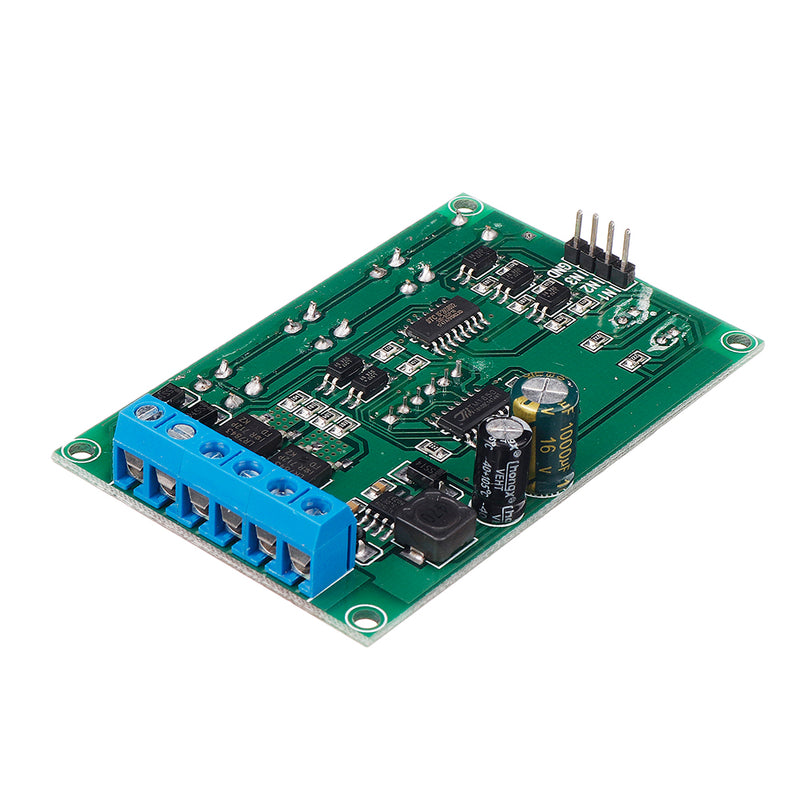

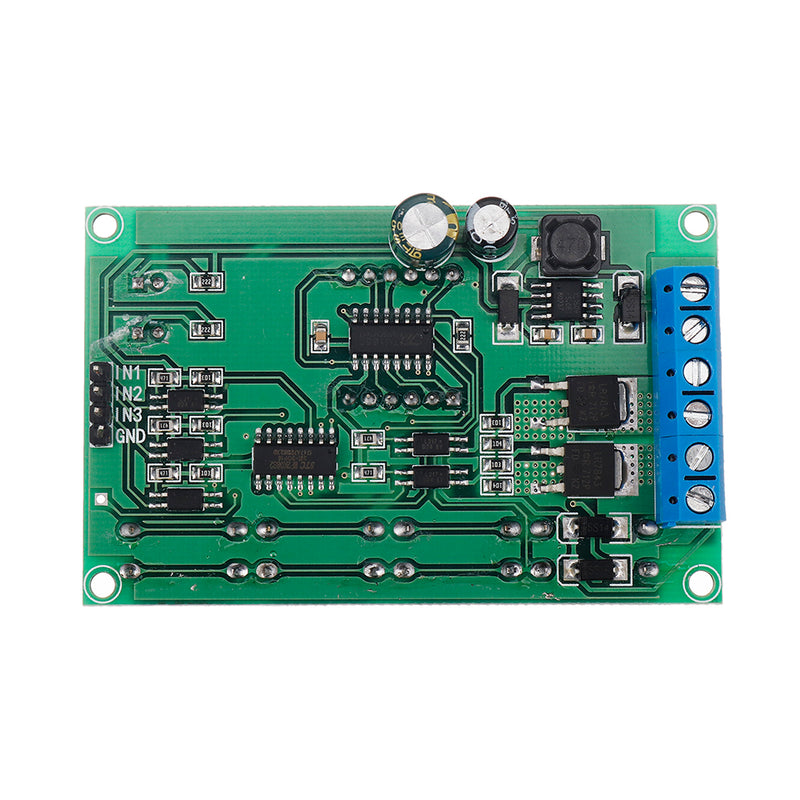

Wiring Port Description:
1, DC+: Input power positive 7V~27V
2, DC-: input power negative
3. IN1: signal input terminal 1 (negative trigger)
4, IN2: signal input 2 (negative trigger)
5, IN3: signal input 3 (negative trigger)
6, O1+: output 1 positive (directly connected to the load, such as solenoid valve)
7, O1-: output 1 negative
8, O2+: output 2 positive (directly connected to the load, such as solenoid valve)
9, O2-: output 2 negative
Function List:
Function can be arbitrarily set to buy back, there are instructions provided; power failure can memorize any parameters set
P--1: Give signal 1, output 1 will stop automatically when it is working until A time; give signal 2, output 2 will stop automatically when it is closed to B; signal 3 is emergency stop reset signal
P--2: Give signal 1, output 1 will stop automatically when it reaches the A time; output 2 will stop automatically after the delay of B time from the signal to the C time (this function time unit needs to be consistent)
P--3: After power-on, output 1 works until A time release, waits for C time, output 2 works until B time release, waits for C time; output 1, 2 turns work infinite loop
P--4: Give signal 1, output 1 work; give signal 2, output 1 stops and starts timing until A time output 2 works; give signal 3, output 2 stops and starts timing to B time output 1 work; infinite loop
P--5: Give signal 1 and output 1 to work; give signal 2, output 1 stops and starts timing until A time output 2 works; give signal 3, output 2 stops; give signal 1 again; execute again
P-6: give signal 1, output 1 work; give signal 2, output 1 stop; then give signal 1, output 2 work; give signal 3, output 2 stop;

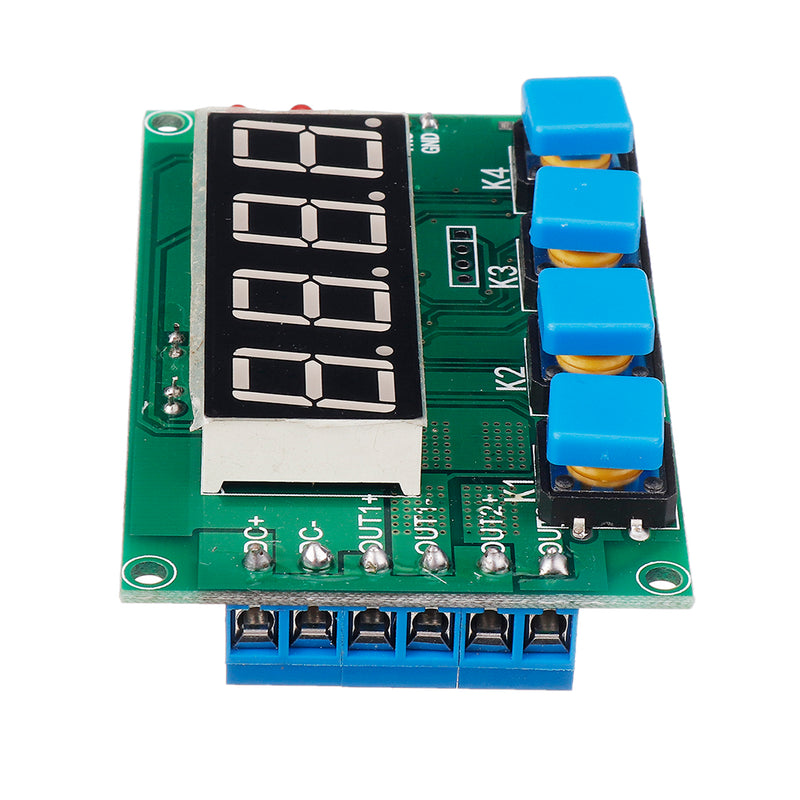

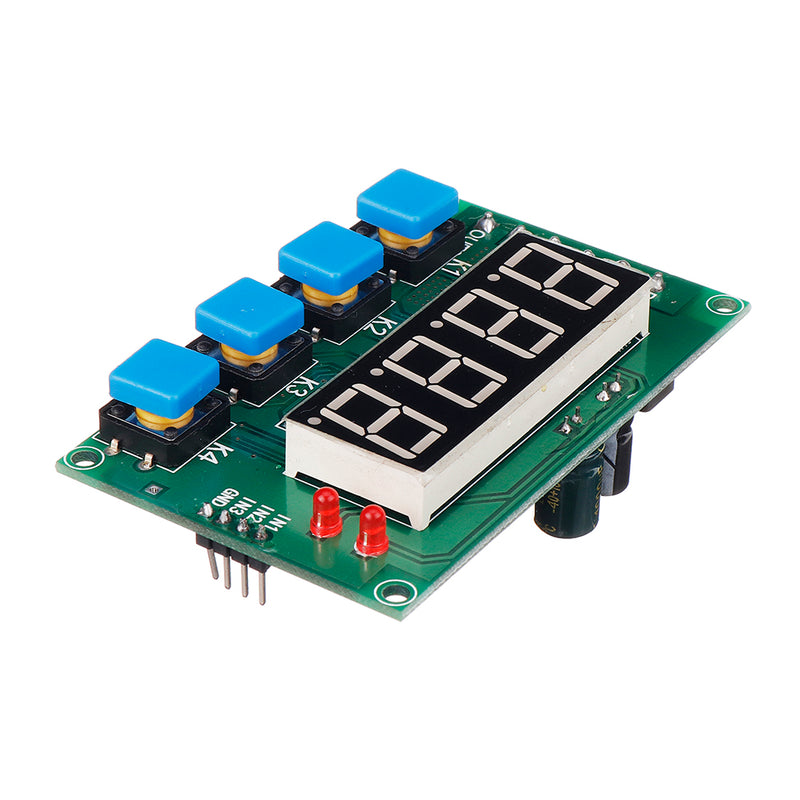

Button Setting Instructions:
Power on display ''--'' means to enter standby mode;
Press the first K1
Screen display: P-1: K2 and K3 adjustment mode
Press the second time K1, the screen displays: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit)
Pressing the third K1, the screen displays: B001: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Press the fourth K1, the screen displays: C001: K2 and K3 adjust the third time C, K4 adjust the decimal point (time unit)
Pressing K1 for the fifth time, ''--'' is displayed to enter the standby state;
For example: the setting mode needs to be: P--2; the time is: A010 B005 C006;
Indicates the second mode of operation; after signal 1 is output; output 1 is turned off after 10 seconds; output 2 is delayed by 5 seconds, then 1 second is automatically turned off.
Decimal Time Unit Description:
X.XX decimal point in hundred, timing range: 0.01 seconds to 9.99 seconds
XX.X decimal point in ten, timing range: 0.1 seconds to 99.9 seconds
XXX has no decimal point, timing range: 1 second ~ 999 seconds
XXX. The decimal point is in one place, the time range is from 1 minute to 999 minutes.
Package Included:

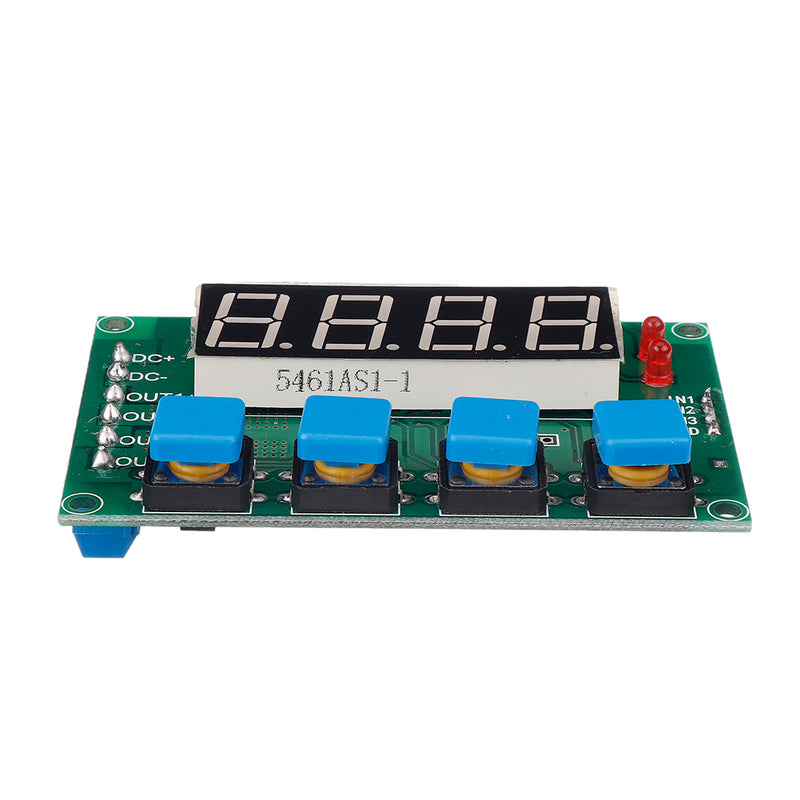

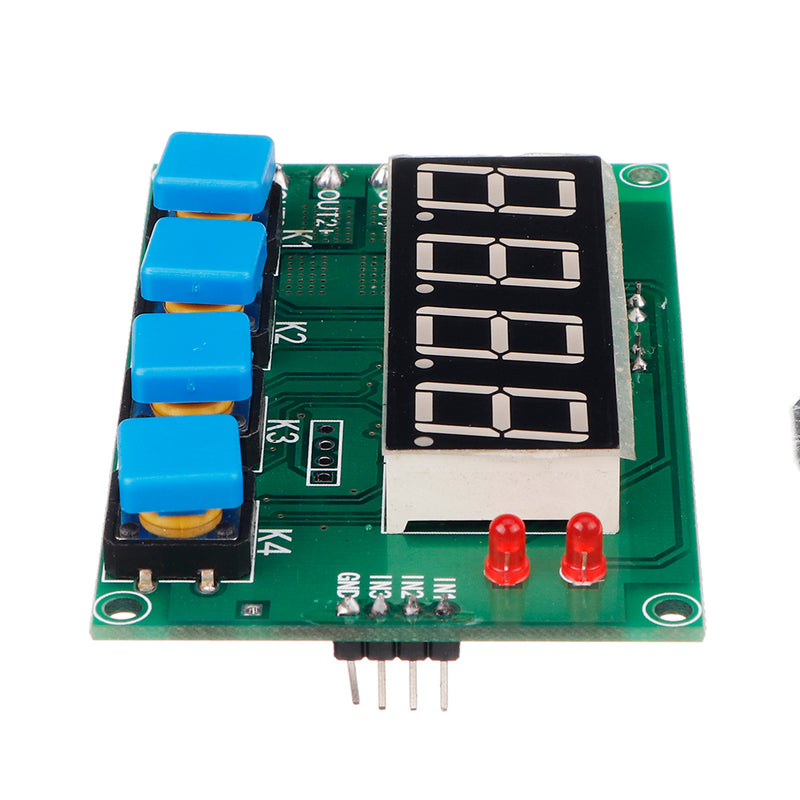

1 x YYD-6 12V 24V DC Trigger Delay On and Off Cycle Timing Control Switch
