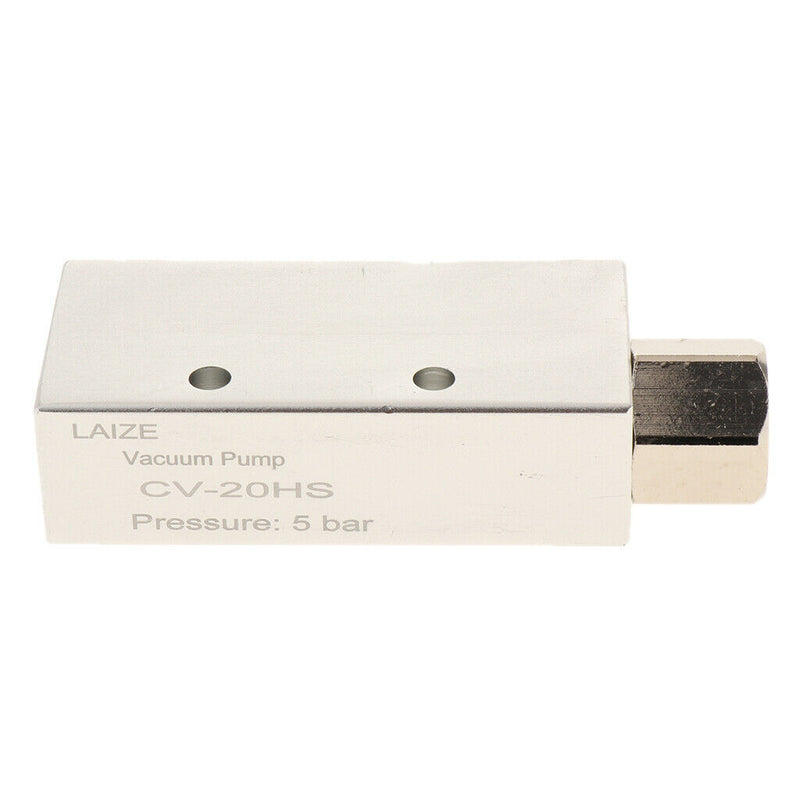

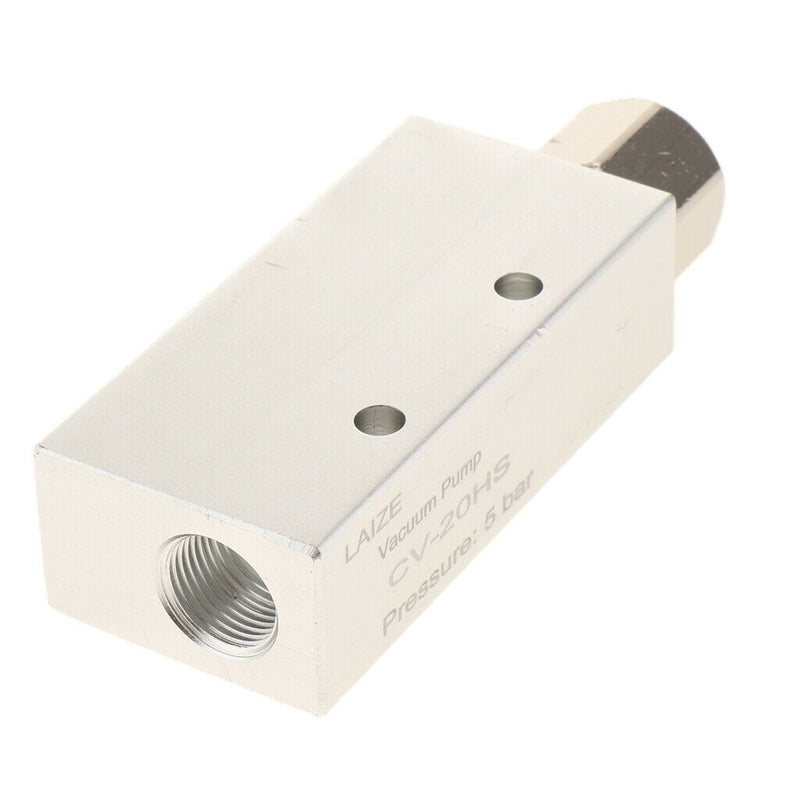

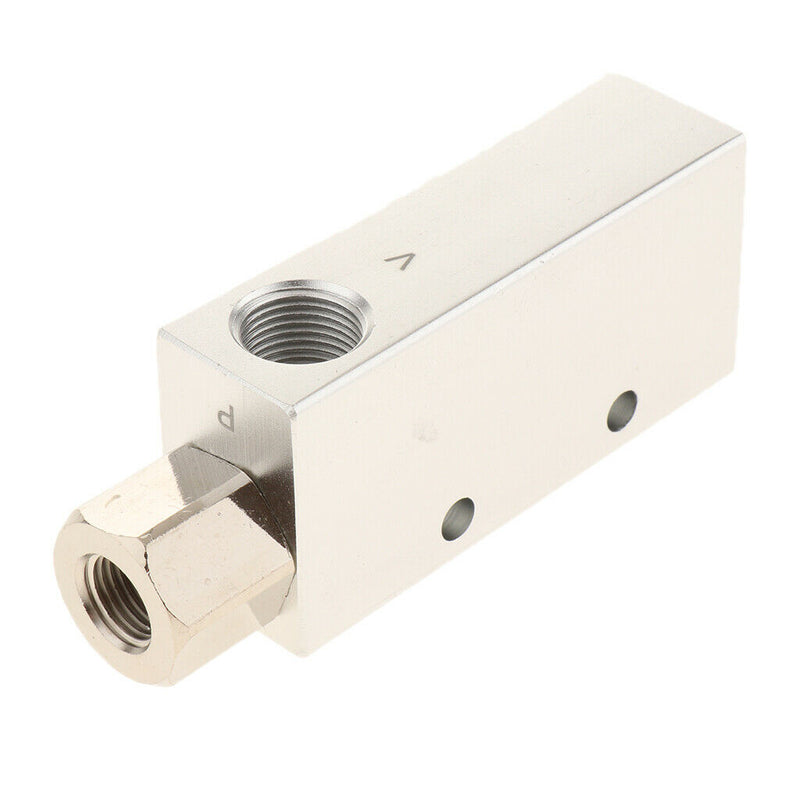

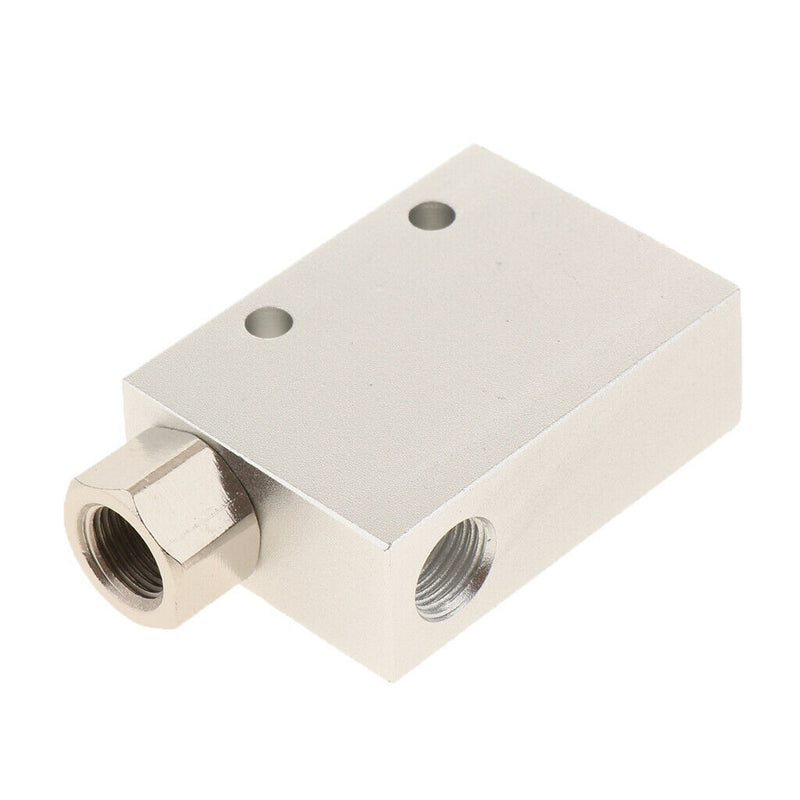

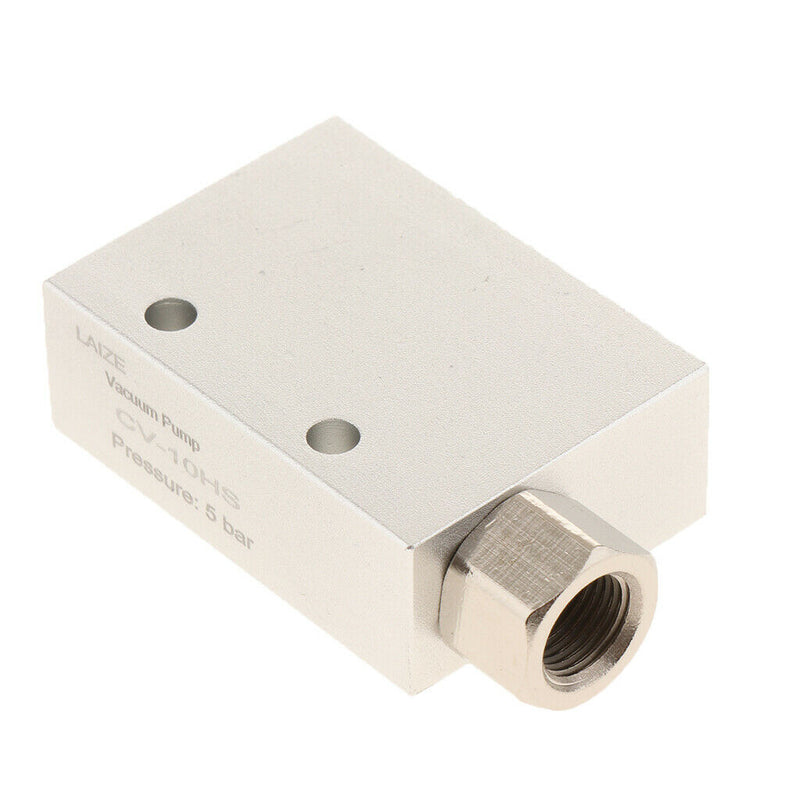

ITEM NAME:2x Vacuum Ejector Pneumatic Fitting Vacuum Generators Nozzle CV-10HS CV-20HS Description: Compact size, large air ventilation Simple structure, easy to mount and maintain. Precision threads ensure the fastness of the connection. There is a filter net at the vacuum mouth to reduce sundries and increase the service life. The fitting connector is fastened tightly and anti-corrosion, the air pipe is not easy to fall off. Specification: Flow medium: air Working pressure: 1~6BAR Rated pressure: 5bar Suction flow rate: 63L/min Vacuum pressure: -92bar Working temperature: 0~60 ℃ Material: Aluminum alloy Color: Silver Package Weight: Approx. 122g/4.3oz CV-10HS P Air inlet: G1/8 Inch Vacuum port: G1/8 Inch Exhaust muffler outlet: G1/8 Inch Size: 55x32x15mm/2.16x1.26x0.59 inch CV-20HS P Air inlet: G1/4 Inch Vacuum port: G3/8 Inch Exhaust muffler outlet: G3/8 Inch Size: 115x45x33mm/4.53x1.77x1.3 inch Package Includes: 2 Pieces Vacuum Generator.There is a filter net at the vacuum mouth to reduce sundries and increase the service life. Vacuum pressure: -92bar. The fitting connector is fastened tightly and anti-corrosion, the air pipe is not easy to fall off.
