Item Name: COOLMOON CPU Cooler 3 Pin ARGB FDB Bearing PWM PC Quiet Cooling Fan (White). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
COOLMOON AS1CPU Cooler 5V 3 Pin ARGB PC Quiet Ventilador FDB Bearing Temperature-controlled 120mm PWM Cooling Fan for Intel LGA 1150 1151 1155 2011 AMD AM3 AM4 Silent Radiator
Description:
COOLMOON Aoshi series AS1 high-quality FDB bearing temperature-controlled ARGB case fan
Intelligent temperature-controlled speed regulation, FDB precision bearing, more than 100,000 hours of life
Set of network cables, high-quality silicone shock-absorbing pad, long-term durability, cool light effect
And more Applicable scenarios (CPU air cooling, CPU water cooling, chassis cooling)
What is a liquid bearing:
FDB bearing (Fluid Dynamic Bearing) for short, has been used in the precision machinery industry.
The core of its technology is to replace the ball with a mucous membrane liquid oil bearing and an oil film to avoid direct friction of the bearing and reduce noise and heat generation.
At the same time, the oil film can effectively absorb vibration and improve the shock resistance of the fan.
The performance and life of the fan are greatly improved, and the life expectancy has reached more than 100,000 hours, which can meet the needs of industrial-grade service life.
Feature:

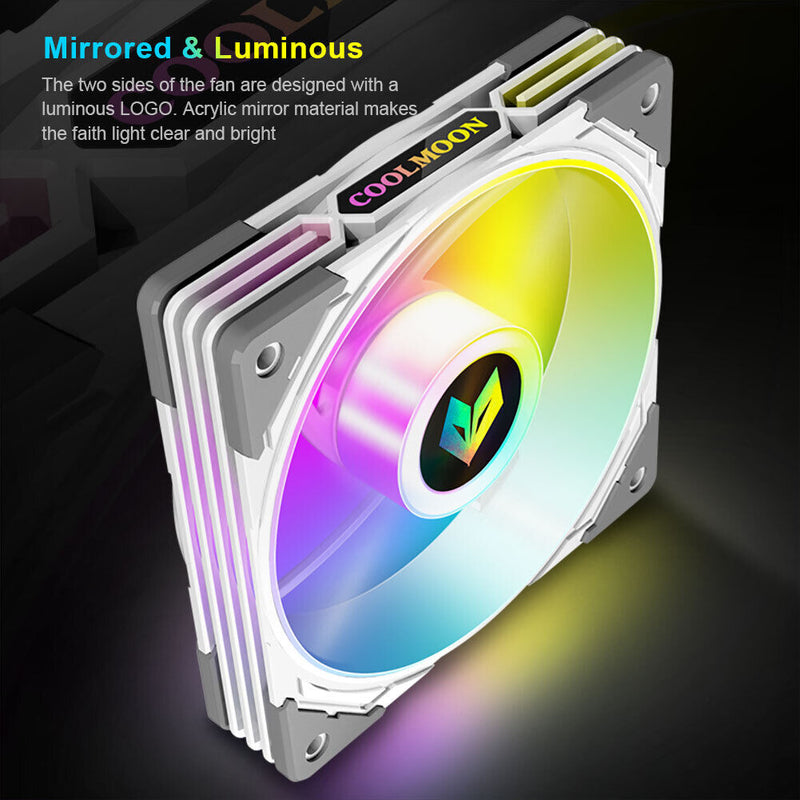

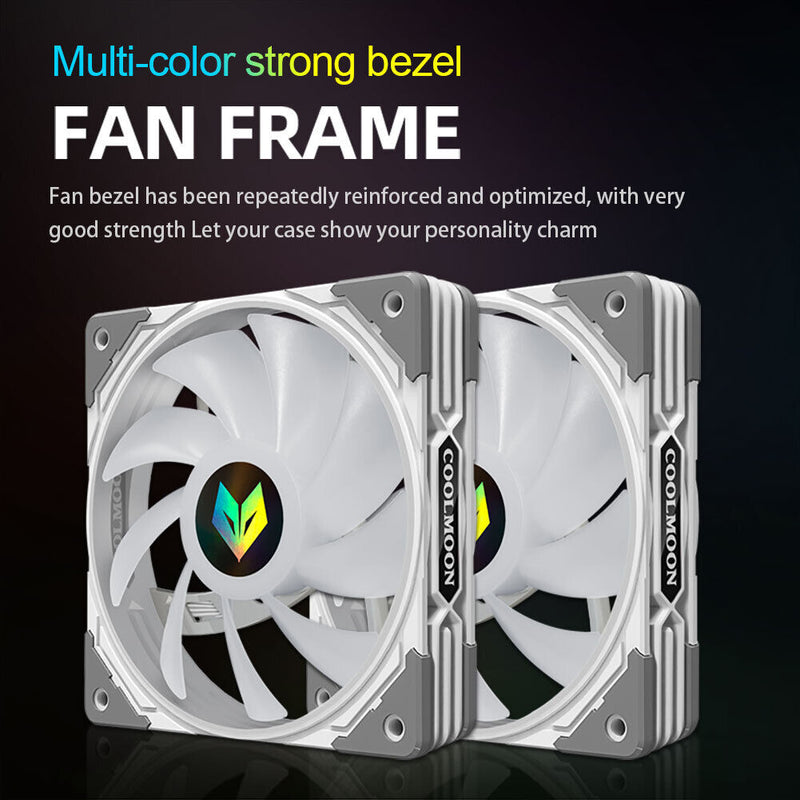

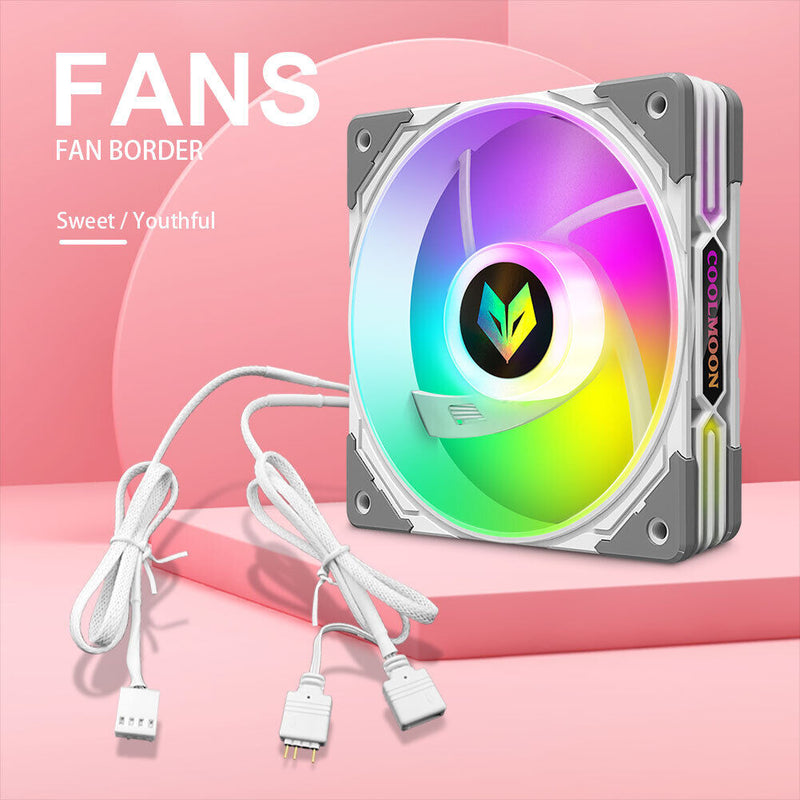

1. Multi-color strong frame, you can have both strength and charm. The fan frame has been reinforced and optimized repeatedly, and has very good strength 3 fashionable color schemes of black, white and pink allow your chassis to show the charm of personality
2. Support full-color gradient, enjoy 16.8 million cool colors. The 12 high-brightness ARGB lamp beads support 16.8 million full-color display, which is gorgeous and colorful, allowing you to immerse yourself in the art of light. The light penetrates the atomized and frosted leaves, showing a full and colorful light effect. Support for ASUS, MSI, GIGABYTE, ASRock and other motherboards addressable 5V 3-pin ARGB Shenguang sync
3. The ingenious design of the reflector makes the light effect a qualitative leap. A translucent aperture that can absorb and reflect light is nested inside the fan frame. The illuminated aperture and the shaft light are superimposed on each other, making the fan brighter, fuller and more gorgeous.

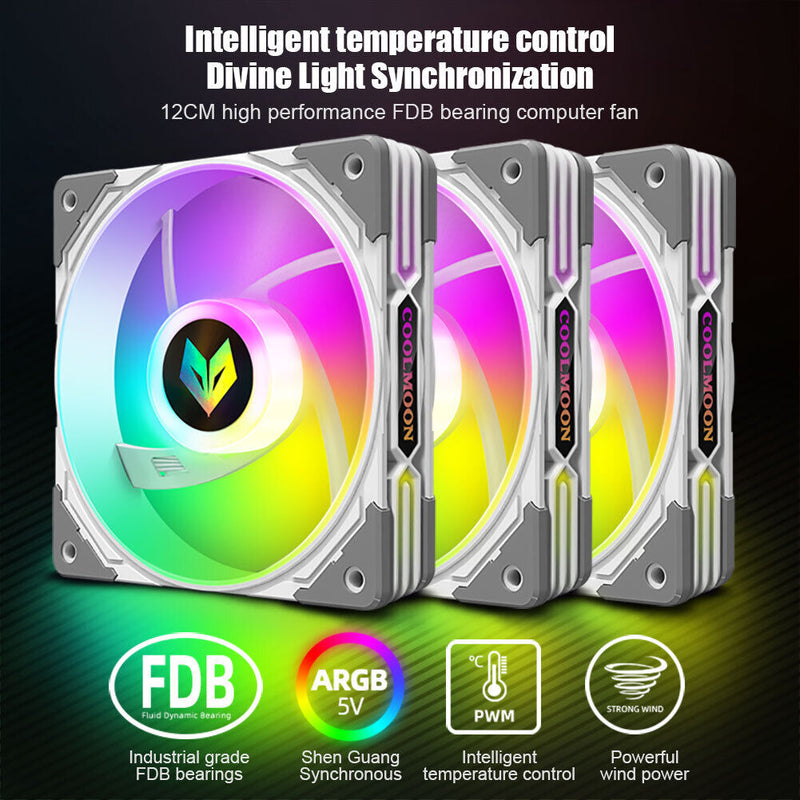

4. Intelligent temperature control and speed regulation, keep up with your rhythm at any time. When you are fighting hard to kill the enemy in the game, it will escort quickly when you wear headphones to listen to music leisurely, it will slow down and let you enjoy the quiet time. Temperature control mode speed/RPM 800~2000. The AS1 fan supports connecting to the motherboard PWM temperature control interface, and intelligently adjusts the fan speed according to the CPU temperature. When the CPU temperature rises, increase the speed to cool down quickly when the CPU temperature drops, reduce the speed to save energy and reduce noise

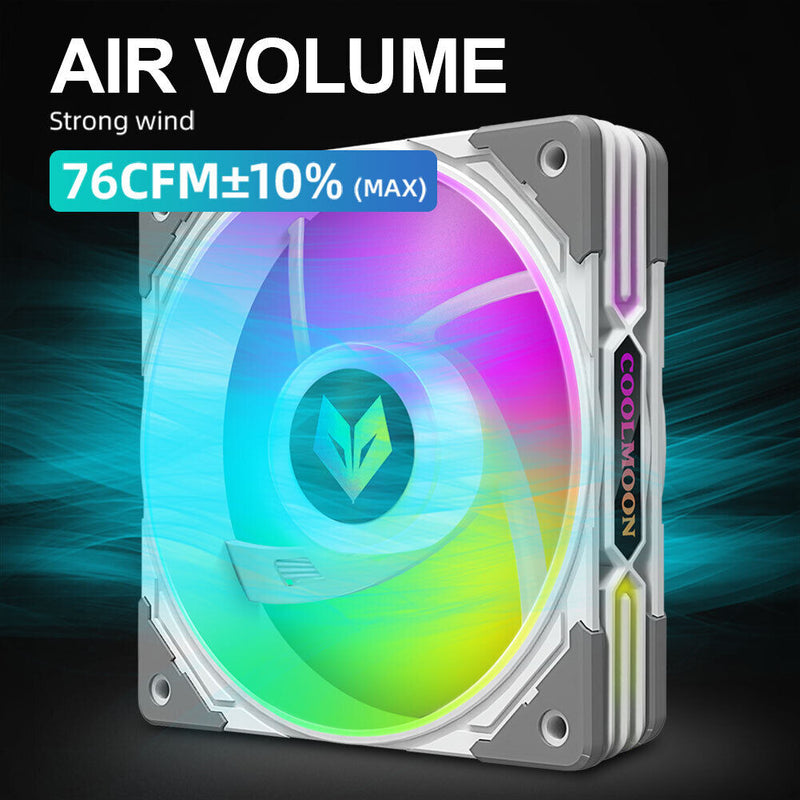

5. Double-optimized air volume to stimulate the essence of powerful heat dissipation. 76CFM(MAX). Large diameter: The thickness of the fan frame is determined by repeated tests from the perspective of engineering, and the fan diameter is increased as much as possible while ensuring the strength, and the air flow in and out is increased Large fan blade: The shape and angle of the fan blade are designed from the perspective of bionics, and there are 9 large eel-shaped fans. The blades generate strong wind pressure large air volume provides efficient heat dissipation.
6. Soft skin-friendly silicone pad, efficient shock absorption, quiet care. 23dBA(MAX) silicone foot pads are softer than rubber pads or foam pads, which can more effectively absorb the resonance between the fan and the chassis, keep the fan stable, reduce noise, and be quiet and comfortable
7. Dense set of network cables, pay attention to quality from the details. The fan's wire is designed with an encrypted sleeve, which not only improves the appearance, but also is tough and durable, giving your fan a thoughtful and meticulous protection.
Specification:
Item: AS1 case fan
Brand: COOLMOON
Speed: 800~2000RPM+10%
Air volume: 76CFM soil 10%
Noise: 23dBA soil 10%
Voltage: 12V fan 5V lamp beads
Current: 0.40~0.52A soil 10%
Power: 4.8~6.24W soil 10%
Bearing type: FDB liquid bearing
Life: more than 100,000 hours
Interface Type :

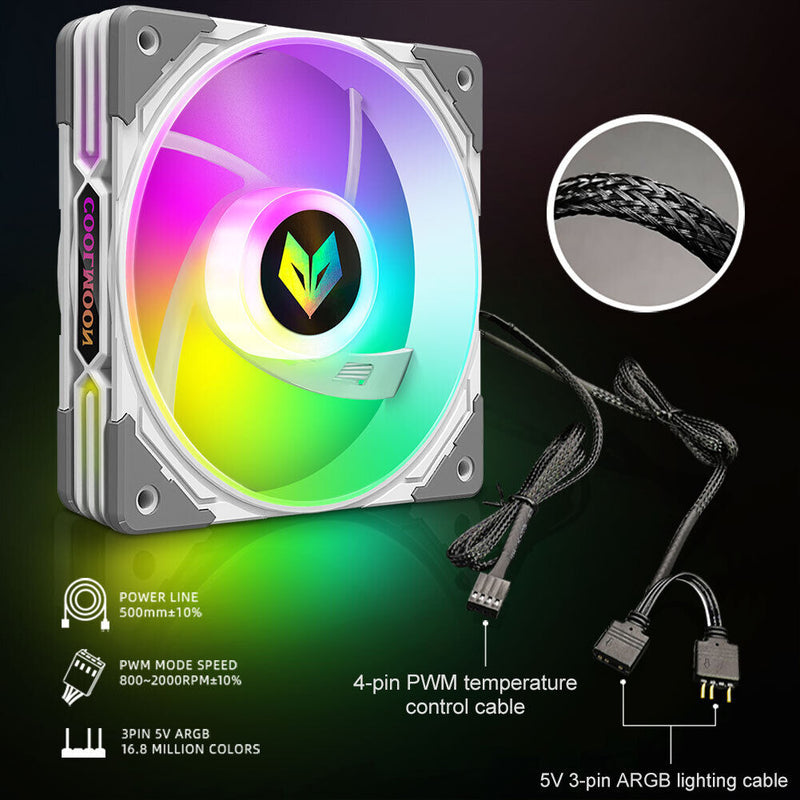

4PIN(PWM)x1 3PIN(ARGB)x2
Wire length: 500mm 10% (PWM) 550mm 10% (ARGB)
Package size: 147x28x125mm
Fan size: 120x120x25mm/4.72x4.72x0.98''
Weight: 0.165kg3%
Use Tips:
If the motherboard supports 5V 3-pin ARGB interface, it can be directly connected to the motherboard without using our controller.
If it does not support it, the fan alone cannot be used, and it must be matched with the controller of this brand.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
