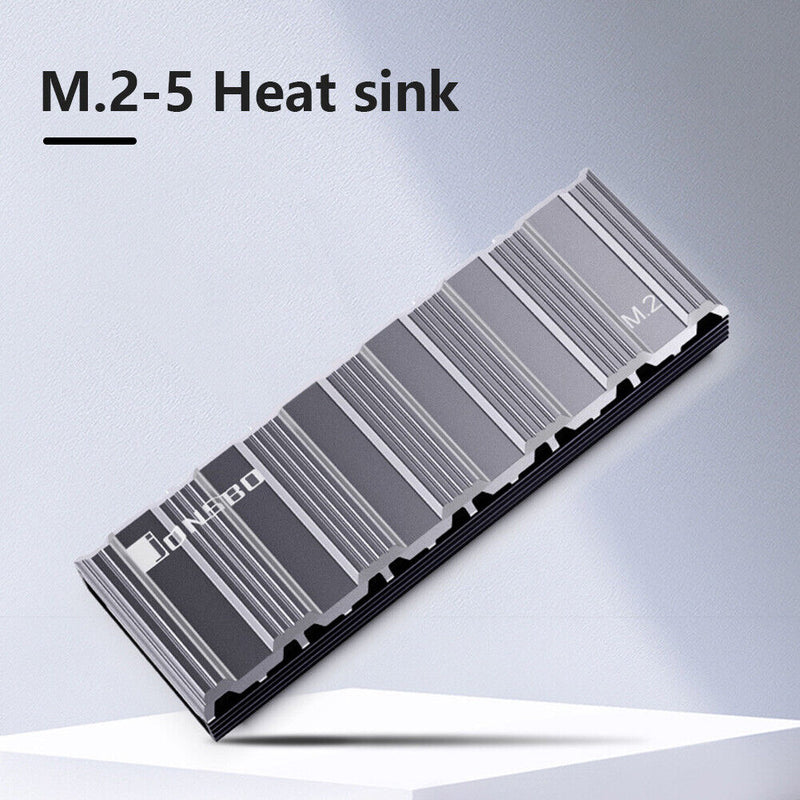

Jonsbo M.2-5 Aluminum Alloy M.2 SSD Cooling Heat Sink M2 2280 Solid State Hard Disk Heat Radiator with Thermal Pad
Feature:
The heat sink is processed by aluminum alloy anode sandblasting process, with fine texture, anti-corrosion and rust prevention, and is not easy to be dirty.
Hollow-out design increases heat dissipation area and natural convection efficiency of airflow.

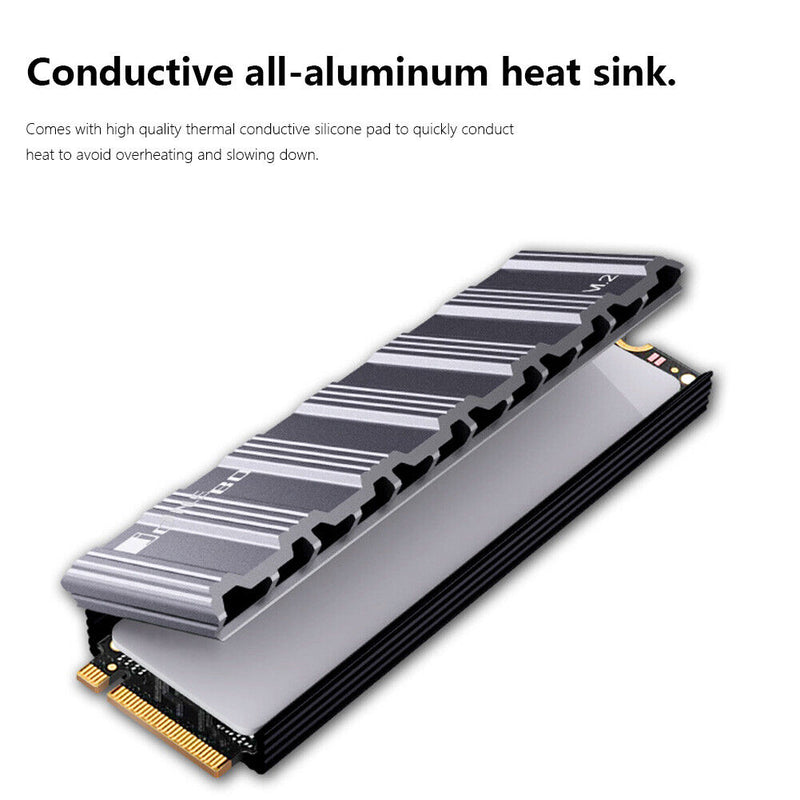

Diversion all-aluminum heat sink. Comes with a high-quality thermal conductive silicone pad, which quickly conducts heat and avoids overheating and slowing down.
It is only applicable to 2280 size M.2 solid-state drives, and supports single- and double-sided particle hard drives (white thick silicone grease sheets are used for single-sided particle hard disks gray thin silicone grease sheets are used for double-sided particle hard disks).
Specification:
Brand: Jonsbo
Model: M.2-5
Type: Heat sink
Color: Grey
Material: Aluminum
Cooling method: Drainage passive cooling
Applicable: M.2 2280 SSD (single and double-sided particles)
Dimensions: 73x24.4x9.6mm/2.87x0.96x0.38in
Weight: 40g
Product Overview:
The aluminum alloy anode process + chimney-type convection can not only improve the appearance of the whole machine, but also match the inclined air guide structure to better fit the air duct of the chassis to take away the heat of the SSD as soon as possible.
MINI size brings better compatibility.
Installation method:

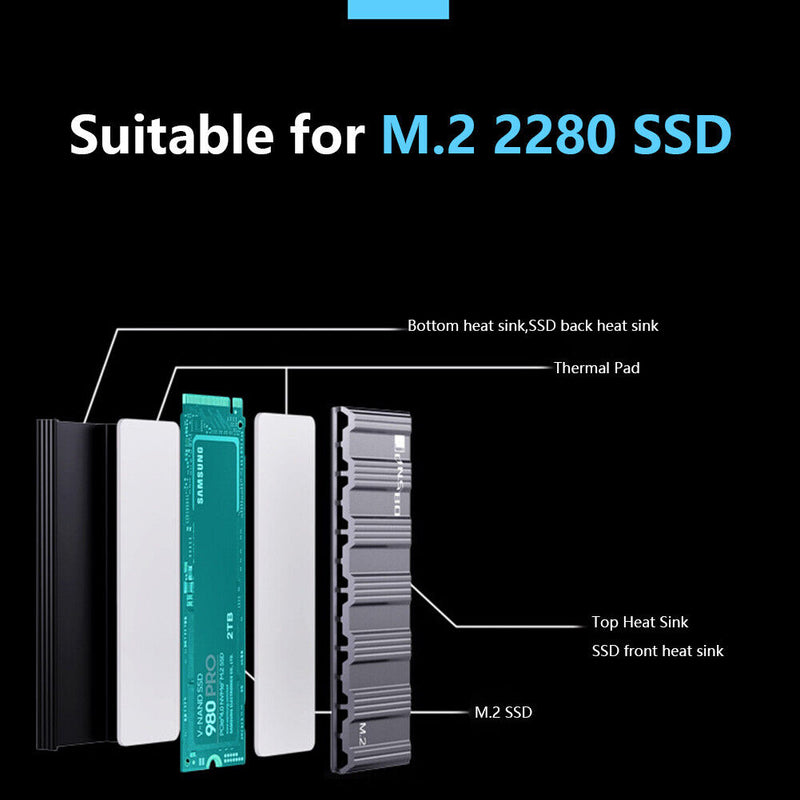

1. Tear off the film of the thermal pad and paste it into the bottom slot
2. Put the SSD PCB into the card slot, the chip is flushed
3. Adjust the PCB position to expose the gold fingers and screw holes
4. Paste the thermal pad on the inside of the top fin (tear off the film)
5. After the side of the card slot is stuck, press it to fix
6. To disassemble, use a slotted screwdriver to pry it along the connection
7. Insert into the motherboard slot
8. Fasten the hard drive screws (the motherboard comes with it)
9. Installation is complete
Tips:
White thick silicone grease sheet is used for single-sided granular hard drives
Gray thin silicone grease sheet is used for double-sided granular hard drives
For Samsung 970EVO Plus or other thickness greater than or equal to 2.4mm thickness, use a combination of 1 thick and 1 thin
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2mm measuring deviation due to manual measurement.
