Item Name: Phanteks 4 Pin PC Case 14cm Cooling Fan Silent PWM Cooler Radiator (Black) Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Phanteks PH-F140MP_WT02 FDB Hydraulic Bearings 4 Pin 14cm PC Computer Case Cooling Fan Quiet Silent PWM Chassis Temperature Control Cooler Radiator
Feature:
Concentrated vortex supercharging. Large blades increase the air volume, reduce the distance between the blades and between the blades and the frame to form a concentrated vortex, increase the wind pressure, and have a stronger penetrating power.

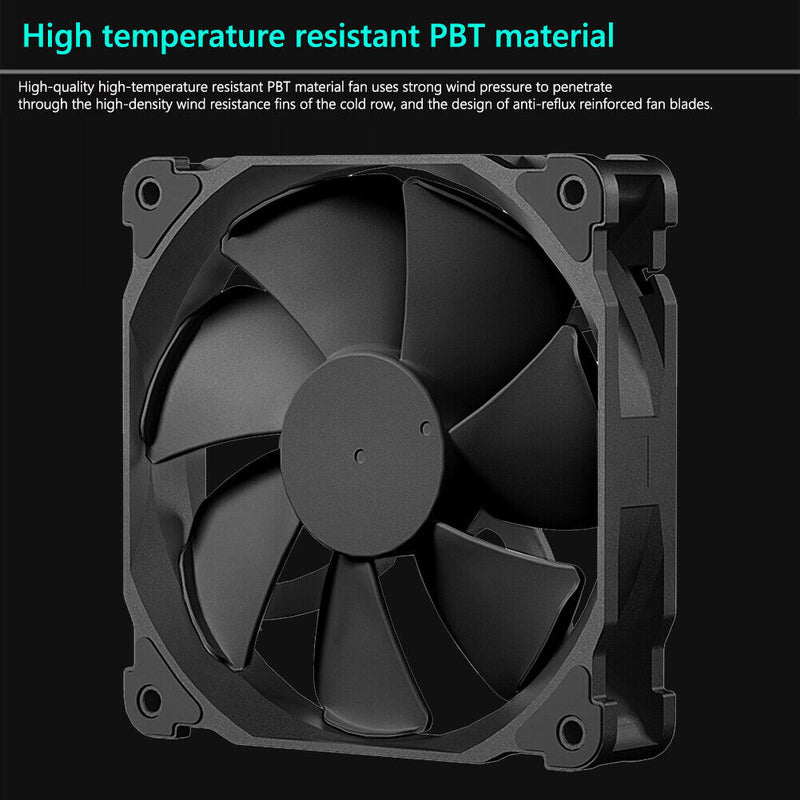

High-quality high-temperature resistant PBT material fan uses strong wind pressure to penetrate through the high-density wind resistance fins of the cold row, and the design of anti-reflux reinforced fan blades.

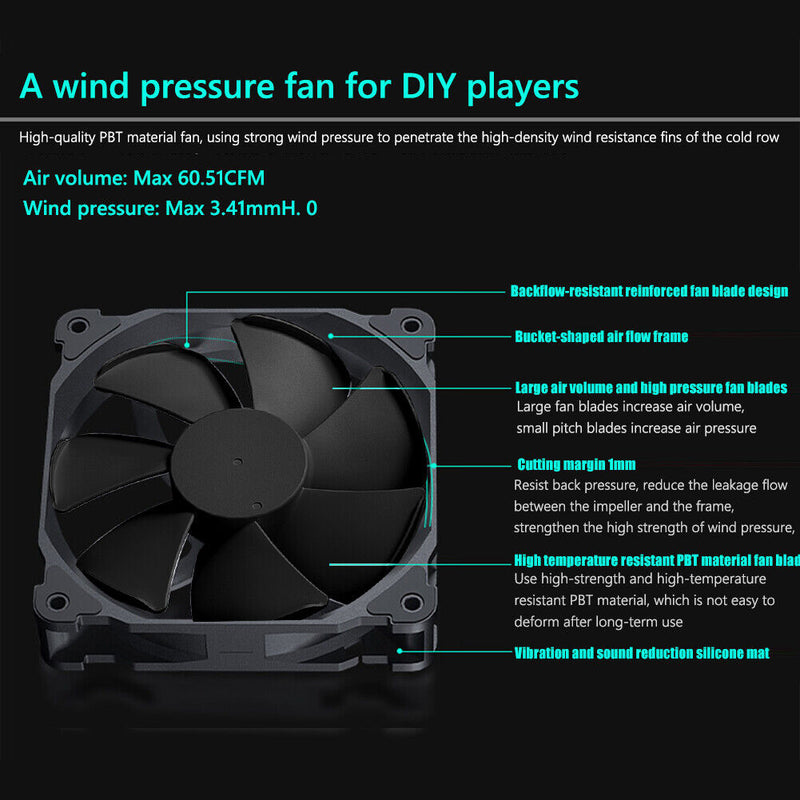

Fan blades with large air volume and high wind pressure. Large fan blades increase air volume, and small pitch blades increase air pressure. The cutting edge distance is 1mm, which can resist back pressure, reduce the leakage flow between the impeller and the frame, and strengthen the wind pressure.

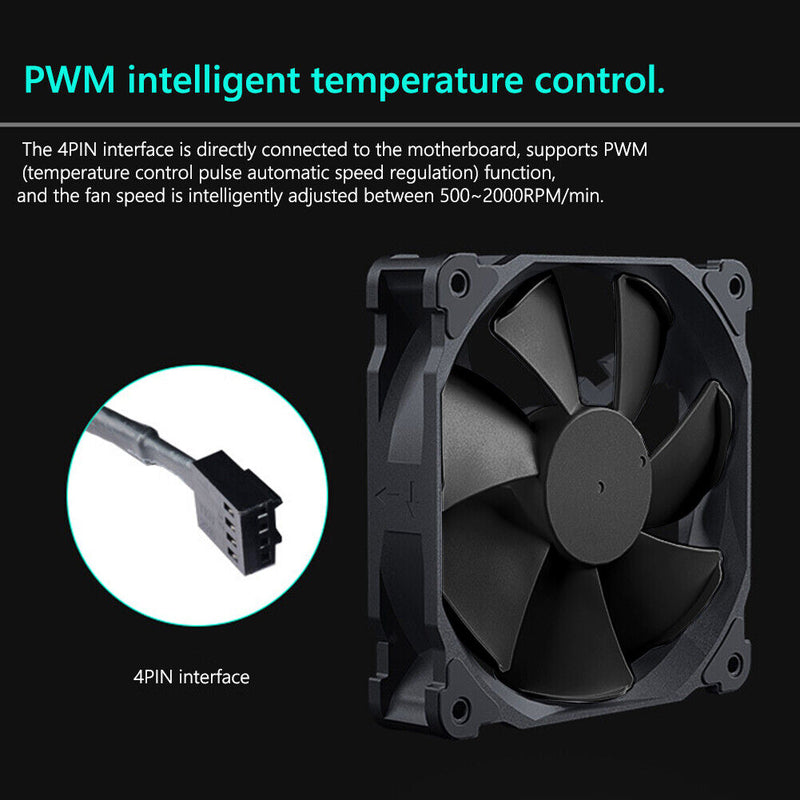

PWM intelligent temperature control. The 4PIN interface is directly connected to the motherboard, supports PWM (temperature control pulse automatic speed regulation) function, and the fan speed is intelligently adjusted between 500~2000RPM/min.
Wear-resistant woven mesh covered wire. High-end configuration, 1 to 2 male and female connectors, when multiple fans are installed in the cold row, the fan male and female connectors can be connected in series, and connected to the motherboard FAN interface through a 4PIN extension cable, saving the trouble of insufficient FAN interfaces.
Shock absorption and sound reduction design. 7 pieces of fan silicone damping pads, to avoid fan resonance, make the fan run stably and reduce the sound.

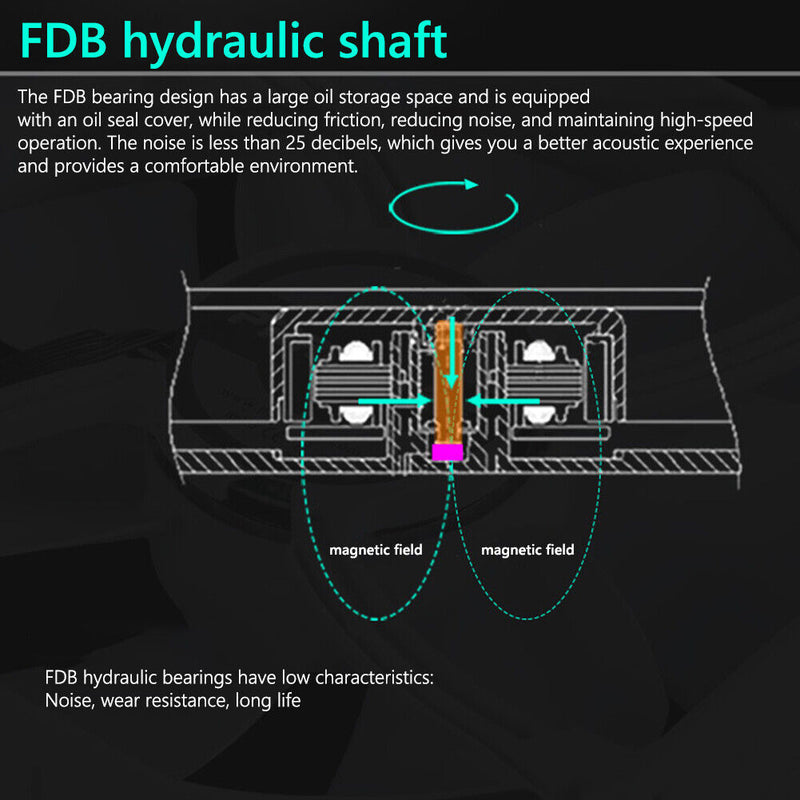

FDB hydraulic shaft. The FDB bearing design has a large oil storage space and is equipped with an oil seal cover, while reducing friction, reducing noise, and maintaining high-speed operation. The noise is less than 25 decibels, which gives you a better acoustic experience and provides a comfortable environment.
Applied to the chassis, cold exhaust, and radiator, it can better exert the heat dissipation performance.

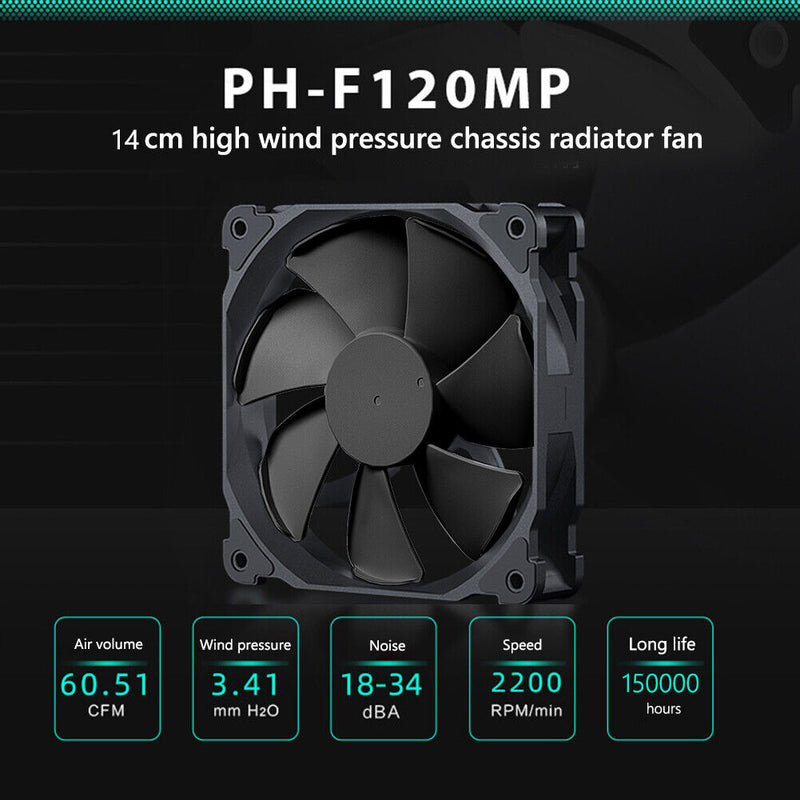

Specification:
Name: Chassis radiator fan
Brand: PHANTEKS
Model: PH-F140MP_WT02
Color: Black, Black White (optional)
Speed: 500-220010%RPM
Air volume: Max 60.51CFM
Wind pressure: Max 3.41mmH. 0
Noise: 18-35dBA
Power consumption: 2.4W
Input current: 0.2A
MTBF: >150,000h
Input voltage: 12V

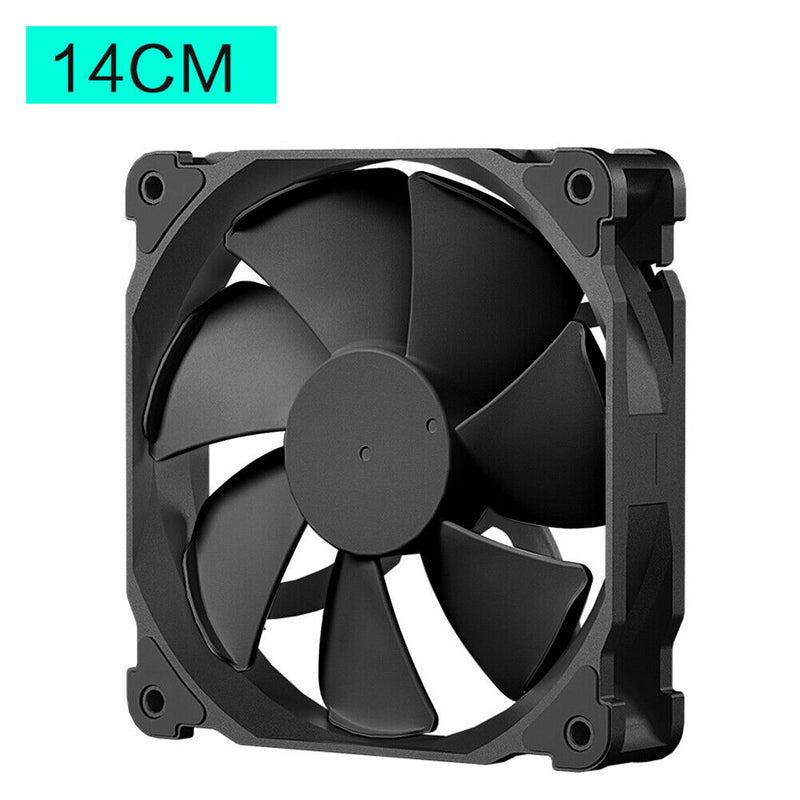

Fan size: 140x140x25mm/5.51x5.51x0.98in
Net weight: 220g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
