Item Name: PHANTEKS 4Pin PWM PC Case Cooling Fan Hydraulic Bearing CPU Cooler (12cm) Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
PHANTEKS 120/140mm PC Case Fan 4-Pin PWM Cooling Fan Silent with Hydraulic Bearing for Radiator CPU Cooler Computer Case
Feature:

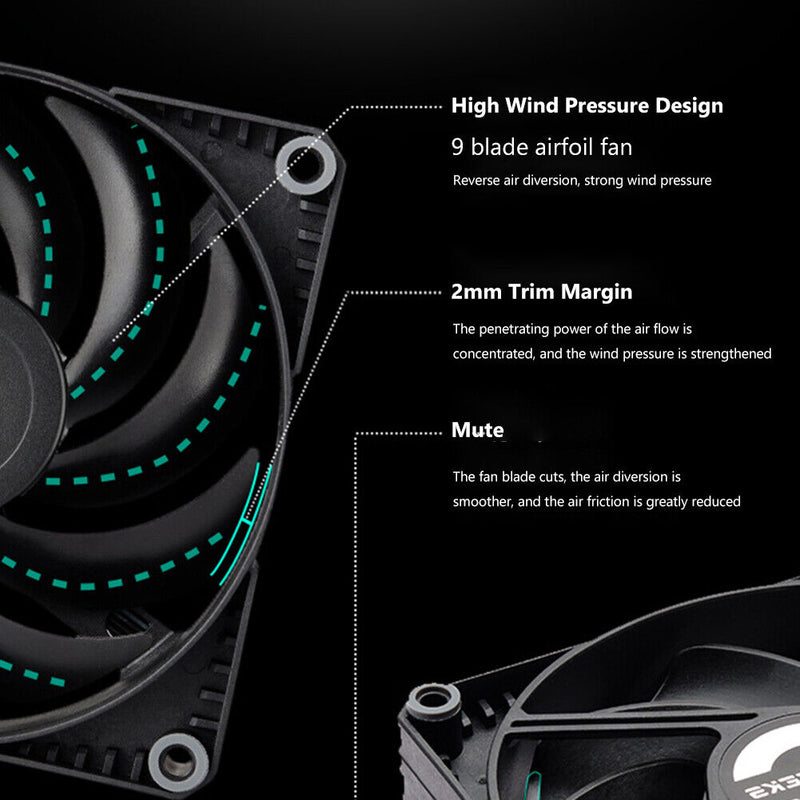

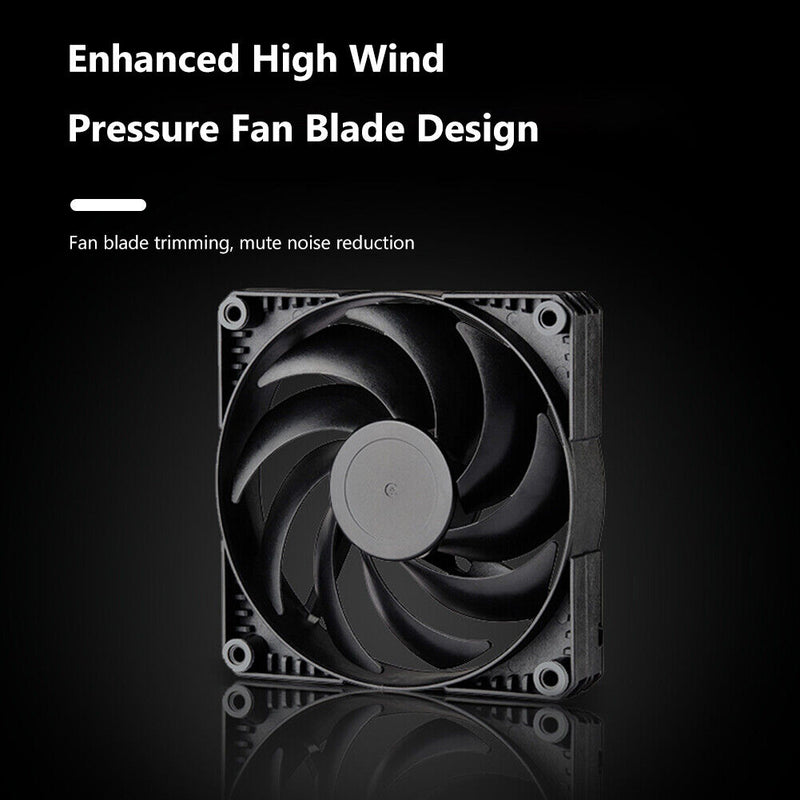

Enhanced high wind pressure fan blade design: fan blade reverse time rotation, large air volume and high wind pressure design, blade trimming, mute and noise reduction.

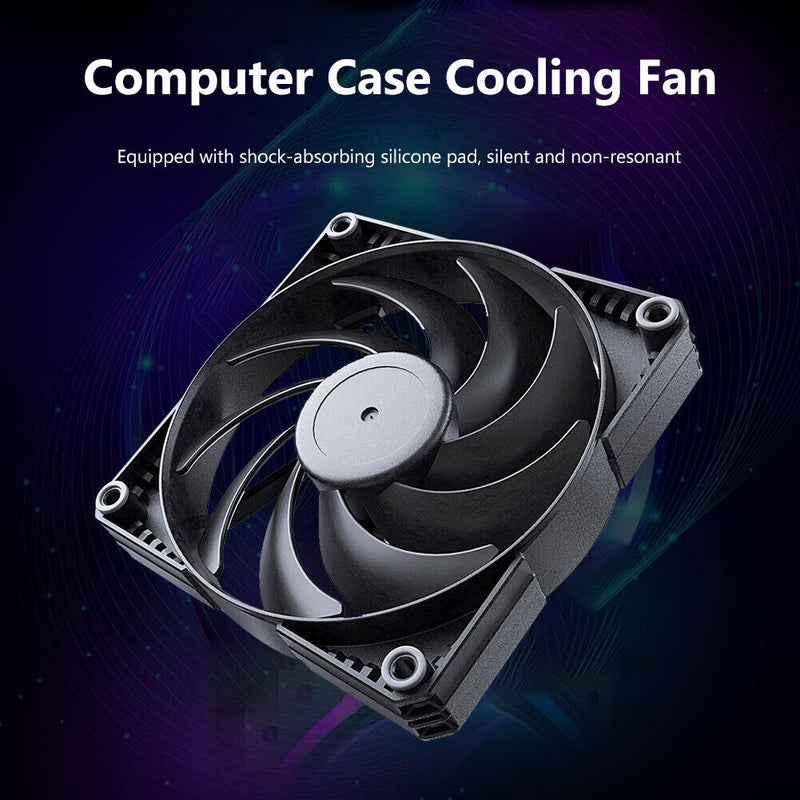

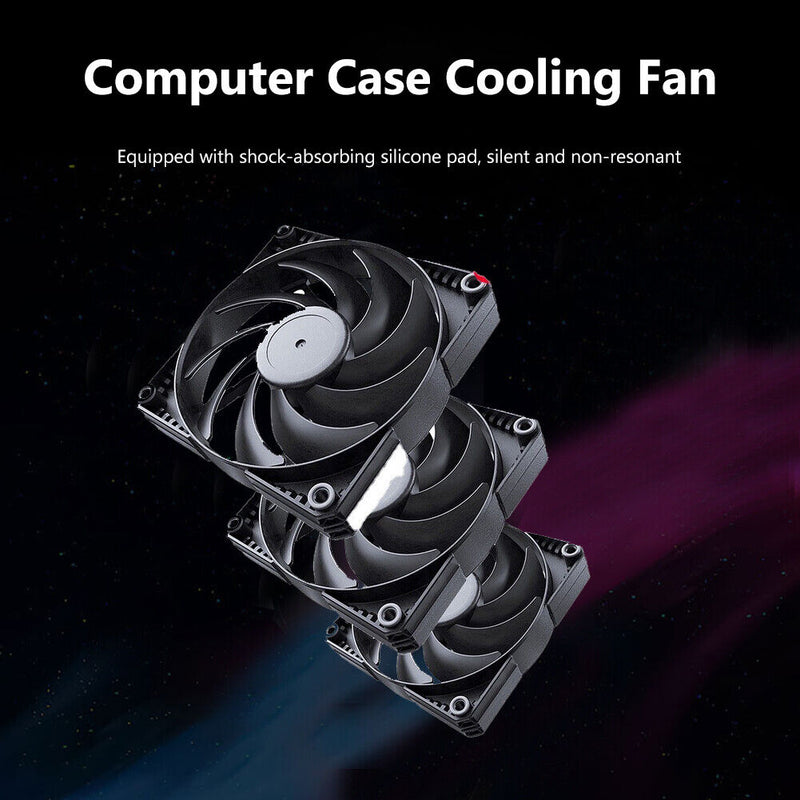

Equipped with damping silicone pad, silent and non resonant.

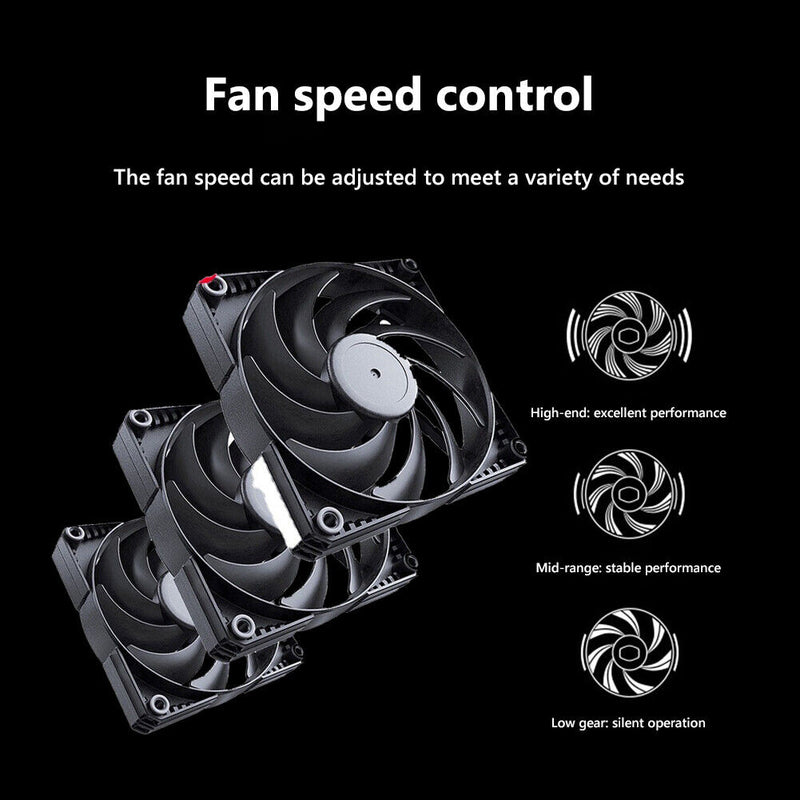

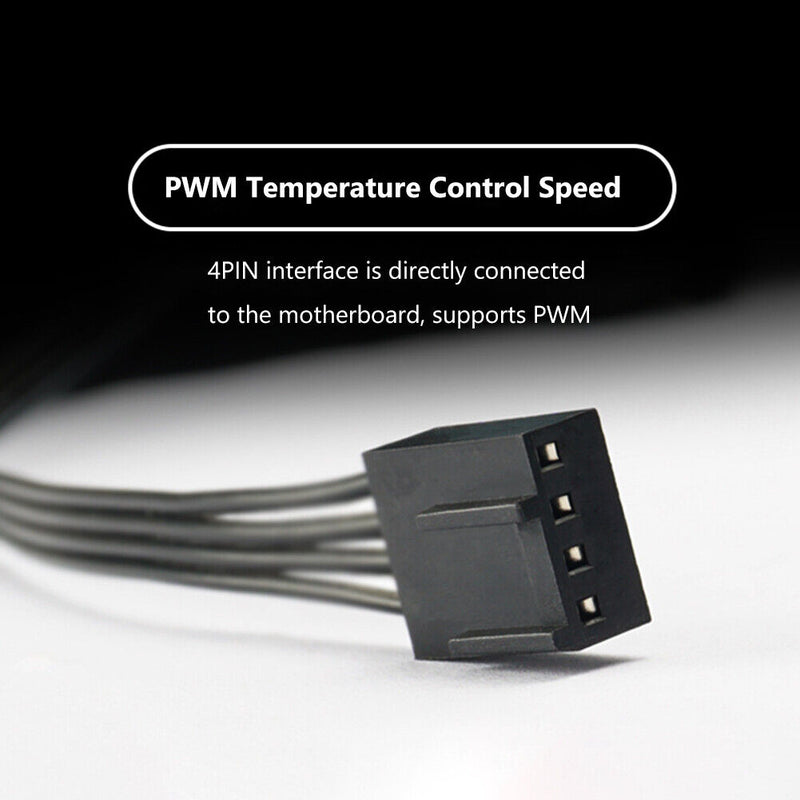

Support PWM temperature control and speed regulation: 4Pin interface is directly connected to the main board, support PWM (temperature control pulse automatic speed regulation) function, and intelligently adjust the fan speed according to the temperature in the chassis.
Hydraulic bearing design: with large oil storage space and oil seal cover, it can reduce the overflow of lubricating oil, reduce friction, reduce noise, maintain high-speed operation, provide you with better acoustic experience and comfortable quiet environment.
Specification:

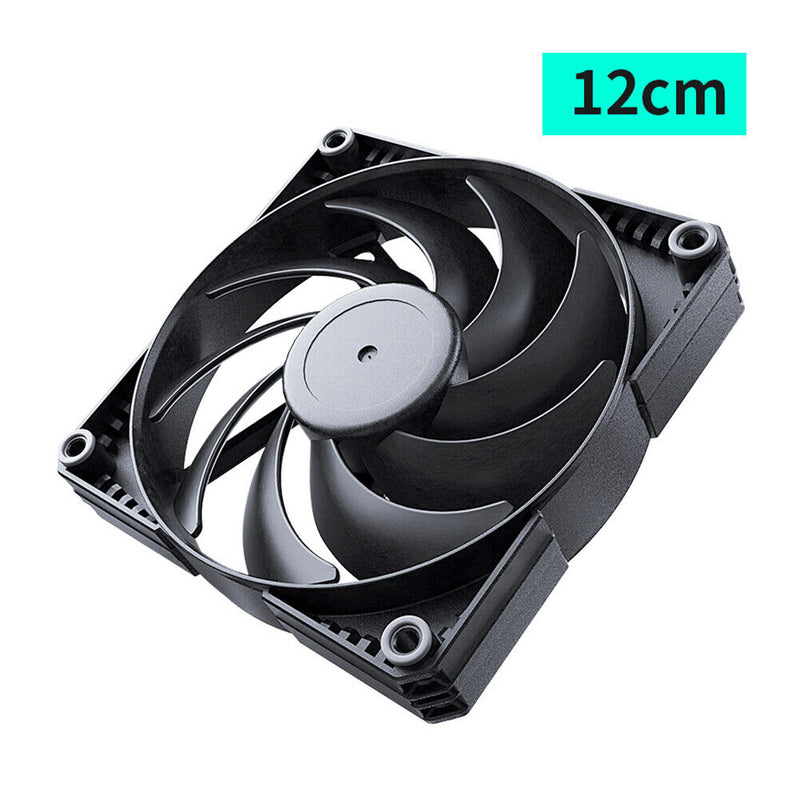

12cm fan:
Size: 120x120x25mm
Power: DC 12V/0.15A/1.8W
MTBF: 40,000 hours
Wind speed: 500-1500(150)rpm
Air volume: 50 CFM
Noise: 27dB(A)
Static pressure: 0.96mm H20
Cable length: 550mm
Fan interface: 4-pin PWM
Packing size: 123*148*26mm
Gross weight: 157g
14cm fan:
Size: 140x140x25mm
Power: DC 12V/0.25A/3W
MTBF: 40,000 hours
Wind speed: 500-1500(150)rpm
Air volume: 85CFM
Noise: 36dB(A)
Static pressure: 1.23 mm H20
Cable length: 550mm
Fan interface: 4-pin PWM
Gross weight: 175g
Packing size: 160*155*26mm
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
