Item Name: M.2 NGFF SATA SSD 6Gbps External Enclosure for 2230/2242/2260/2280 (Black). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
M.2 NGFF SATA Mobile Hard Disk Case for 2230/2242/2260/2280 M.2 NGFF B-Key B+M Key SSD 6Gbps External Enclosure Adapter
Feature:
Compliant with SATA 3.0 specification and USB3.0 specification.
Securely connect NGFF B Key/B+M Key SSD to computer via USB port.
Support M.2 SSD, 22*30mm, 22*42mm, 22*60mm, 22*80mm solid state hard disk (SSD hard disk not included).
Supports SATA-based NGFF SSDs.
Support M2 (B-Key/M+B-Key) SATA SSD.
Supports data transfer up to 6Gbps (theoretical).
Support UASP protocol.
Plug and play and hot swap are supported.
Aluminum alloy shell, efficient heat dissipation, while increasing the heat dissipation area, it is convenient for the hard disk to dissipate heat during work and increase the life of the hard disk.
Features a 26cm/10.24in USB Type A to Type C cable for connecting to a computer.
Specification:
Name: M2 SSD mobile hard disk box
Color: black, silver, red, blue (optional)
Material: aluminum alloy
Master: INIC3639
Output interface: USB 3.1 Type-C
Transmission speed: 6Gbps (theoretical)

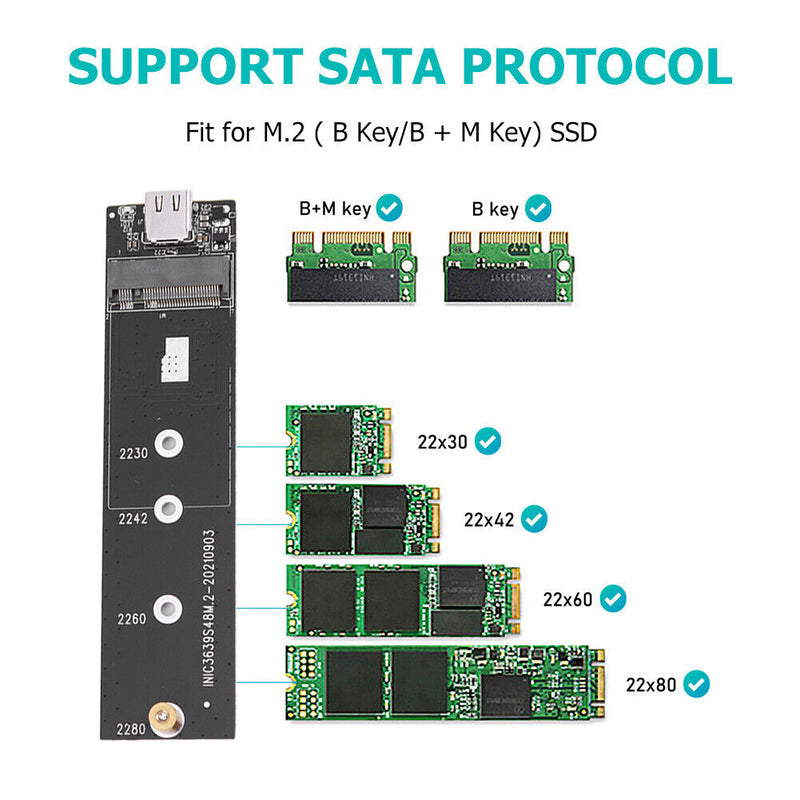

Hard disk interface: B-Key/B+M-Key
Applicable protocol: M.2 SATA NGFF protocol
Support hard disk: M.2 NGFF protocol, 2230/2242/2260/2280 and etc. 4 sizes of solid-state hard disk
Support capacity: 16TB MAX
Compatible system: for Windows 98/Se/Me/2000/XP/Vista/Win7/Win8/Win10/MAC OS 8.6 or the latest version
Product size: 102x30x11mm/4.02x1.18x0.43in
Installation steps:
1. Unscrew the top screw with a screwdriver and take out the PCB board
2. Align the slot and install the SSD hard drive
3. Tighten the screws at the bottom of the hard drive to fix the hard drive
4. Put the installed hard disk into the hard disk box and close the top cover
Note:
NGFF protocol is not compatible with NVMe protocol SSD and vice versa. Please confirm your M.2 SSD agreement before ordering, or you can ask our online service for help.
Please confirm your M.2 SSD interface before purchasing, the SATA protocol supports B-Key/B+M-Key SSD, if you do not confirm your interface, please
