Item Name: M2 SSD Case Enclosure Box M.2 to USB 3.1 Adapter (C-A+C-C Cable)(Blue). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Dual Protocol M2 SSD Case 10Gbps Hard Drive Enclosure HDD Disk Box M.2 to USB 3.1 SSD Adapter for NVME PCIE NGFF SATA M/B Key
Description:
Dual protocol 10Gbps
Supports NVME PCIe M-Key/ M+B-Key SSD and NGFF SATA protocol M+B-Key SSD, with 26cm USB Type C to Type C cable, and 26cm USB Type A to Type C cable, optional.
Feature:
*M.2 SATA NVME to USB 3.1 hard drive enclosure
*Compliant with SATA 3 specification and compliant with USB3.0 specification
*Dual protocol supports NGFF NVME protocol, suitable for NVME (M Key/B+M Key), NGFF (B+M Key)
*Support M.2 SSD, 22*30mm, 22*42mm, 22*60mm, 22*80mm Solid State Drive (SSD not included)
*Output speed depends on the type of SSD you use, output cable, and computer performance, NGFF (theoretical 5Gbps), NVME (theoretical 10Gbps)
*Aluminum alloy shell, efficient heat dissipation, while increasing the heat dissipation area, it is convenient for the hard disk to dissipate heat during work and increase the life of the hard disk
*Support UASP protocol
*Easy to use, plug and play, no driver required
Specification:
Name: Dual-Protocol M2 SSD Mobile Hard Disk Enclosure
Color: black, silver, red, blue (optional)
Specifications: single-wire (USB C-A), single-wire (USB C-C), dual-wire (USB C-A+USB C-C) (optional)
Applicable: SSD with NGFF NVME protocol M.2 interface 2230/2242/2260/2280 specification (SSD not included)
Material: aluminum alloy
Main control: RTL9210B
Maximum support: 16TB
Support interface: M Key/B+M Key
Output interface: Type-C
Compatible system: for Windows 98/Se/Me/2000/XP/Vista/Win7/Win8/Win10/MAC OS 8.6 or the latest version
Size: 102x33x9mm/4.02x1.3x0.35''
Installation steps:
1. Unscrew the top screw with a screwdriver and take out the PCB board
2. Align the slot and install the SSD hard drive
3. Tighten the screws at the bottom of the hard drive to fix the hard drive
4. Put the installed hard disk into the hard disk box and close the top cover
Note:

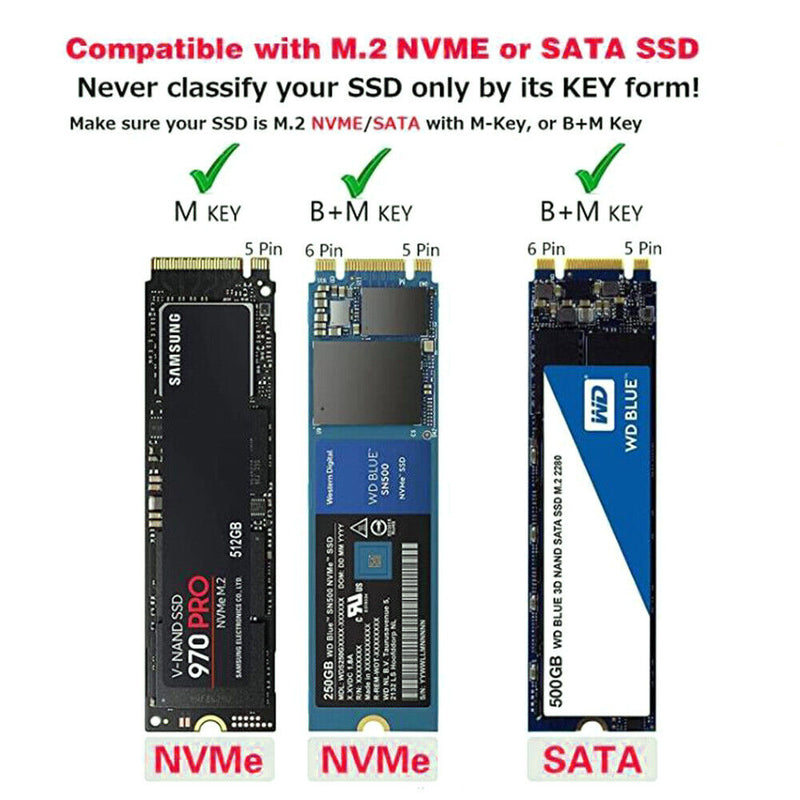

Please confirm your M.2 SSD interface before purchasing. This product is suitable for interfaces NVME M.2 (M Key/B+M Key), NGFF M.2 (B+M Key)
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.
