Features:
- The fatigue-resistant spring is mainly composed of specific measurement properties. It can be adjusted with hands, knobs and scales. The 14008 type scale is 5N.
- The average deviation of any point of the dynamometer is no more than 1/2 division.
- The maximum deviation of the repeated weighing at any point of the dynamometer is no more than 1/4 division.
- It has been calibrated at the factory to prevent changes in the spring force caused by various factors, affect the accuracy of the indication, and should be retested before use.
- The accuracy of the indication value is measured by the weight of the fifth-level balance. If the indication error is greater than 1/4 of the minimum scale, the rotating spring triangle can be adjusted to increase or decrease the number of the force coil.
- When in use, the dynamometer is aligned with the pointer in the direction of the measured force so that the measured force acts axially on the small hook.
- Do not allow the force measured to exceed the maximum scale.
- Keep dry and not in contact with acids and bases. To avoid rust springs and bottom plates.
Specification:
Brand: QINGHUA
Model: 14008
Material: Metal, Plastic
Maximum range: 5N
Minimum scale: 0.1N
Size: 20*4*3cm
Package includes:

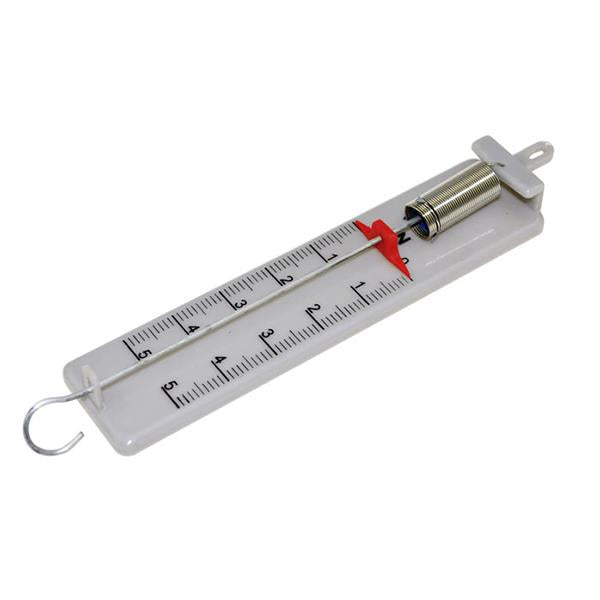

1 * 5N Spring Dynamometer
