Ports:24
-
Model Number:24 Port CAT6 Distribution frame
General Introduction:
CAT.6 PATCH PANEL can be applied to 1000Mbps Ethernet Networking.
You can impact into 110IDC with 110 impact Tool or Krone impact Tool convenient.
Features meet FCC subpart 68 requirements, this Patch Panel can provide all 250 MHz bandwidth.
General Construction:

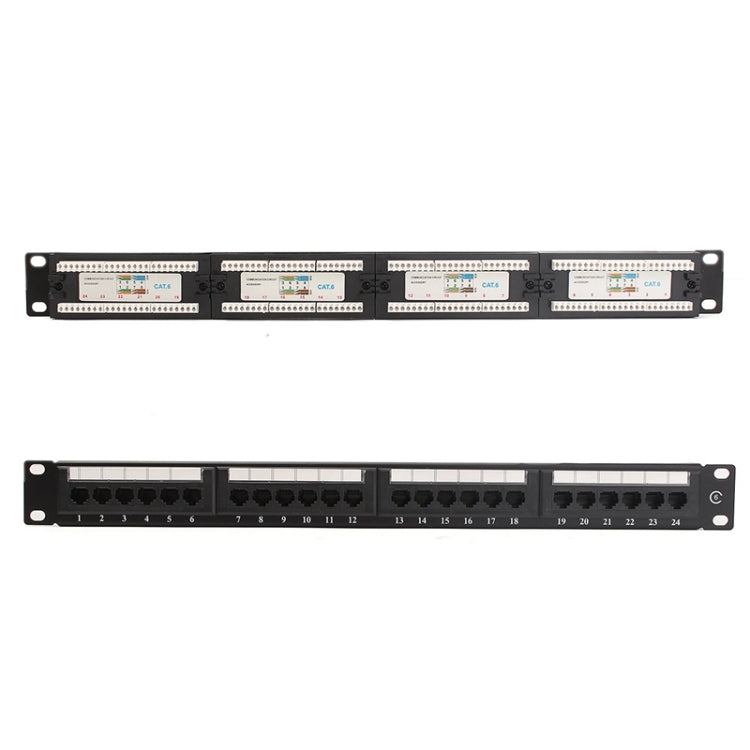

The patch panel can be mounted on any standard 483(19in) equipment rack or communication cabinet as shown.

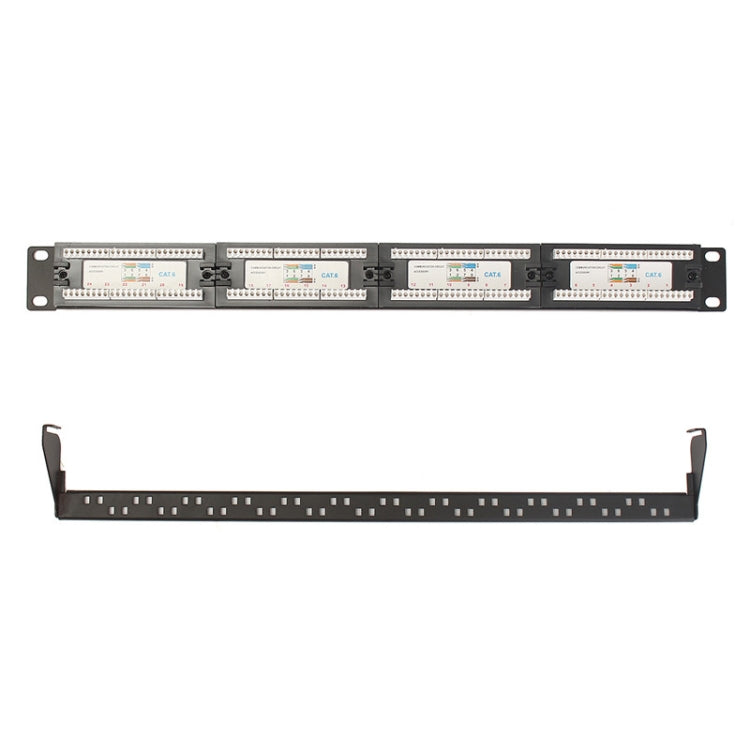

The back cable management help you to arrange and tie the cable orderly and conveniently.
Appliance Instroduction:
AWG 22-24 C6 cable wires are recommended for this instalation,

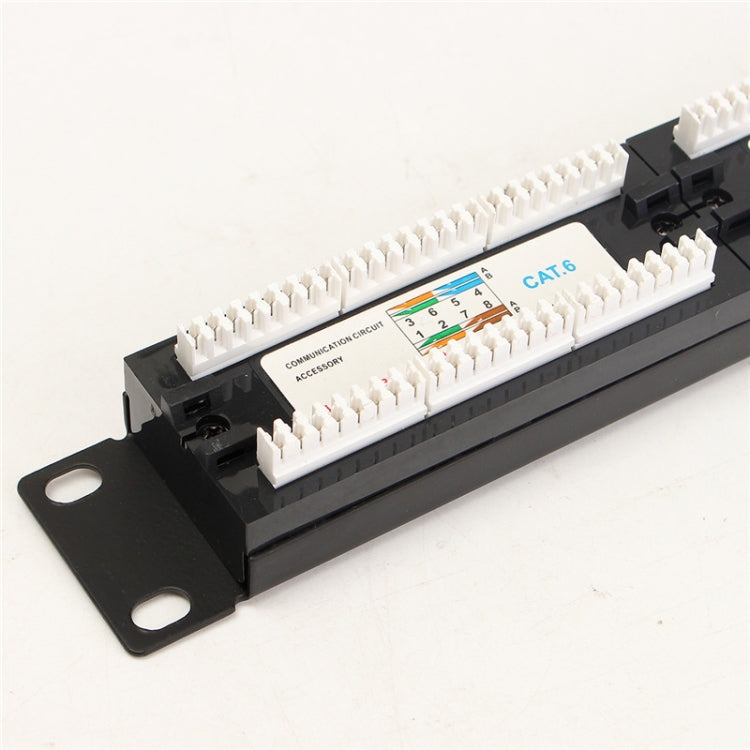

Verifying the wiring follows the paster color code of the panel back cover,
Proper termination tools should be used ( e.g. 110 or Krone Universal Wire Insertion Tool).
Be aware of the insertion direction for wires.
When impacting the wire you must identify with standard ANSI/TIA/EIA-568A/B
Or 568B C6 permanent link conform to ANS/EIA/TIA-568.2-1
Note:
Go together with the line originally to provide the ANSI/TIA/EIA-568 B the standard card line to mark only.
Features:
Using metal materials, strong performance, dust, moisture, anti shock.
Strong anti oxidation ability and strong transmission speed, contact stability.

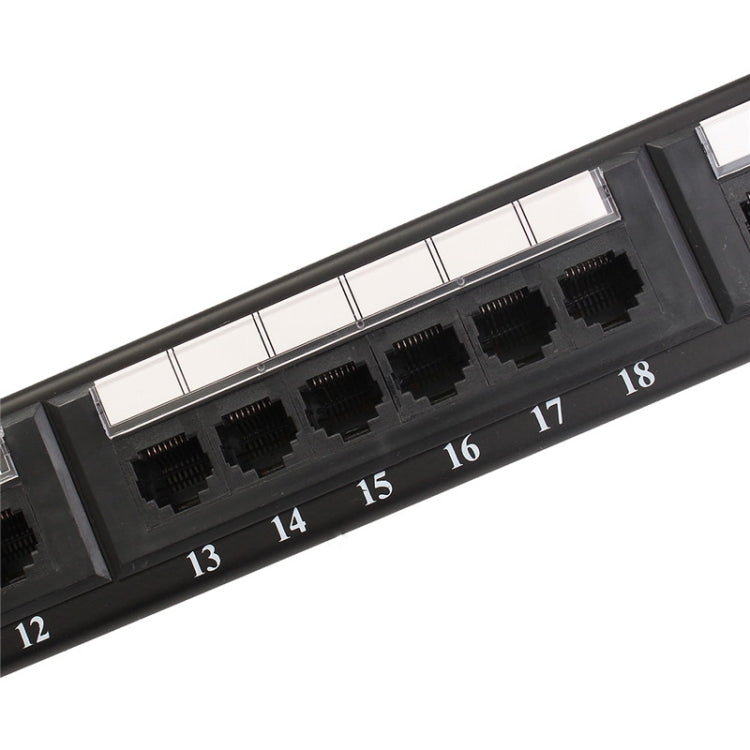

Provide labels and embedded icon design, easy to connect and manage.
Combined bracket structure, convenient installation operation and fixed cable.
Standard 19 inch structural design, can be directly installed in the standard rack or cabinet.
Wide range of use, widely used in indoor level area, indoor LAN wiring and other network construction projects.
Specifications:
Product Name: Distribution frame
Material: Cold rolled steel
Color: Black and white
Size: Approx. 483x40x32 mm/19.0"x1.57"x1.26"
Current Rating: 1.5 Amp Max.
Voltage Rating: 150 Volts
Contact Resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Housing: PC UL94V-0
IDC: PC , Accept 22-24 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Applicable Cable type: 22-28AWG
Plug Times: 800 (Times)
Port Number: 24

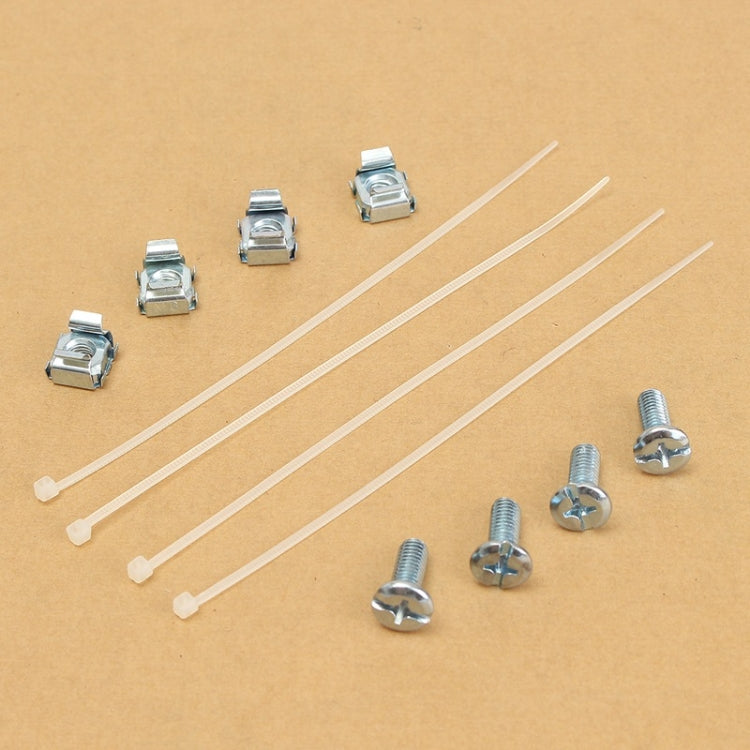

Package Include:
1x 24 Port CAT6 Distribution frame
4x Screws
4x Ties
