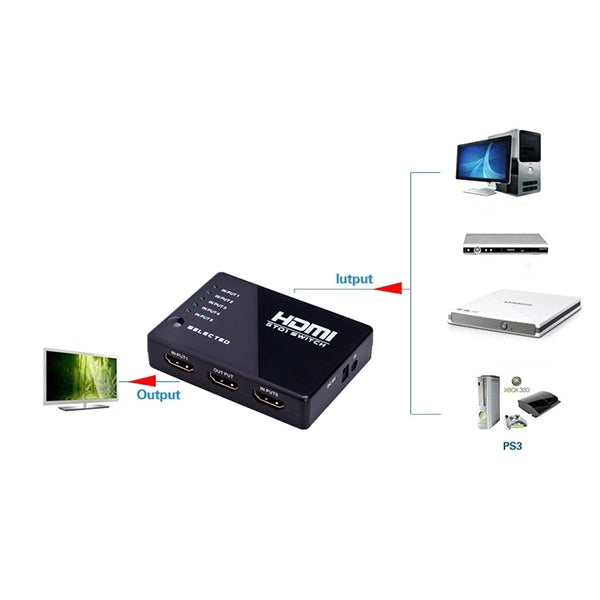

1. 5-group input 1-group output
2. Support HDMI 1.3b
3. Full HD 1080p
4. Support 12 bit Deep Color
5. High performance up to 2.5Gbps
6. Support 25 meters HDMI cable on both ends of the switcher
7. No power need (If the input equipment is standard, otherwise power needed)
8. HDCP pass-through
9. Support uncompressed audio such as LPCM
10. Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
11. Input DDC signal: 5 volts p-p (TTL); Maximum single link range: 1920 x 1080p; Output video: HDMI 1.3b
12. Vertical frequency range: 50/60Hz
13. Video amplifier bandwidth: 2.5Gbps/250MHz
14. Resolutions (HDTV): Interlaced (50/60Hz): 480i, 576i, 1080i; Progressive (50/60Hz): 480p, 576p, 720p, 1080p
15. Operating temperature: 0-70 degree C
16. Storage temperature: -10-80 degree C
17. Power consumption (max): 5W
18. Size: 80x58x18mm
