1) EP-9507N is a 150Mbps wireless devices，support 3G network access, based on the latest
2) IEEE802.11n standard, provide up to 150Mbps wireless rate, more than three times as much as ordinary 802.11g products, and is compatible with IEEE802.11b / g standard network equipment. 3) The device also provides two USB 2.0 ports, one is to support CDMA2000 (China Telecom), WCDMA (China Unicom),TD-SCDMA (China Mobile) standard for 3G card, compatible with the market all the major 3G card, and will keep updating the increase in the 3G card compatible models; another special charge function in digital products, such as the iPad, iPhone, smart phones, etc; Neither take up outlet space, the trip also eliminates the trouble of carrying a lot of chargers, reflecting a user-friendly design.
3) EP-9507N supports 3G wireless broadband access and wired broadband access (ADSL, residential broadband), it can real-time to detection the state of two broadband connections. When one of them connection broken another kind of broadband access to switch automatically, so as to achieve the two broadband access backup automatically. In addition, it support many people through wireless LAN and wired LAN to share 3G wireless broadband connectivity at the same time.
4) Support SSID hiding, wireless MAC address filtering, 64/128 bit WEP encryption and WPA-PSK/WPA2-PSK, WPA/WPA2 security to protect the wireless network will not be violated or stolen.
5) The device has a 3G router / wireless AP / wireless router functions to achieve the various modes of access to the Internet. This equipment has built-in 5000mAh high-capacity lithium battery, life time of 5 hours, also supports the computer USB power supply, so be flexible, anywhere to build a wireless network.
6) In short, EP-9507N powerful, able to adapt to a variety of wireless network applications. Appearance of small, beautiful, easy to carry, wireless Internet access for business people to achieve the ideal choice
**Specification:
1) Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b; IEEE 802.3, IEEE 802.3u
2) Wireless speed: 150Mbps

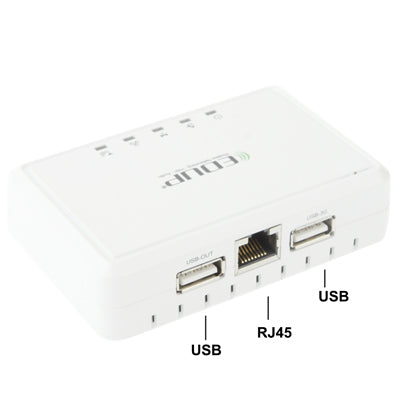

3) Interface:
-1x 10/100M Adaptive WAN / LAN port with auto-flip (Auto MDI / MDIX);
-1x USB 2.0 interface; output 5V/1A, for charging for digital products
-1x USB 2.0 interface, Used to connect to 3G dongle

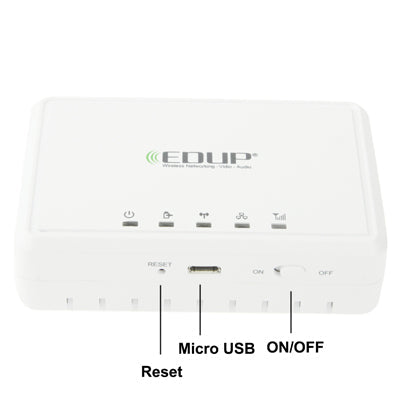

4) LED: Power indication, Battery indication, WLAN Wireless status indicator, WAN/LAN Connection instructions, 3G instructions
5) Antenna: 1T1R Built-in intelligence omnidirectional antenna
6) Battery: Built-in Li battery 5000mAh
7) Wireless Parameters: Basic functions: Wireless switch; SSID Radio switch; Channel: 1-14;
8) Frequency and Bandwidth: 20MHz, 20/40MHz
9) Wireless Mode: 11n only, 11 b/g/n mixed, 11 b/g mixed, 11g only, 11b only
10) Mode: AP Mode; Router Mode; 3G Mode
11) Wireless Security: Wireless MAC address filtering; 64/128 bit WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 encryption; WPS encryption
12) Network Settings:
-WAN port connection type: PPPoE, Dynamic IP, Static IP, 3G
-Support WCDMA, CDMA2000, TD-SCDMA
-Dial-up Type: Automatic dialing, on-demand dial, manual dial timer;
-MAC address modification and cloning;
