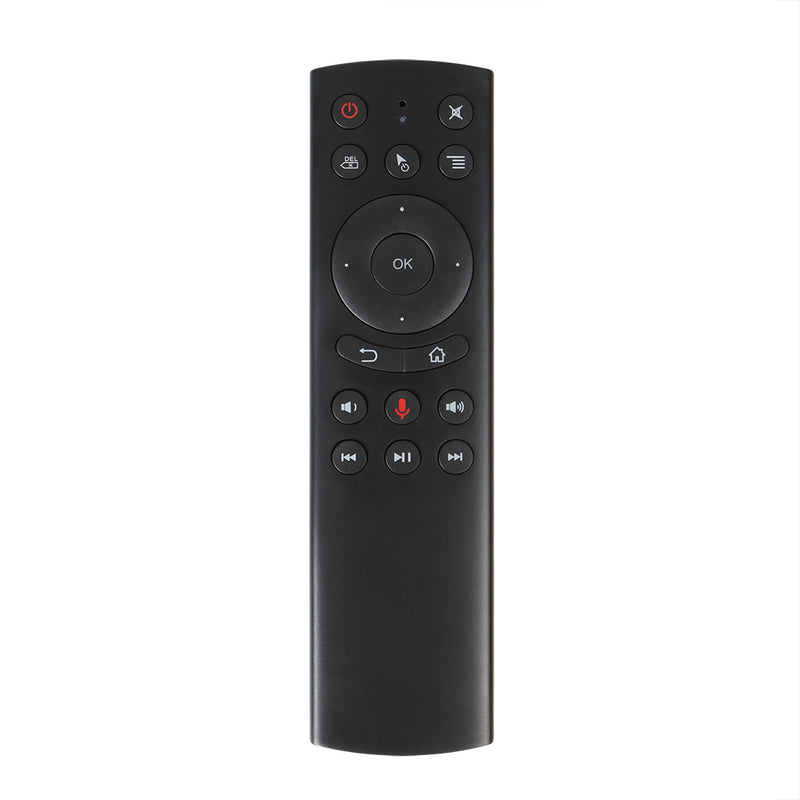

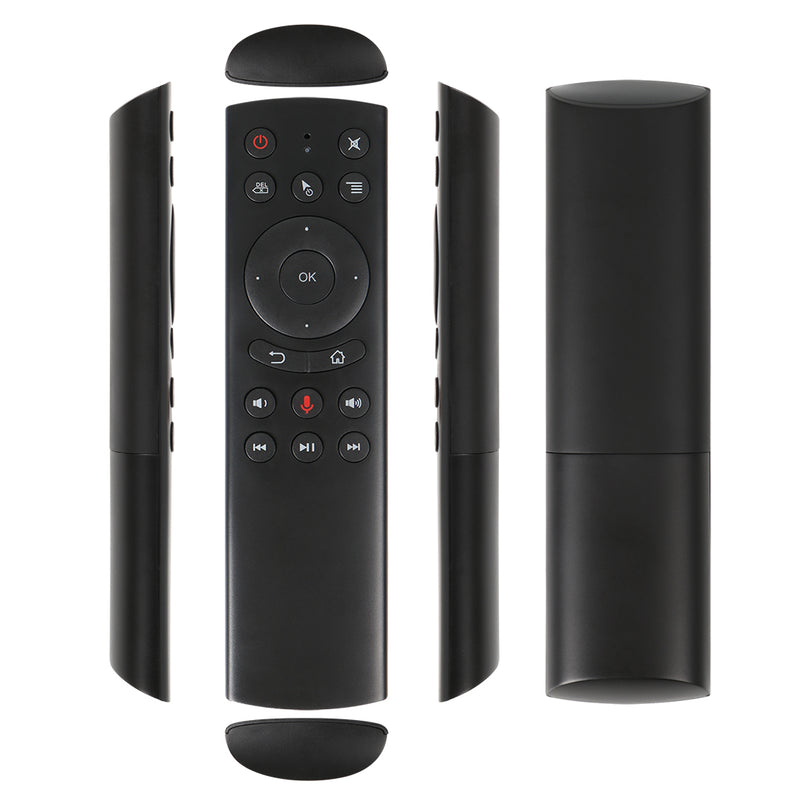

GFSK 2.4GHz WIFI Voice Remote Control Air Mouse

Product icon

IR Learning ( take the example of learning“power”button)
1. Keep pressing“Power”button.
The air mouse enters IR learning mode when the LED flashes slowly.
2. Press the“power”button when you aim the IR transmitter with air mouse.
Air mouse receives the code successfully if LED light.
3. LED flashes slowly means that Air mouse has finished learning.
4. Data will be saved automatically and the product will exit learning mode.
5. Press“OK”+ “DEL”to clean the code up.

Air Mouse has 3 levels of cursor speed.
From slow to fast:
Press and hold“ok”and“Volume +”buttons.
The speed adjusts one level when LED light on.

From fast to slow:
Press and hold“ok”and“Volume -”buttons.
The speed adjusts one level when LED light on.

Voice Switch:
Press and hold“Voice Switch”to turn on voice channel.
Release the key to turn off voice channel.

Low battery reminder:
The red light flashes slowly when the AAA battery power
of the product is lower than 2V.
It means that the battery need to be replaced at this time.



Sensor Calibration
Automatic calibration:
The changes of voltage and temperature may make the cursor drifts .
In this case, put the mouse flat on the desk and remain still.
You can complete calibration by pressing any key
to wake it up when it is in hibernation mode.

How to Use
For initial use, plug a USB receiver into the USB port of device
and wait for 20-60 seconds to install driver of USB receiver .
Move the mouse , the mouse cursor can move on
the screen means that pairing is successful.

If it is unsuccessful, press and hold“OK”and“Home”buttons, LED light
begin to flash. Pairing is successful when LED light stop flashing.

Product specifications
Transmission method: 2.4G RF wireless
Number of keys: 18
Range: >10m

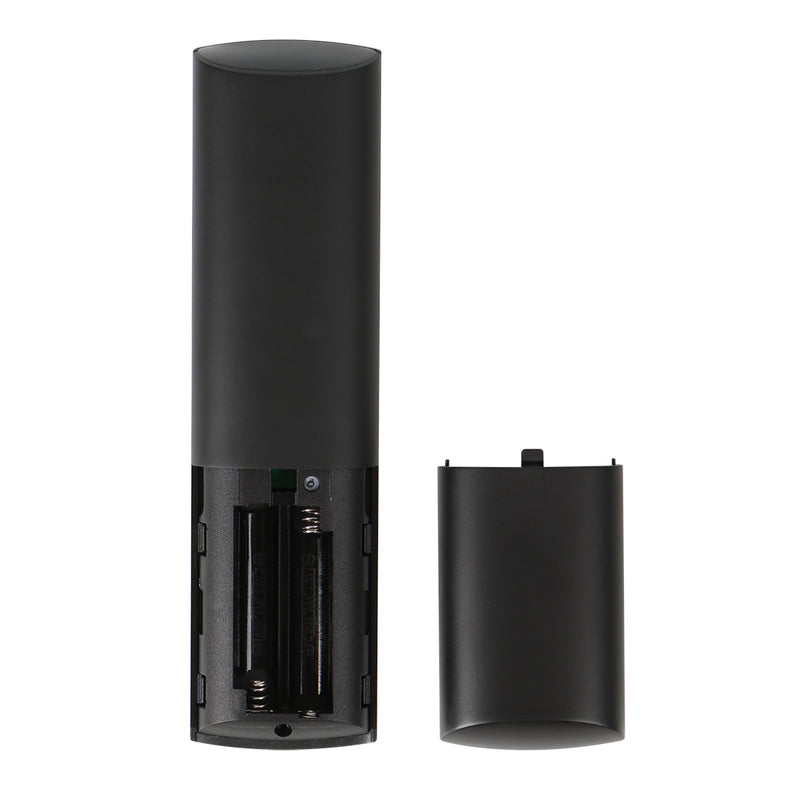

Battery Type: AAA*2
Material: ABS Plastic and silicone
Size: 160*45*20MM
Weight: 60g

Note:
1. Non-professional are prohibited to use the test mode of the product.
Under normal use, re-install the battery to restore it If red light always lighting.
2. IR Learning only for“power”key.
3. This product is divided into gyroscope version and no gyroscope version,
