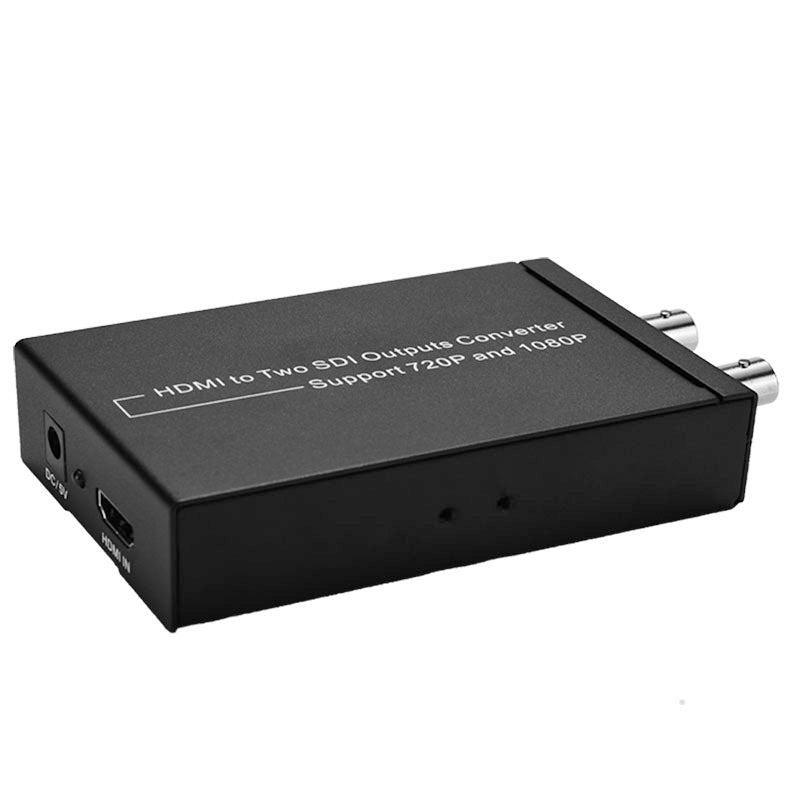

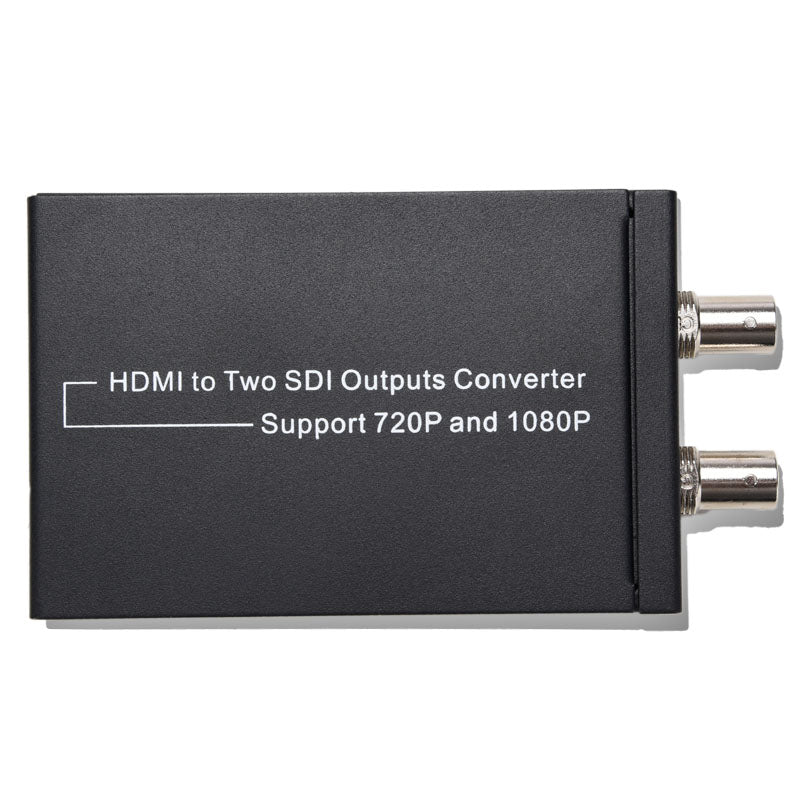

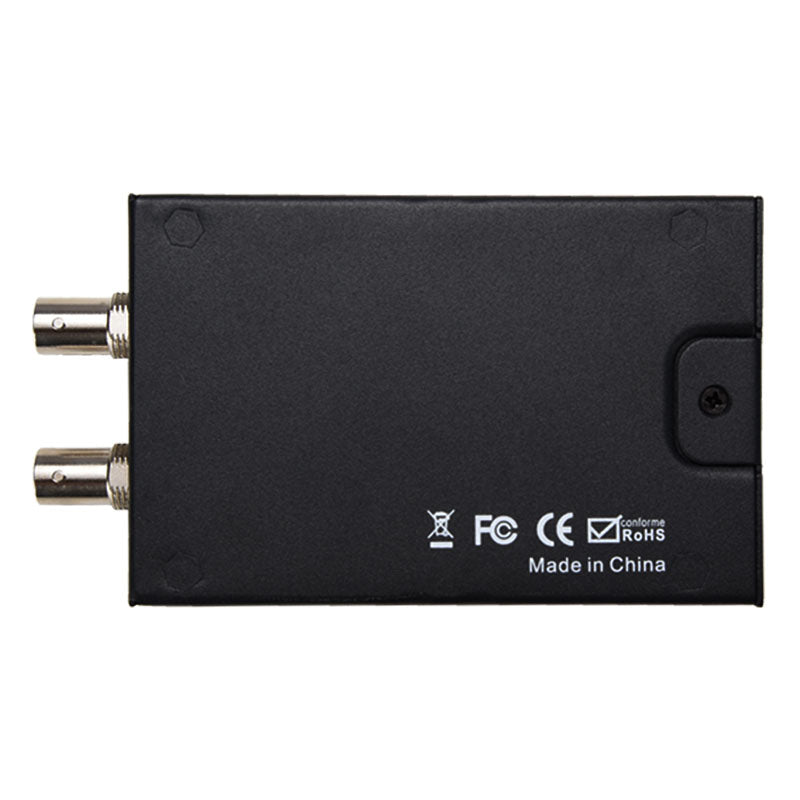

HD To Two SDI Loop HD Outputs Converter Supports 720P / 1080P

HD To Two SDI Loop HD Outputs Converter Supports 720P / 1080P

Name: HD To Two SDI Loop HD Outputs Converter Supports 720P / 1080P
Brand: Banggood
SKU: U2I-BG-1543821
Price: 10,336.00 INR
Availability: InStock

SKU: U2I-BG-1543821

Share this product

Specification:

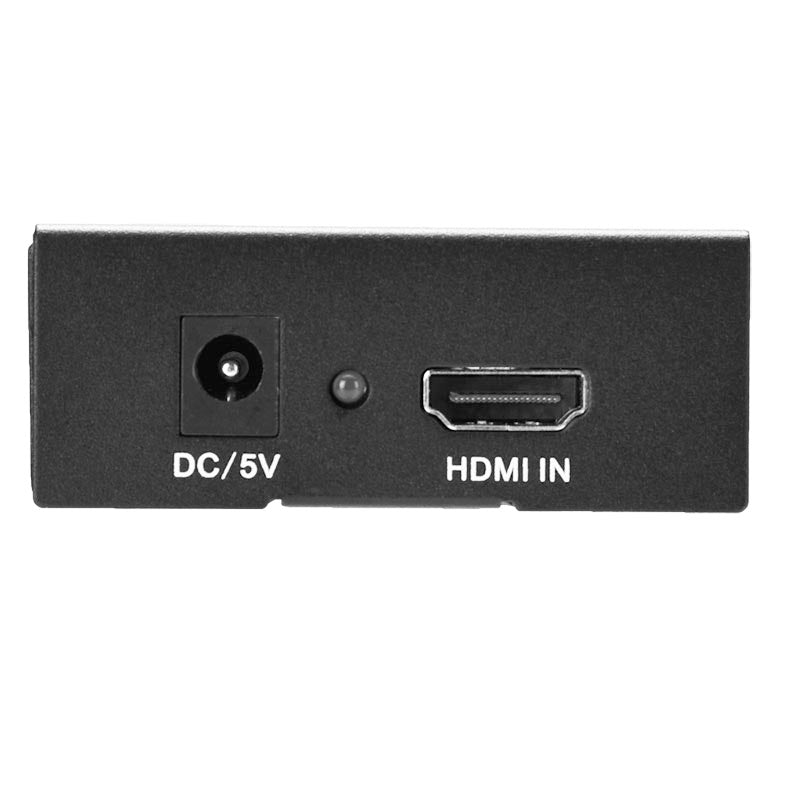

1. Input Port: 1 x HD;

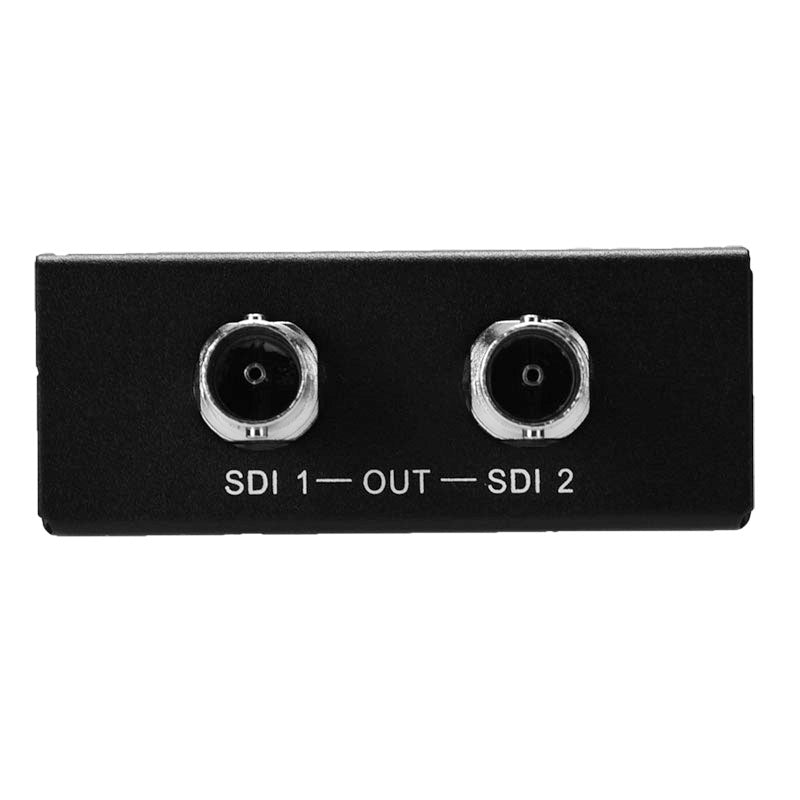

2. Output Port: 21 x BNC ( SDI / HD - SDI / 3G - SDI );
3. SDI Transmission Rates: 2.970 Gbit / s and 2.970 / 1.001 Gbit / s;
4. In / Output Resolution: 720p@50/60 , 1080i@50/60, 1080p@50/60;
5. Power Supply: DC 5V ;
6. ESD Protection Human body model: ±8kV ( air-gap discharge ) , ±4kV ( contact discharge );
7. Dimension: 100mm x 65mm x 25 mm;
8. Weight: 210g;
9. Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F;
10. Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F;
11. Elative Humidity: 20 ~ 90% RH (Non-condensing);
12. Power Consumption (Max): 5W;

Features:

1. Shows HD source on SDI display.;
2. SDI interface operates at bitrates of 2.970 Gbit/s, 1.485 Gbit/s, and 270 Mb/s.
3. Supports hdmi input timings:720p@50/60,1080i@50/60,1080p@50/60.
4. Converts HD signal to SDI:
480i / 576i to SD-SDI ( SMPTE 259M-C, at bitrates of 270 Mbit / s);
720p / 1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s);
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s);
5. Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI).

Package:

1 × HD to Two SDI Converter
1 × 5V 1A DC Power Supply Adaptor
