1. Material: ABS
2. Line length: 70cm
3. Support power management
4. Signal-to-noise ratio: ≥90dB
5. Distortion: ≤0.1%
6. Support system: no limit
7. Working current: 600mA

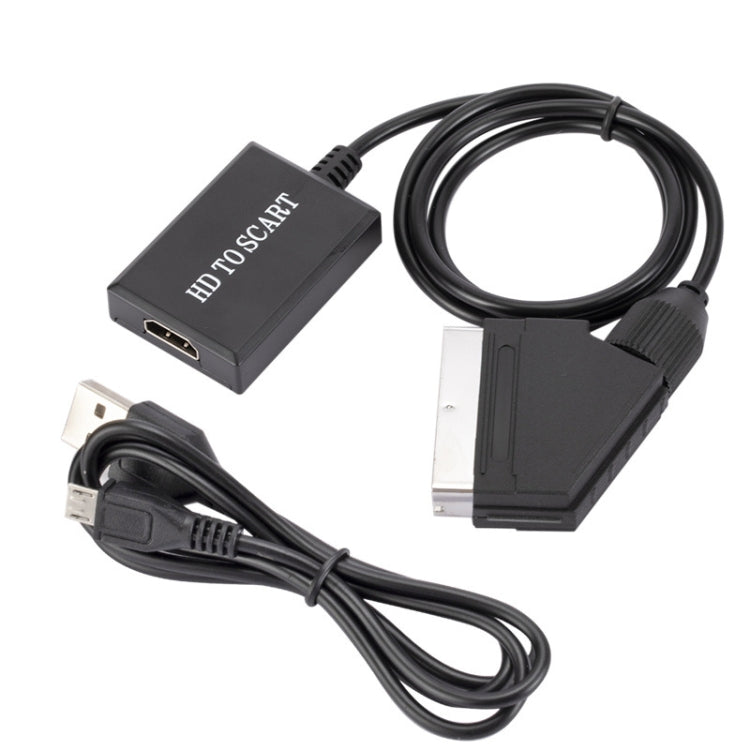

8. Packing list: host + USB cable
9. Frequency response: 20HZ~20KHz

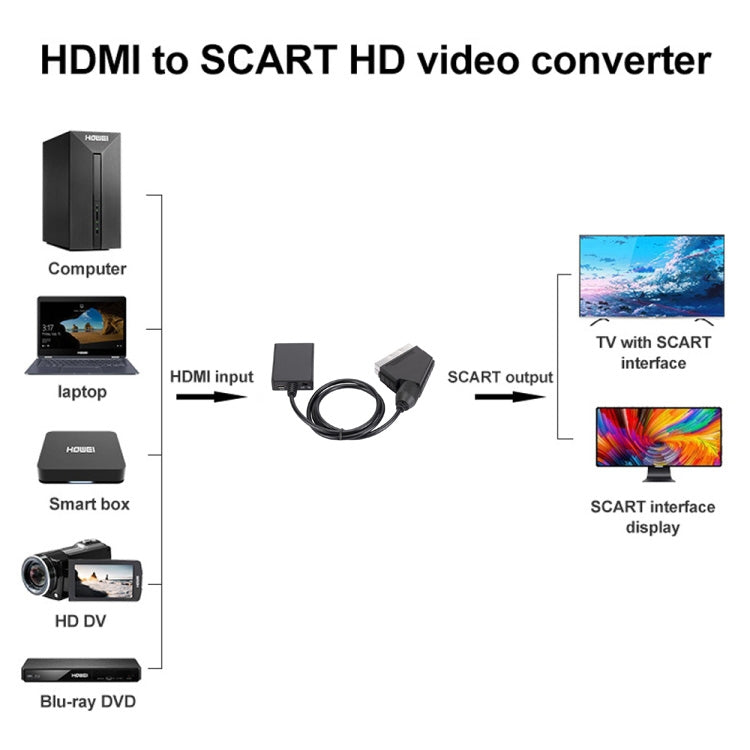

10. Input: HDMI, output: SCART

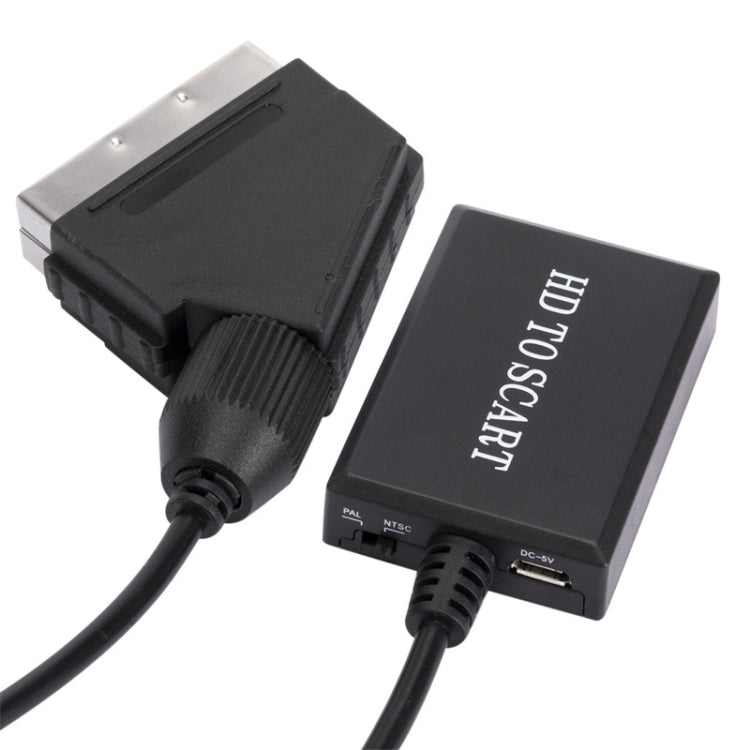

11. Resolution: PAL/NTSC switch
12. Input and output DDC signal: 5Vp-p (TTL)
13. HDMI input and output resolution: support 1.3/60fs
14. RCA analog output (1KHz@0dB): 1V RMS
15. Input and output TMDS signal: 0.5~1.5Vp-p(TTL)
16. HDMI supports video color format: 24bit/Deep 30bit/36bit
17. HDMI input cable length: ≤7m AWG26 HDMI standard cable
18. SCART output cable length: ≤8m AWG26 SCART standard line
19. Power adapter specifications: AC 100V-240V 50/60HZ, DC 5V/1A
20. Working temperature: 10~+55 degrees Celsius, storage temperature: 20~+60 degrees Celsius
21. Working humidity: 10~90%RH (non-condensing), storage humidity: 5~95%RH (non-condensing)
22. Unit weight: 57g
