English Blue Axis 500
Russian Blue Axis 300
Russian Red Axis 200
FN+F1= multimedia player
FN+F2= Volume Decrease
FN+F3= Volume Increase
FN+F4= mute
FN+F5= playback stopped
FN+F6= previous song
FN+F7= Play/Pause
FN+F8= next song
FN+F9= Mail
FN+F10= home page
FM+F11= My Computer
FN+F12= computer
Features:
Product size: 435*129*39MM
Service life: 50 million times
Operating current: ≥300mA
Connection method: USB cable
Number of keys: 104 keys, two-color key cap
System support: Win98/XP/2000/ME/Vista/7/8/10
Macro function description:
Start macro mode: press FN+ record combination key, backlight enters macro light mode, enter for the first time, 1~5 key lights flash to indicate, 1~5 can save 5 groups of macro keys, indicating that no macro has been recorded.
Favorite group selection and recording:
Press any key of 1~5, select one group, and enter the macro recording state. Press the key to record, and the pressed key lamp will tail off. Until the pressed key reaches the current macro maximum (64), the macro light mode will be automatically saved and exited, or the FN+ recording key combination key can be pressed in advance, or the macro light mode can be saved and exited.
Press the keys (1~5) of the recorded macro, and when the macro mode is turned on again, the recorded macro group will always be on, indicating that the key macro already exists in the group.
Macro playback:
Under the condition of pin Win, if 1~5 macro keys have not recorded a macro, then play 1~5 keys; if a macro has been made, then play the corresponding saved macro group.
Macro Clear: Reset to clear the macro
Package Included:

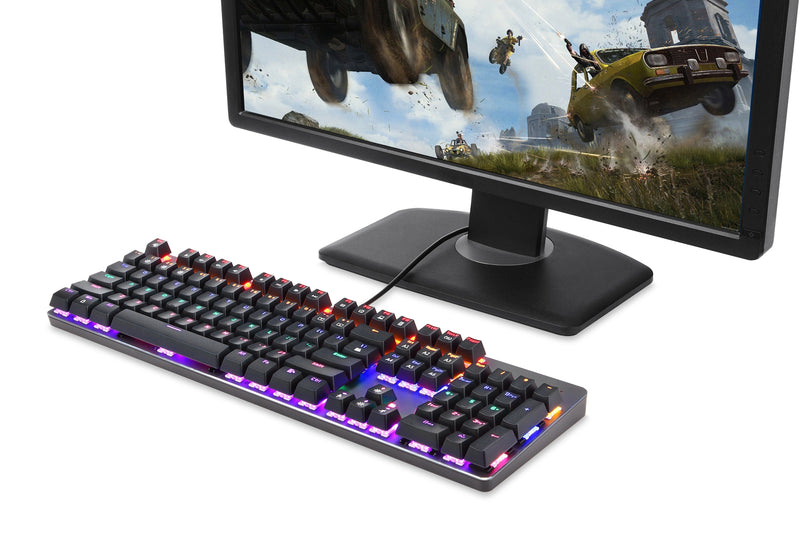

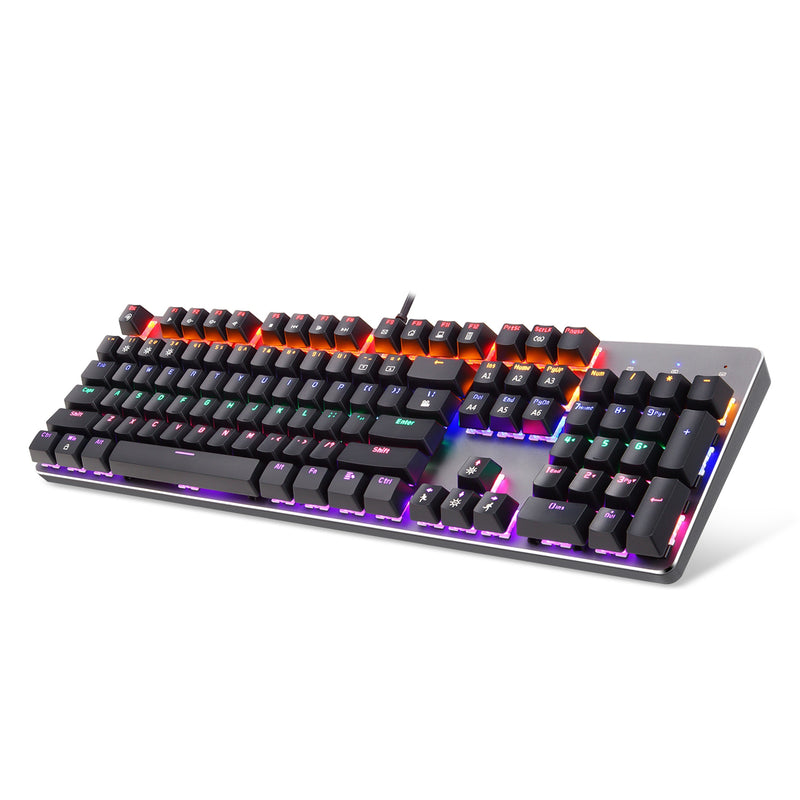

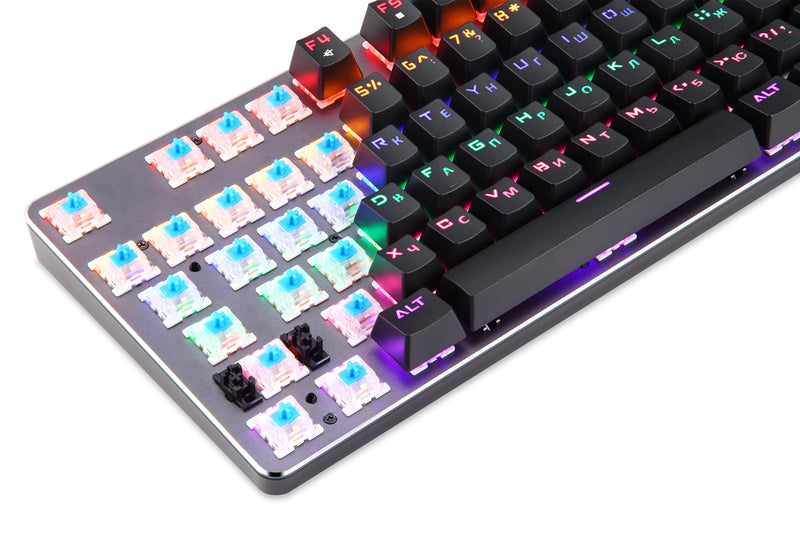

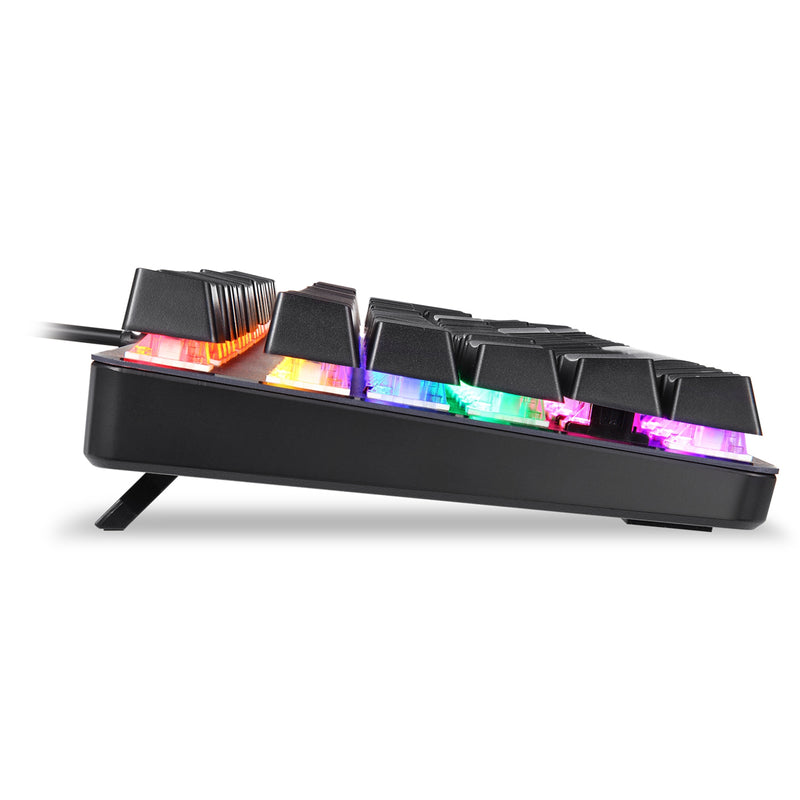

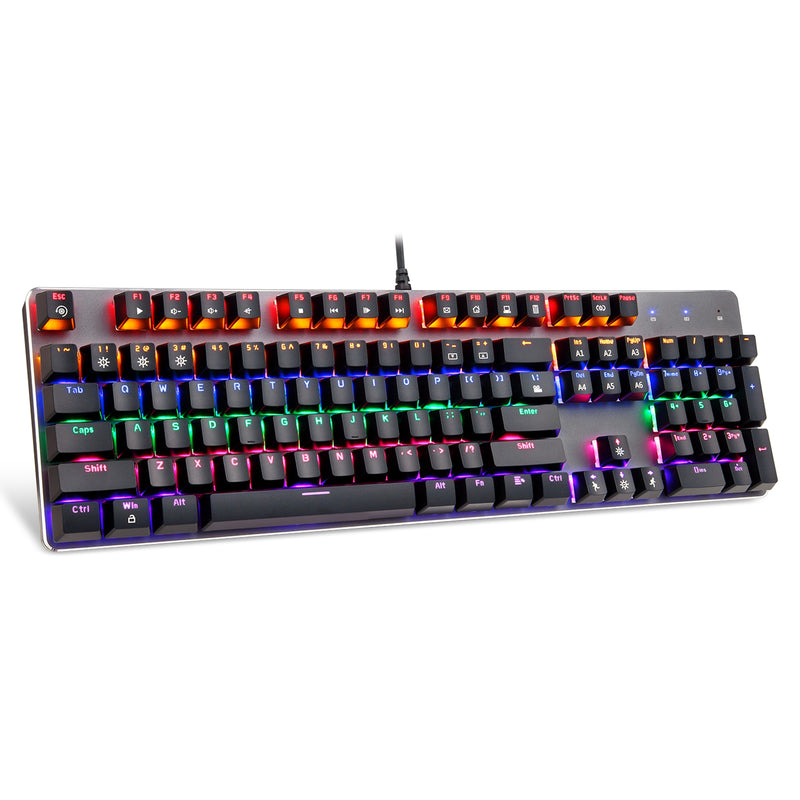

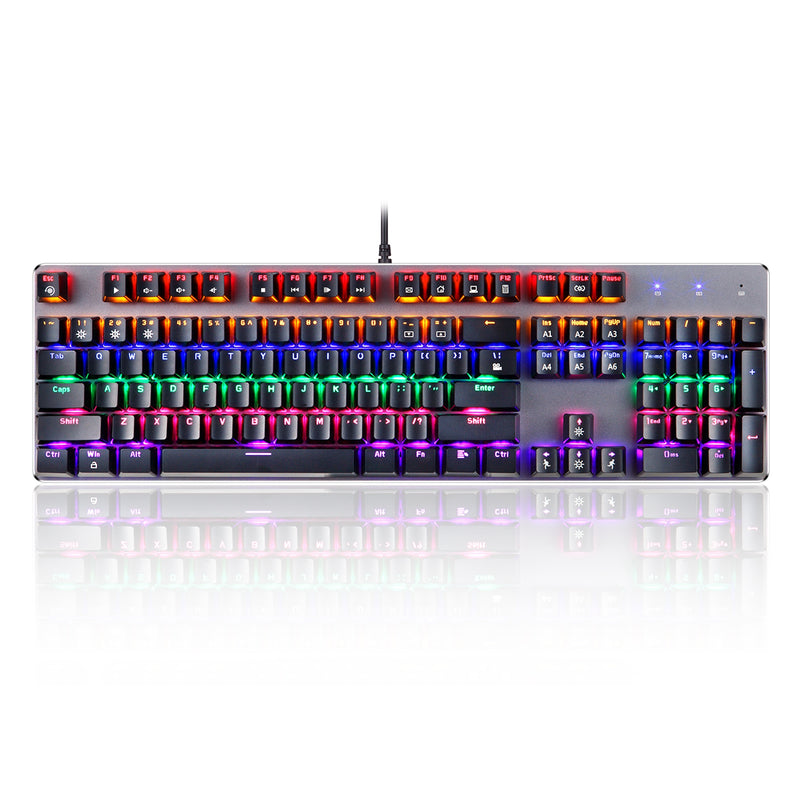

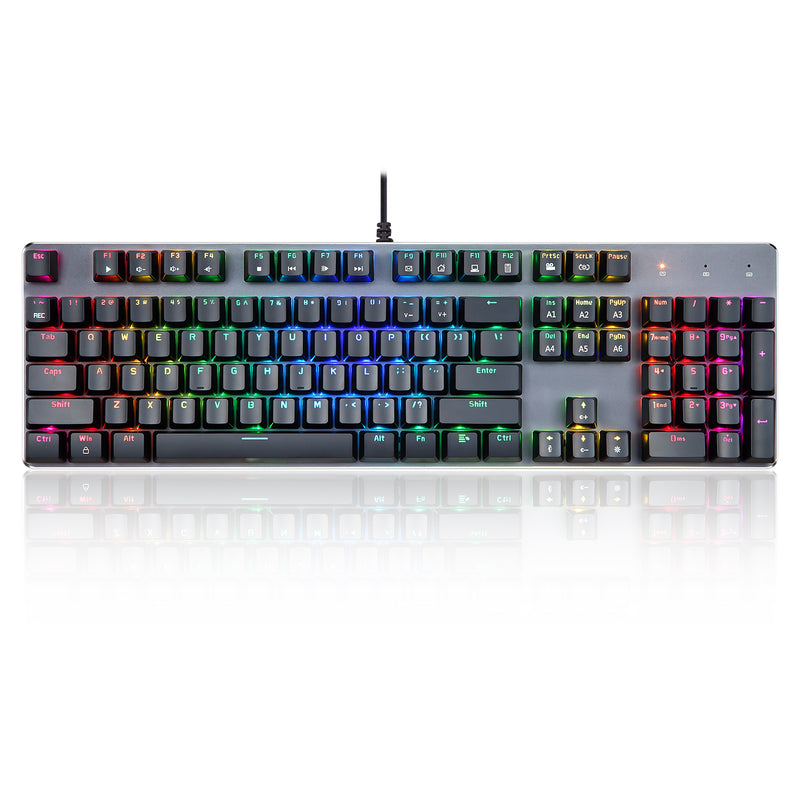

1 * Motospeed K73 104 Keys Mixed Light Mechanical Keyboard with RGB Custom Light
