Features:

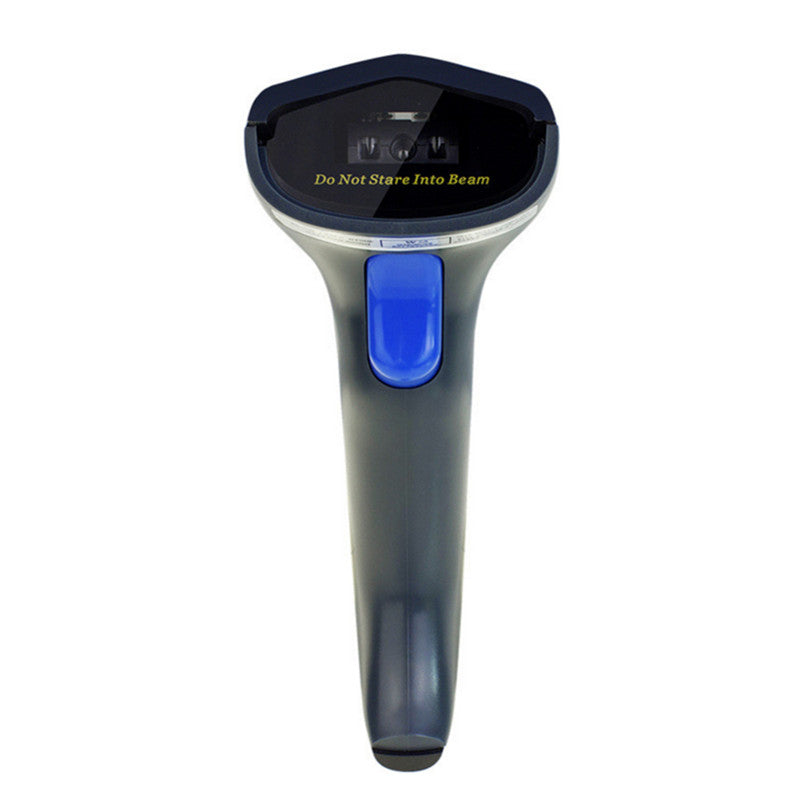

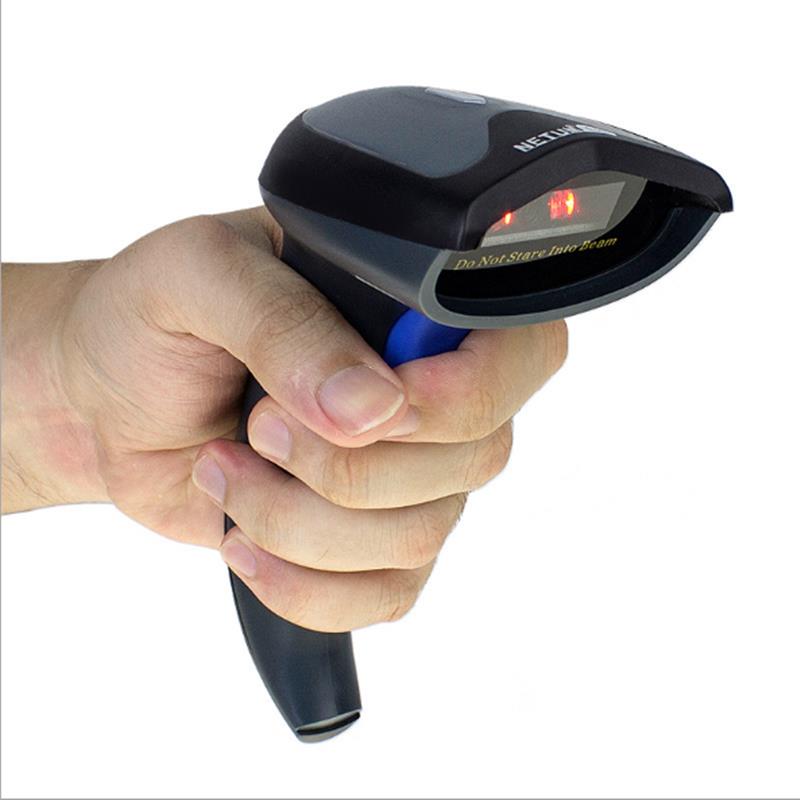

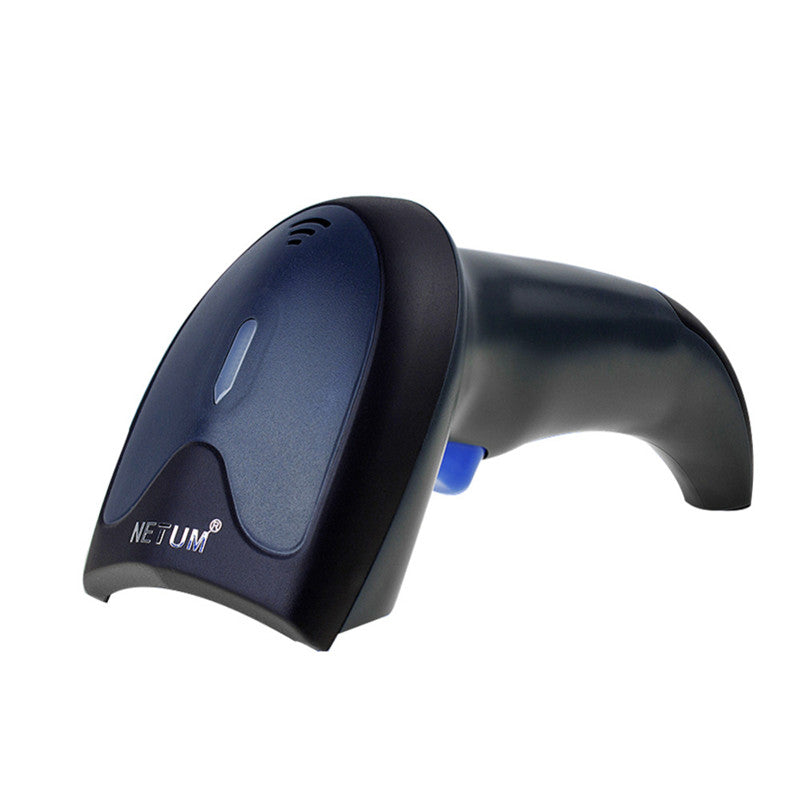

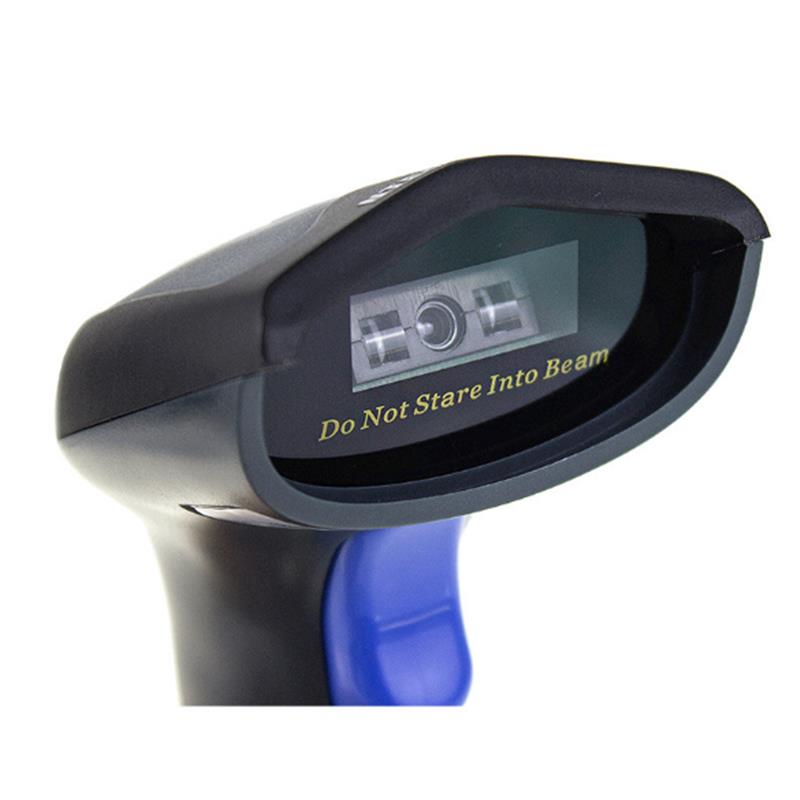

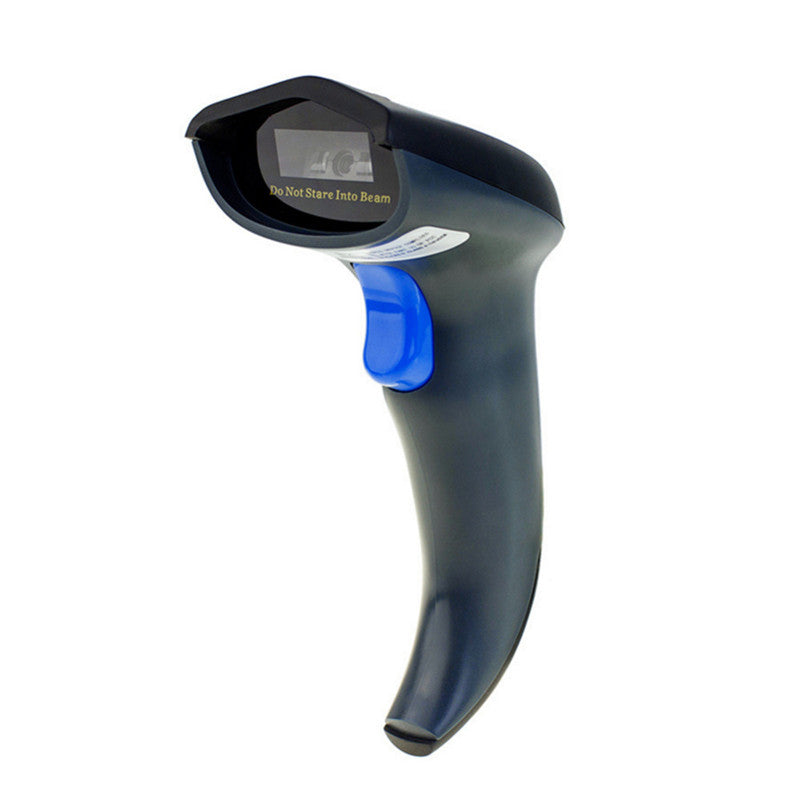

Supports 2.4G CCD wired red light one-dimensional bar code scanning.
It can scan the screen bar code and stained code. Furthermore, it is of high endurance, shatterproof and shockproof.
All these code scanning-CCD bar code scanning, Alipay payment, and WeChat payment, can be handled by one scanner.
Specification:
| Read the code pattern |
CCD |
| The light source type |
LED (630NM) |
| Light source |
265 LUX (130nm) |
| Scanning mode |
Image type scanning |
| Accuracy |
≥5mil |
| The printing contrast |
≥30% |
| the highest power |
1.33W |
| working voltage |
(3.3V~4.2V)±5% |
| maximum current |
350mA |
| transmission mode |
cable transmission |
| profound Angle |
34 ° 46 ° V x H level (vertical) |
| scan Angle |
360°, ±65°, ±60° |
| scanning performance (scanning depth of field) |
(1mil=0.0254mm)
EAN13(13mil) 70mm-270mm
Code39(6mil) 55mm-140mm
Code39(31mil) 200mm -300mm
Code39(17mil) 80mm - 290mm
QR Code(15mil) 30mm - 165mm
|
| Decoding ability |
1D Codabar,Codablock A,Codablock F,Code 11 Code32;Code 39,Code 93,Code 128,EAN-13 & EAN-8,Full ASCII Code39,GS1 Data Bar,Industrial 2 of 5,Interleaved 2 of 5,ISBN / ISSN,Matrix 2 of 5,MSI / Plessey,UPC-A/ UPC-E |
| prompt |
buzzer, LED lights |
| scanning mode |
handheld button trigger scanning |
| scanning speed |
200/s |
| support interface |
USB interface |
Package included:1 * wired scanner
1 * data cable
1 * receiver
1 * user manual
