Features:

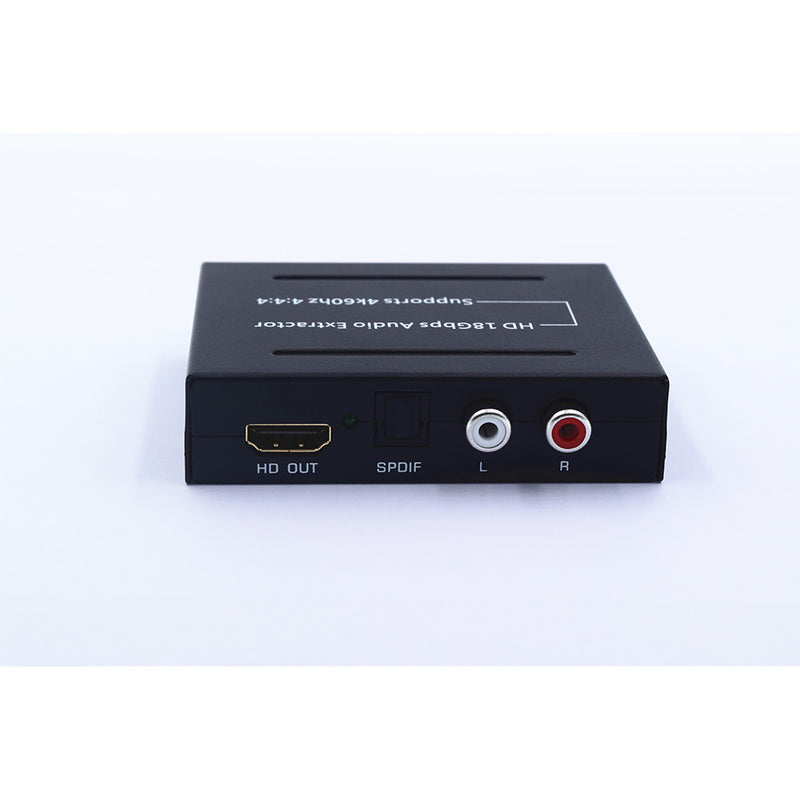

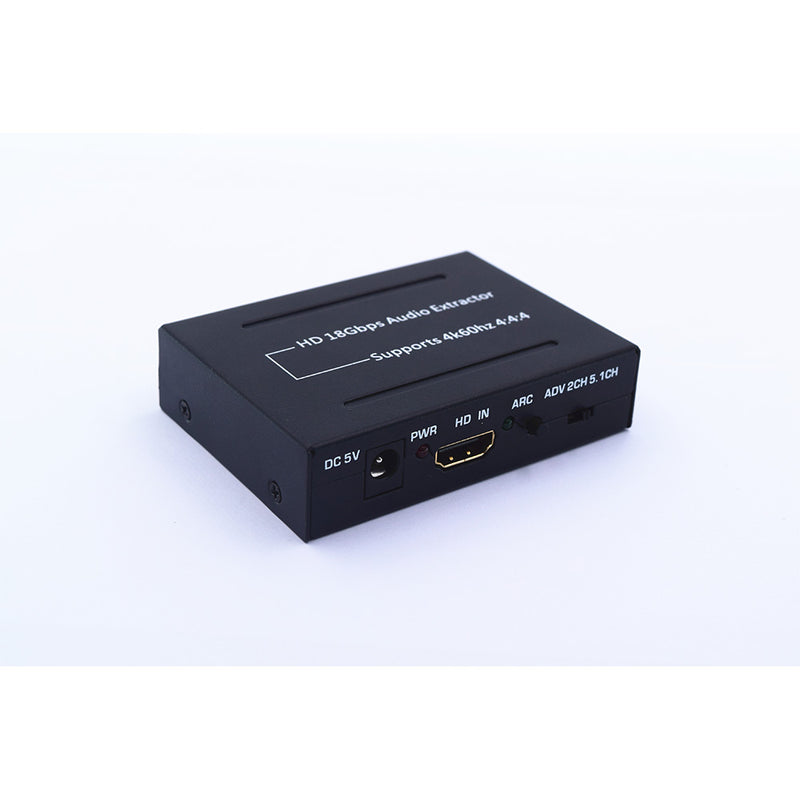

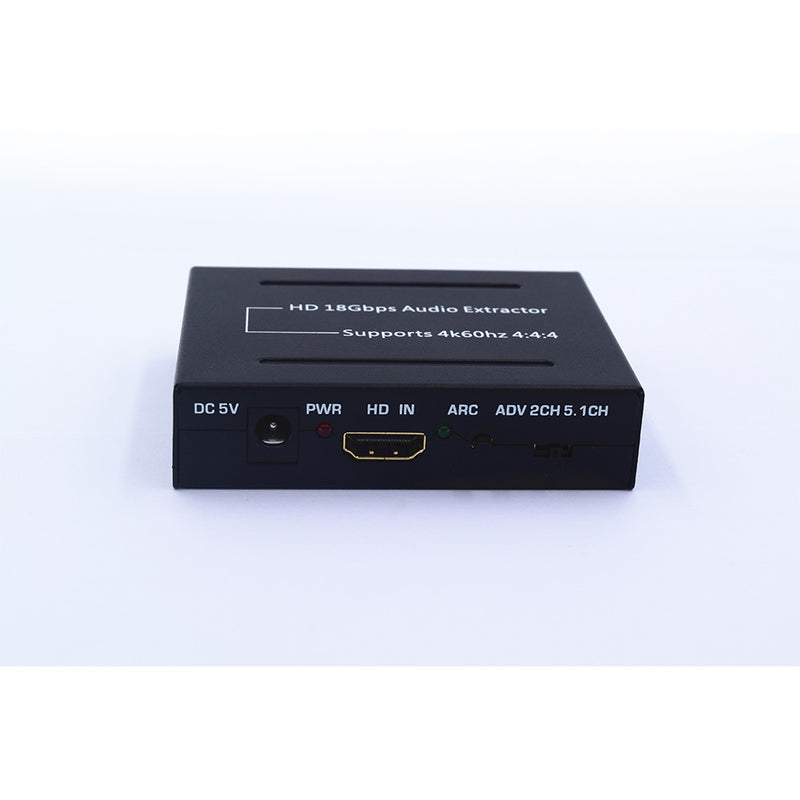

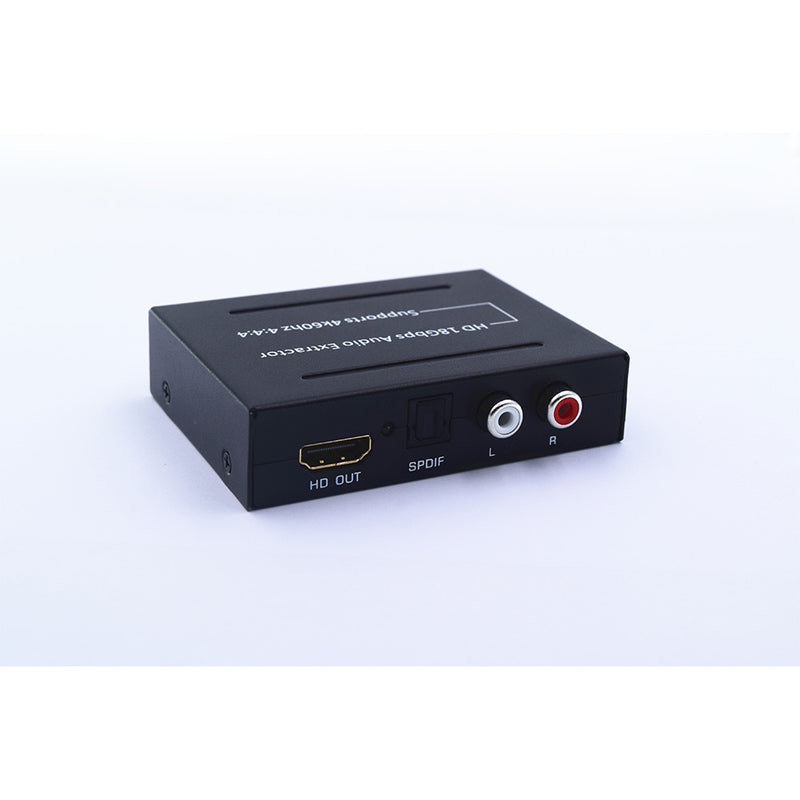

One HDMI input converter to one HDMI+ One SPDF+ One LR Audio Out
Output audio support: SPDIF+R/L analog Audio Output
Support Full HD 1080P, Full 3D,4K60HZ,HDCP2.2 resolution
Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receive the audio and video content.
HDMI working in dual mode, can reduce the number of ports
HDMI to achieve the synchronization of audio signal separation. There are ADV /
2.0CH / 5.1CH three kinds of audio mode options
LED indication: when source or sink is working, LED relative to is light.
No loss of quality
Installs in minutes
Need DC5V/1A power supply
Specification:
HDMI resolution: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support video color format: 24bit/deep color 30bit,36bit
Audio output: L/R+SPDIF
Max bandwidth: 300MHz
Max baud rate: 9.0Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: ≤15m AWG26 HDMI standard cable
Output cable distance: ≤20m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-10 to +55℃)
Storage Temperature range: -20 to +60℃
Operating Humidity range: 10 to 90%RH (No Condensation)
Storage Humidity range: 5 to 95%RH (No Condensation)
Dimension (L x W x H): 84.5X61.8X21 (mm)
Weight: 135g
Package includes:
1 x Audio Extractor
