About The Product

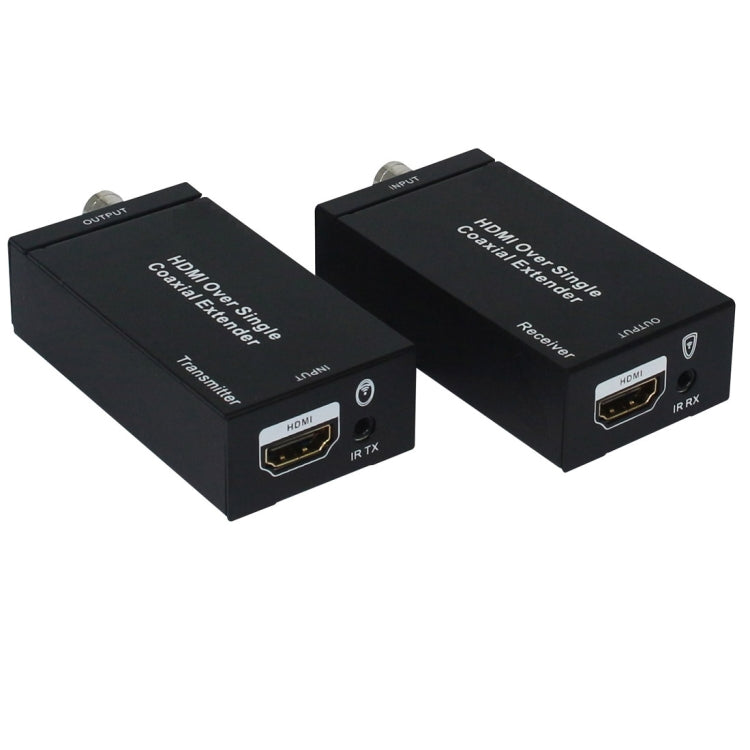

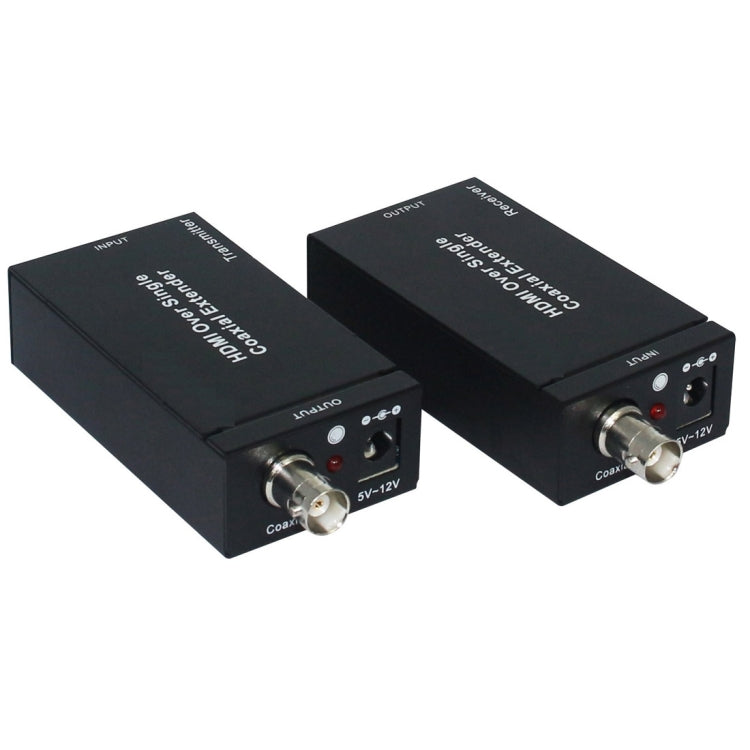

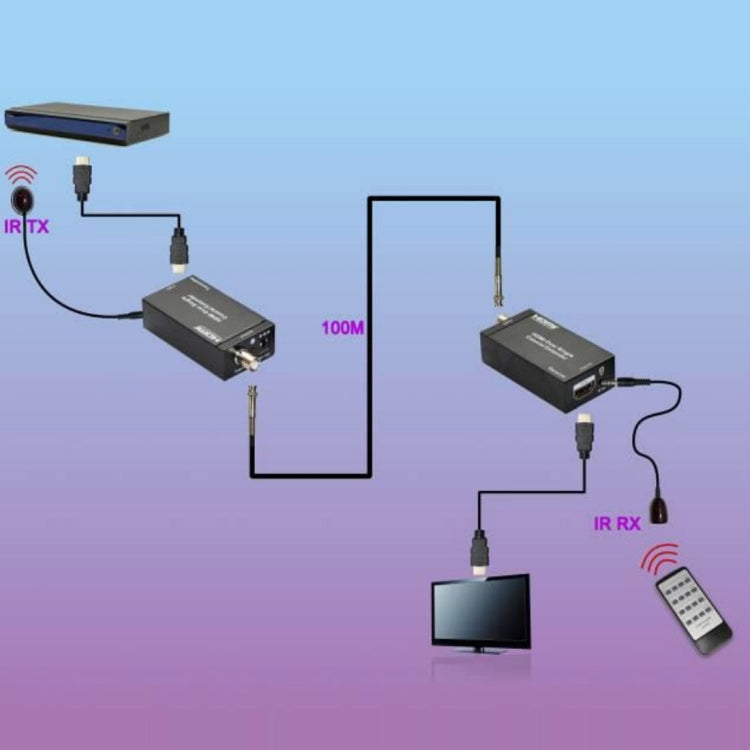

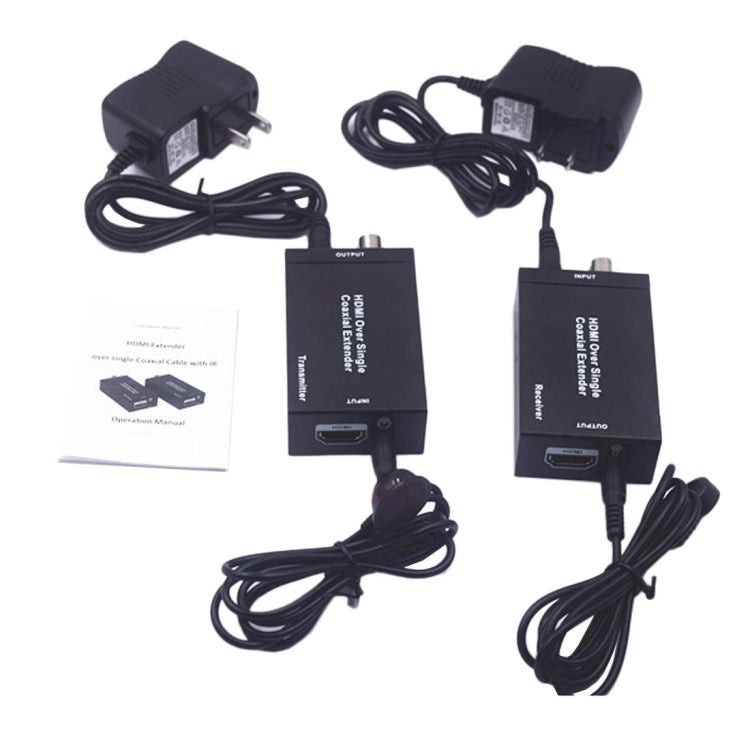

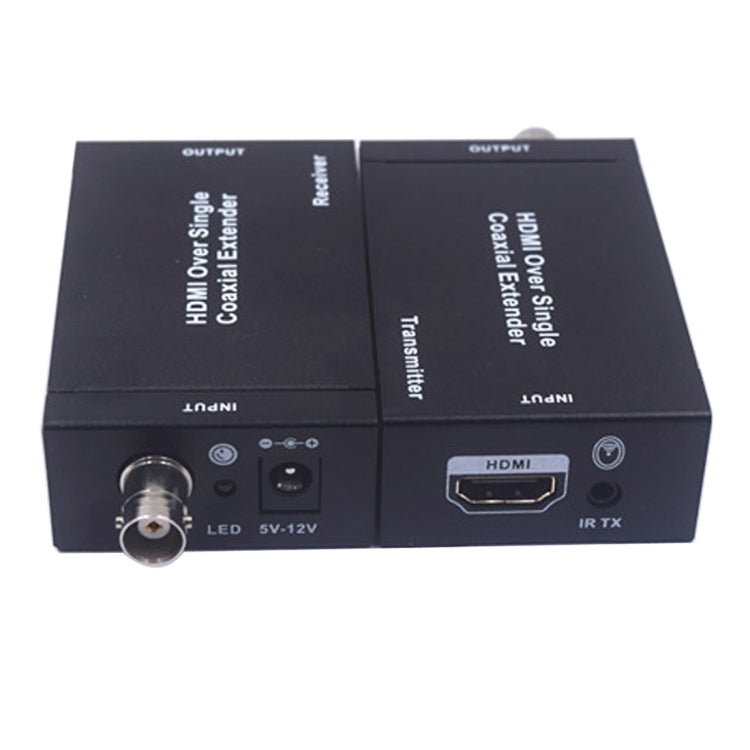

The HDMI Over Single Coax Extender sends HDMI signals Over just one 75Ohm Coaxial cable -- up to100m away. The HDMI Over Single Coax Extender supports HDMI 1.3 and HDCP 1.1 with features such as Deep Color and 1080p.By using standard and widely available 75Ohm RG-6U cables, the HDMI Over Single Coax Extender makes HDMI signal extensions to be easier than heavy and expensive copper cable and more robust than optical fiber. The Extender includes two units: transmitter and receiver. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one coaxial cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. The Extender offers the most convenient solution for HDMI extension over a single coaxial cable with long distance capability, and is the perfect solution for any application.
Features
1. Flexible extension of high-bandwidth HDMI 1.3 thanks to the performance and reliability of 75Ohm RG-6U Coax cable.
2. Audio and video are transmitted digitally over the 75Ohm RG-6U Coax cable with zero signal loss.
3. Single Link Range: 1080p/60, 12 bit color depth.
4. Compliant with HDMI 1.3, HDCP 1.1 standards.
5. Support digital video formats in Deep Color Mode at up to 12bits/color.
6. Support PCM 48KHz audio.
7. Support Cascade function in Transmitter and Receiver and it is easy to build a network system by installer.
8. Lip-Sync Pass Through.

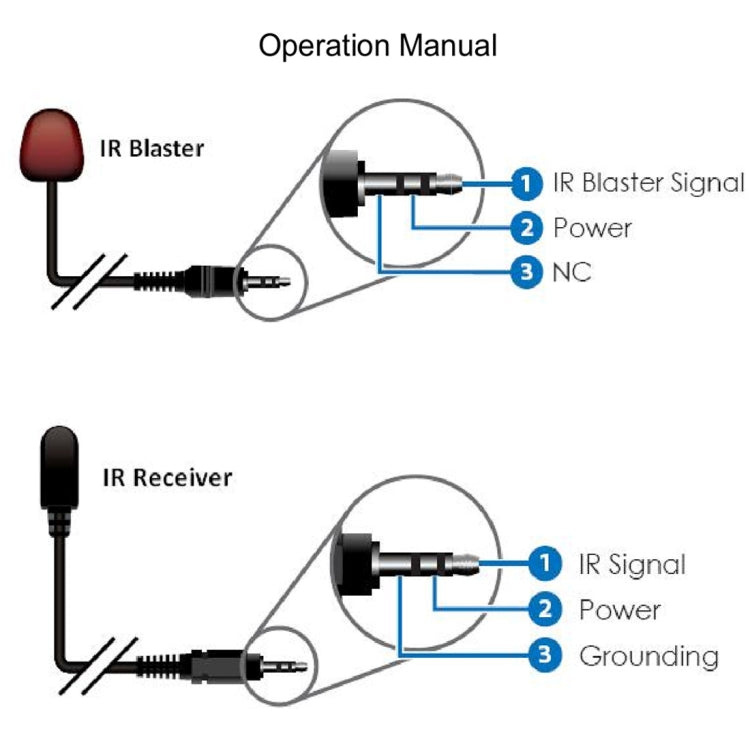

9. Bi-directional IR system allowing for control of source or display (IR accessories included).
