Features

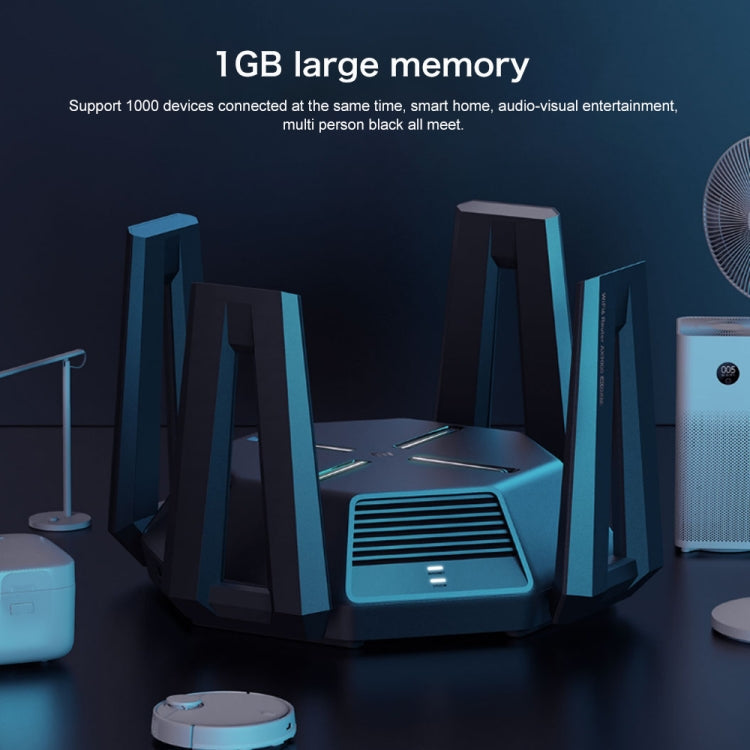

1. 1GB large memory
2. Three-frequency concurrent, no mutual interference
3. Game exclusive frequency band, ultra-low latency
4. 160MHz high bandwidth
5. 4K QAM high-speed transmission
6. Multi-device parallel and efficient transmission
7. Qualcomm 6-core flagship chip

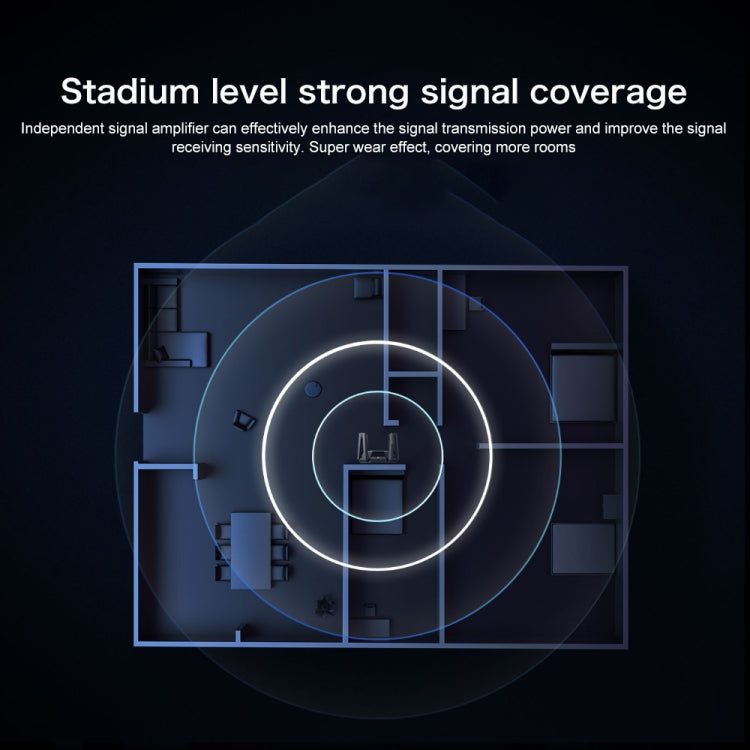

8. 12 independent signal amplifiers

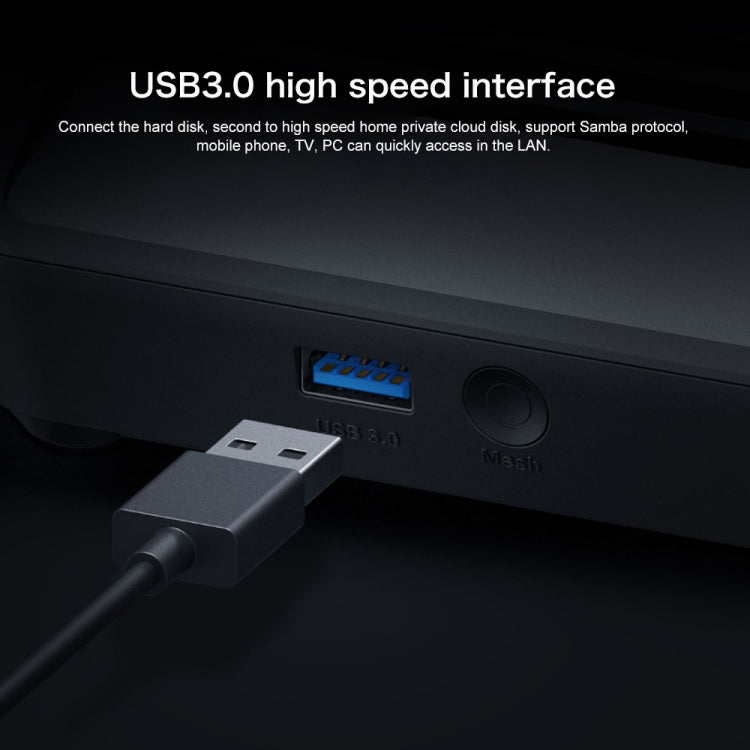

9. USB3.0 high-speed interface
10. WiFi6 Mesh hybrid networking. Supports networking with other models of Xiaomi WiFi6 routers, up to 10 units, and no blind spots in the whole house.

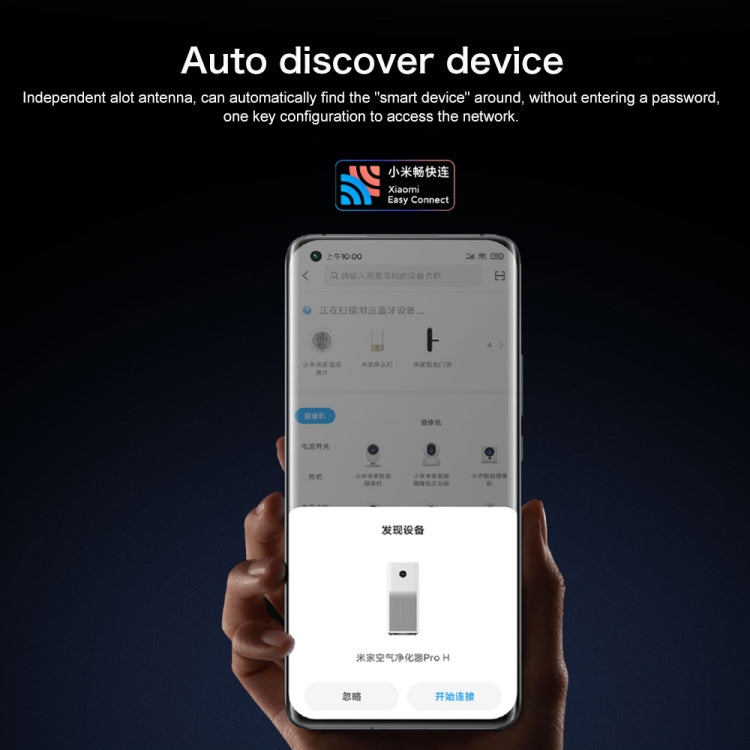

11. Automatic device discovery, one-click network configuration
12. Can connect 1000 devices
Specification
1. Processor: Qualcomm IPQ8072 4-core A53 2.2GHz CPU
2. Network acceleration engine: Dual-core 1.7GHz NPU
3. RAM: 1GB
4. 2.4G Wi-Fi: 4x4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 1148Mbps)
5. 5.2G Wi-Fi: 4x4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate can reach 4804Mbps)
6. 5.8G Wi-Fi: 4x4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate can reach 2402Mbps)

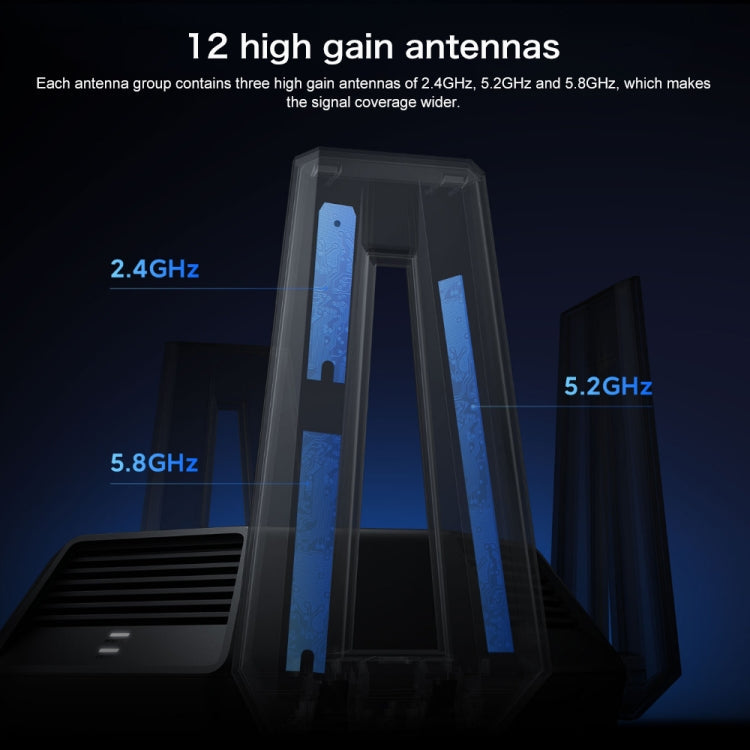

7. Product Antenna: External high gain antenna + external AIoT antenna
8. Product heat dissipation: Active cooling
9. Whole machine interface:
1 10/100/1000/2500M adaptive WAN/LAN port (Auto MDI/MDIX)
1 10/100/1000M adaptive WAN/LAN port (Auto MDI/MDIX)
3 10/100/1000M adaptive LAN Port (Auto MDI/MDIX)
10. LED indicator:
8 (SYSTEM indicator x 1
INTERNET indicator x 1
network port x 5
atmosphere light x 1)
11. Router button:
System reset button: 1 piece
USB3.0 interface: 1 piece
Mesh networking button: 1 piece
Power button: 1 piece
Power input interface: 1 piece
12. Protocol standard: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
13. Tri-band: 2.4GHz, 5.2GHz and 5.8GHz
14. Wireless channel:
2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5.2GHz Channel: 36,40,44,48,52,56,60,64
5.8GHz Channel: 149,153,157,161,165
15. Modulation:
11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)11a/g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM.Tookfun
Rate set: MCS0~MCS1511ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCS0~MCS11 (support 4 streams). 4096QAM.
Rate set: MCS12~MCS13 (support 2 streams)
16. Operating system:
MiWiFi ROM, a smart router operating system deeply customized based on OpenWRT
17. Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
wireless access control (black and white list), SSID hidden
18. Management application: Support Web, Android, iOS
19. Workingenvironment:
Working temperature: 0-40 degree Celsius
Working humidity: 10%-90%RH (non-condensing)
storage temperature: -40-70 degree Celsius
Storage humidity: 5%-90%RH (non-condensing)
20. Product acessories:
Manual x 1 piece
cable x 1
Product Power x 1 (12V/4A)
